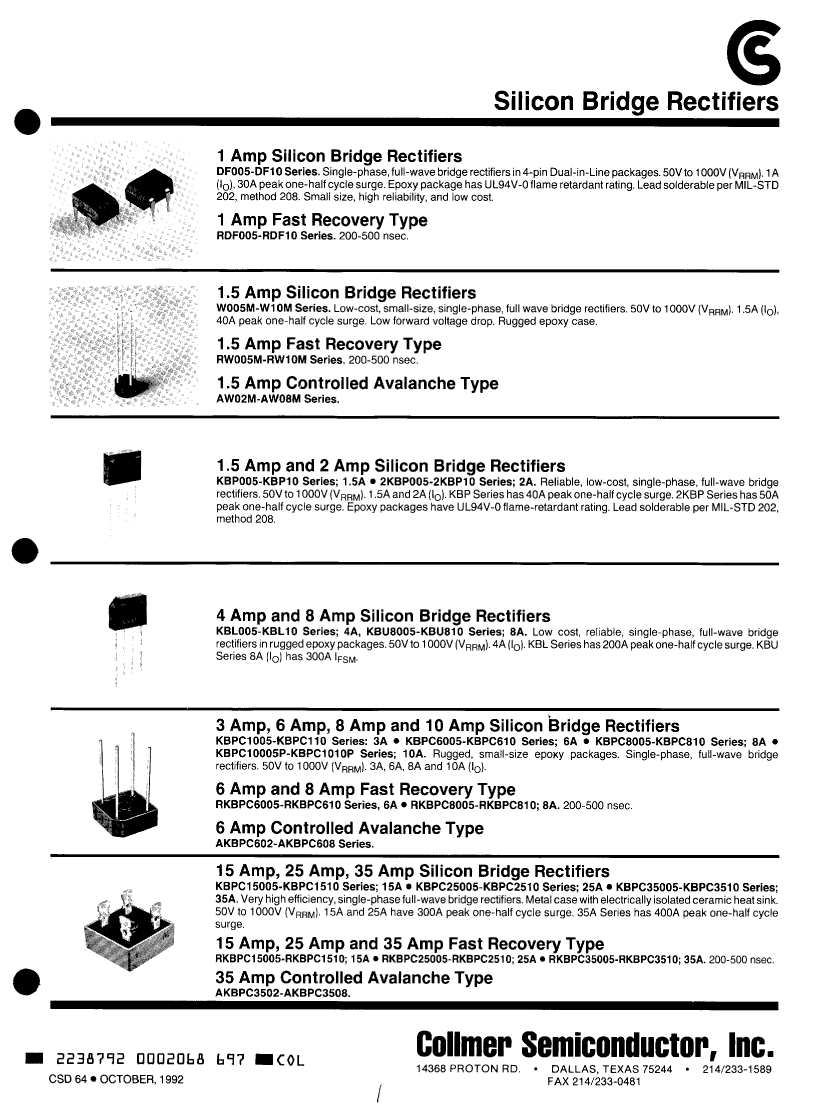

KBPC110 Overview

Bridge Rectifier Diode, 3A, 1000V V(RRM),

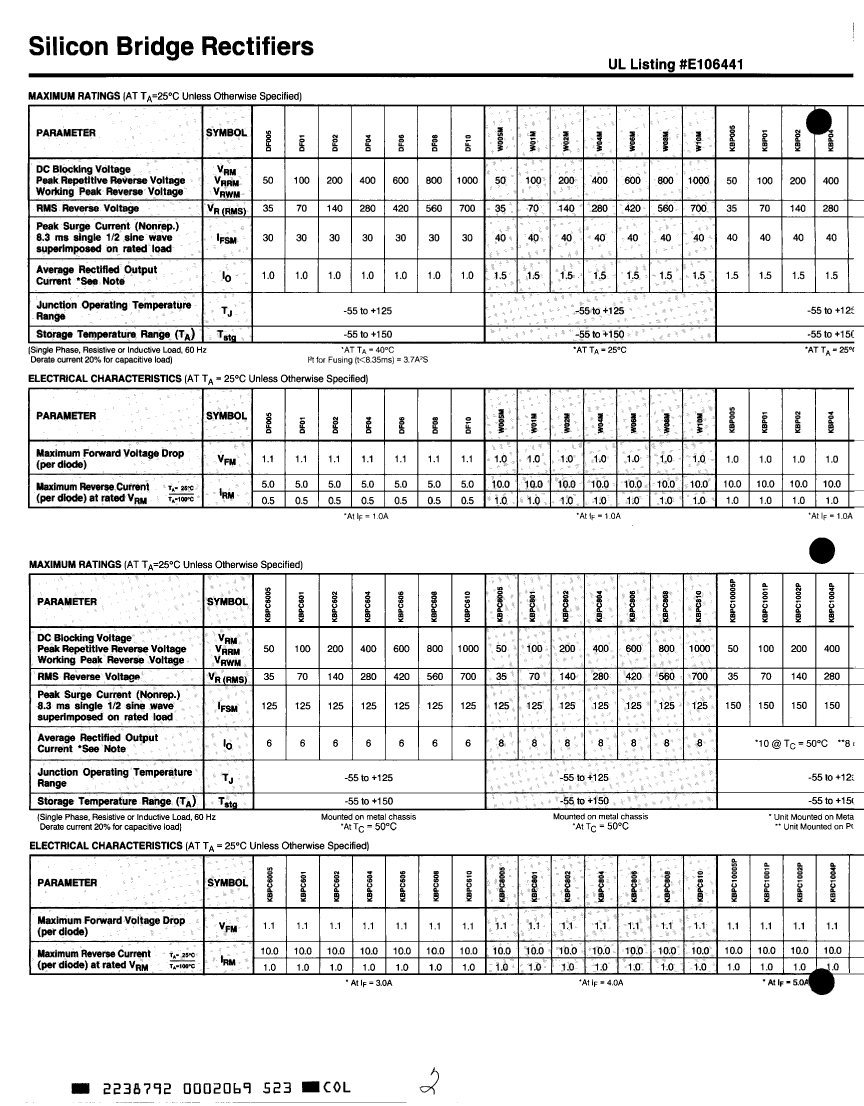

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fuji Electric Co., Ltd.
Reach Compliance Code	unknown
Configuration	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-609 code	e0
Maximum non-repetitive peak forward current	50 A
Number of components	4
Maximum operating temperature	150 °C
Maximum output current	3 A
Maximum repetitive peak reverse voltage	1000 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)

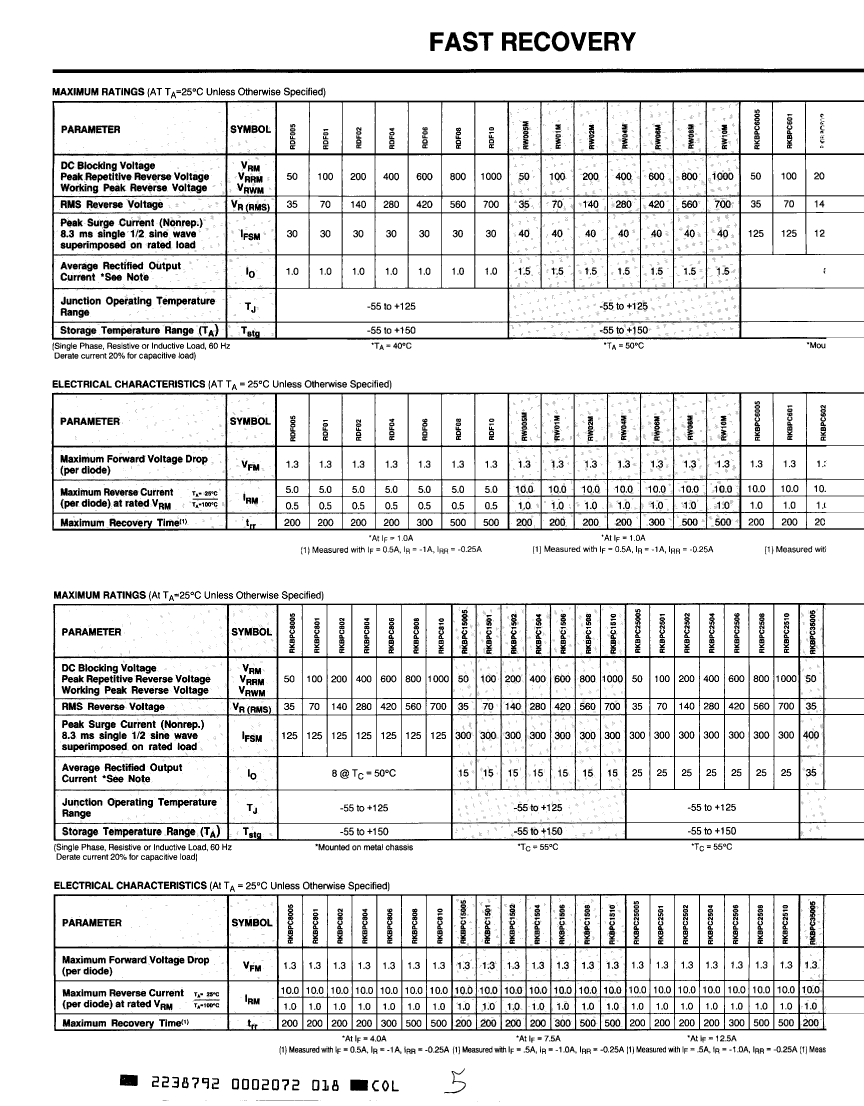

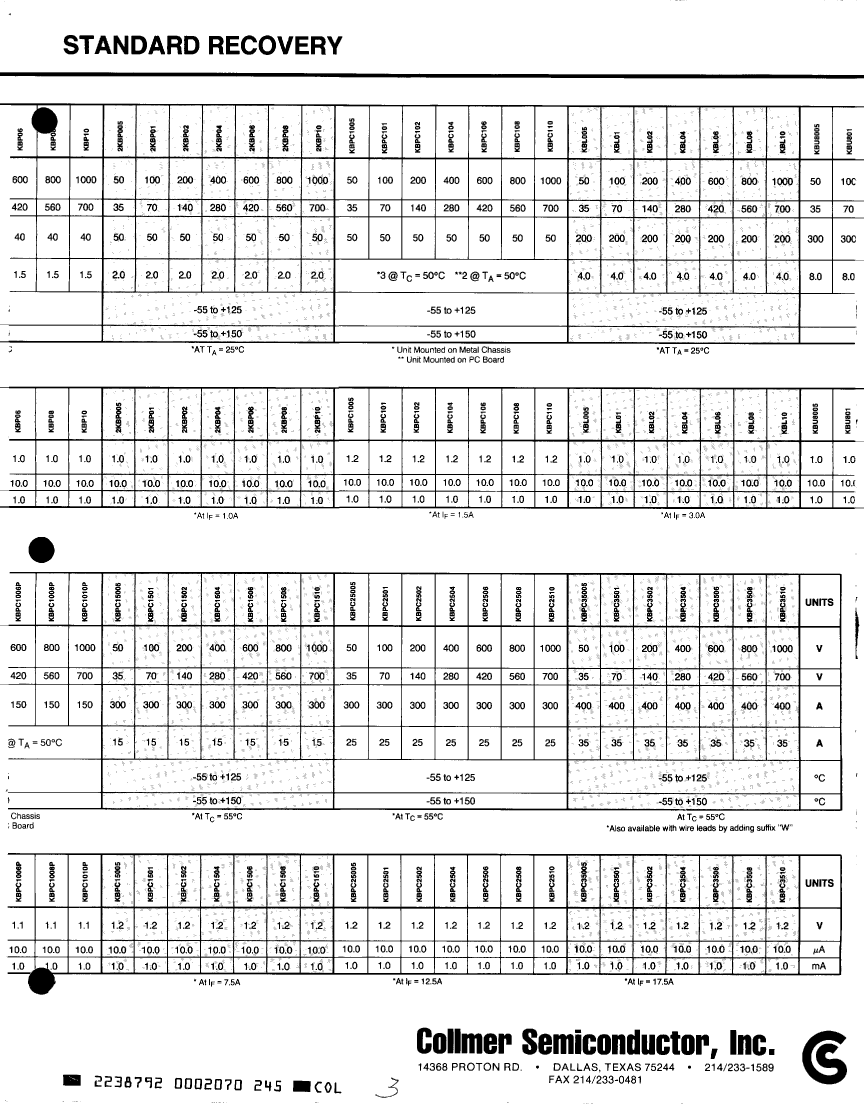

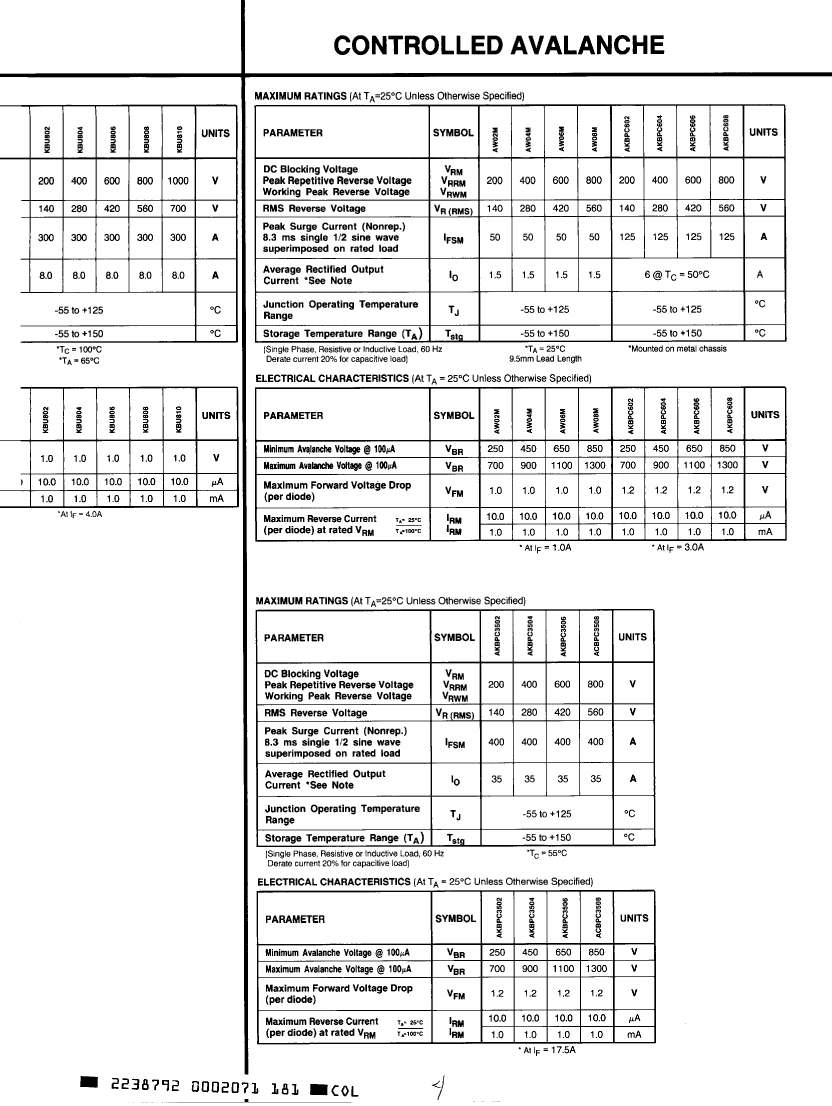

	KBPC110	KBPC101	KBPC104	KBPC106
Description	Bridge Rectifier Diode, 3A, 1000V V(RRM),	Bridge Rectifier Diode, 3A, 100V V(RRM),	Bridge Rectifier Diode, 3A, 400V V(RRM),	Bridge Rectifier Diode, 3A, 600V V(RRM),
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.2 V	1.1 V	1.1 V
JESD-609 code	e0	e0	e0	e0
Maximum non-repetitive peak forward current	50 A	50 A	50 A	50 A
Number of components	4	4	4	4
Maximum operating temperature	150 °C	125 °C	150 °C	150 °C
Maximum output current	3 A	3 A	3 A	3 A
Maximum repetitive peak reverse voltage	1000 V	100 V	400 V	600 V
surface mount	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maker	Fuji Electric Co., Ltd.	Fuji Electric Co., Ltd.	-	Fuji Electric Co., Ltd.
