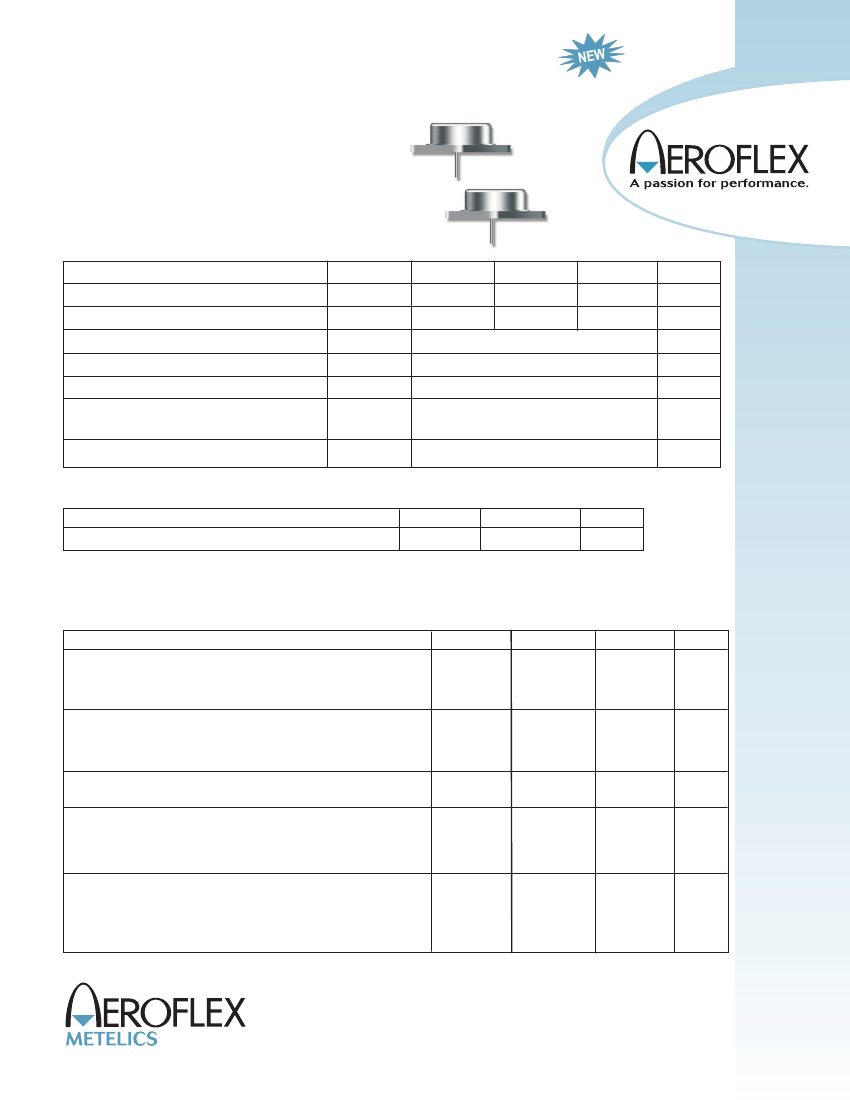

NPN High Power Silicon Transistors
2N6249, 2N6250, 2N6251
Features
•
•
Available in JAN, JANTX, and JANTXV
per MIL-PRF-19500/371
TO-3 (TO-204AA) Package
Maximum Ratings
Ratings
Collector - Emitter Voltage
Collector - Base Voltage
Emitter - Base Voltage
Collector Current
Base Current
Total Power Dissipation
@ TA = +25 °C (1)
@ TA = +25 °C (2)
Symbol
VCEO
VCBO
VEBO
IC
IB
PT
TOP, Tstg
2N6249
200
300
2N6250
275
375
6.0
10
5.0
6.0
175
-65 to +200
2N6251
350
450
Units
Vdc
Vdc
Vdc
Adc
Adc
W
W
°C
Operating & Storage Temperature Range
Thermal Characteristics
Characteristics
Thermal Resistance, Junction-to-Case
1) Derate linearly @ 34.2 mW/°C for TA > +25°C
2) Derate linearly @ 1.0 mW/°C for TC > +75°C
Symbol
R
θJC
Maximum
1.25
Units
°C/W
Electrical Characteristics
OFF Characteristics
Collector-Emitter Breakdown Voltage
IC = 20 mAdc, L = 42 mH, f = 30-60 GHz
(See Figure 10 of MIL-PRF-19500/510)
Collector-Emitter Breakdown Voltage
IC = 200 mAdc, L = 14 mH, f = 30-60 GHz
(See Figure 10 of MIL-PRF-19500/510)
Emitter-Base Cutoff Current
VEB = 6.0 Vdc
2N6249
2N6250
2N6251
2N6249
2N6250
2N6251
Symbol
I(BR)CEO
Mimimum
---
Maximum
200
275
350
225
300
375
100
Units
Vdc
I(BR)CER
---
Vdc
IEBO
2N6249
2N6250
2N6251
---
μAdc
Collector-Emitter Cutoff Current
VCE = 150 Vdc
VCE = 225 Vdc
VCE = 225 Vdc
Collector-Emitter Cutoff Current
VCE = 225 Vdc, VBE = -1.5 Vdc
VCE = 300 Vdc, VBE = -1.5 Vdc
VCE = 375 Vdc, VBE = -1.5 Vdc
ICEO
---
1.0
mAdc
2N6249
2N6250
2N6251
ICEX
---
100
μAdc
Revision Date: 8/5/2012
1
2N6249 & 2N6250
Electrical Characteristics -con’t
OFF Characteristics (con’t)
Collector-Base Cutoff Current
VCE = 300 Vdc
VCE = 325 Vdc
VCE = 450 Vdc
ON Characteristics (2)
Forward Current Transfer Ratio
IC = 10 Adc, VCE = 3.0 Vdc
2N6249
2N6250
2N6251
ICBO
---
1.0
mAdc
Symbol
Minimum
Maximum
Unit
2N6249
2N6250
2N6251
HFE
10
8
6
50
50
50
Collector - Emitter Sustaining Voltage
IC = 10 Adc, IB = 1.0 Adc
2N6249
IC = 10 Adc, IB = 1.25 Adc
2N6250
IC = 10 Adc, IB = 1.67 Adc
2N6251
Base-Emitter Saturation Voltage
IC = 10 Adc, IB = 1.0 Adc
IC = 10 Adc, IB = 1.25 Adc
IC = 10 Adc, IB = 1.67 Adc
2N6249
2N6250
2N6251
VCE(sat)
---
1.5
Vdc
VBE(sat)
---
2.25
Vdc
DYNAMIC Characteristic
Small-Signal Short-Circuit Forward Current Transfer Ratio
IC = 1.0 Adc, VCE= 10 Vdc, f = 1 MHz
Output Capacitance
VCB = 10 Vdc, IE = 0, 100 kHz
≤
f
≤
1.0 MHz
| hfe |
Cobo
2.5
---
15
500
pF
Switching Characteristic
Turn-On Time
VCC =200 Vdc,
IB1 = 1.0 Adc
IB1 = 1.25Adc
IB1 = 1.67 Adc
Tum-Off Time
VCC =200 Vdc,
IB1 = 1.0 Adc
IB1 = 1.25Adc
IB1 = 1.67 Adc
IC = 1.0 Adc,
2N6249
2N6250
2N6251
ton
---
2.0
μs
IC = 1.0 Adc,
2N6249
2N6250
2N6251
toff
---
4.5
μs
SAFE OPERATING AREA
DC Tests:
Test 1:
Test 2:
TEST 3:
TEST 4:
TEST 5:
TEST 6:
TC = +25 °C, 1 Cycle, t = 1.0 s (See Figure 12 of MIL-PRF-19500/371)
VCE = 17.5 Vdc, IC = 10 Adc
VCE = 30 Vdc, IC = 5.8 Adc
VCE = 100 Vdc, IC = 0.3 Adc
VCE = 200 Vdc, IC = 0.13 Adc (For 2N6249 only)
VCE = 275 Vdc, IC = 0.09 Adc (For 2N6250 only)
VCE = 350 Vdc, IC = 0.09 Adc (For 2N6251 only)
(2) Pulse Test: Pulse Width = 300
μs,
Duty Cycle
≤2.0%.
2
603-641-3800 • 888-641--SEMI (7364) • metelics-sales@aeroflex.com • www.aeroflex.com/metelics
Revision Date: 8/5/2012
2N6249 & 2N6250

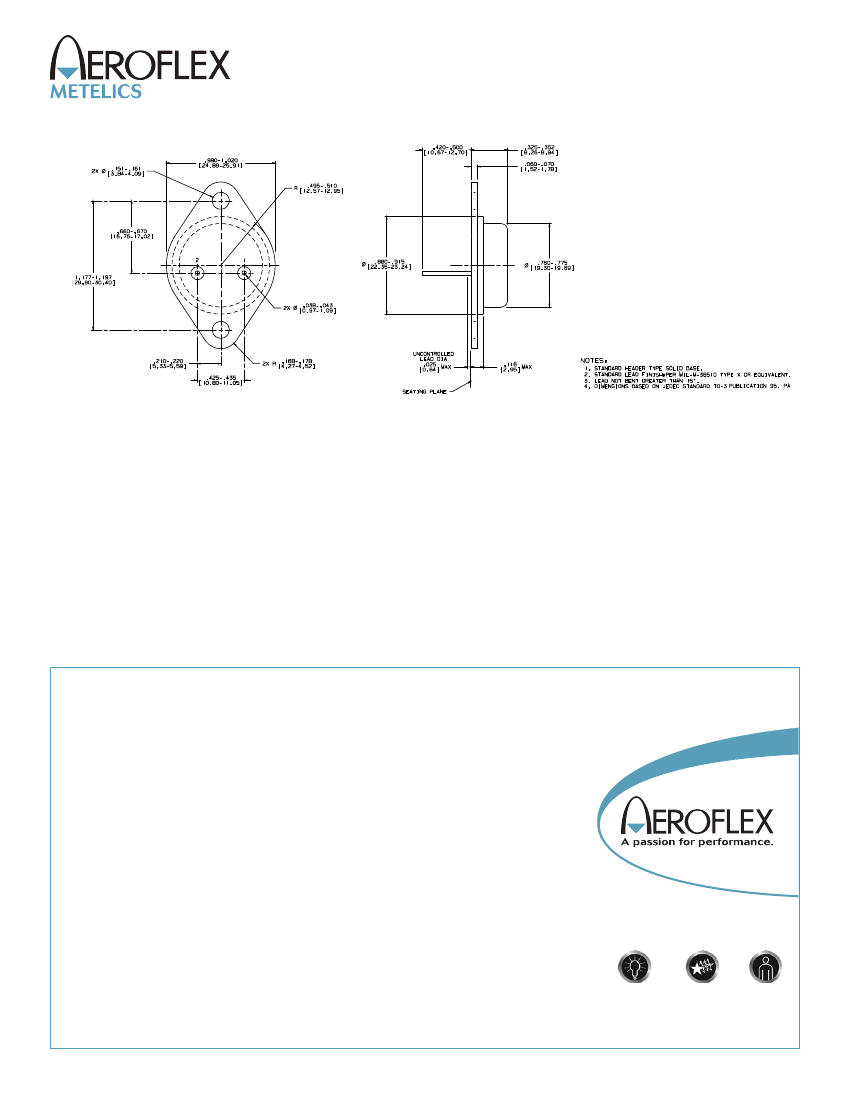

Outline Drawing
