H11D3T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> H11D3T

H11D3T: DescriptionTransistor Output Optocoupler, 1-Element, 1000V Isolation, DIP-6; CategoryLED optoelectronic/LED photoelectric; File Size101KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

H11D3T Overview

Transistor Output Optocoupler, 1-Element, 1000V Isolation, DIP-6

H11D3T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	DIP-6
Reach Compliance Code	unknown
Configuration	SINGLE
Current transmission ratio - minimum value	20%
Nominal current transfer ratio	20%
Maximum forward current	0.06 A
Maximum forward voltage	1.5 V
Maximum insulation voltage	1000 V
JESD-609 code	e0
Installation features	THROUGH HOLE MOUNT
Number of components	1
Maximum on-state current	0.1 A
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER
Maximum power dissipation	0.25 W
Maximum response time	0.000005 s
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)

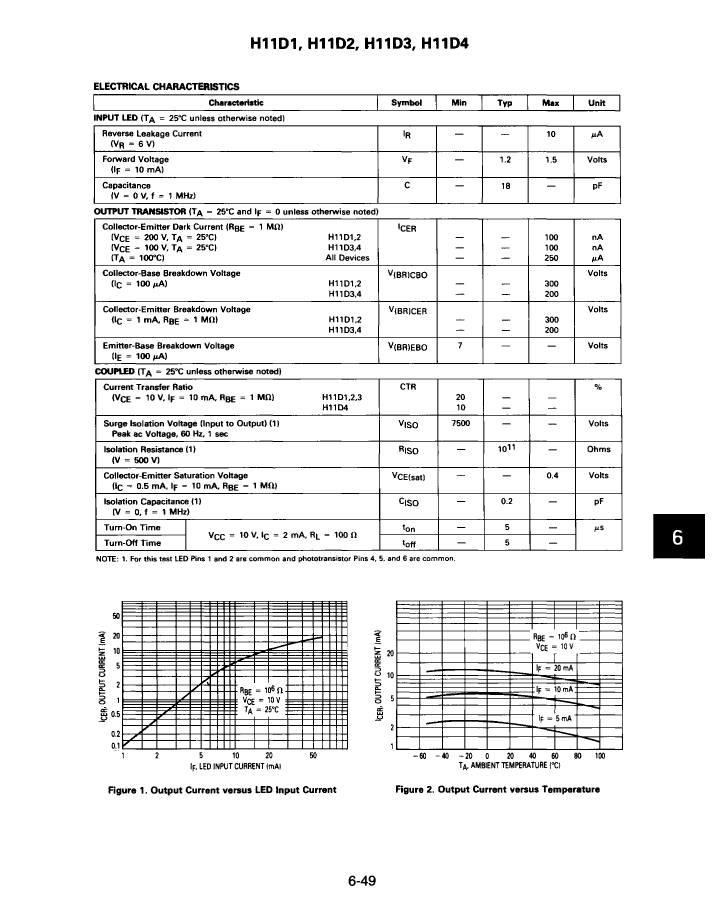

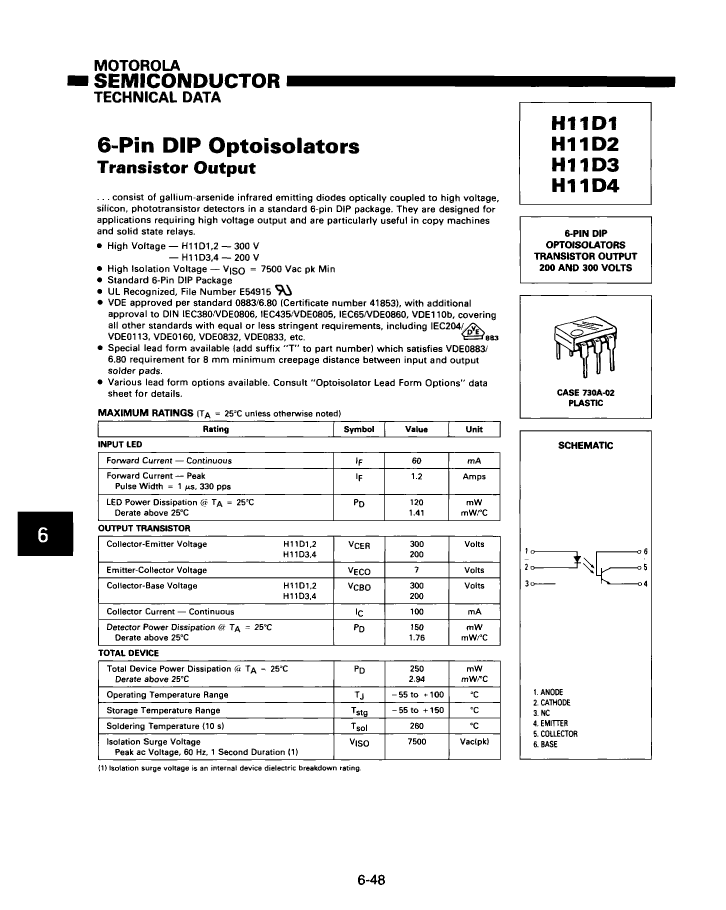

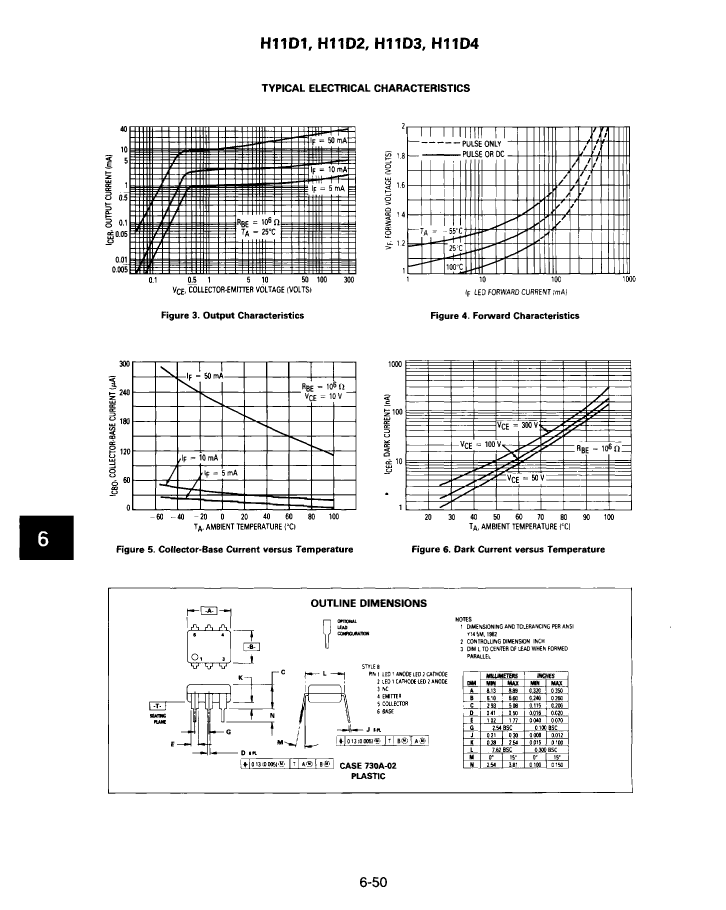

Preview

Download Datasheet

View All

H11D3T Related Products

	H11D3T	H11D4T	H11D4R	H11D4S	H11D3	H11D3S	H11D3R
Description	Transistor Output Optocoupler, 1-Element, 1000V Isolation, DIP-6	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, DIP-6	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, DIP-6	Transistor Output Optocoupler, 1-Element, 1000V Isolation, DIP-6	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, DIP-6	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, DIP-6	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, DIP-6
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	DIP-6	DIP-6	DIP-6	DIP-6	DIP-6	DIP-6	DIP-6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Current transmission ratio - minimum value	20%	10%	10%	10%	20%	20%	20%
Nominal current transfer ratio	20%	10%	10%	10%	20%	20%	20%
Maximum forward current	0.06 A	0.06 A	0.06 A	0.06 A	0.06 A	0.06 A	0.06 A
Maximum forward voltage	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum insulation voltage	1000 V	1000 V	1000 V	1000 V	1000 V	1000 V	1000 V
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	SURFACE MOUNT	SURFACE MOUNT	THROUGH HOLE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of components	1	1	1	1	1	1	1
Maximum on-state current	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER
Maximum power dissipation	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W
Maximum response time	0.000005 s	0.000005 s	0.000005 s	0.000005 s	0.000005 s	0.000005 s	0.000005 s
surface mount	NO	NO	YES	YES	NO	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Base Number Matches	-	1	1	1	1	1	-
