OPA2111AD/LAT datasheet, PDF - EEWORLD Datasheet

OPA2111AD/LAT: DescriptionOperational Amplifier, 2 Func, 1000uV Offset-Max,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size186KB，3 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

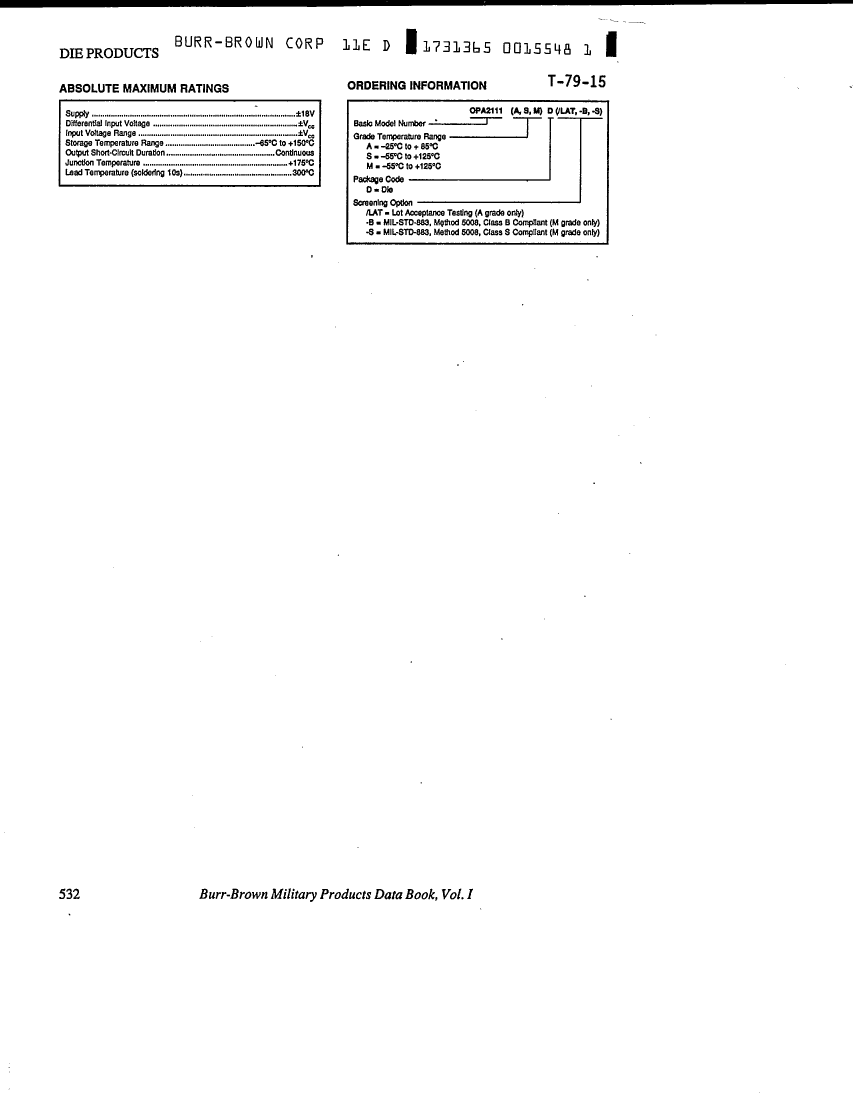

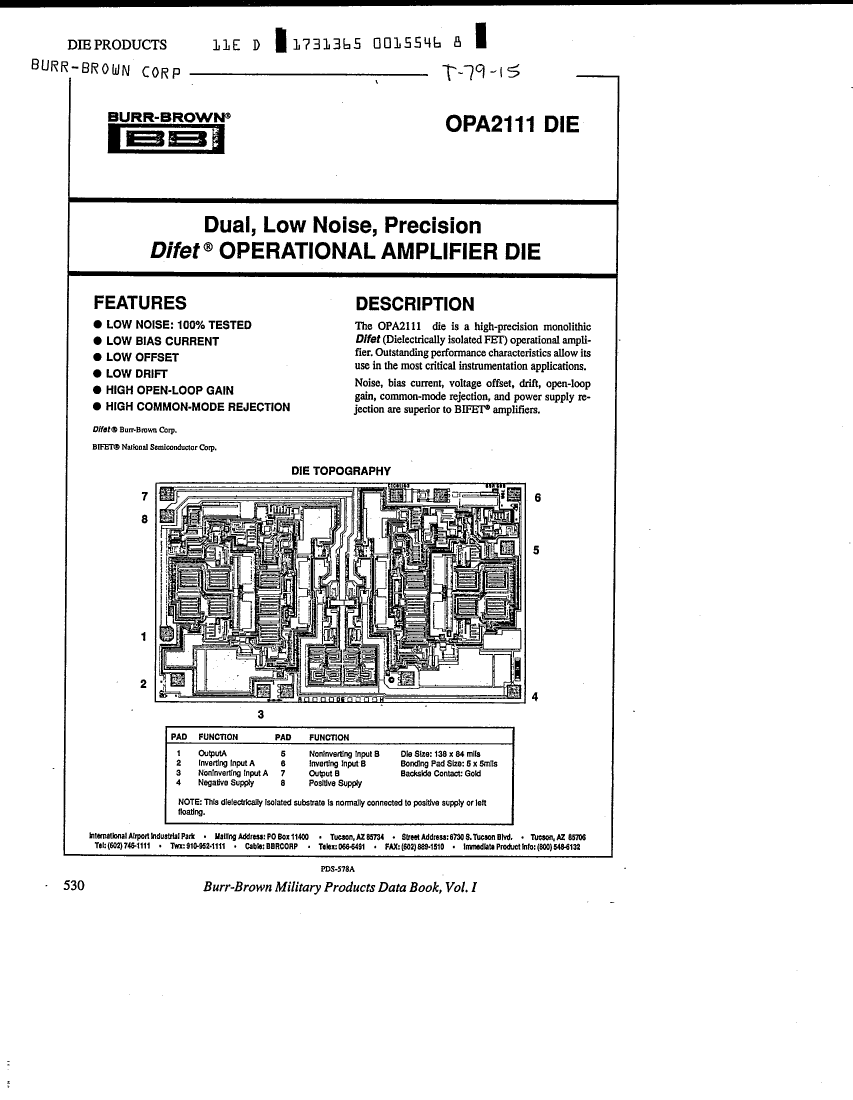

OPA2111AD/LAT Overview

Operational Amplifier, 2 Func, 1000uV Offset-Max,

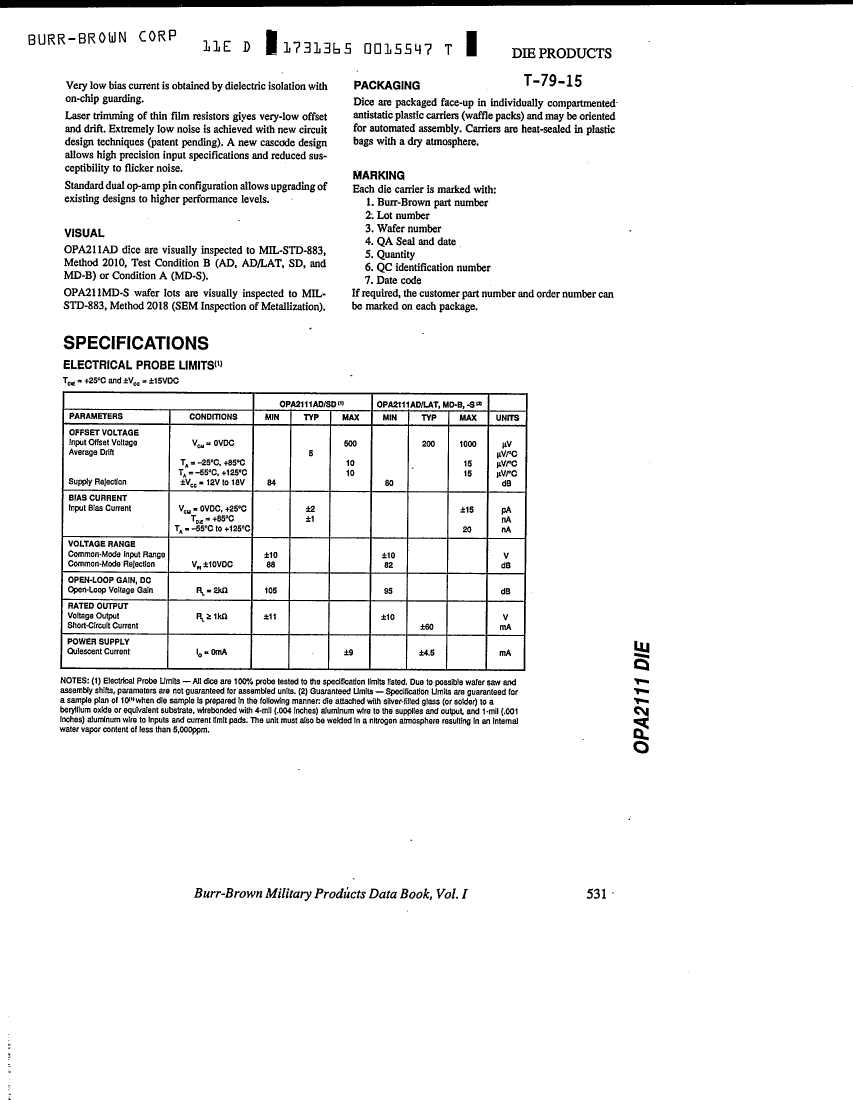

Parameter Name	Attribute value
Maker	Burr-Brown
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.000015 µA
frequency compensation	YES
Maximum input offset voltage	1000 µV
low-bias	YES
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Encapsulate equivalent code	DIE OR CHIP
power supply	+-15 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B (Modified)
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
Temperature level	OTHER
Minimum voltage gain	56000

	OPA2111AD/LAT	OPA2111AD	OPA2111SD	OPA2111MD-B
Description	Operational Amplifier, 2 Func, 1000uV Offset-Max,	Operational Amplifier, 2 Func, 500uV Offset-Max,	Operational Amplifier, 2 Func, 500uV Offset-Max,	Operational Amplifier, 2 Func, 1000uV Offset-Max,
Maker	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown
Reach Compliance Code	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
frequency compensation	YES	YES	YES	YES
Maximum input offset voltage	1000 µV	500 µV	500 µV	1000 µV
low-bias	YES	YES	YES	YES
low-dissonance	NO	YES	YES	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of functions	2	2	2	2
Maximum operating temperature	85 °C	85 °C	125 °C	125 °C
Minimum operating temperature	-25 °C	-25 °C	-55 °C	-55 °C
Encapsulate equivalent code	DIE OR CHIP	DIE OR CHIP	DIE OR CHIP	DIE OR CHIP
power supply	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Supply voltage upper limit	18 V	18 V	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
Temperature level	OTHER	OTHER	MILITARY	MILITARY
Minimum voltage gain	56000	180000	178000	56000
