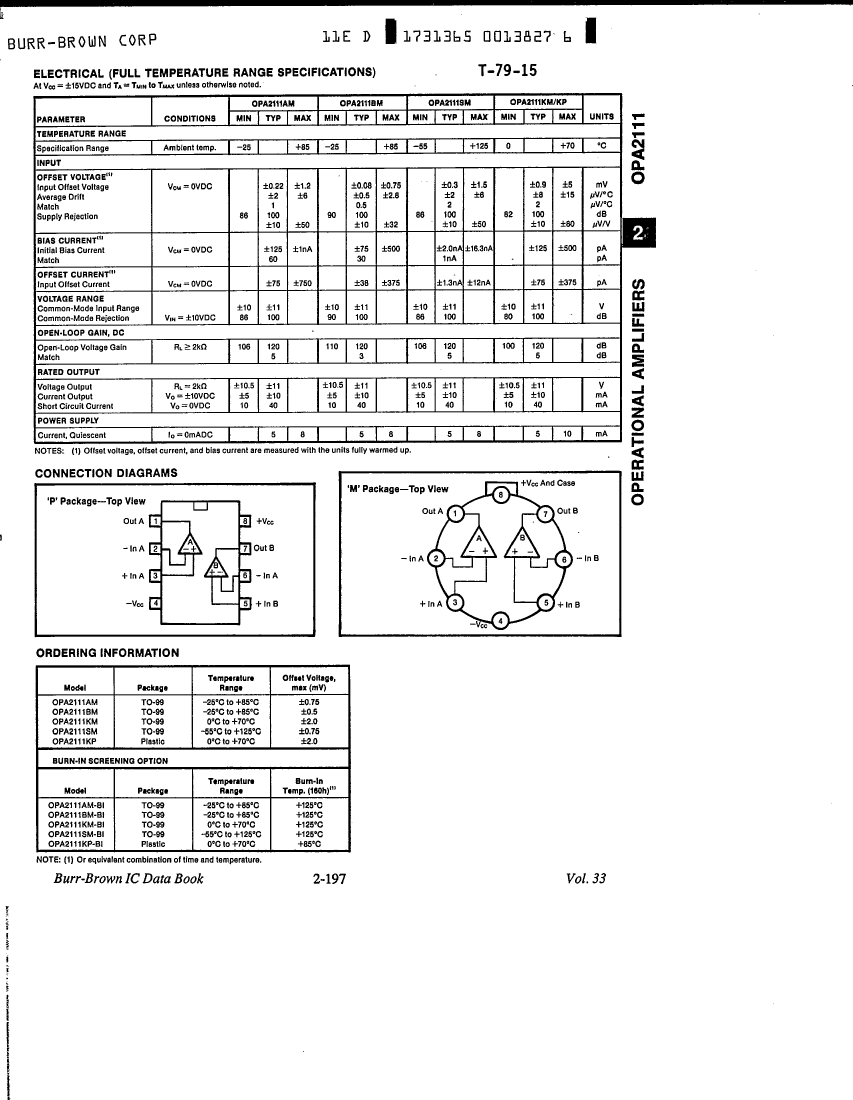

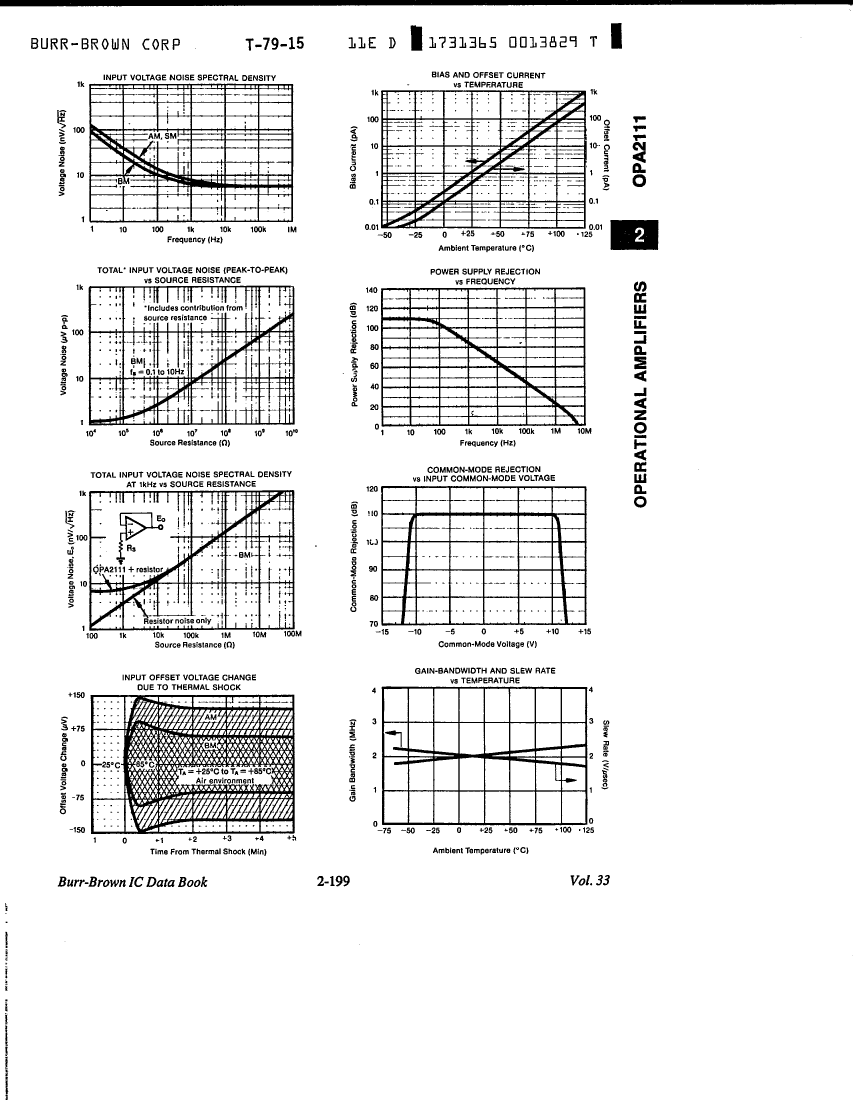

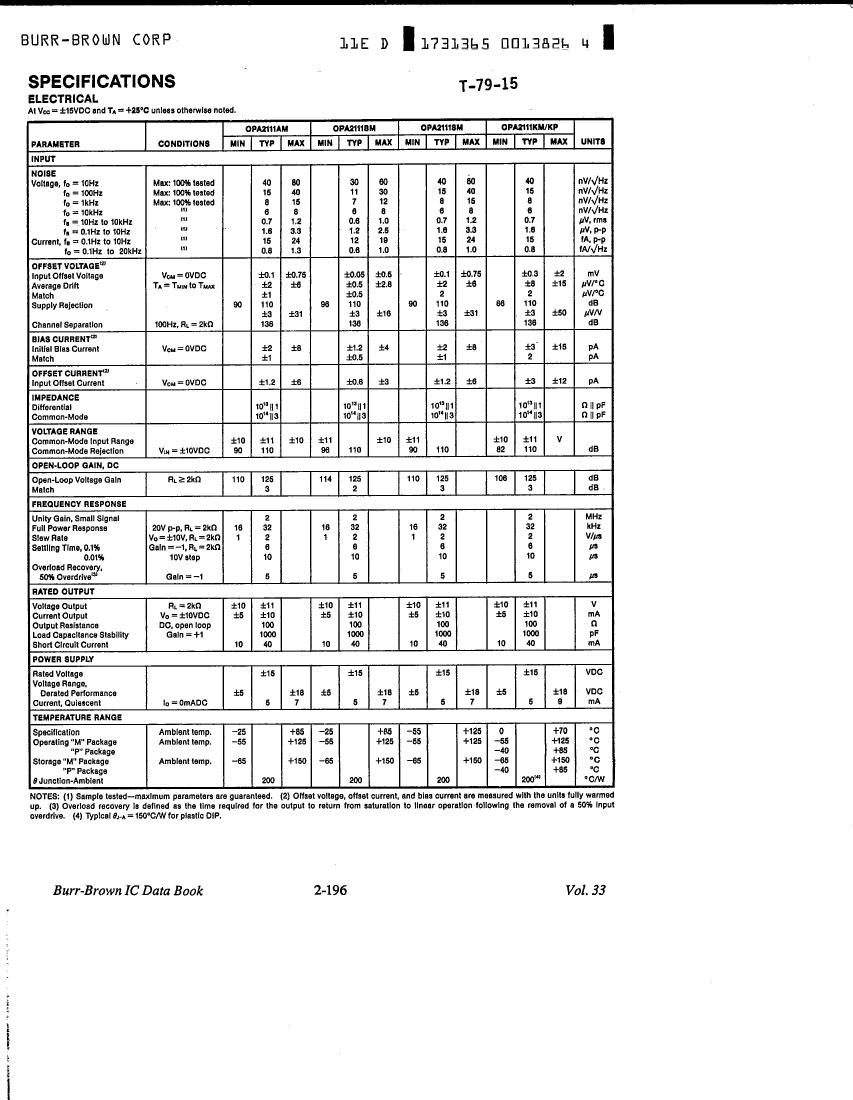

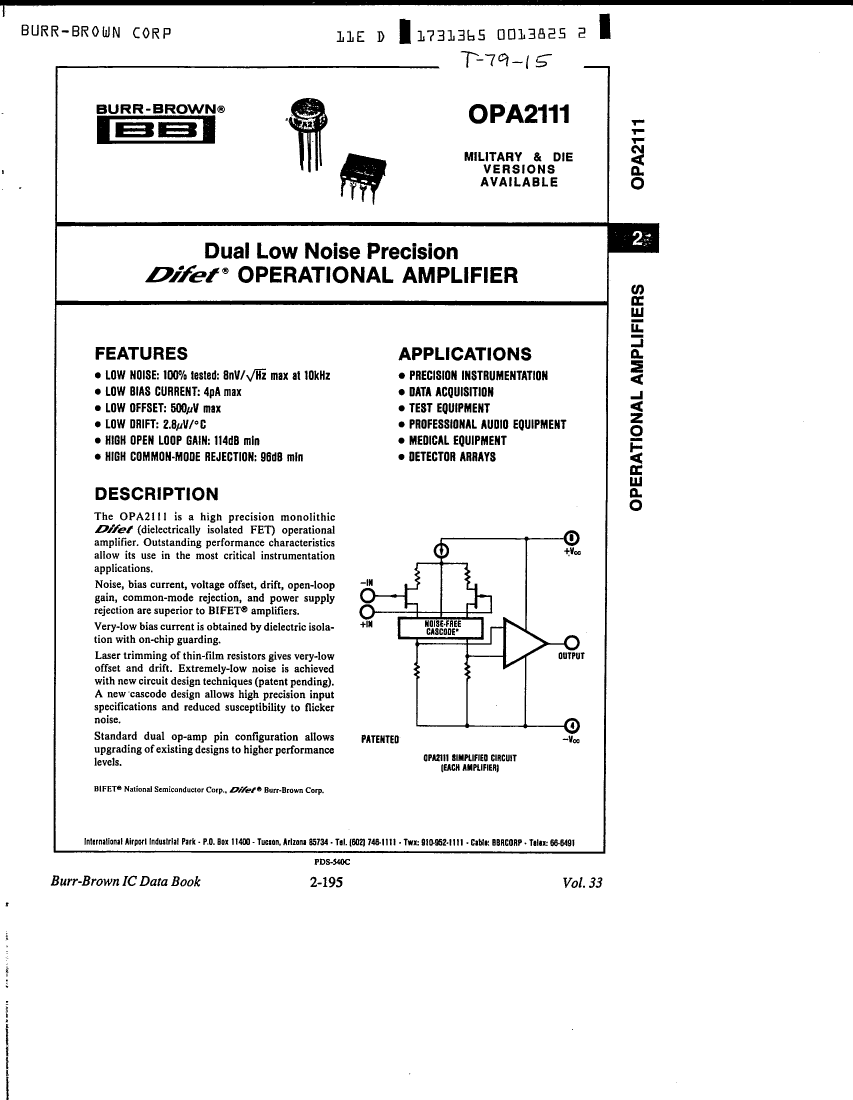

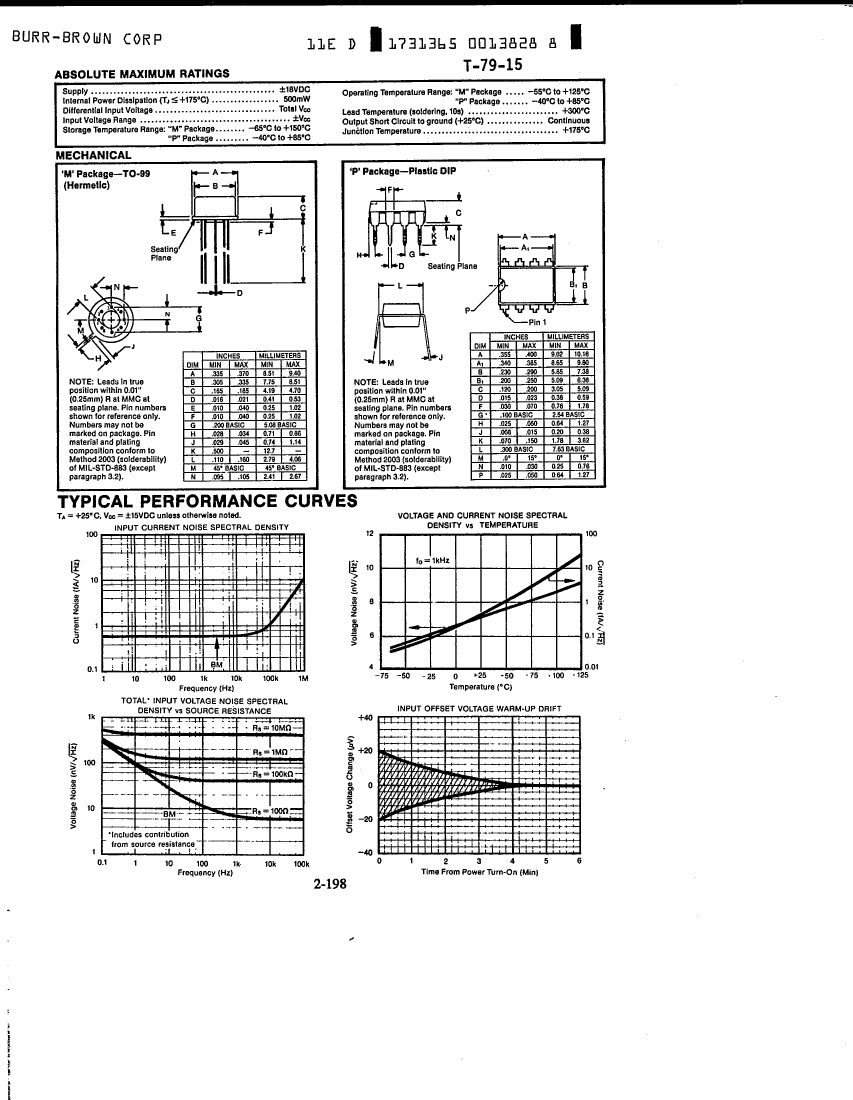

OPA2111BL-BSS2 datasheet, PDF - EEWORLD Datasheet

OPA2111BL-BSS2: DescriptionOperational Amplifier, 2 Func, 750uV Offset-Max, CQCC20,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size829KB，10 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric View All

OPA2111BL-BSS2 Overview

Operational Amplifier, 2 Func, 750uV Offset-Max, CQCC20,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.000004 µA
frequency compensation	YES
Maximum input offset voltage	750 µV
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
low-bias	YES
low-dissonance	YES
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	+-15 V
Certification status	Not Qualified
Filter level	BS9000 Level S2
minimum slew rate	1 V/us
Maximum slew rate	16 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Minimum voltage gain	320000
