CLC206AK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> CLC206AK

CLC206AK: DescriptionOperational Amplifier, 1 Func, 8000uV Offset-Max, Hybrid, MBCY12, METAL CAN, TO-8, 12 PIN; CategoryAnalog mixed-signal IC Amplifier circuit; File Size375KB，4 Pages; ManufacturerComlinear Corporation

Download Datasheet Parametric Compare View All

CLC206AK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CLC206AK	-	-	View	Buy Now

CLC206AK Overview

Operational Amplifier, 1 Func, 8000uV Offset-Max, Hybrid, MBCY12, METAL CAN, TO-8, 12 PIN

CLC206AK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Comlinear Corporation
package instruction	METAL CAN, TO-8, 12 PIN
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	CURRENT-FEEDBACK
Maximum average bias current (IIB)	20 µA
Maximum bias current (IIB) at 25C	20 µA
Minimum Common Mode Rejection Ratio	50 dB
Nominal Common Mode Rejection Ratio	60 dB
frequency compensation	YES (AVCL>=7)
Maximum input offset voltage	8000 µV
JESD-30 code	O-MBCY-W12
JESD-609 code	e0
low-dissonance	NO
Negative supply voltage upper limit	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	12
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
encapsulated code	QIP
Encapsulate equivalent code	QUAD12,.4SQ
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power	YES
power supply	+-15 V
Certification status	Not Qualified
minimum slew rate	3000 V/us
Nominal slew rate	3400 V/us
Maximum slew rate	31 mA
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal pitch	2.54 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
broadband	YES

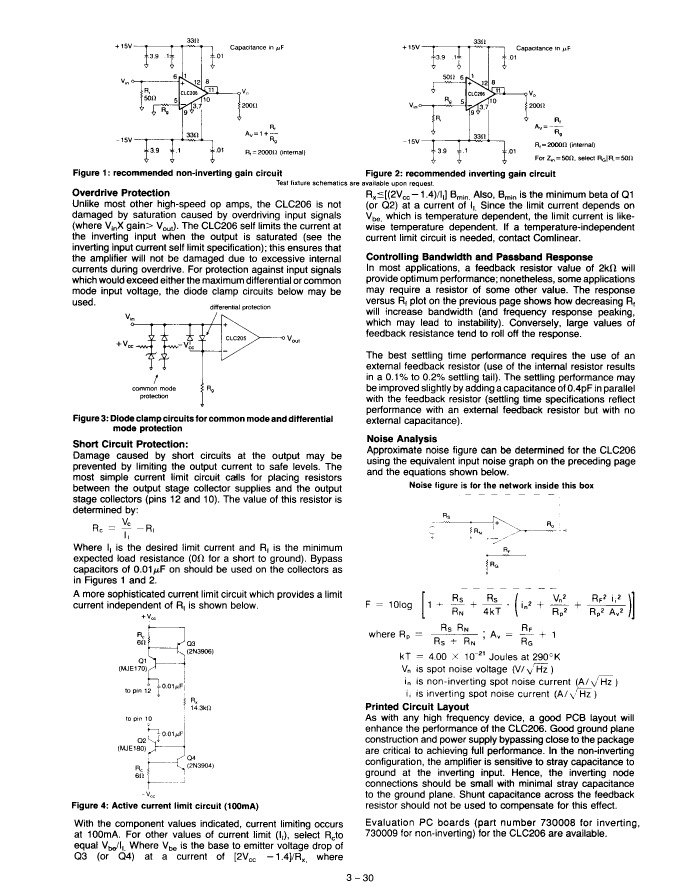

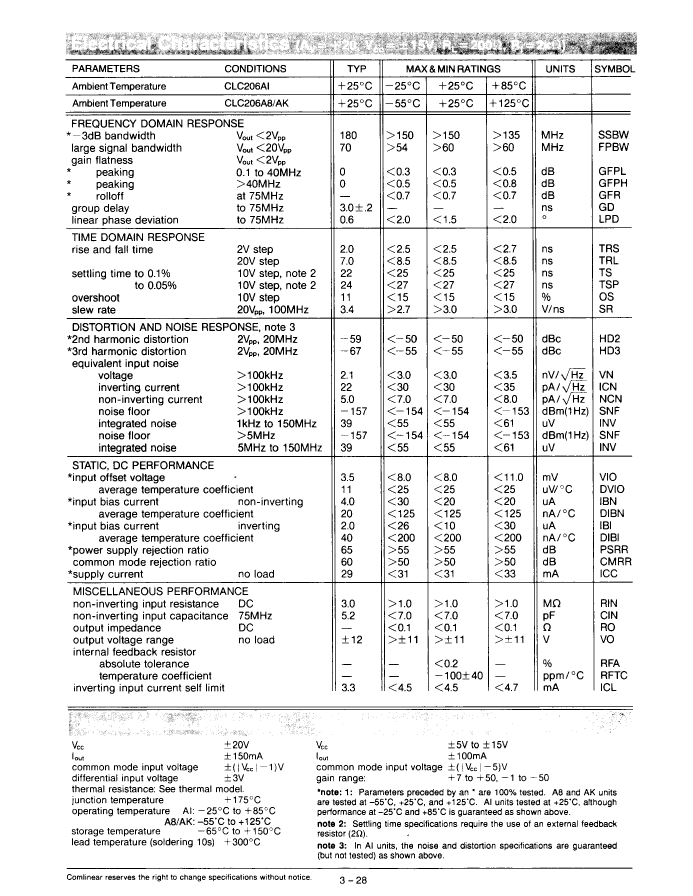

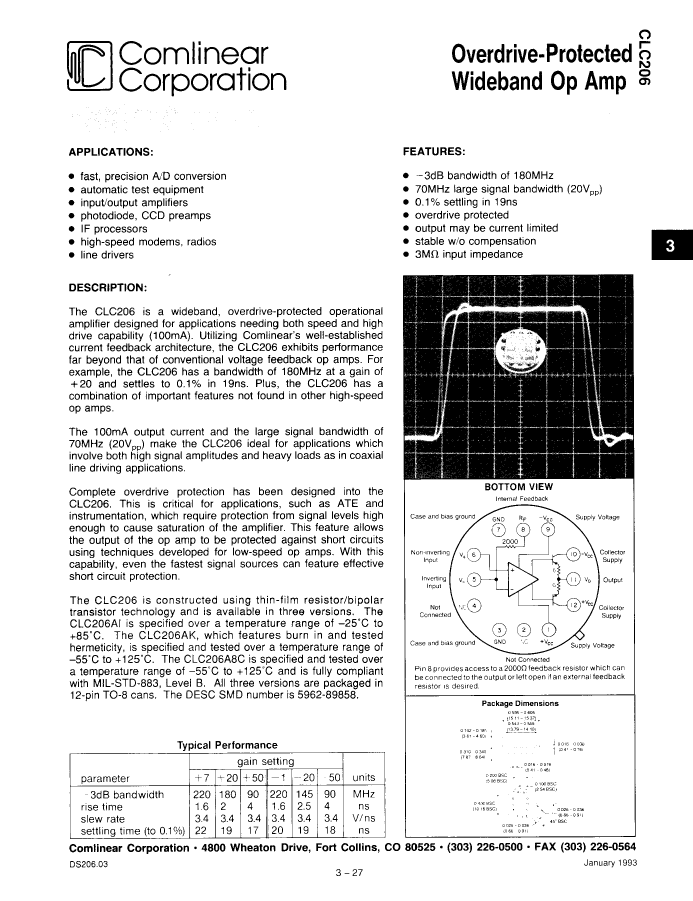

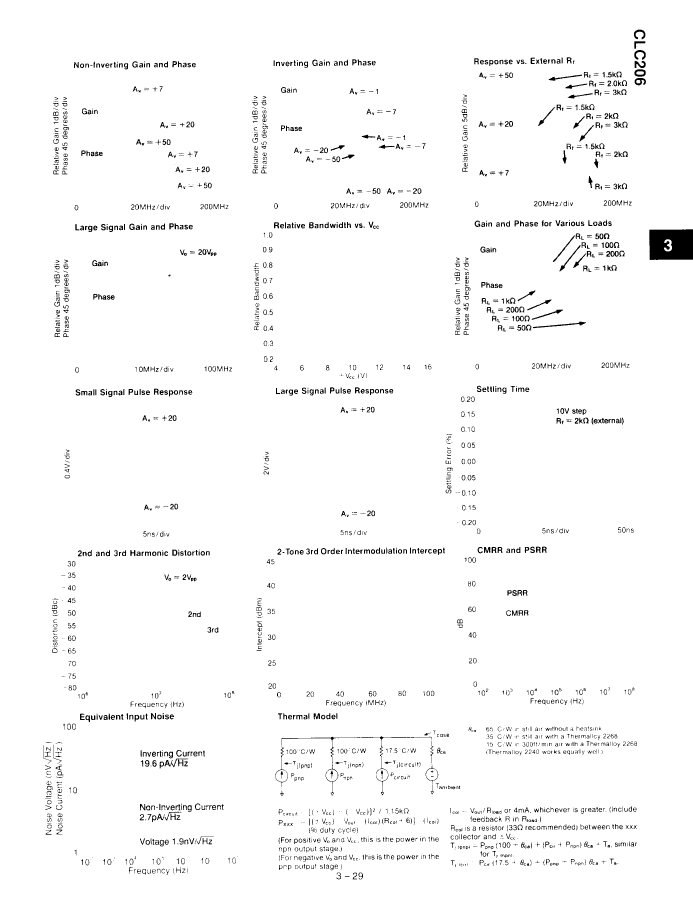

Preview

Download Datasheet

View All

CLC206AK Related Products

	CLC206AK	CLC206AI	CLC206A8C	CLC206AM
Description	Operational Amplifier, 1 Func, 8000uV Offset-Max, Hybrid, MBCY12, METAL CAN, TO-8, 12 PIN	Operational Amplifier, 1 Func, 8000uV Offset-Max, Hybrid, MBCY12, METAL CAN, TO-8, 12 PIN	Operational Amplifier, 1 Func, 8000uV Offset-Max, Hybrid, MBCY12,	Operational Amplifier, 1 Func, 11000uV Offset-Max, Hybrid, MQIP12,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	CURRENT-FEEDBACK	CURRENT-FEEDBACK	CURRENT-FEEDBACK	CURRENT-FEEDBACK
Maximum bias current (IIB) at 25C	20 µA	20 µA	20 µA	20 µA
frequency compensation	YES (AVCL>=7)	YES (AVCL>=7)	YES (AVCL>=7)	YES (AVCL>=7)
Maximum input offset voltage	8000 µV	8000 µV	8000 µV	11000 µV
JESD-30 code	O-MBCY-W12	O-MBCY-W12	O-MBCY-W12	S-MQIP-T12
JESD-609 code	e0	e0	e0	e0
low-dissonance	NO	NO	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1
Number of terminals	12	12	12	12
Maximum operating temperature	125 °C	85 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-25 °C	-55 °C	-55 °C
Package body material	METAL	METAL	METAL	METAL
encapsulated code	QIP	QIP	QIP	QIP
Encapsulate equivalent code	QUAD12,.4SQ	QUAD12,.4SQ	QUAD12,.4SQ	QUAD12,.4SQ
Package shape	ROUND	ROUND	ROUND	SQUARE
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power	YES	YES	YES	YES
power supply	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
minimum slew rate	3000 V/us	3000 V/us	3000 V/us	2700 V/us
Maximum slew rate	31 mA	31 mA	31 mA	33 mA
Supply voltage upper limit	20 V	20 V	20 V	20 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	MILITARY	OTHER	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	BOTTOM	BOTTOM	BOTTOM	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
broadband	YES	YES	YES	YES
Maker	Comlinear Corporation	-	Comlinear Corporation	Comlinear Corporation
Maximum average bias current (IIB)	20 µA	20 µA	20 µA	-
Minimum Common Mode Rejection Ratio	50 dB	50 dB	50 dB	-
Nominal Common Mode Rejection Ratio	60 dB	60 dB	60 dB	-
Negative supply voltage upper limit	-20 V	-20 V	-20 V	-
Nominal slew rate	3400 V/us	3400 V/us	3400 V/us	-
