1N821-1 thru 1N829-1 &
1N821A-1 thru 1N829A-1
Temperature Compensated
Zener Reference Diode Series
Features
•
1N821-1, 1N823-1, 1N825-1, 1N827-1 and
1N829-1 available in JAN, JANTX, JANTXV and
JANS
•
Metallurgically Bonded, Double Plug Construction
•
500 mW Power Handling
•
Axial-leaded Glass DO-35 Style Package
•
Also Available in a Hermetically sealed MELF
DO-213AA package
Rev. V2
Electrical Specifications: T
A
= +25°C (unless otherwise specified)
JEDEC
Type #
Nominal
Zener
Voltage
V
Z
@ I
ZT
V
1N821-1
1N821A-1
1N823-1
1N823A-1
1N825-1
1N825A-1
1N826-1
1N827-1
1N827A-1
1N828-1
1N829-1
1N829A-1
5.9
-
6.5
5.9
-
6.5
5.9
-
6.5
6.2
-
6.9
5.9
-
6.5
6.2
-
6.9
5.9
-
6.5
Zener
Test
Current
I
ZT
mA
7.5
7.5
7.5
7.5
7.5
7.5
7.5
Maximum
Zener
Impedance
1
Ω
15
10
15
10
15
10
15
15
10
15
15
10
Voltage
Temperature
Stability
ΔV
ZT
max.
2
mV
96
48
19
20
9
10
5
Effective
Temperature
Coefficient
%/°C
0.01
0.005
0.002
0.002
0.001
0.001
0.0005
1. Zener impedance is derived by superimposing on l
ZT
A 60Hz rms a.c. current equal to 10% of l
ZT
.
2. The maximum allowable change observed over the entire temperature range i.e., the diode voltage will not exceed the specified mV at any
discrete temperature between the established limits, per JEDEC standard No. 5.
Absolute Maximum Ratings
Parameter
DC Power Dissipation
Power Derating
Operating & Storage Temperature
1
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
www.vptcomponents.com
Absolute Maximum
500 mW @ +50°C
4 mW/°C above +50°C
-65°C
to +175°C
1N821-1 thru 1N829-1 &
1N821A-1 thru 1N829A-1
Temperature Compensated
Zener Reference Diode Series

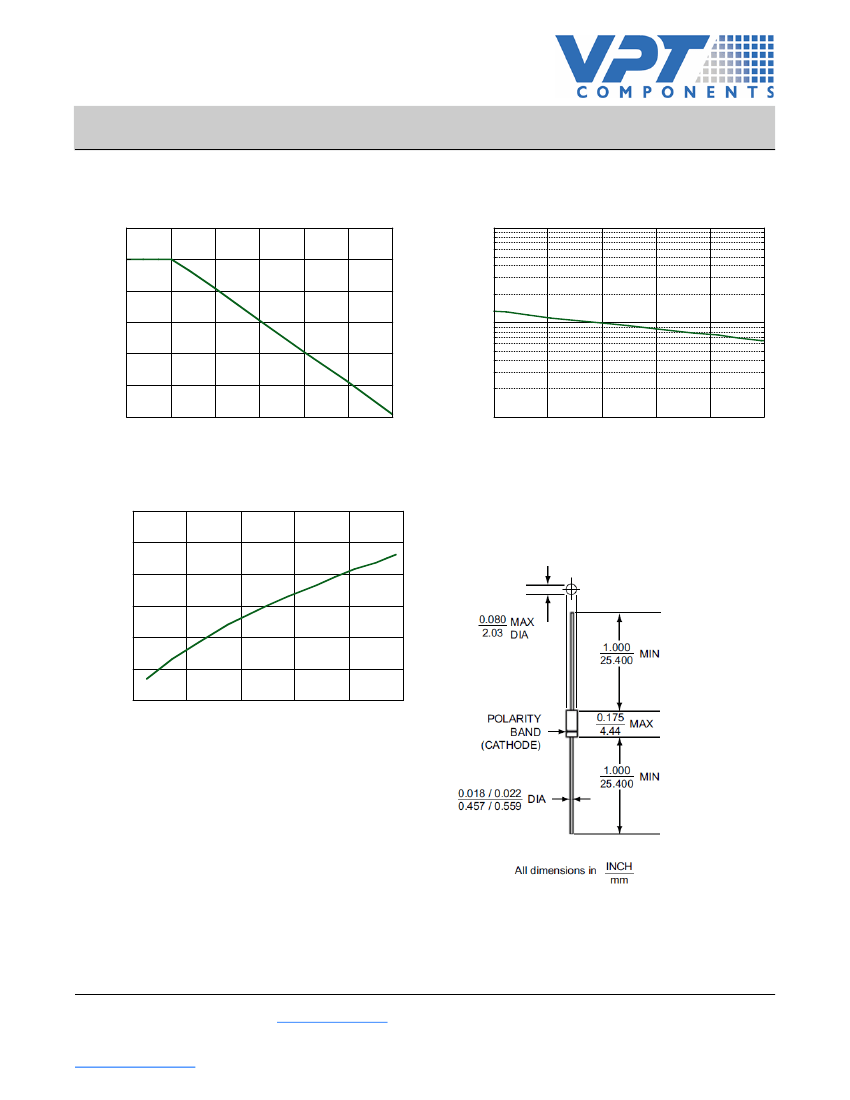

Typical Performance Curves
Power Derating Dissipation
600
Rev. V2
Zener Impedance
100
Pd, Rated Power Dissipation (mW)
500
400
300
200
100
0
1
Zener Impedance ()
10
25
50
75
100
125
150
175
5
6
7
8
9
10
TL, Lead Temperature (°C) 3/8" from body
Operating Current (mA)
Change in Temperature Coefficient
0.0015
0.0010
Zener Impedance ()
Outline
0.0005
0.0000
-0.0005
-0.0010
-0.0015
5
6
7
8
9
10
Operating Current (mA)
2
Leaded Design Data
Case:
DO-35, Hermetically sealed
Lead Material:
Copper Clad Steel
Lead Finish:
Tin / Lead
Polarity:
Cathode end is banded.
Mounting Position:
Any.
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
www.vptcomponents.com
