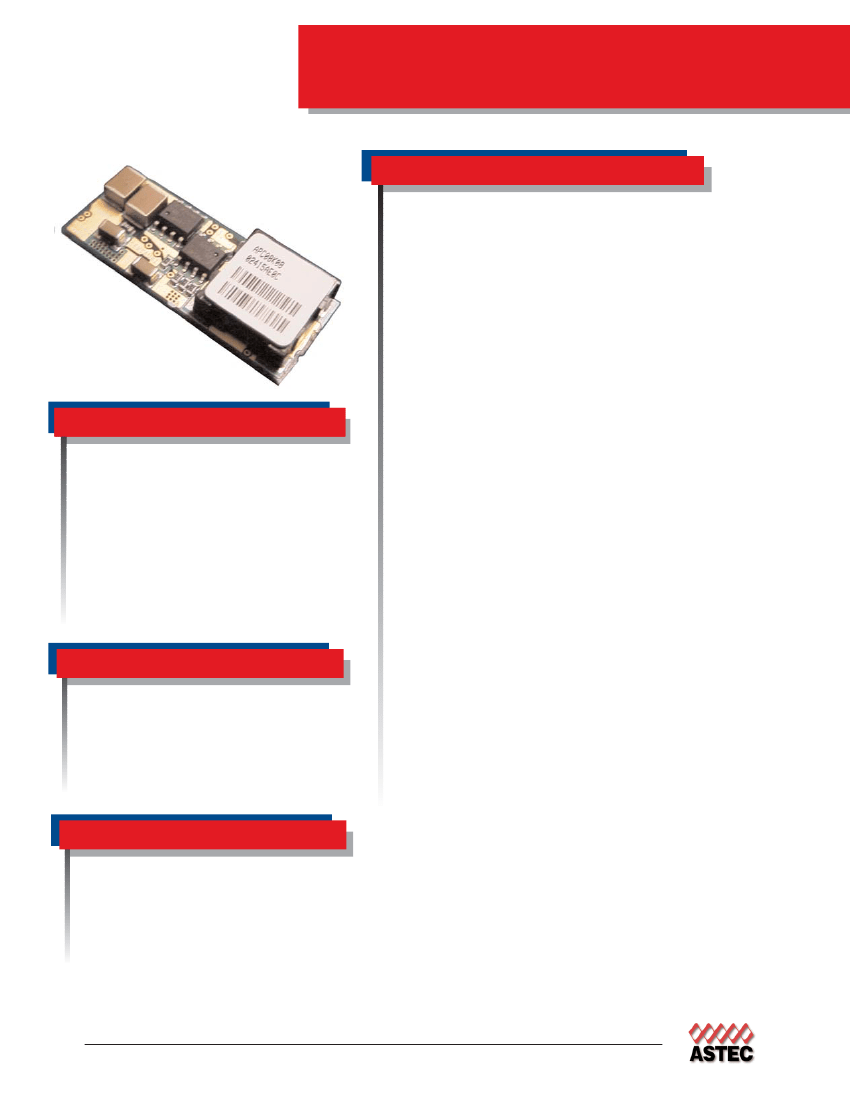

Astec Industry Standard
30 Watts
APC08
(8 Amp)
Total Power:
Input Voltages:
No. of Outputs:
30W
1.8V - 13V
Single
Electrical Specs
Input
Input range
Input Surge
Efficiency
1.8-6.0VDC and 6.5-13.0VDC
08 Device: 14V
03 Device: 7V
93%@3.3V
Control
Enable
TTL compatible
(positive enable option)
Output
Regulation
(Line, Load, Temp)
<3%
100mV (5V and 6V)
75mV (2.5V and 3.3V)
50mV (below 2.5V)
08 Device: 0.9V to 6.2V
03 Device: 0.9V to 3.6V
5% max deviation with
50% to 75% full load
500 μS (max) recovery
Special Features
• Point of load (POL) applications
• High efficiency, 3.3V@93%
• -40°C to +85°C Ambient operating
temperature
• Open Frame SMT
• Positive enable function
• Low output ripple and noise
• Regulation to zero load
• Adjustable Output through external resistor
programming
• Fixed frequency switching (400 kHz)
• EU Directive 2002/95/EC compliant for RoHS
Ripple and noise
Output voltage
adjust range
Transient Response
Specifications subject to change without notice.
Environmental
Operating temperature
-40°C to +85°C
Storage temperature: -55°C to +125°C
Demonstrated MTBF: > 2.3 Million Hours
Safety
UL, cUL
60950 Recognized
TUV
EN60950 Licensed
1
North America (USA): 1-888-41-ASTEC
Europe (UK): 44 (1384) 842-211
Asia (HK): 852-2437-9662
12.01.06
AMERICAS
5810 Van Allen Way
Carlsbad, CA 92008
Telephone: 760-930-4600
Facsimile: 760-930-0698
EUROPE
Astec House, Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX, UK
Telephone: 44 (1384) 842-211
Facsimile: 44 (1384) 843-355
ASIA
Units 2111-2116, Level 21
Tower1, Metroplaza
223, Hing Fong Road
Kwai Fong, New Territories
Hong Kong
Telephone: 852-2437-9662
Facsimile: 852-2402-4426
APC08
Ordering Information
Input
Voltage
1.8V-6.0V
1.8V-6.0V
1.8V-6.0V
2.2V-6.0V
3.0V-6.0V
4.0V-6.0V
6.5V-13.0V
6.5V-13.0V
6.5V-13.0V
6.5V-13.0V
6.5V-13.0V
6.5V-13.0V
Output
Voltage
0.9V @ 8A
1.2V @ 8A
1.5V @ 8A
1.8V @ 8A
2.5V @ 8A
3.3V @ 8A
0.9V @ 8A
1.2V @ 8A
1.5V @ 8A
1.8V @ 8A
2.5V @ 8A
3.3V @ 8A
Efficiency
Full Load
76% (Typ)*
81% (Typ)
86% (Typ)
88% (Typ)
91% (Typ)
93% (Typ)
75% (Typ)
81% (Typ)
84% (Typ)
86% (Typ)
90% (Typ)
92% (Typ)
Model Number
APC08J03
APC08K03
APC08M03
APC08Y03
APC08G03
APC08F03
APC08J08
APC08K08
APC08M08
APC08Y08
APC08G08
APC08F08
* Typical Efficiency is measured at full load, mid range input and at T
A
=25°C
Options: suffix “-9”
= Output Trim option
suffix “-9MA” = Output Trim with Ishare and PGood options
suffix “-J”
= Jedec Style Tray Packaging (Default packaging is T&R with no “-J” suffix required)
suffix “L”
= RoHS compliant (RoHS 6) / Blank = RoHS compliant with Lead (pb) in solder exemption (RoHS5)

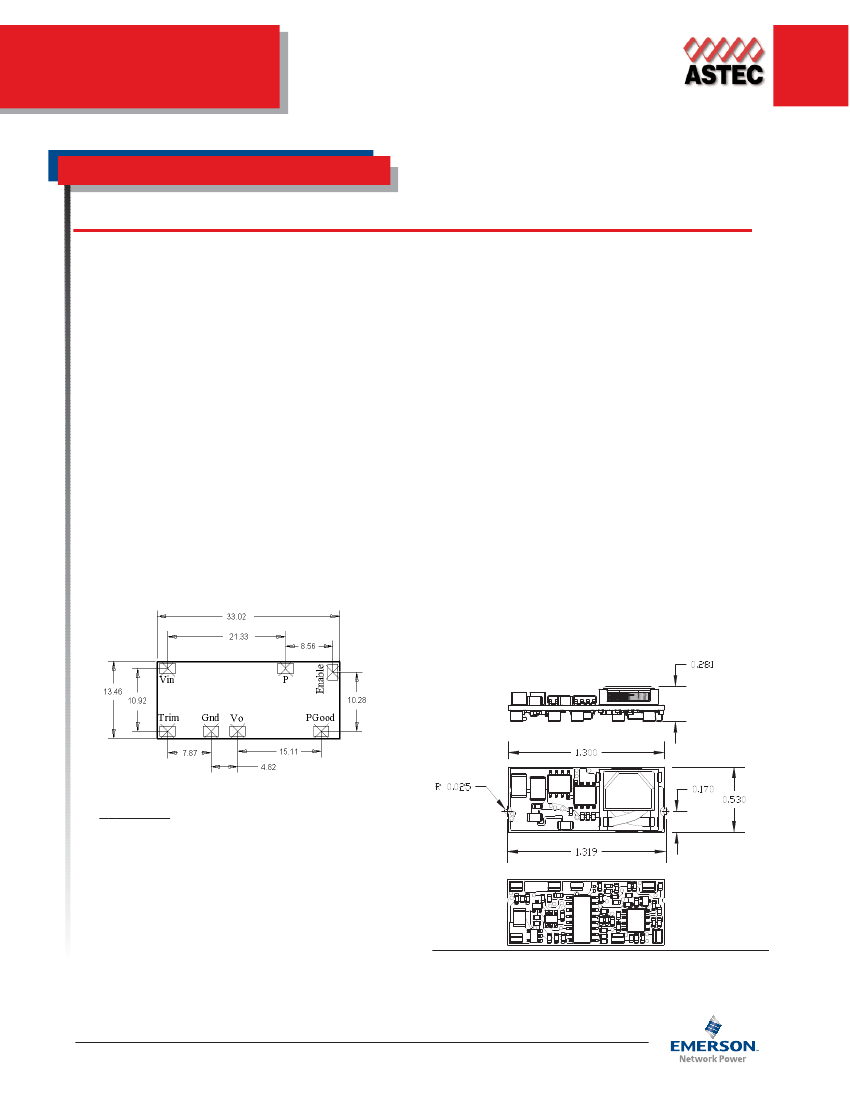

Mechanical Dimensions
Tolerances:
x.xx +/- 0.02 in (x.x +/- 0.5mm)
x.xxx +/- 0.010 in (x.xx +/- 0.25mm
Typ
Pin Side Down
[dimensions in mm]
Astec Industry
Standard
Optional Pins:
PGood - Power Good Logic Signal
P - Active Current Share Pin
Trim - Trim Pin
Note:
1. Specifications given are typical values at nominal
conditions.
2. The Technical Reference Notes should be
consulted for detailed information.
3. Specifications subject to change without notice.
Mechanical drawings are for reference only
www.astecpower.com
