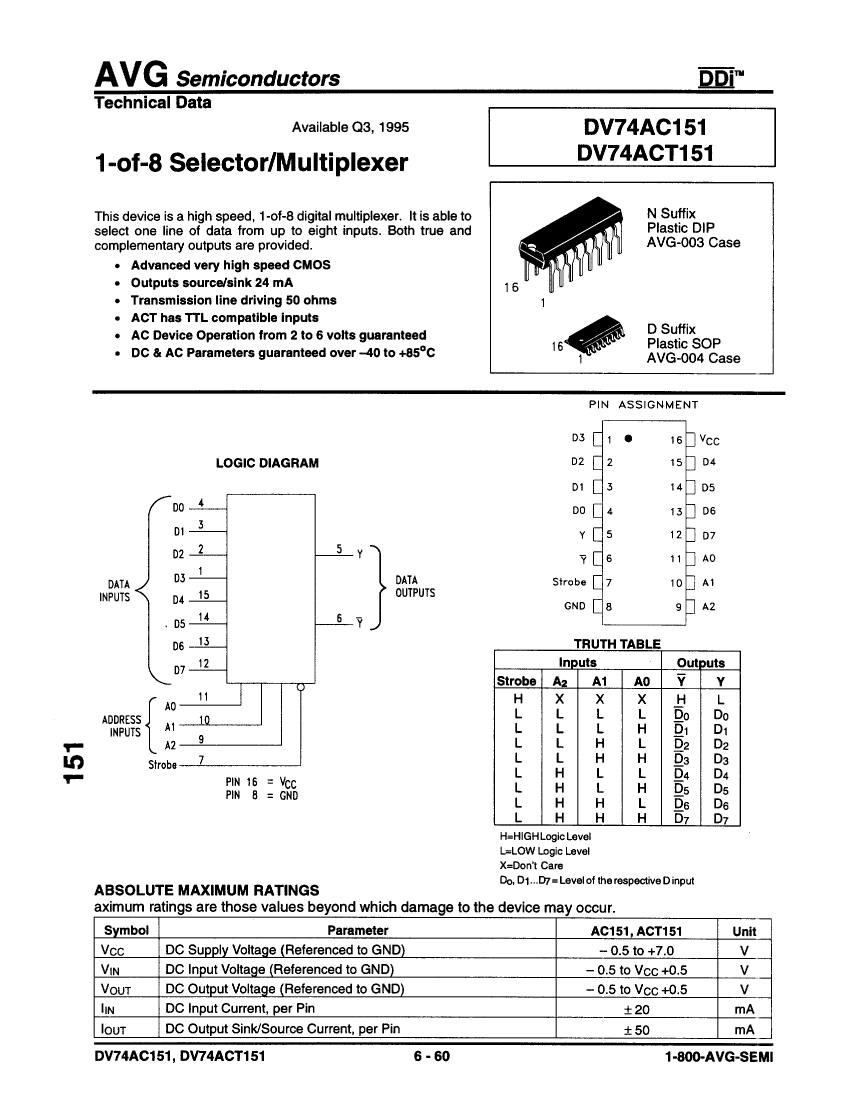

Multiplexer, AC Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, CMOS, PDIP16, PLASTIC, DIP-16

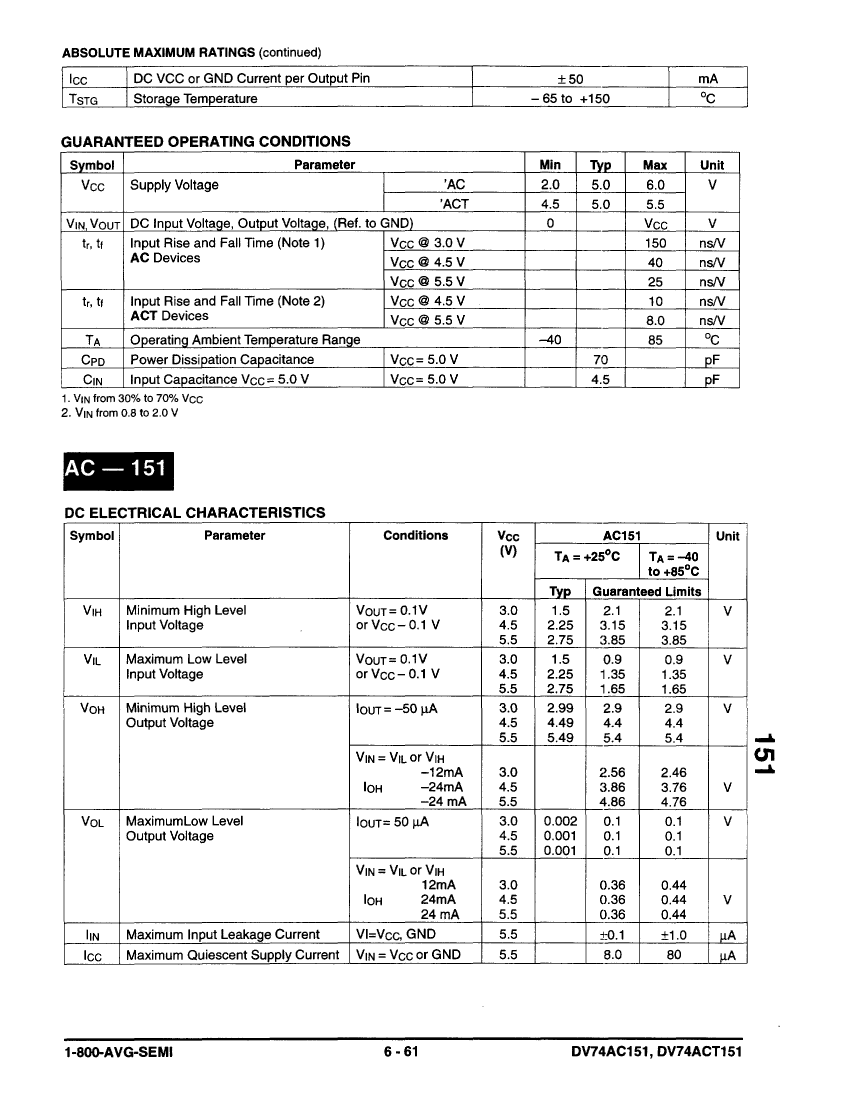

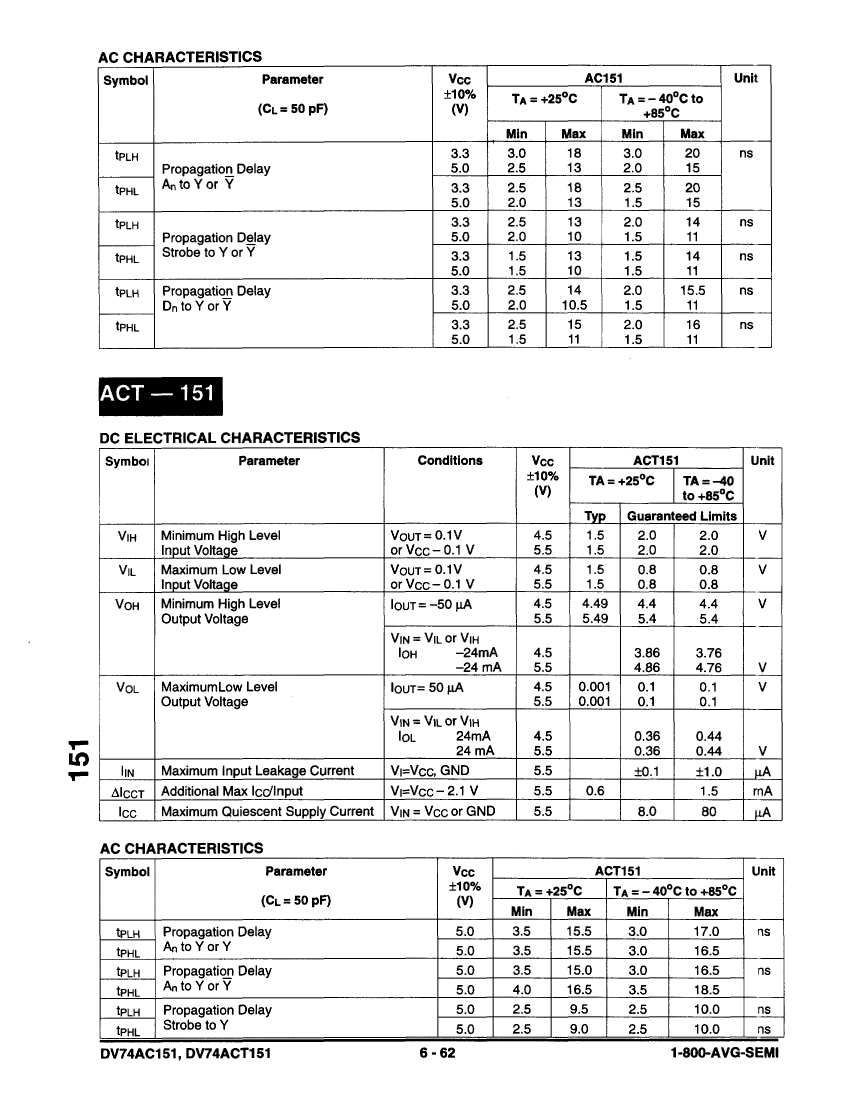

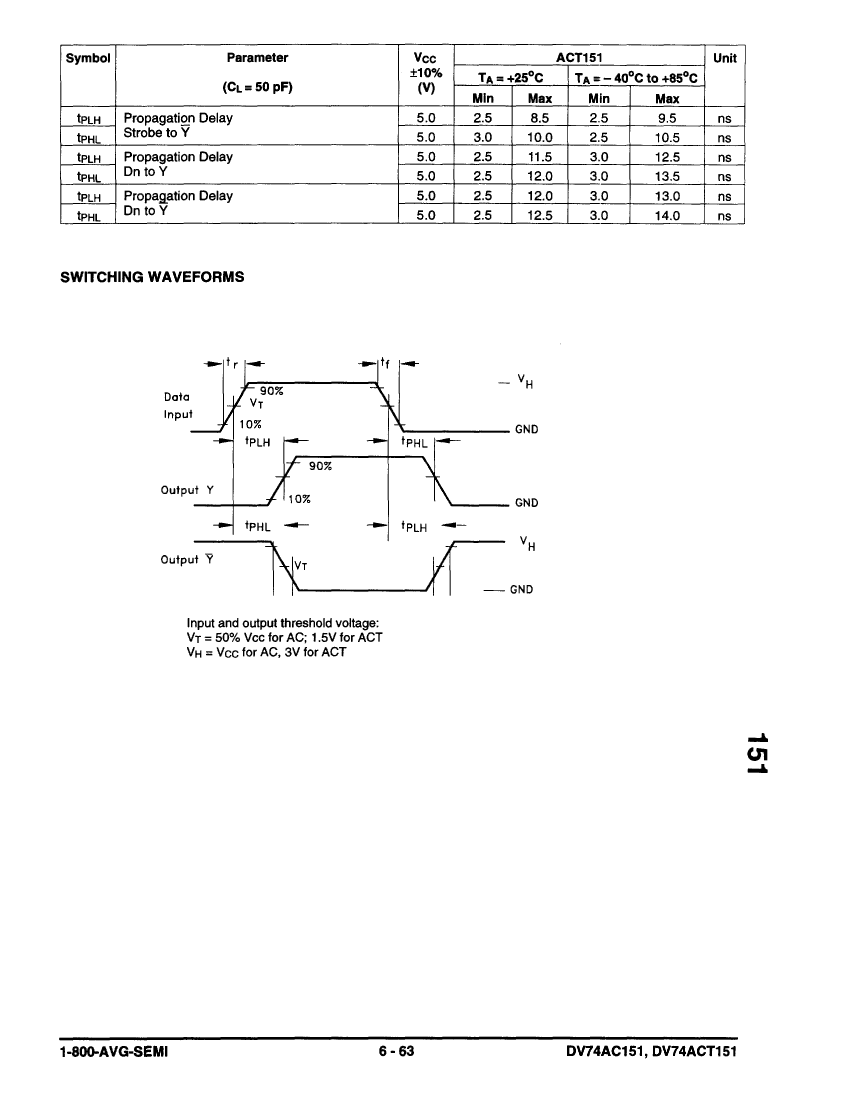

| Parameter Name | Attribute value |
| Maker | AVG [AVG Semiconductors(HITEK)] |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| series | AC |
| JESD-30 code | R-PDIP-T16 |
| length | 19.175 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | MULTIPLEXER |
| Number of functions | 1 |
| Number of entries | 8 |
| Output times | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output polarity | COMPLEMENTARY |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| propagation delay (tpd) | 16 ns |
| Certification status | Not Qualified |
| Maximum seat height | 4.44 mm |
| Maximum supply voltage (Vsup) | 6 V |
| Minimum supply voltage (Vsup) | 2 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| width | 7.62 mm |
| DV74AC151N | DV74AC151D | DV74ACT151D | DV74ACT151N | |
|---|---|---|---|---|
| Description | Multiplexer, AC Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, CMOS, PDIP16, PLASTIC, DIP-16 | Multiplexer, AC Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, CMOS, PDSO16, PLASTIC, SOP-16 | Multiplexer, ACT Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, CMOS, PDSO16, PLASTIC, SOP-16 | Multiplexer, ACT Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, CMOS, PDIP16, PLASTIC, DIP-16 |
| Maker | AVG [AVG Semiconductors(HITEK)] | AVG [AVG Semiconductors(HITEK)] | AVG [AVG Semiconductors(HITEK)] | AVG [AVG Semiconductors(HITEK)] |
| Parts packaging code | DIP | SOIC | SOIC | DIP |
| package instruction | DIP, | SOP, | PLASTIC, SOP-16 | DIP, |
| Contacts | 16 | 16 | 16 | 16 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| series | AC | AC | ACT | ACT |
| JESD-30 code | R-PDIP-T16 | R-PDSO-G16 | R-PDSO-G16 | R-PDIP-T16 |
| length | 19.175 mm | 9.9 mm | 9.9 mm | 19.175 mm |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of entries | 8 | 8 | 8 | 8 |
| Output times | 1 | 1 | 1 | 1 |
| Number of terminals | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C |
| Output polarity | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | SOP | SOP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE | SMALL OUTLINE | IN-LINE |
| propagation delay (tpd) | 16 ns | 16 ns | 14 ns | 14 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 4.44 mm | 1.75 mm | 1.75 mm | 4.44 mm |
| Maximum supply voltage (Vsup) | 6 V | 6 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 2 V | 2 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES | NO |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | THROUGH-HOLE | GULL WING | GULL WING | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| width | 7.62 mm | 3.9 mm | 3.9 mm | 7.62 mm |
