DV74AC253N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DV74AC253N

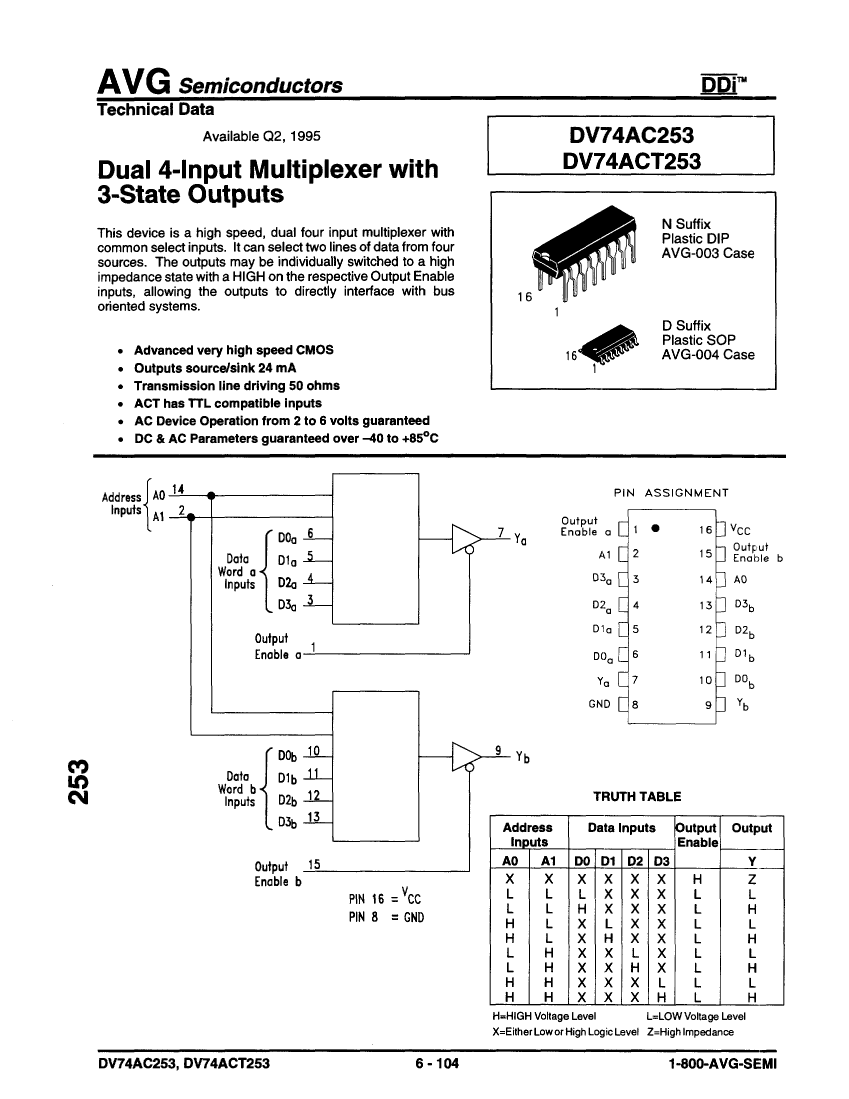

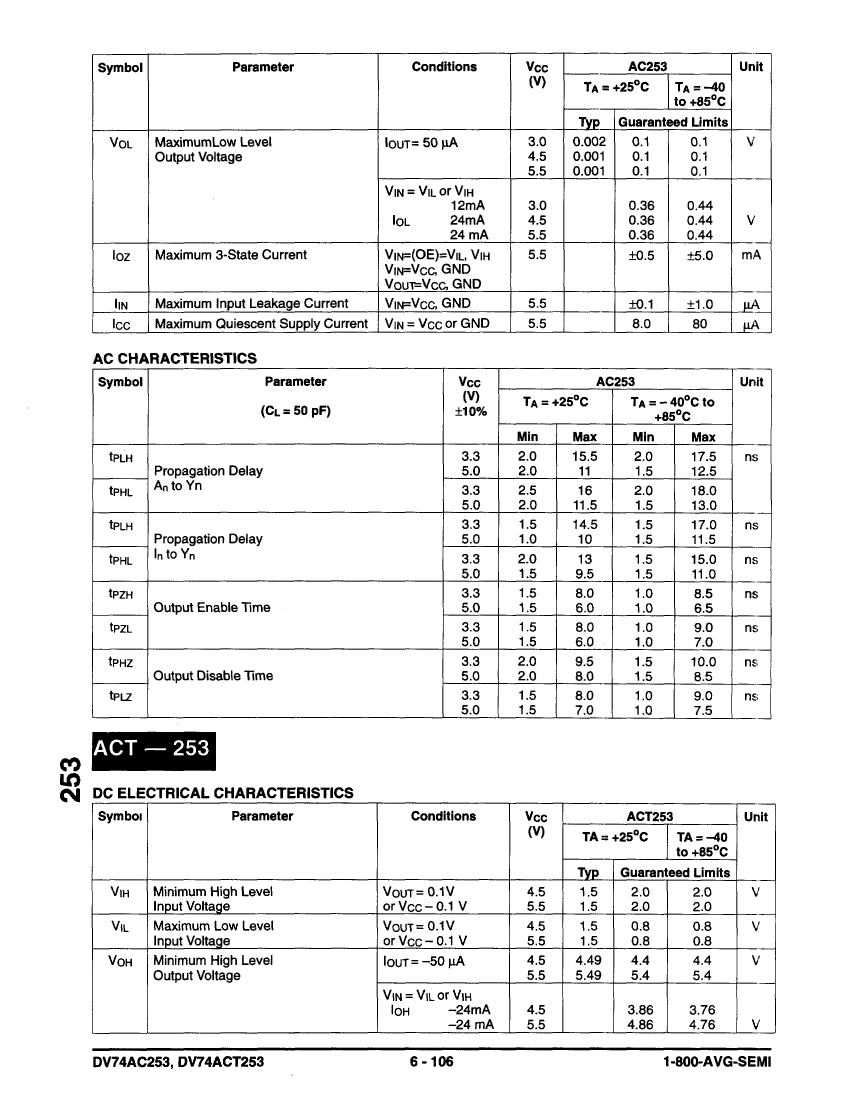

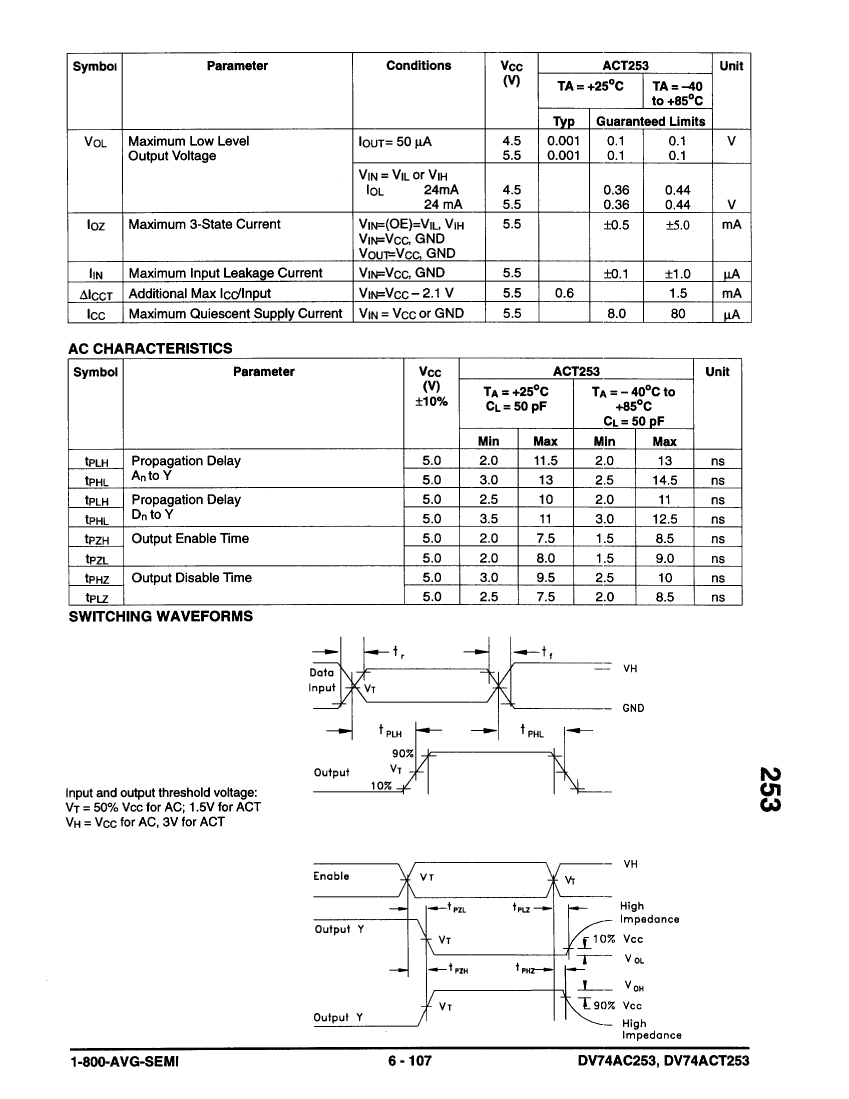

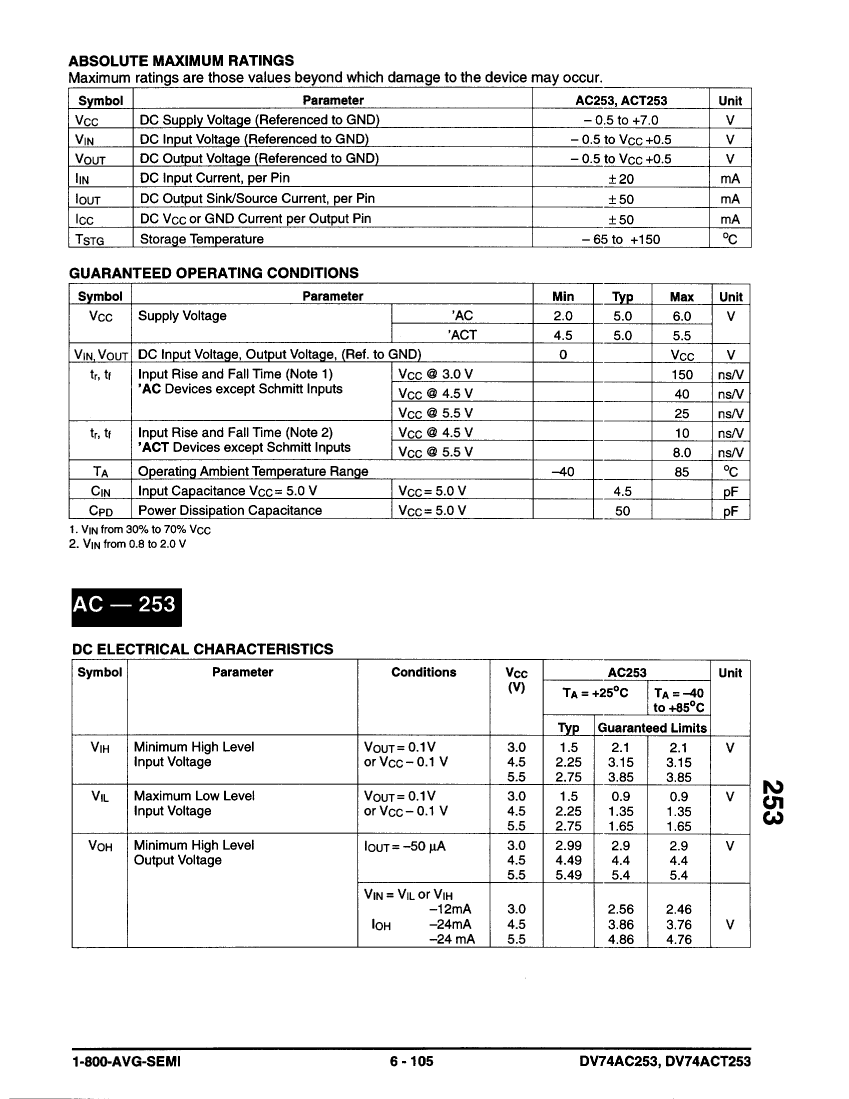

DV74AC253N: DescriptionMultiplexer, AC Series, 2-Func, 4 Line Input, 1 Line Output, True Output, CMOS, PDIP16, PLASTIC, DIP-16; Categorylogic logic; File Size206KB，4 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74AC253N Overview

Multiplexer, AC Series, 2-Func, 4 Line Input, 1 Line Output, True Output, CMOS, PDIP16, PLASTIC, DIP-16

DV74AC253N Parametric

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
series	AC
JESD-30 code	R-PDIP-T16
length	19.175 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
Number of functions	2
Number of entries	4
Output times	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	17 ns
Certification status	Not Qualified
Maximum seat height	4.44 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

Preview

Download Datasheet

View All

DV74AC253N Related Products

	DV74AC253N	DV74ACT253D	DV74ACT253N	DV74AC253D
Description	Multiplexer, AC Series, 2-Func, 4 Line Input, 1 Line Output, True Output, CMOS, PDIP16, PLASTIC, DIP-16	Multiplexer, ACT Series, 2-Func, 4 Line Input, 1 Line Output, True Output, CMOS, PDSO16, PLASTIC, SOP-16	Multiplexer, ACT Series, 2-Func, 4 Line Input, 1 Line Output, True Output, CMOS, PDIP16, PLASTIC, DIP-16	Multiplexer, AC Series, 2-Func, 4 Line Input, 1 Line Output, True Output, CMOS, PDSO16, PLASTIC, SOP-16
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP	SOIC	DIP	SOIC
package instruction	DIP,	PLASTIC, SOP-16	PLASTIC, DIP-16	SOP,
Contacts	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown
series	AC	ACT	ACT	AC
JESD-30 code	R-PDIP-T16	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16
length	19.175 mm	9.9 mm	19.175 mm	9.9 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	2	2	2	2
Number of entries	4	4	4	4
Output times	1	1	1	1
Number of terminals	16	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
propagation delay (tpd)	17 ns	12.5 ns	12.5 ns	17 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.44 mm	1.75 mm	4.44 mm	1.75 mm
Maximum supply voltage (Vsup)	6 V	5.5 V	5.5 V	6 V
Minimum supply voltage (Vsup)	2 V	4.5 V	4.5 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	3.9 mm	7.62 mm	3.9 mm
