DG421DJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> DG421DJ

DG421DJ: DescriptionSPST, 2 Func, 1 Channel, CMOS, PDIP16,; CategoryAnalog mixed-signal IC The signal circuit; File Size223KB，8 Pages; ManufacturerTEMIC; Websitehttp://www.temic.de/

Download Datasheet Parametric Compare View All

DG421DJ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DG421DJ	-	-	View	Buy Now

DG421DJ Overview

SPST, 2 Func, 1 Channel, CMOS, PDIP16,

DG421DJ Parametric

Parameter Name	Attribute value
Maker	TEMIC
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDIP-T16
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	2
Number of terminals	16
Nominal off-state isolation	65 dB
Maximum on-state resistance (Ron)	35 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply current (Isup)	0.005 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	200 ns
Maximum connection time	250 ns
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL

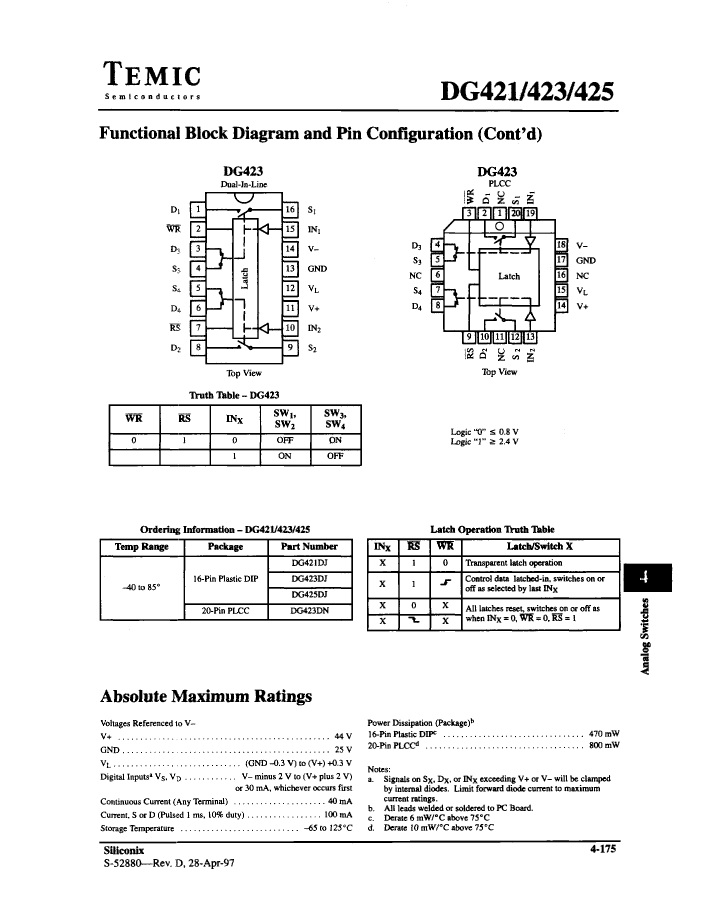

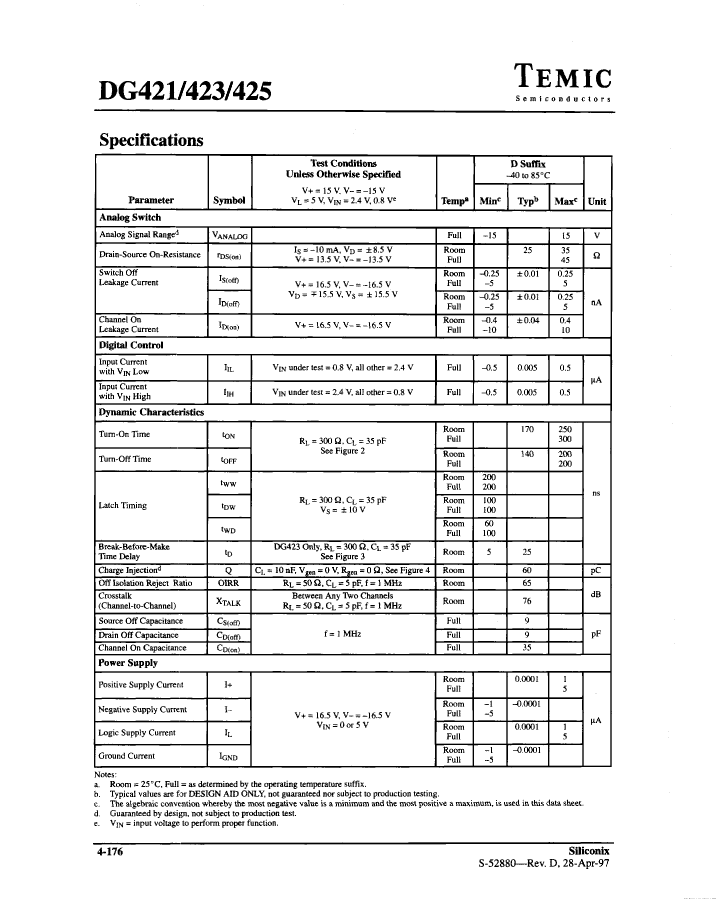

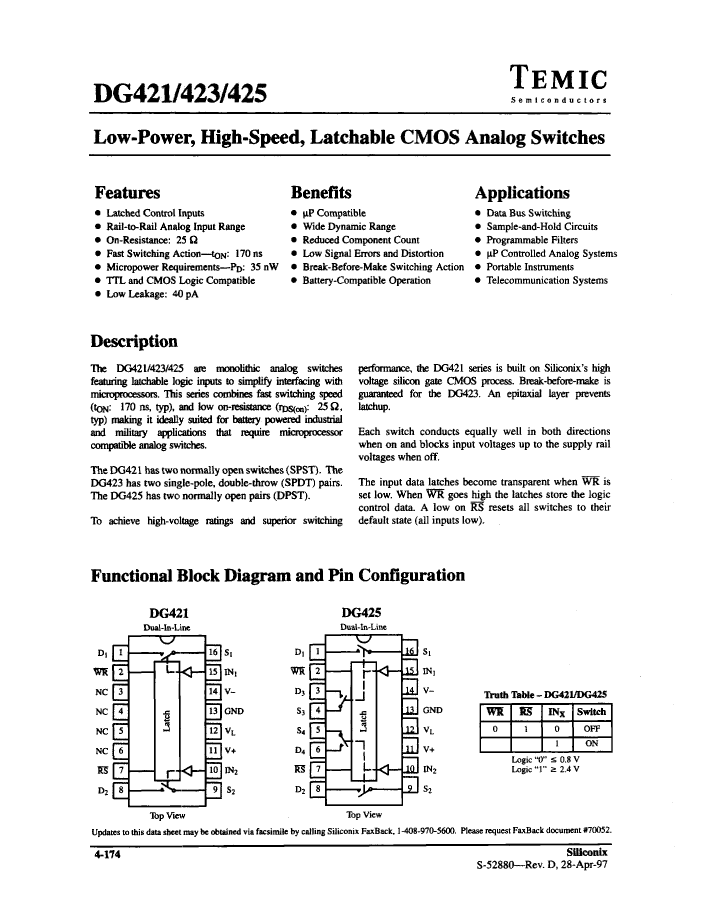

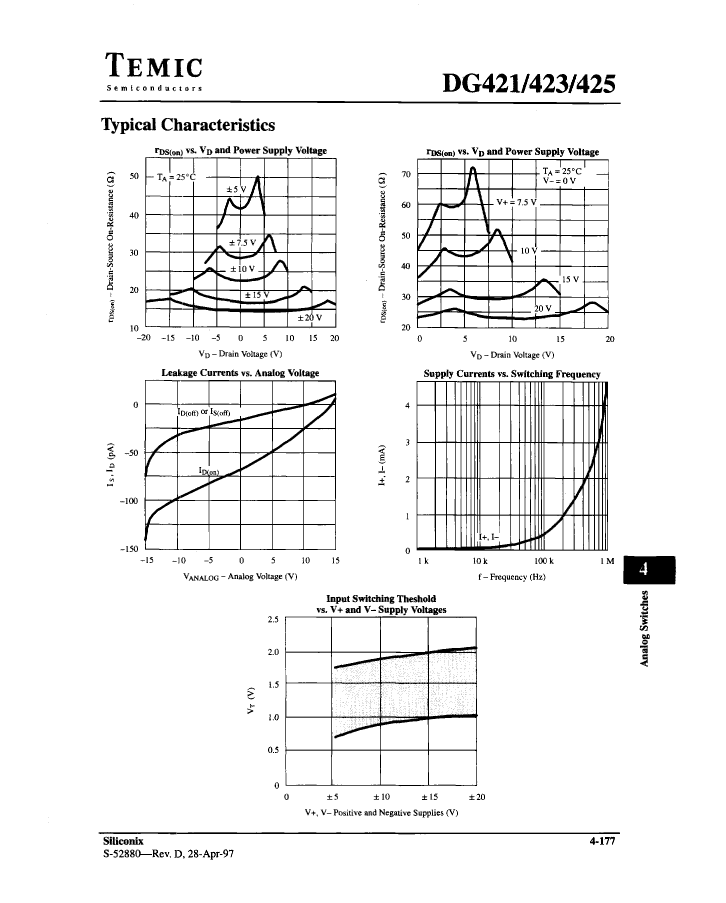

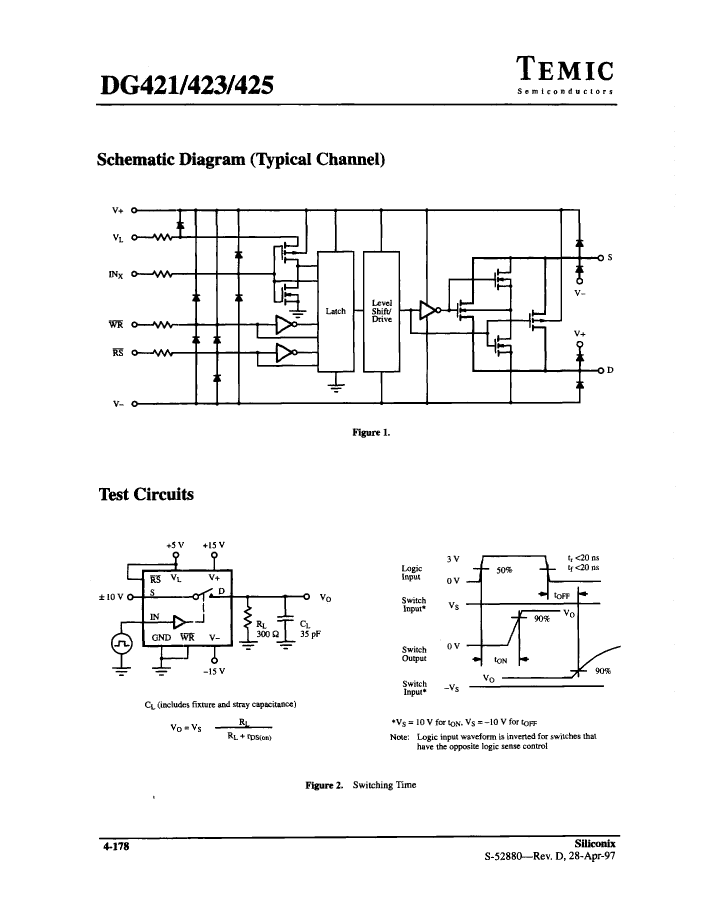

Preview

Download Datasheet

View All

DG421DJ Related Products

	DG421DJ	DG423DJ	DG423DN	DG423DN-T1	DG425DJ
Description	SPST, 2 Func, 1 Channel, CMOS, PDIP16,	SPDT, 2 Func, 1 Channel, CMOS, PDIP16,	SPDT, 2 Func, 1 Channel, CMOS, CQCC20,	SPDT, 2 Func, 1 Channel, CMOS, CQCC20,	DPST, 2 Func, 2 Channel, CMOS, PDIP16,
Maker	TEMIC	TEMIC	TEMIC	TEMIC	TEMIC
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SPST	SPDT	SPDT	SPDT	DPST
JESD-30 code	R-PDIP-T16	R-PDIP-T16	S-CQCC-N20	S-CQCC-N20	R-PDIP-T16
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V
Number of channels	1	1	1	1	2
Number of functions	2	2	2	2	2
Number of terminals	16	16	20	20	16
Nominal off-state isolation	65 dB	65 dB	65 dB	65 dB	65 dB
Maximum on-state resistance (Ron)	35 Ω	35 Ω	35 Ω	35 Ω	35 Ω
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR
Package form	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	0.005 mA	0.005 mA	0.005 mA	0.005 mA	0.005 mA
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	YES	YES	NO
Maximum disconnect time	200 ns	200 ns	200 ns	200 ns	200 ns
Maximum connection time	250 ns	250 ns	250 ns	250 ns	250 ns
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	THROUGH-HOLE
Terminal location	DUAL	DUAL	QUAD	QUAD	DUAL
Base Number Matches	-	1	1	1	1
