For “S” option, operating voltage frequency is 47-63Hz.
(3)
For parts with option “S” maximum leakage current is 10mA.
(4)

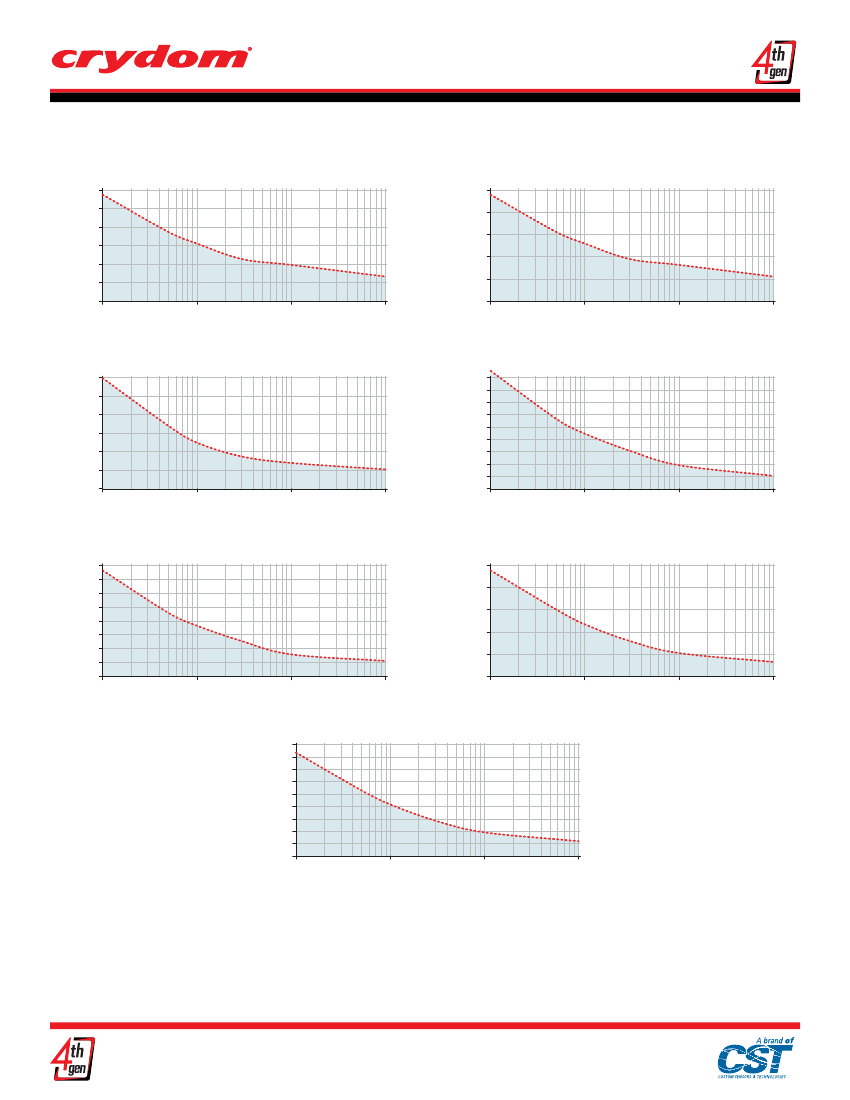

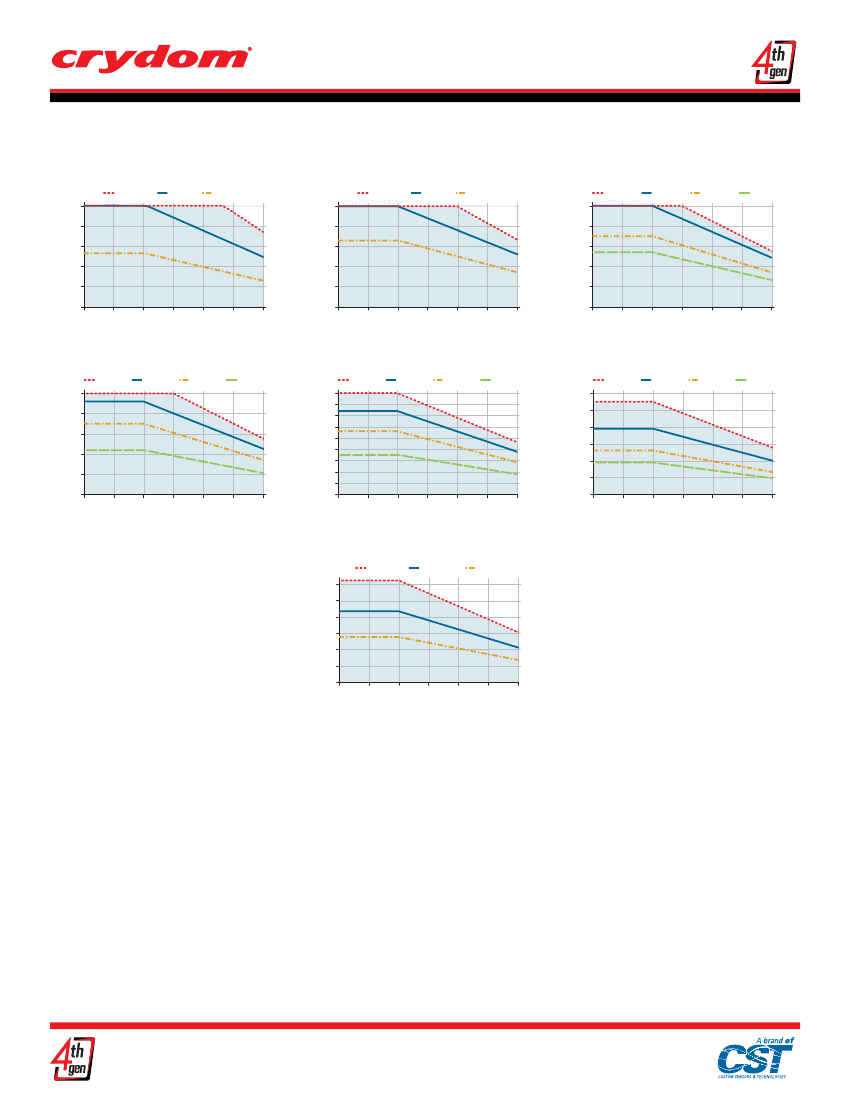

Heat sinking required, see derating curves.
For “K” option maximum current up to 50 Amp.
(5)
Increase minimum voltage by 1V for operations from -20 to -40°C.
(6)
Turn-on time for Instantaneous turn-on versions is 0.02 msec (DC Control Models).
(7)
Single pair (up to 25A) Double pair* (50A model only).
*Caution:
User must connect to both pairs.
(8)
Output will self trigger between 450-600Vpk, Min. power factor 0.7 or higher, not suitable for capacitive loads.
(9)
Instantaneous turn-on version is not recomended for capacitive loads. Use zero turn-on only.
(10)
Elective Input Status LED, “G” option.
(11)
Elective Overvoltage Protection, “P” option.
(12)
Elective Internal Snubber, “S” option.
(13)

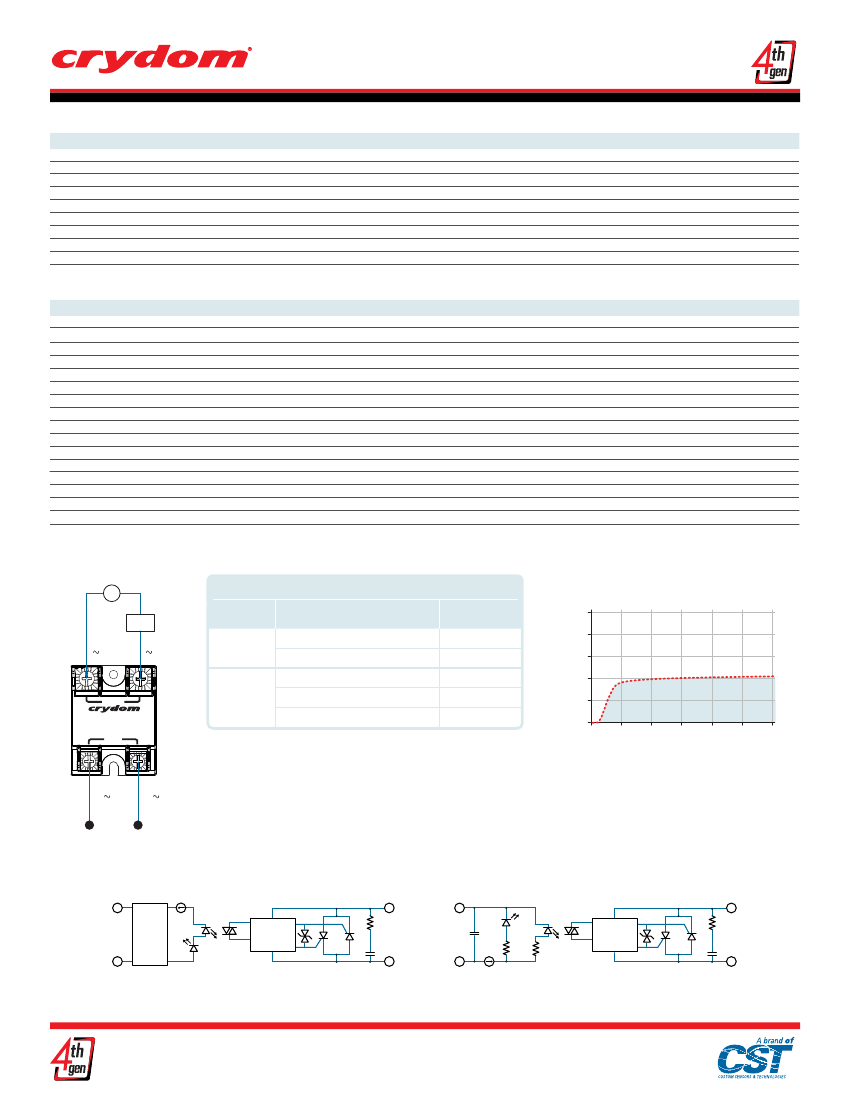

Load can be wired to either SSR output terminal 1 or 2.
(14)
Option “K” is intended only for use in attaching a printed circuit board to the SSR or mounting the SSR to a printed circuit board (PCB minimum thickness is 0.031 in)
(15)
All parameters at 50% power rating and 100% duty cycle (contact Crydom tech support for detailed report).
(16)

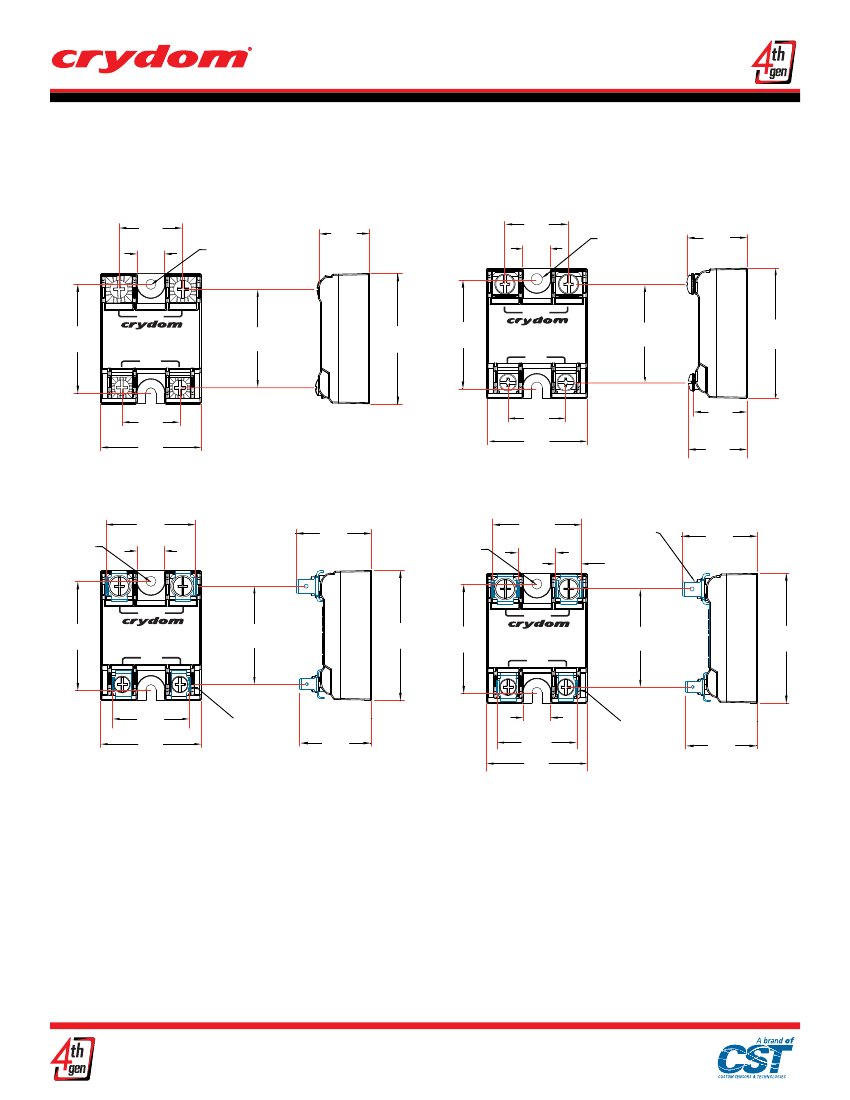

Mechanical dimensions vary fro m G3 models.
For additional information or specific questions, contact Crydom Technical Support.
