DG509ABK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> DG509ABK

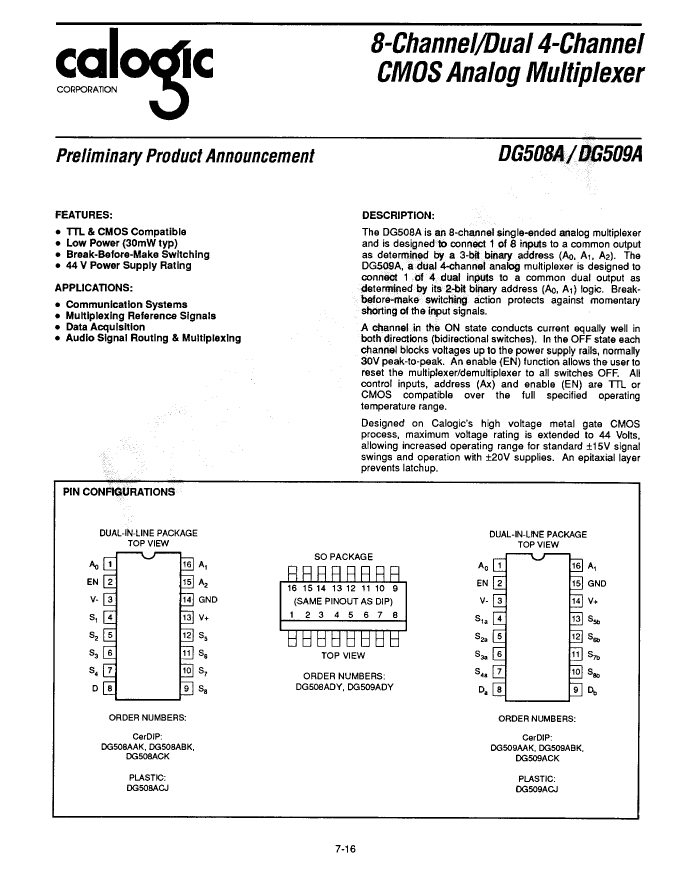

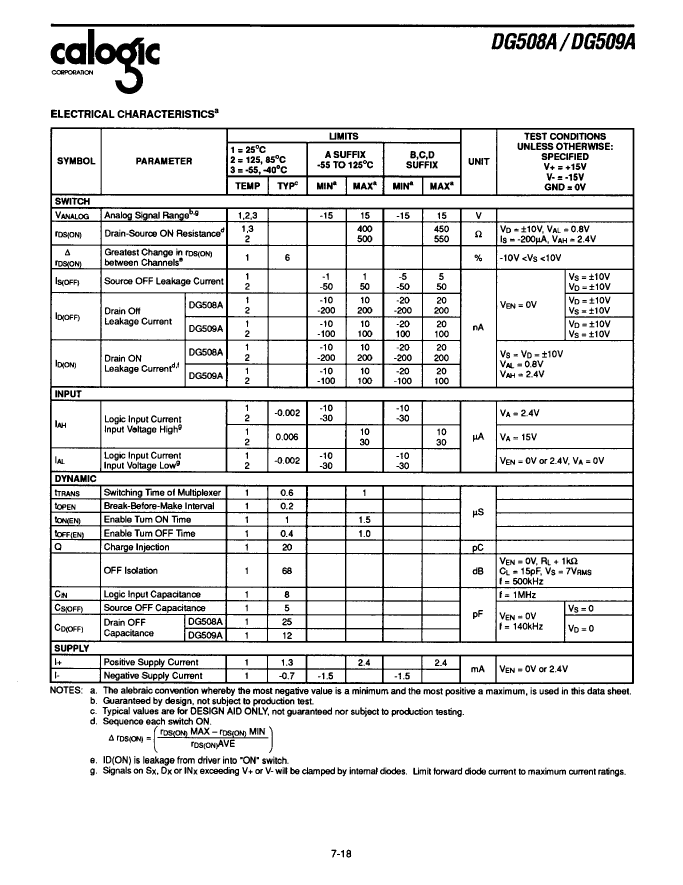

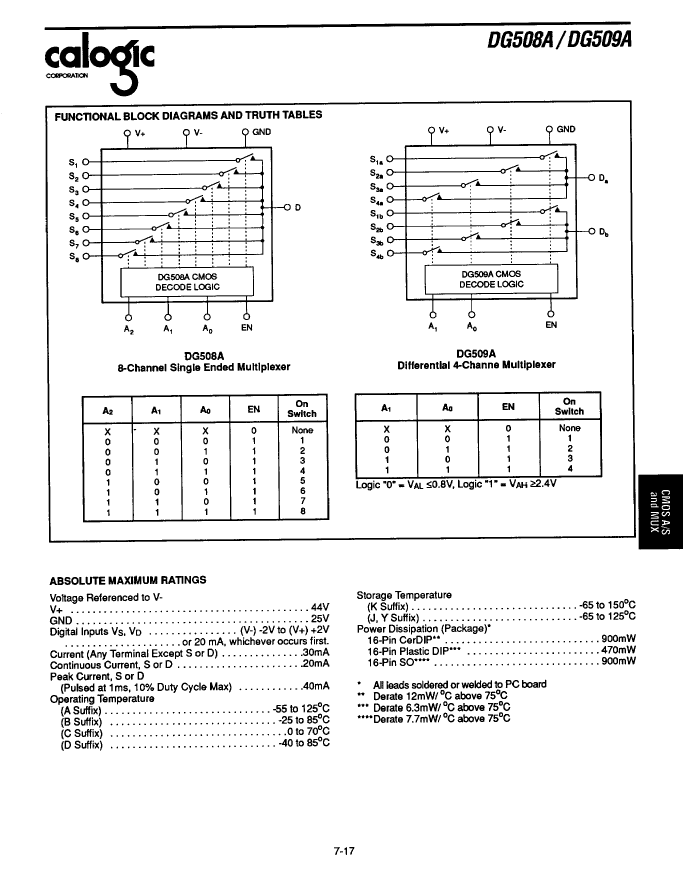

DG509ABK: DescriptionDifferential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16; CategoryAnalog mixed-signal IC The signal circuit; File Size181KB，3 Pages; ManufacturerCalogic; Websitehttp://www.calogic.net/

Download Datasheet Parametric Compare View All

DG509ABK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DG509ABK	-	-	View	Buy Now

DG509ABK Overview

Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16

DG509ABK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Calogic
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	4
Number of functions	1
Number of terminals	16
Maximum on-state resistance (Ron)	550 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Maximum signal current	0.02 A
Maximum supply current (Isup)	2.4 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

DG509ABK Related Products

	DG509ABK	DG508ADY	DG508AAK	DG509ADY	DG509ACJ	DG509ACK	DG508ACJ	DG508ABK	DG508ACK
Description	Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16	Multiplexers/Switches, 1 Func, 8 Channel, CMOS, PDSO16	Multiplexers/Switches, 1 Func, 8 Channel, CMOS, CDIP16	Differential Multiplexer, 1 Func, 4 Channel, CMOS, PDSO16	Differential Multiplexer, 1 Func, 4 Channel, CMOS, PDIP16	Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16	Multiplexers/Switches, 1 Func, 8 Channel, CMOS, PDIP16	Multiplexers/Switches, 1 Func, 8 Channel, CMOS, CDIP16	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maker	Calogic	Calogic	Calogic	Calogic	Calogic	Calogic	-	Calogic	Calogic
package instruction	DIP, DIP16,.3	-	-	SOP, SOP16,.25	-	DIP, DIP16,.3	DIP, DIP16,.3	-	DIP, DIP16,.3
JESD-30 code	R-XDIP-T16	R-PDSO-G16	R-XDIP-T16	R-PDSO-G16	R-PDIP-T16	-	R-PDIP-T16	R-XDIP-T16	R-XDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	-	e0	e0	e0
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-	-15 V	-15 V	-15 V
Number of channels	4	8	8	4	4	-	8	8	8
Number of functions	1	1	1	1	1	-	1	1	1
Number of terminals	16	16	16	16	16	-	16	16	16
Maximum on-state resistance (Ron)	550 Ω	550 Ω	500 Ω	550 Ω	550 Ω	-	550 Ω	550 Ω	550 Ω
Maximum operating temperature	85 °C	85 °C	125 °C	85 °C	70 °C	-	70 °C	85 °C	70 °C
Minimum operating temperature	-25 °C	-40 °C	-55 °C	-40 °C	-	-	-	-25 °C	-
Package body material	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	CERAMIC	CERAMIC
encapsulated code	DIP	SOP	DIP	SOP	DIP	-	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	SOP16,.25	DIP16,.3	SOP16,.25	DIP16,.3	-	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	-	IN-LINE	IN-LINE	IN-LINE
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	-	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Maximum signal current	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	-	0.02 A	0.02 A	0.02 A
Maximum supply current (Isup)	2.4 mA	2.4 mA	2.4 mA	2.4 mA	2.4 mA	-	2.4 mA	2.4 mA	2.4 mA
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	-	15 V	15 V	15 V
surface mount	NO	YES	NO	YES	NO	-	NO	NO	NO
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	-	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS	CMOS	CMOS	CMOS	-	CMOS	CMOS	CMOS
Temperature level	OTHER	INDUSTRIAL	MILITARY	INDUSTRIAL	COMMERCIAL	-	COMMERCIAL	OTHER	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL
Maximum connection time	-	1500 ns	1500 ns	-	-	-	1500 ns	1500 ns	1500 ns
Base Number Matches	-	1	1	1	1	1	1	1	-
