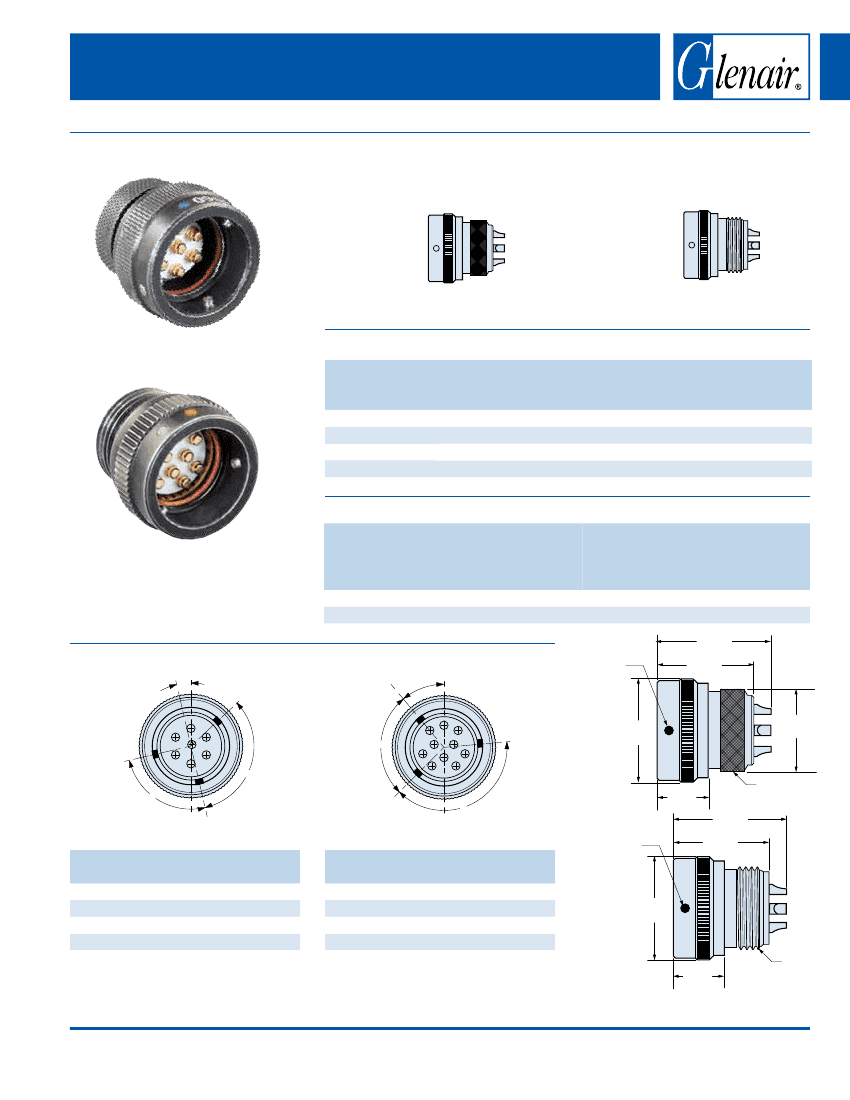

CB Series “PogoPin” Connectors
Plug Connectors
Cable plugs feature non-removable solder cup contacts for up to #20 AWG
wire. Contacts are plated with hard gold. Aluminum connector body, stainless steel
bayonet pins. Shell is zinc plated with black chromate finish. Silicone O-ring provides
waterproof seal when mated. Beryllium copper EMI spring for improved grounding.
Style 1
Style 2
1
7 Pin Plug
Plug with knurl for use with Glenair
809-060 heat shrinkable boots. 7
grams maximum weight.
2
Plug with M14 metric thread for use
with PG adapters and backshells. 7
grams maximum weight
7 Pin Plug Connector
Polarizing
Body No. of
Position 1
Style Contacts (Blue)
Fig. 1 7
CBG07A1L0
Fig. 2 7
CBGO7E1L0
Fig. 1 7
CB07A1L0*
Fig. 2 7
CB07E1L0*
Polarizing
Position 2
(Yellow)
CBG07A2L0
CBGO7E2L0
CB07A2L0*
CB07E2L0*
Polarizing
Position 3
(Green)
CBG07A3L0
CBGO7E3L0
CB07A3L0*
CB07E3L0*
Polarizing
Position 4
(Pink)
CBG07A4L0
CBGO7E4L0
CB07A4L0*
CB07E4L0*
10 Pin Plug Connector
10 Pin Plug
Body
Style
Fig. 1
Fig. 2
Polarizing
No. of
Position N
Contacts (White)
10
CB10G1L0
10
CB10E1L0
Polarizing
Polarizing Polarizing Position Y
Position W Position X (Chrome
(Blue)
(Violet)
Yellow)
CB10G2L0 CB10G3L0 CB10G4L0
CB10E2L0 CB10E3L0 CB10E4L0
21.0
MAX
18.3
MAX
Polarizing
Position Z
(Dark Red)
CB10G5L0
CB10E5L0
Plug Connector Mating Face and Key Positions
13º
45'
40º
KEY POSITION
COLOR CODE
A
B
C
D
A
G
F
A
A
B
C
B
H
J
D E
G
K
F
Ø 18.0
MAX
Ø 14.2
MAX
E
B
10.0
MAX
KEY POSITION
COLOR CODE
KNURL
21.0
MAX
18.3
MAX
7 Pin Plug
Position A
1
2
3
4
90°
105°
110°
100°
B
120°
130°
135°
165°
Color
Code
White
Yellow
Green
Pink
10 Pin Plug
Position A
N
W
X
Y
Z
95°
85°
100°
110°
80°
B
140°
115°
105°
120°
145°
Color Code
White
Blue
Violet
Chrome Yellow
Dark Red
Ø 18.0
MAX
10.0
MAX
M14 X 1
THD
© 2007 Glenair, Inc.
www.glenair.com
All dimensions in millimeters (mm). Information subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
