Contact Types
Solder cup contacts accept up to
#20 AWG stranded wire (1mm max.
diameter). PC tail contacts are available
in two lengths: 3.5 mm and 8.0 mm
Style 3
A
F
G
E
D
CB07B1L0
Connectors
CB Series

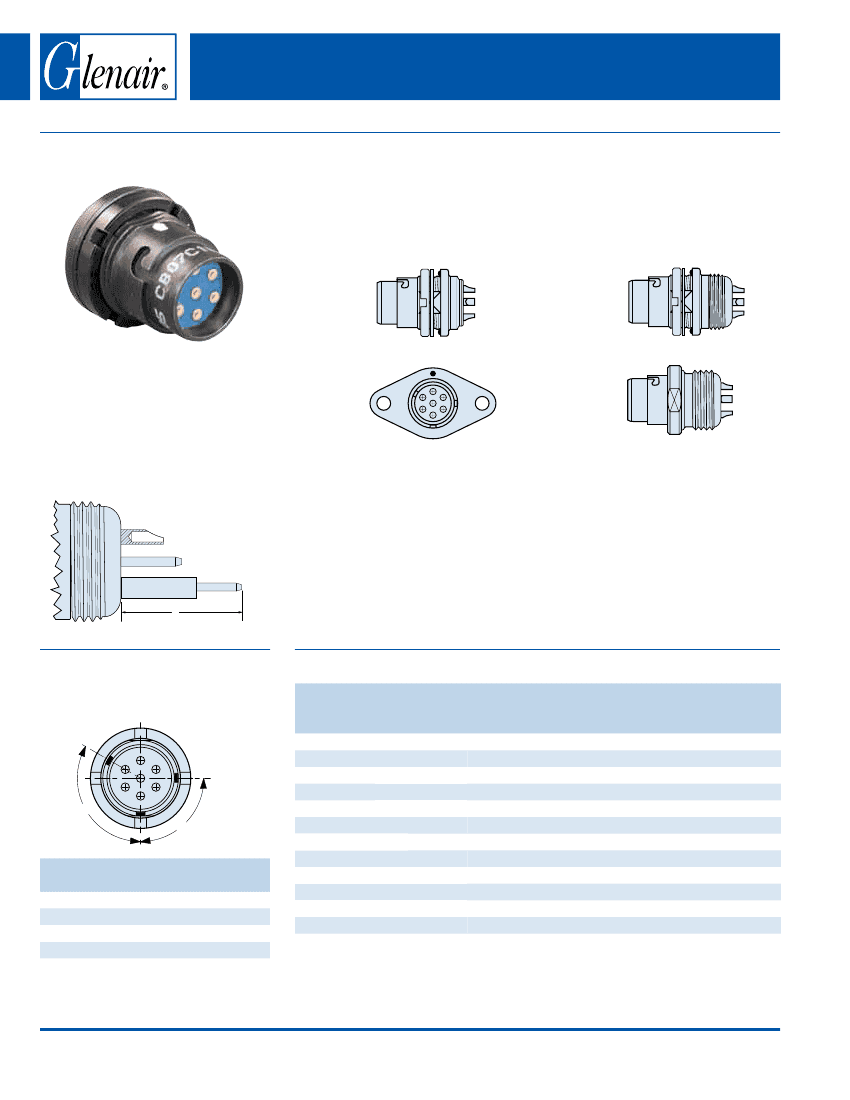

CB Series “PogoPin” Connectors
Receptacle Connectors for Panel Mounting - 7 Contacts
Receptacles feature non-removable solder cup contacts or printed circuit
board terminals. Contacts are plated with hard gold. Stainless steel connector
body and jam nut. Shell is plated with black chromate finish. Silicone face seal
prevents water ingress when unmated. Open face pressure rating 0.4 bar. 5000
cycles mating durability.
Style 1
Jam Nut Receptacle
B
C
Style 2
Style 4
1
3
SOLDER CUP
#20 AWG
SHORT PC TAIL
Ø 0.53 x 3.5
Jam nut receptacle for rear panel
mounting (3.5 mm maximum panel
thickness). Supplied with stainless
steel jam nut and flat washer. Nitrile
O-ring provides watertight panel
seal. 13 grams maximum weight.
Two hole flange mount receptacle
for front panel mounting. Mounting
holes accept M3 screws, not
supplied. Use with optional gasket or
O-ring for watertight panel sealing.
16 grams maximum weight.
2
4
Jam nut receptacle with M14X1
accessory threads for rear panel
mounting (3.5 mm max. panel
thickness). Supplied with stainless
steel jam nut and flat washer. Nitrile
O-ring provides watertight panel
seal. 13 grams maximum weight.
"Thread-in" receptacle with PG9
threads for installation directly into
a tapped hole. Supplied with O-ring.
16 grams maximum weight.
8
7 Pin Receptacle
Connector Mating Face
and Key Positions
A
F
E
D
G
B
C
7 Pin Panel Mount Receptacle
Mounting
Style
Jam Nut
Jam Nut
Jam Nut
Contact
Fig. Type
Fig. 1
Fig. 1
Fig. 1
Jam Nut w/ Thd. Fig. 2
Jam Nut w/ Thd. Fig. 2
A
B
Jam Nut w/ Thd. Fig. 2
Flange
Fig. 3
Fig. 3
Fig. 3
Fig. 4
Fig. 4
Fig. 4
Position A
1
2
3
4
90°
105°
110°
100°
B
120°
130°
135°
165°
Color
Code
White
Yellow
Green
Pink
Flange
Flange
Thread-In
Thread-In
Thread-In
Polarizing
Position 1
(Blue)
Solder Cup
CB07C1L0
Short PC Tail
CB07C1L1
Long PC Tail
CB07C1L2
Solder Cup
CB07T1L0
Short PC Tail
CB07T1L1
Long PC Tail
CB07T1L2
Solder Cup
CB07B1L0
Short PC Tail
CB07B1L1
Long PC Tail
CB07B1L2
Solder Cup
CB07Q1L0
Short PC Tail
CB07Q1L1
Long PC Tail
CB07Q1L2
Polarizing
Position 2
(Yellow)
CB07C2L0
CB07C2L1
CB07C2L2
CB07T2L0
CB07T2L1
CB07T2L2
CB07B2L0
CB07B2L1
CB07B2L2
CB07Q2L0
CB07Q2L1
CB07Q2L2
Polarizing
Position 3
(Green)
CB07C3L0
CB07C3L1
CB07C3L2
CB07T3L0
CB07T3L1
CB07T3L2
CB07B3L0
CB07B3L1
CB07B3L2
CB07Q3L0
CB07Q3L1
CB07Q3L2
Polarizing
Position 4
(Pink)
CB07C4L0
CB07C4L1
CB07C4L2
CB07T4L0
CB07T4L1
CB07T4L2
CB07B4L0
CB07B4L1
CB07B4L2
CB07Q4L0
CB07Q4L1
CB07Q4L2
© 2007 Glenair, Inc.
www.glenair.com
All dimensions in millimeters (mm). Information subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
10

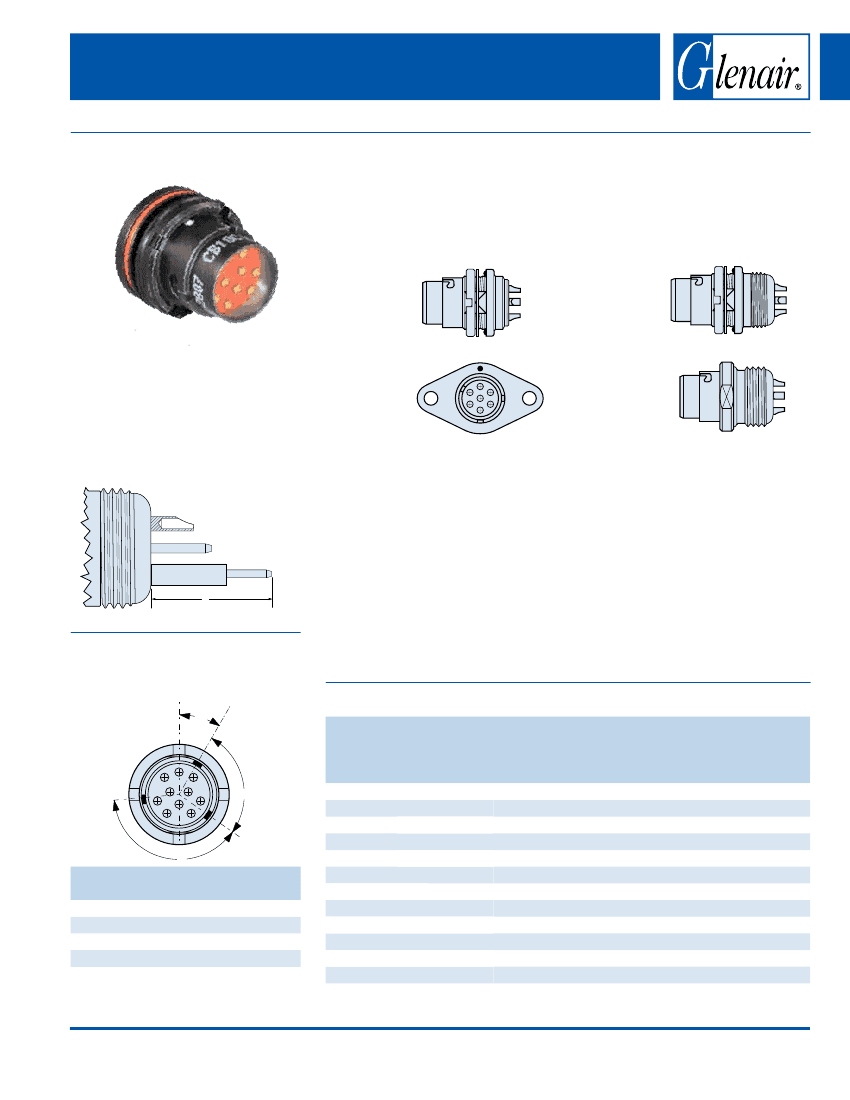

CB Series “PogoPin” Connectors
Receptacle Connectors for Panel Mounting - 10 Contacts
Receptacles feature non-removable solder cup contacts for up to #20
AWG wire or printed circuit board terminals. Contacts are plated with hard gold.
Stainless steel connector body and jam nut. Shell is plated with black chromate
finish. Silicone face seal and O-ring. Open face pressure rating 0.4 bar. 5000
cycles mating durability.
Style 1
Jam Nut Receptacle
Style 2
Solder cup contacts accept up to
#20 AWG stranded wire (1mm max.
diameter). PC tail contacts are available
in two lengths: 3.5 mm and 8.0 mm
Style 3
A
F
G
E
D
CB07B1L0
Contact Types
B
C
Style 4
1
3
SOLDER CUP
#20 AWG
SHORT PC TAIL
Ø 0.53 x 3.5
Jam nut receptacle for rear panel
mounting (3.0 mm maximum panel
thickness). Supplied with stainless
steel jam nut and flat washer. O-ring
provides watertight panel seal. 11
grams maximum weight.
Two hole flange mount receptacle for
front panel mounting. Mounting holes
accept M3 screws, not supplied. Use
with optional gasket or O-ring for
watertight panel sealing. 19 grams
maximum weight.
2
Jam nut receptacle with M14X1
accessory threads for rear panel
mounting (3.5 mm max. panel
thickness). Supplied with stainless
steel jam nut and flat washer. O-ring
provides watertight panel seal. 19
grams maximum weight.
8
4
10 Pin Receptacle
Connector Mating Face
and Key Positions
30°
"Thread-in" receptacle with PG9
threads for installation directly into
a tapped hole. Supplied with O-ring.
19 grams maximum weight.
10 Pin Panel Mount Receptacle
Mounting
Contact
Style
Fig. Type
Polarizing Polarizing
Position N Position W
(White)
(Blue)
CB10C1L0 CB10C2L0
CB10C1L1 CB10C2L1
CB10C1L2 CB10C2L2
CB10T1L0 CB10T2L0
CB10T1L1 CB10T2L1
CB10T1L2 CB10T2L2
CB10B1L0 CB10B2L0
CB10B1L1 CB10B2L1
CB10B1L2 CB10B2L2
CB10Q1L0 CB10Q2L0
CB10Q1L1 CB10Q2L1
CB10Q1L2 CB10Q2L2
Polarizing
Position X
(Violet)
CB10C3L0
CB10C3L1
CB10C3L2
CB10T3L0
CB10T3L1
CB10T3L2
CB10B3L0
CB10B3L1
CB10B3L2
CB10Q3L0
CB10Q3L1
CB10Q3L2
Polarizing
Position Y
(Chrome
Yellow)
CB10C4L0
CB10C4L1
CB10C4L2
CB10T4L0
CB10T4L1
CB10T4L2
CB10B4L0
CB10B4L1
CB10B4L2
CB10Q4L0
CB10Q4L1
CB10Q4L2
Polarizing
Position Z
(Dark Red)
CB10C5L0
CB10C5L1
CB10C5L2
CB10T5L0
CB10T5L1
CB10T5L2
CB10B5L0
CB10B5L1
CB10B5L2
CB10Q5L0
CB10Q5L1
CB10Q5L2
A
G
F
K
J
E D
B
H
C
A
Jam Nut
Jam Nut
Jam Nut
Fig. 1 Solder Cup
Fig. 1 Short PC Tail
Fig. 1 Long PC Tail
Jam Nut/ Thd. Fig. 2 Solder Cup
B
Jam Nut / Thd. Fig. 2 Short PC Tail
Position A
N
W
X
Y
Z
95°
85°
100°
110°
80°
B
140°
115°
105°
120°
145°
Color Code
White
Blue
Violet
Chrome Yellow
Dark Red
Jam Nut / Thd. Fig. 2 Long PC Tail
Flange
Flange
Flange
Thread-In
Thread-In
Thread-In
Fig. 3 Solder Cup
Fig. 3 Short PC Tail
Fig. 3 Long PC Tail
Fig. 4 Solder Cup
Fig. 4 Short PC Tail
Fig. 4 Long PC Tail
© 2007 Glenair, Inc.
www.glenair.com
All dimensions in millimeters (mm). Information subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
11
Connectors
CB Series
B
C
D
CB07B1L0
Connectors
CB Series
LOCATION OF
POLARIZING
COLOR CODE
A
F
E
D
G
B
C
CB Series “PogoPin” Connectors

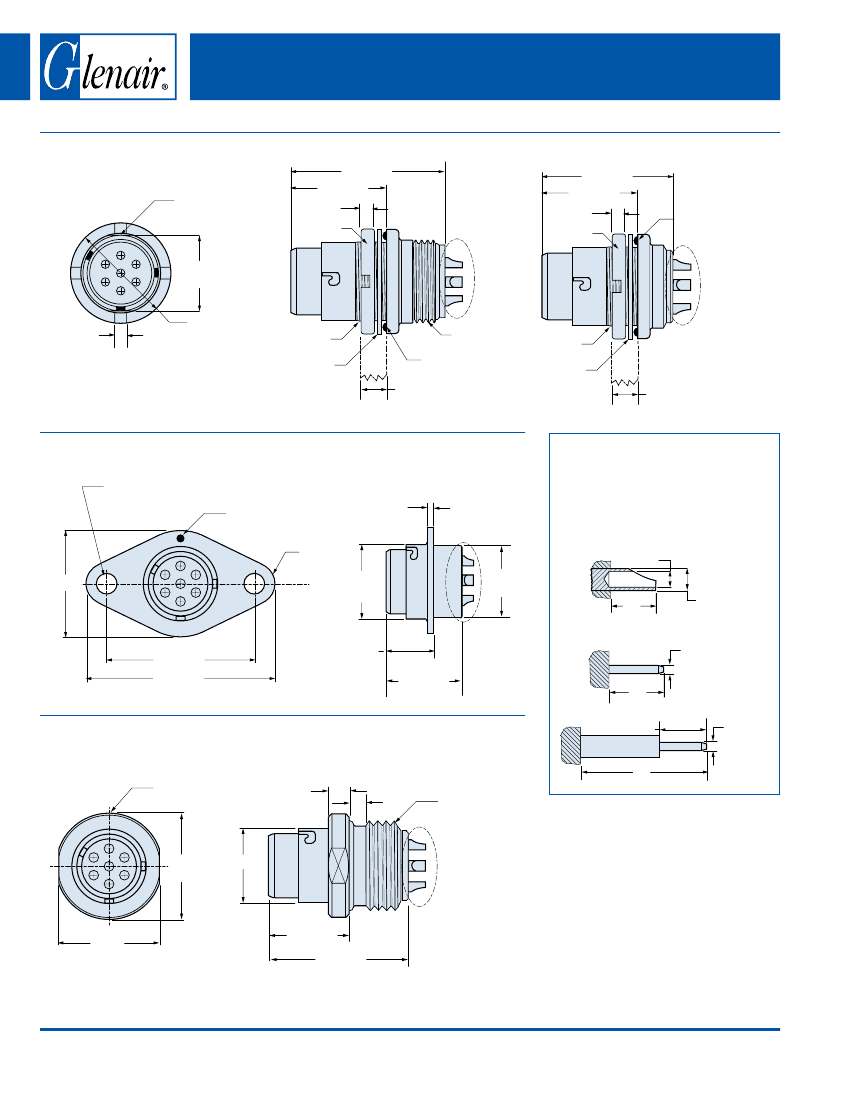

Jam Nut Receptacle Dimensions
22.7 MAX
16.2 MAX
3.0 MAX
JAM NUT
12.8 (+0 / -0.1)
FLATS
20.6 MAX
16.2 MAX
3.0 MAX
JAM NUT
DETAIL
A
O-RING
DETAIL
A
2.0
Ø 17.0 MAX
M14 x 0.75
WASHER
M14 X 1
THD
O-RING
3.0 MAX
PANEL
M14 x 0.75
WASHER
3.0 MAX
PANEL
Flange Mount Receptacle Dimensions
Ø 3.7/3.3 THRU
HOLE 2 PLCS
LOCATION OF
POLARIZING
COLOR CODE
RAD 3.5
G
E
Detail A
Contact Termination Styles
DETAIL
A
SOLDER CUP
#20 AWG
1.0 MAX.
Ø 12.8
MAX.
2.5
SHORT PC TAIL
1.14 MAX.
1.5 ± 0.15
A
Ø 18.0
F
Ø 13.5
MAX.
25.0 ± 0.1
32.0 MAX.
13
MAX.
20.5 MAX.
3.5
LONG PC TAIL
2.9/3.0
0.45/0.53
Thread-In Mount Receptacle Dimensions
LOCATION OF
POLARIZING
COLOR CODE
4.0
0.45/0.50
8
2.0
PG 9 THREAD
I.A.W. DIN 40430
A
F
G
E
D
B
C
Ø 18.0 Ø 13.5 MAX.
MAX.
DETAIL
A
17.0
14.2 MAX.
21.9 MAX.
© 2007 Glenair, Inc.
www.glenair.com
All dimensions in millimeters (mm). Information subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
12
CB Series “PogoPin” Connectors

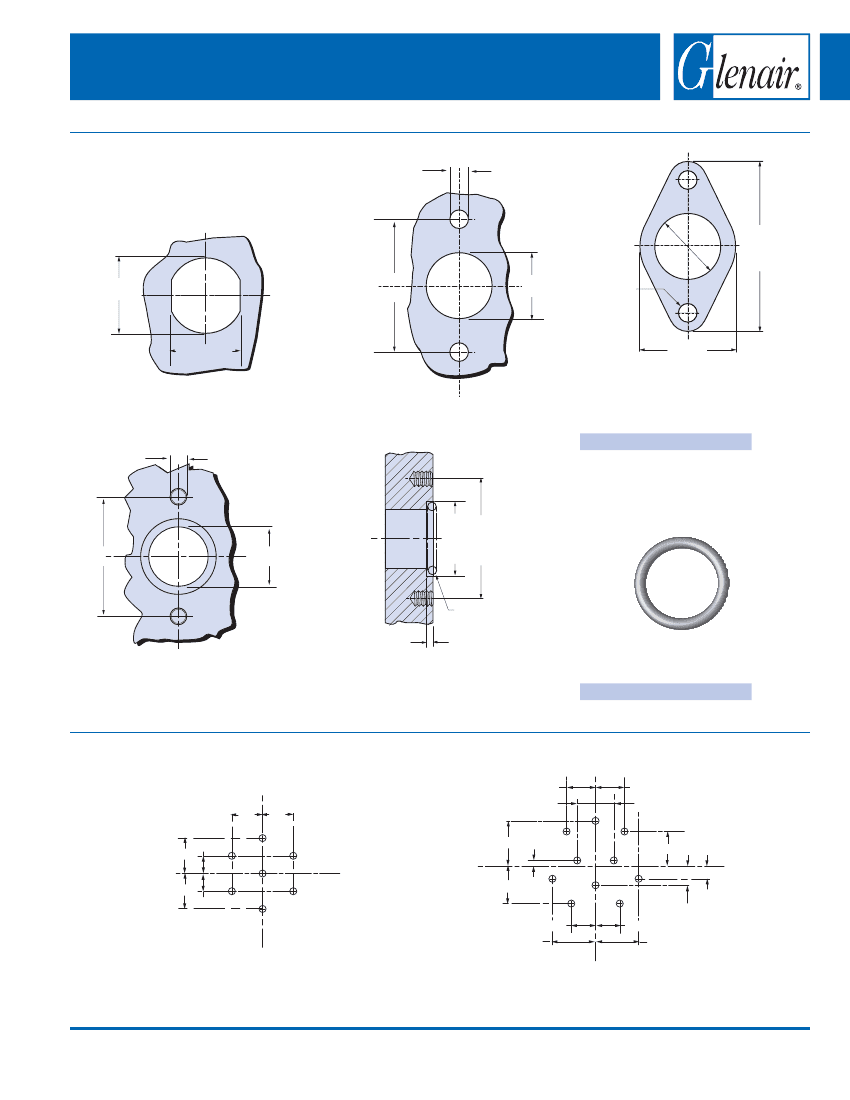

Receptacle Connector Panel Cutouts
3.5 + 0.15/-0
14.2 +0.1/-0
25
± 0.15
12.4
+ 0.2/-0
Ø 3.1
12.9 +0.1/-0
Ø 18.0
MAX.
1
Panel cutout for jam nut receptacle
for rear panel mounting.
2
Panel cutout for elliptical
fl
ange
mount receptacle. For front panel
mounting.
3
M3 TAPPED
THREAD
Nitrile panel gasket for elliptical
fl
ange mount receptacle. Ordered
separately.
Description Part Number
Gasket
CBGK-B
15.8 + 0.2/-0
25 ± 0.15
12.4 + 0.2/-0
0-RING
(SOLD SEPARATELY)
1.4 ± 0.1
4a
Face view of panel cutout for
elliptical
fl
ange receptacle with
tapped holes.
4a
Side view of panel cutout for
elliptical
fl
ange receptacle with
tapped holes.
25.0 ± 0.15
5
O-ring for use with cutout #4.
Purchased separately.
Description Part Number
O-Ring
CBOR-B
Receptacle Connector Printed Circuit Board Patterns
C
L
C
L
2.6
A
2.6
B
2.45
1.55
3.8 0.45
C
L
C
L
3.2
E
F
G
A
B
H
2.45
1.55
3
3
1.5
F
G
K
J
2.9
C
C
1.5
E
D
D
1.1
1.65
3.65
2.05
2.05
3.65
1
© 2007 Glenair, Inc.
www.glenair.com
PCB mounting pattern for
receptacles with 7 contacts.
2
13
PCB mounting pattern for
receptacles with 10 contacts.
Printed in U.S.A.
All dimensions in millimeters (mm). Information subject to change without notice.
CAGE Code 06324
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
E-Mail: sales@glenair.com
