CB Series “PogoPin” Connectors

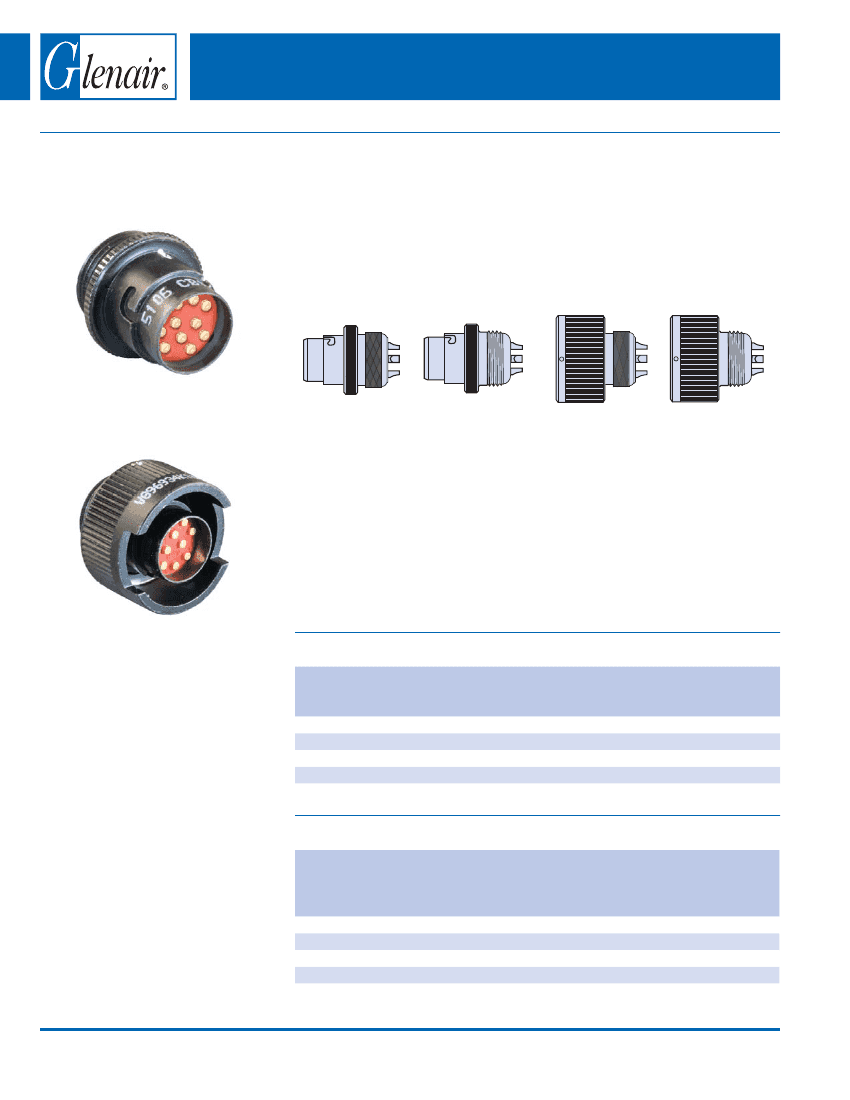

Receptacle Connector, In-Line
In-line receptacles are used on free-hanging cords. Receptacles feature non-
removable solder cup contacts for up to #20 AWG wire. Contacts are plated with
hard gold. Stainless steel connector body. Shell is plated with black chromate
fi
nish.
Silicone face seal. Open face pressure rating 0.4 bar. 5000 cycles mating durability.
Shrouded receptacles are easier to mate and also provide added protection to
mated connectors.
Style 1
Style 2
Style 3
Style 4
Unshrouded In-Line
Receptacle
1
3
Receptacle with knurl for use with
Glenair 809-060 heat shrinkable
boots. Boots ordered separately.
Maximum weight 16 grams.
Shrouded receptacle for in-line
cable mounting. Stainless steel
shroud provides additional support
and protection to mated connectors.
With knurl for use with Glenair
809-060 heat shrinkable boots.
Boots ordered separately. Maximum
weight 14 grams.
2
4
Receptacle with M14 x 1 accessory
threads for use with adapters.
Maximum weight 16 grams.
Shrouded receptacle for in-line cable
mounting. Stainless steel shroud
provides additional support and
protection to mated connectors. With
M14 x 1 accessory threads for use with
adapters. Maximum weight 14 grams.
Shrouded
In-Line Receptacle
7 Pin in-Line Receptacle Connector
Polarizing
Body No. of Position 1
Style Contacts (Blue)
Fig. 1 7
CB07D1L0
Fig. 2 7
CBO7DF1L0
Fig. 3 7
CBO7KG1NL0N0
Fig. 4 7
CBO7K1NL0N0
Polarizing
Position 2
(Yellow)
CB07D2L0
CBO7DF2L0
CBO7KG2NL0N0
CBO7K2NL0N0
Polarizing
Position 3
(Green)
CB07D3L0
CBO7DF3L0
CBO7KG3NL0N0
CBO7K3NL0N0
Polarizing
Position 4
(Pink)
CB07D4L0
CBO7DF4L0
CBO7KG4NL0N0
CBO7K4NL0N0
10 Pin In-Line Receptacle Connector
No. Polarizing
Body of Position 1
Style Pins (White)
Fig. 1
Fig. 2
Fig. 3
Fig. 4
10
10
10
10
CB10D1L0
Polarizing
Position 2
(Blue)
CB10D2L0
Polarizing
Position 3
(Violet)
CB10D3L0
Polarizing
Position 4
(Chrome
Yellow)
CB10D4L0
Polarizing
Position 5
(Dark Red)
CB10D5L0
CB10DF1L0
CB10DF2L0
CB10DF3L0
CB10DF4L0
CB10DF5L0
CB10KG1NL0N0 CB10KG2NL0N0 CB10KG3NL0N0 CB10KG4NL0N0 CB10KG5NL0N0
CB10K1NL0N0 CB10K2NL0N0 CB10K3NL0N0 CB10K4NL0N0 CB10K5NL0N0
© 2007 Glenair, Inc.
All dimensions in millimeters (mm). Information subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
14
E-Mail: sales@glenair.com
CB Series “PogoPin” Connectors

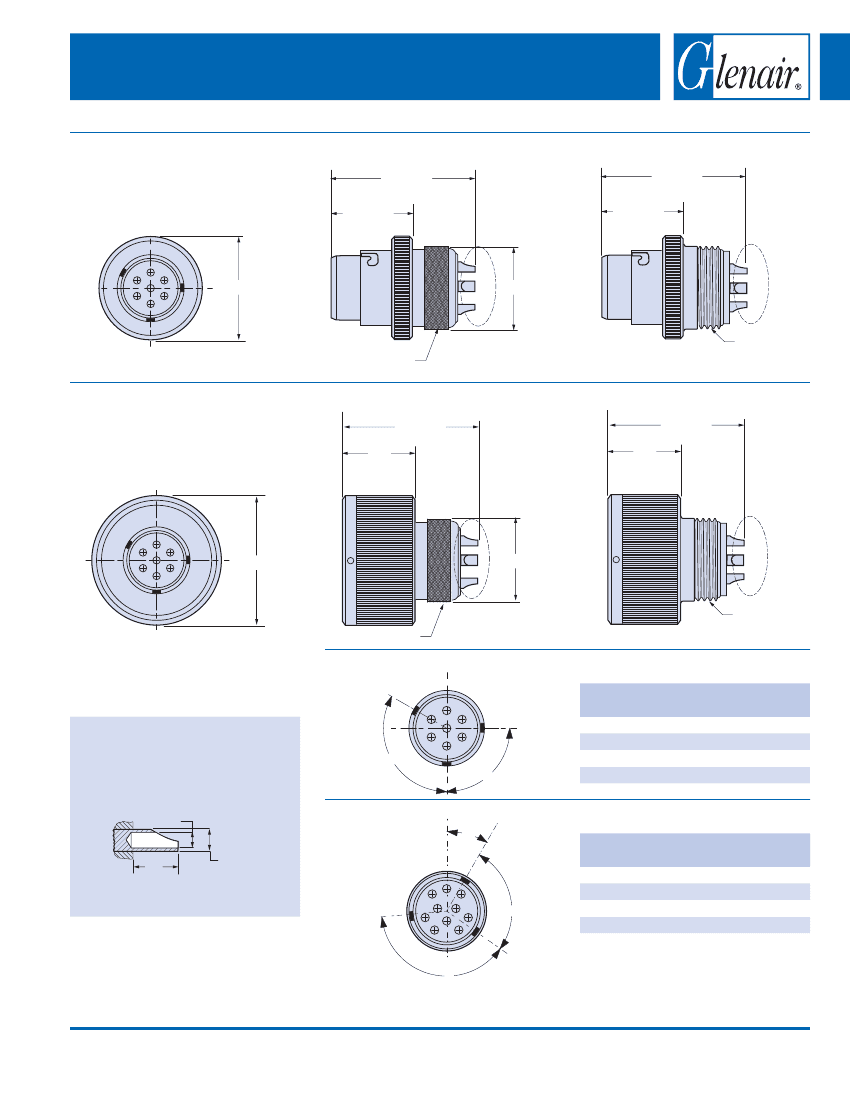

In-Line Unshrouded Receptacle Dimensions
24.2 MAX
15.5 MAX
24.2 MAX
15.5 MAX
A
F
E
G
B
C
18.0 MAX
14.2 MAX
DETAIL
A
D
DETAIL
A
KNURL
M14 X 1
THD
In-Line Shrouded Receptacle Dimensions
26.0 MAX
15.5
MAX
15.5
MAX
26.0 MAX
A
F
E
G
B
C
22.5 MAX
14.2 MAX
DETAIL
A
D
DETAIL
A
KNURL
M14 X 1
THD
7 Pin Receptacle Connector Mating Face and Key
Positions
A
F
G
C
E
D
B
Position A
1
2
A
B
120°
130°
135°
165°
Color
Code
Detail A
SOLDER CUP
#20 AWG
1.0 MAX.
90°
105°
110°
100°
Blue
Yellow
Green
Pink
B
3
4
10 Pin Receptacle Connector Mating Face and Key
30°
Positions
1.14 MAX.
A
G
K
J
E D
B
H
C
2.5
Position A
N
W
X
Y
Z
95°
85°
100°
110°
80°
B
140°
115°
105°
120°
145°
Color Code
White
Blue
Violet
Chrome Yellow
Dark Red
A
F
B
