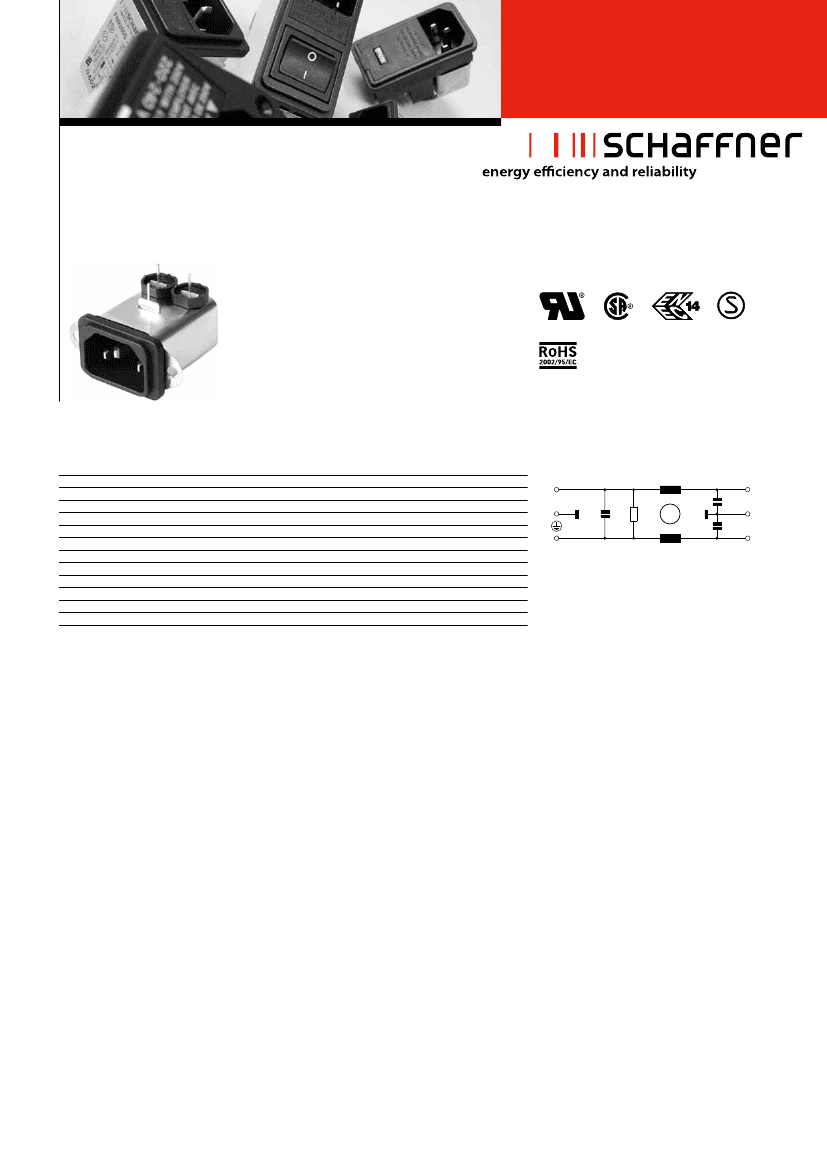

IEC Inlet Filters

FN 9226

HF Performance IEC Inlet Filter

Rated currents up to 10A

Faston connection

Optional PCB through hole connection

Good HF coupling to the equipment

housing

Optional medical versions (B type)

Approvals

Technical specifications

Maximum continuous operating voltage:

Operating frequency:

Rated currents:

Approvals by rated current:

High potential test voltage:

250VAC, 50/60Hz

dc to 400Hz

1 to 10A @ 50°C

1 to 10A (ENEC, UL, CSA)

P –> PE 2000VAC for 2 sec (standard types)

P –> PE 2500VAC for 2 sec (B types)

P –> N 760VAC for 2 sec

IP40 according to IEC 60529

-25°C to +85°C (25/85/21)

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

UL 94V-2 or better

800,000 hours

Typical electrical schematic

Line

Load

2xL

2xCy

N‘

P‘

Protection category:

Temperature range (operation and storage):

Design corresponding to:

Flammability corresponding to:

MTBF @ 40°C/230V (Mil-HB-217F):

Features and benefits

The FN 9226 IEC inlet filter combines an

IEC inlet and mains filter with excellent filter

attenuation in a small form factor. The

FN 9226 is designed for printed circuit board

mounting with good HF coupling to the

equipment housing. Choosing the FN 9226

power entry module brings you the rapid

availability of a standard filter associated

with the necessary safety acceptances.

Standard IEC connector filters are a practical

solution helping you to pass EMI system

approval in a short time. A wide selection on

current ratings, output connections and low

leakage versions for medical applications

helps you to select the desired solution for

your application.

Typical applications

High conducted attenuation performance,

based on chokes with high saturation

resistance and excellent thermal behavior.

Rear flange mounting.

Optional low leakage current versions for

medical applications.

Faston connection or PCB through hole

pins.

Good HF coupling.

Rated currents up to 10A.

Custom-specific versions are available on

request.

Portable electrical and electronic

equipment

Small to medium-sized machines and

household equipment

Single-phase power supplies, switch-mode

power supplies

Consumer goods

Test and measurement equipment

EDP and office equipment

Medical equipment

Rack mounting equipment
