LAL03TA,TB,NA,KH6R8K datasheet, PDF

Datasheet> All Categories > Passive components> inductor> LAL03TA,TB,NA,KH6R8K

LAL03TA,TB,NA,KH6R8K: DescriptionGeneral Purpose Inductor, 6.8uH, 10%, 1 Element, Ferrite-Core, ROHS COMPLIANT; CategoryPassive components inductor; File Size4MB，22 Pages; ManufacturerTAIYO YUDEN; Websitehttps://www.yuden.co.jp/; Environmental Compliance

Download Datasheet Parametric View All

LAL03TA,TB,NA,KH6R8K Overview

General Purpose Inductor, 6.8uH, 10%, 1 Element, Ferrite-Core, ROHS COMPLIANT

LAL03TA,TB,NA,KH6R8K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TAIYO YUDEN
Reach Compliance Code	unknown
ECCN code	EAR99
core material	FERRITE
DC Resistance	2 Ω
Nominal inductance(L)	6.8 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	LAL03
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Minimum quality factor (at nominal inductance)	50
Maximum rated current	0.175 A
self resonant frequency	37 MHz
Shape/Size Description	TUBULAR PACKAGE
shield	NO
surface mount	NO
Terminal location	AXIAL
Terminal shape	WIRE
Test frequency	7.96 MHz
Tolerance	10%

Preview

Download Datasheet

View All

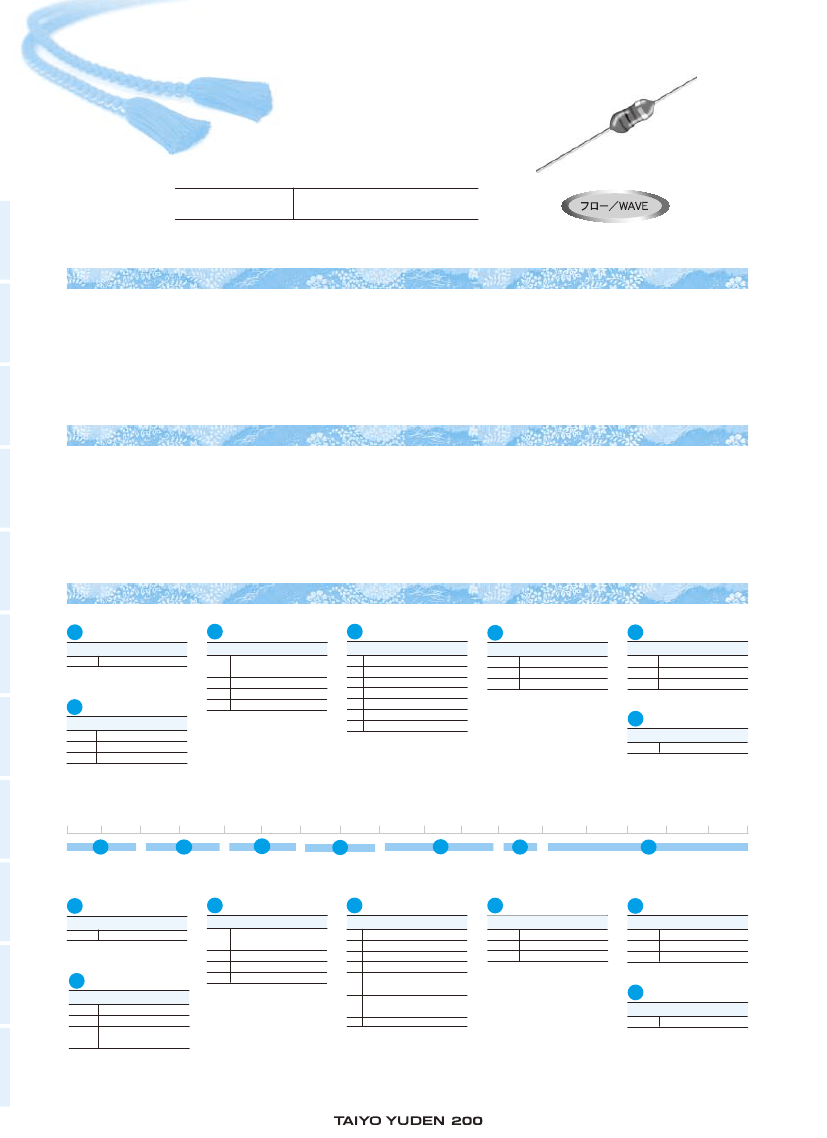

アキシャルリード½インダクタ

AXIAL LEADED INDUCTORS

OPERATING TEMP

ー25∼＋105℃（½品自己発熱を含む）

（Including

self-generated heat）

特長 FEATURES

・

自動挿入に対し極めて高い信頼性を有するインダクタ

・

自動化高速ラインによる生産の為、量産性に優れかつ高品質

・

アキシャルリードタイプの他、ラジアルテーピング、単品加工品があり

バリエーションが豊富

・Extremely

reliable inductors that are ideal for automatic insertion.

・Highly

efficient automated production processes can provide high

quality inductors in large volumes.

・Wide

selection of conﬁgurations including axial leaded, formed radial

leads and bulk products to meet most manufacturing needs.

用途 APPLICATIONS

・CTV、DVD、オーディオ、通信機、チューナー、その他電子機器全般

・Use

for TVs, DVD, audio equipment, communication instrument, tuner,

and general electrical instrument.

½名表記法 ORDERING

CODE

½式

アキシャルリードインダクタ

½状寸法

（L×D）

〔mm〕

max

3.4×2.3

(LAL/LAP)

3.6×2.4

（LAN）

7.0×2.7

4.5×4.0

9.8×4.0

リード加工½状

フォーミング単品

（04タイプ）

フォーミング単品

（03タイプ）

フォーミング単品

（02タイプ）

ストレート単品

アキシャルつづらテーピング26.0幅

アキシャルつづらテーピング52.0幅

公称インダクタンス

〔μH〕

例

1R5

120

※R=小数点

インダクタンス許容差

〔％〕

±5

±10

±20

1.5

½品区分

L, V△

N△

P△

一般

高電流タイプ

一般

（リード線径0.45φmm）

△＝スペース

ラジアルテーピング

½社管理記号

△△△△△

標準品

△＝スペース

L A L

△

0 3 T A R 2 2 M

○○○○○

Type

Axial leaded inductor

Dimensions L×D）

（

〔mm〕

max

3.4×2.3

(LAL/LAP)

3.6×2.4

（LAN）

7.0×2.7

4.5×4.0

9.8×4.0

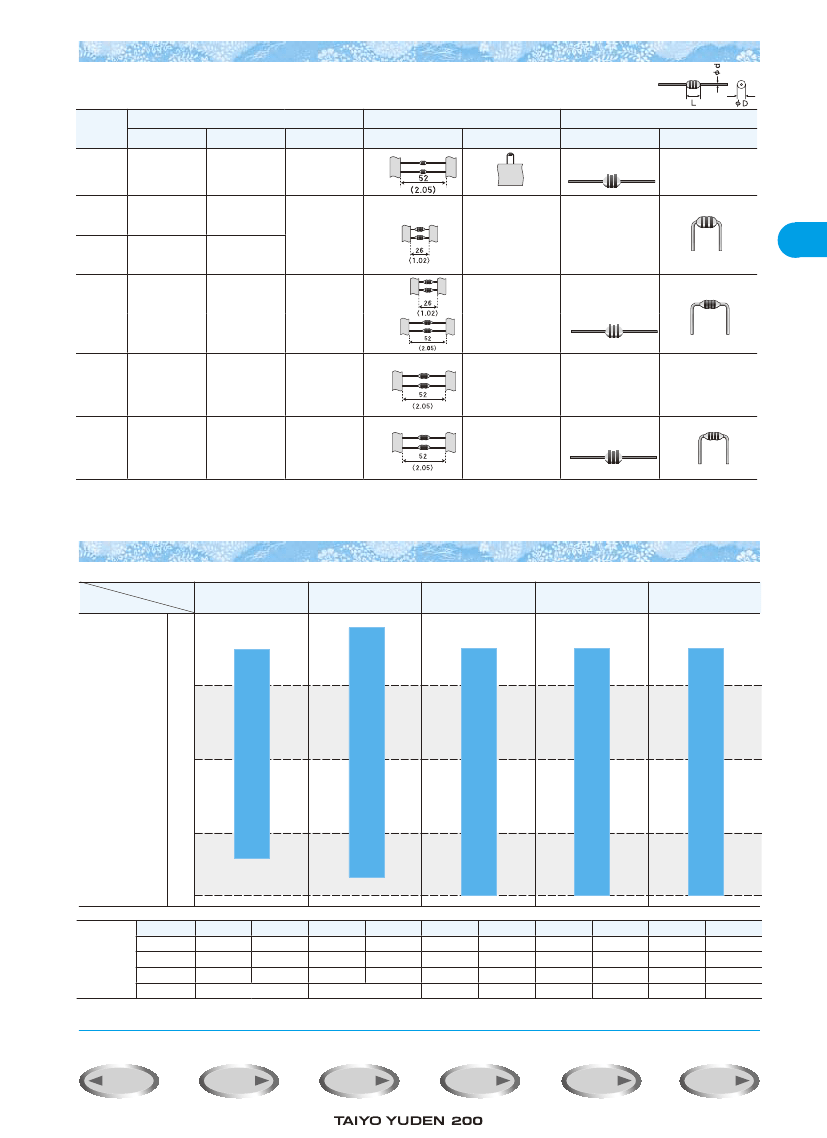

Lead

conﬁgurations

Formed lead/bulk

type）

（

Formed lead/bulk

type）

（

Formed lead/bulk

type）

（

Axial lead/bulk

Axial lead

26mm

lead space）

（

Nominal inductance

μH〕

〔

example

1R5

120

※R=decimal

point

Inductance tolerance

％〕

〔

±5

±10

±20

1.5

Product Speciﬁcation

L, V△

N△

P△

Standard type

High current type

Standard type

(lead diameter:0.45mm)

△＝Blank

space

ammo pack

02/03

type）

（

Axial lead

52mm

lead space）

ammo pack all types）

（

VD Formed lead/ammo pack

type）

（

Internal code

△△△△△

Standard product

△＝Blank

space

278
