Part Number

Search

3180-4PG-328

Description
Circular Connector, 4 Contact(s), Polyamide, Male, Crimp Terminal,
CategoryThe connector    The connector
File Size289KB,4 Pages
ManufacturerSwitchcraft
Download Datasheet Parametric View All

3180-4PG-328 Overview

Circular Connector, 4 Contact(s), Polyamide, Male, Crimp Terminal,

3180-4PG-328 Parametric

Parameter NameAttribute value
MakerSwitchcraft
Reach Compliance Codecompliant
Back shell typeSOLID
Connector typeCIRCULAR CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderMALE
Coupling typeTHREADED
DIN complianceNO
empty shellNO
Environmental characteristicsCORROSION/ENVIRONMENT RESISTANT
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE
OptionsWATERPROOF
Shell materialPOLYAMIDE
Termination typeCRIMP
Total number of contacts4

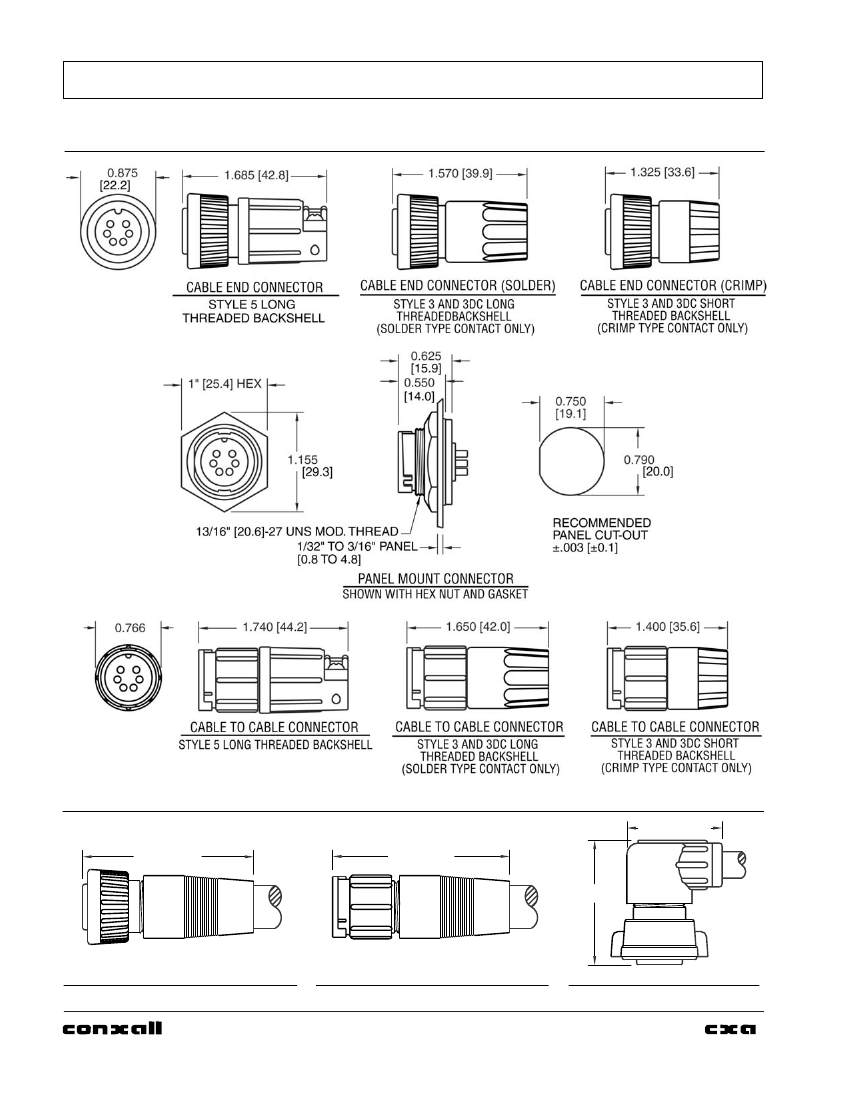

M
ULTI
-C
ON
-X
®
F
IELD
I
NSTALLABLE
C
ONNECTORS

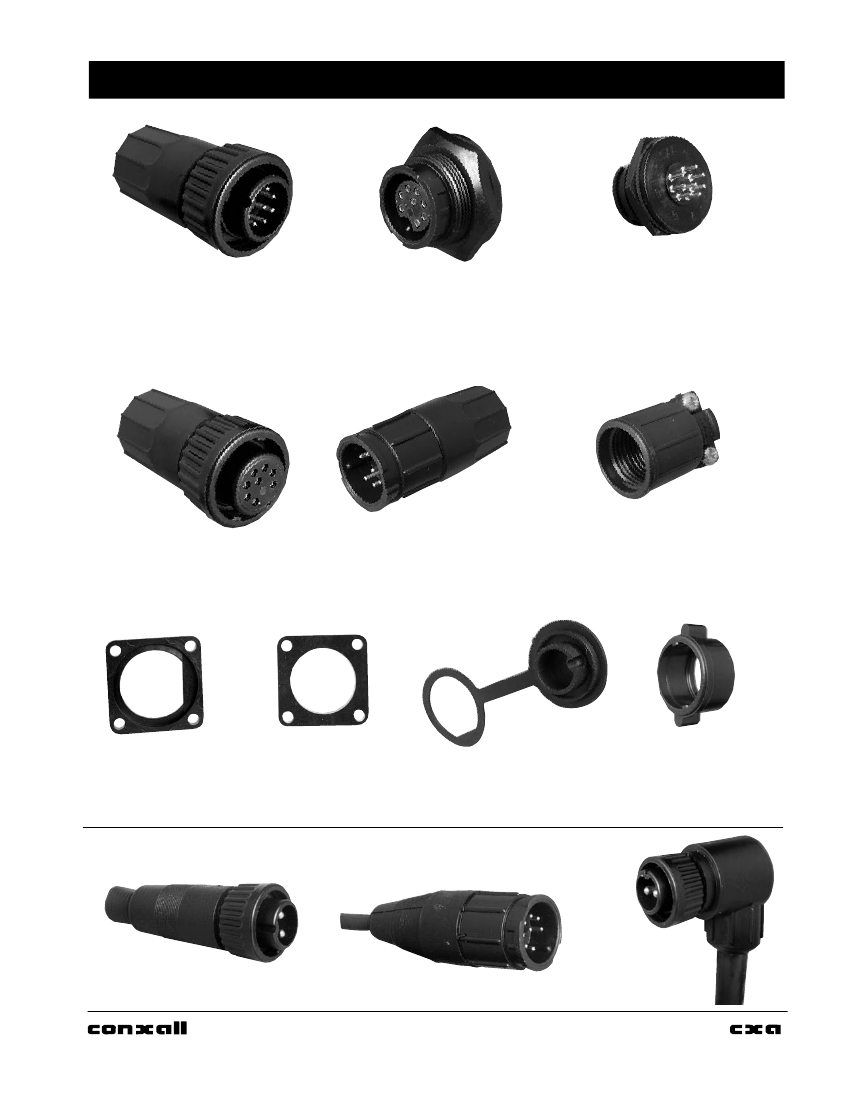

Cable Pin
3X8X-XPG-XXX
Matching Mates:
• Cable-Cable
5X8X-XSG-XXX
Panel Mount
4X8X-XXG-XXX
Matching Mates:
• Cable Pin
3X8X-XPG-XXX
P/C Tail Panel Mount
4XXX-XXG-XXX
Matching Mates:
• Cable Pin
3X8X-XPG-XXX
• Panel
4XXX-XSG-XXX
• Cable Socket
3X8X-XSG-XXX
• Cable Socket
3X8X-XSG-XXX
Cable Socket
3X8X-XSG-XXX
Matching Mates:
• Cable-Cable
5X8X-XPG-XXX
Cable to Cable
5X8X-XXG-XXX
Matching Mates:
• Cable Pin
3X8X-XPG-XXX
Mechanical Back Shell
(Style #5)
• Panel
4XXX-XPG-XXX
• Cable Socket
3X8X-XSG-XXX
Square Flange
Adapter
4296
Square Flange
Gasket
4297
Dust Cap
4295
(See pages 3 & 26)
Winged Coupling Ring
W/4482
Molded Cable Assemblies
Cable End
®
Cable to Cable
Right Angle
®
601 East Wildwood, Villa Park, Illinois 60181 • Telephone (630) 834-7504 • Fax (630) 834-8540
14
