BCX69-10E6327

Description
Small Signal Bipolar Transistor, 1A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon
CategoryDiscrete semiconductor    The transistor
File Size524KB,7 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

BCX69-10E6327 Overview

Small Signal Bipolar Transistor, 1A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon

BCX69-10E6327 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerInfineon
package instructionSMALL OUTLINE, R-PSSO-F3
Reach Compliance Codecompliant
ECCN codeEAR99
Shell connectionCOLLECTOR
Maximum collector current (IC)1 A
Collector-emitter maximum voltage20 V
ConfigurationSINGLE
Minimum DC current gain (hFE)85
JESD-30 codeR-PSSO-F3
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Polarity/channel typePNP
Maximum power dissipation(Abs)1 W
Certification statusNot Qualified
surface mountYES
Terminal surfaceMATTE TIN
Terminal formFLAT
Terminal locationSINGLE
Maximum time at peak reflow temperature40
Transistor component materialsSILICON
Nominal transition frequency (fT)100 MHz
BCX69...
PNP Silicon AF Transistors
For general AF applications
High collector current
High current gain
Low collector-emitter saturation voltage
Complementary type: BCX68 (NPN)
Pb-free (RoHS compliant) package
Qualified according AEC Q101
3
1
2
2
Type
BCX69-10
BCX69-16
BCX69-25
Maximum Ratings
Parameter
Collector-emitter voltage
Collector-base voltage
Emitter-base voltage
Collector current
Marking
CF
CG
CH
1=B
1=B
1=B
Pin Configuration
2=C
2=C
2=C
3=E
3=E
3=E
Package
SOT89
SOT89
SOT89
Symbol
V
CEO
V
CBO
V
EBO
I
C
I
CM
I
B
I
BM
P
tot
T
j
T
stg
Symbol
R
thJS
Value
20
25
5
1
2
100
200
3
150
-65 ... 150
Value
12
Unit
V
A
mA
W
°C
Peak collector current,
t
p
10 ms
Base current
Peak base current
Total power dissipation-
T
S
= 114 °C
Junction temperature
Storage temperature
Thermal Resistance
Parameter
Junction - soldering point
1)
Unit
K/W
1
For calculation of
R
thJA please refer to Application Note AN077 (Thermal Resistance Calculation)
1
2011-10-05

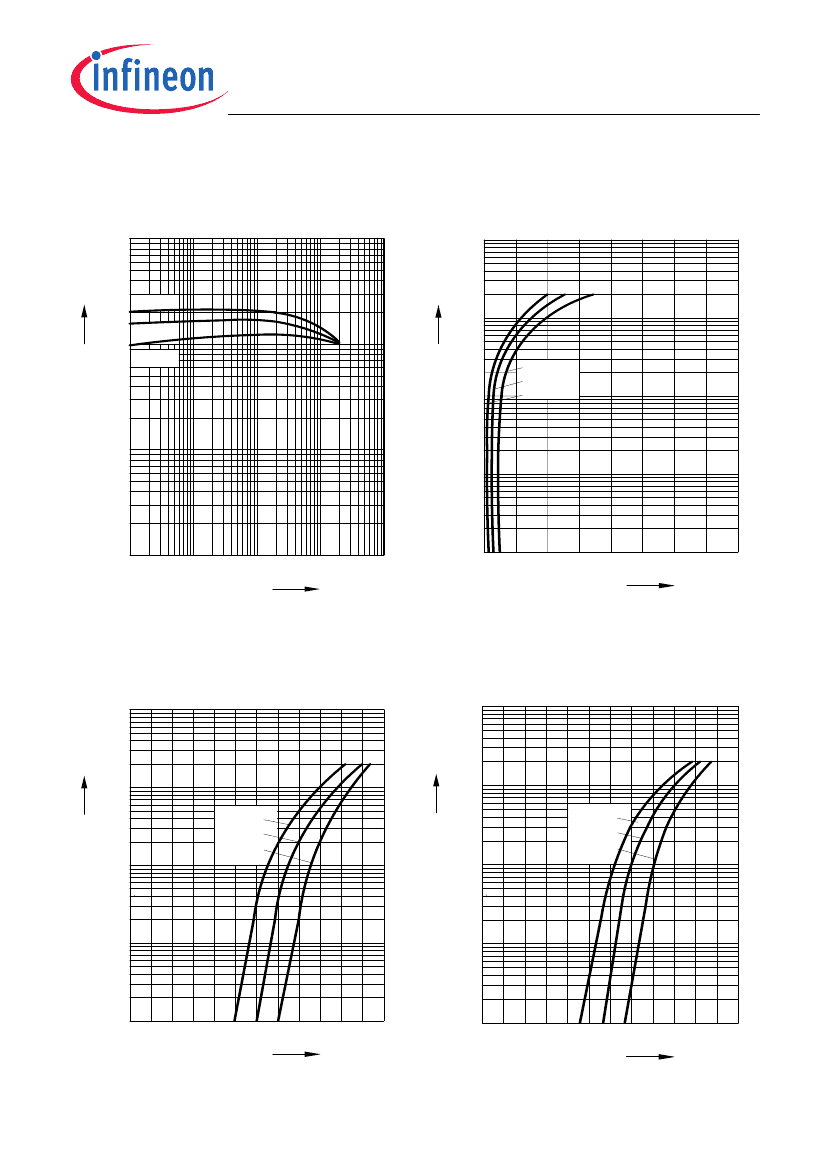

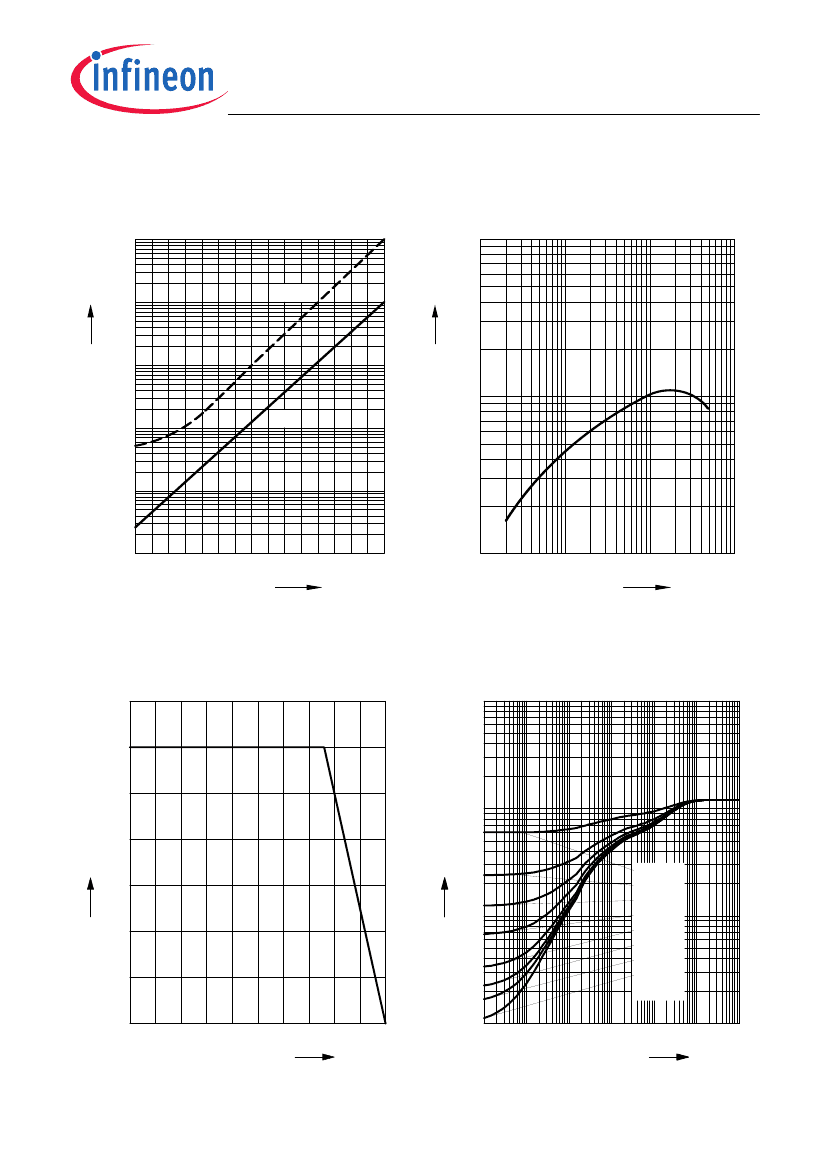

BCX69-10E6327 Related Products

BCX69-10E6327 BCX69-16E6327 BCX69-25E6327
Description Small Signal Bipolar Transistor, 1A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon Small Signal Bipolar Transistor, 1A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon Small Signal Bipolar Transistor, 1A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon
Is it lead-free? Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to
Maker Infineon Infineon Infineon
package instruction SMALL OUTLINE, R-PSSO-F3 SMALL OUTLINE, R-PSSO-F3 SMALL OUTLINE, R-PSSO-F3
Reach Compliance Code compliant compliant compliant
ECCN code EAR99 EAR99 EAR99
Shell connection COLLECTOR COLLECTOR COLLECTOR
Maximum collector current (IC) 1 A 1 A 1 A
Collector-emitter maximum voltage 20 V 20 V 20 V
Configuration SINGLE SINGLE SINGLE
Minimum DC current gain (hFE) 85 100 160
JESD-30 code R-PSSO-F3 R-PSSO-F3 R-PSSO-F3
JESD-609 code e3 e3 e3
Humidity sensitivity level 1 1 1
Number of components 1 1 1
Number of terminals 3 3 3
Maximum operating temperature 150 °C 150 °C 150 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) 260 260 260
Polarity/channel type PNP PNP PNP
Maximum power dissipation(Abs) 1 W 1 W 1 W
Certification status Not Qualified Not Qualified Not Qualified
surface mount YES YES YES
Terminal surface MATTE TIN Matte Tin (Sn) MATTE TIN
Terminal form FLAT FLAT FLAT
Terminal location SINGLE SINGLE SINGLE
Maximum time at peak reflow temperature 40 40 40
Transistor component materials SILICON SILICON SILICON
Nominal transition frequency (fT) 100 MHz 100 MHz 100 MHz
