BCX53-16 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BCX53-16

BCX53-16: Description1000mA, 80V, PNP, Si, SMALL SIGNAL TRANSISTOR,; CategoryDiscrete semiconductor The transistor; File Size298KB，5 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric Compare View All

BCX53-16 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BCX53-16	-	-	View	Buy Now

BCX53-16 Overview

1000mA, 80V, PNP, Si, SMALL SIGNAL TRANSISTOR,

BCX53-16 Parametric

Parameter Name	Attribute value
Maker	Galaxy Microelectronics
package instruction	SMALL OUTLINE, R-PSSO-F3
Reach Compliance Code	unknown
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	80 V
Configuration	SINGLE
Minimum DC current gain (hFE)	100
JESD-30 code	R-PSSO-F3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	PNP
surface mount	YES
Terminal form	FLAT
Terminal location	SINGLE
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	125 MHz
category
polarity	PNP
V(BR)CEO (V) min.	80
IC (A)	1
hFE min	100
hFE max	250
Condition1_VCE (V)	2
Condition1_IC (mA)	150
VCE (sat) (V)	0.5
Condition2_IC (mA)	500
Condition2_IB (mA)	50
fT (MHz) min.	125(typ)
PD (W) max.	0.5
AEC Qualified	No
Maximum operating temperature	150
Minimum operating temperature	-65
MSL level	3
Is it lead-free?	Yes
Comply with Reach	Yes
RoHS compliant	Yes
ECCN code	EAR99
Package Outlines	SOT-89

Preview

Download Datasheet

View All

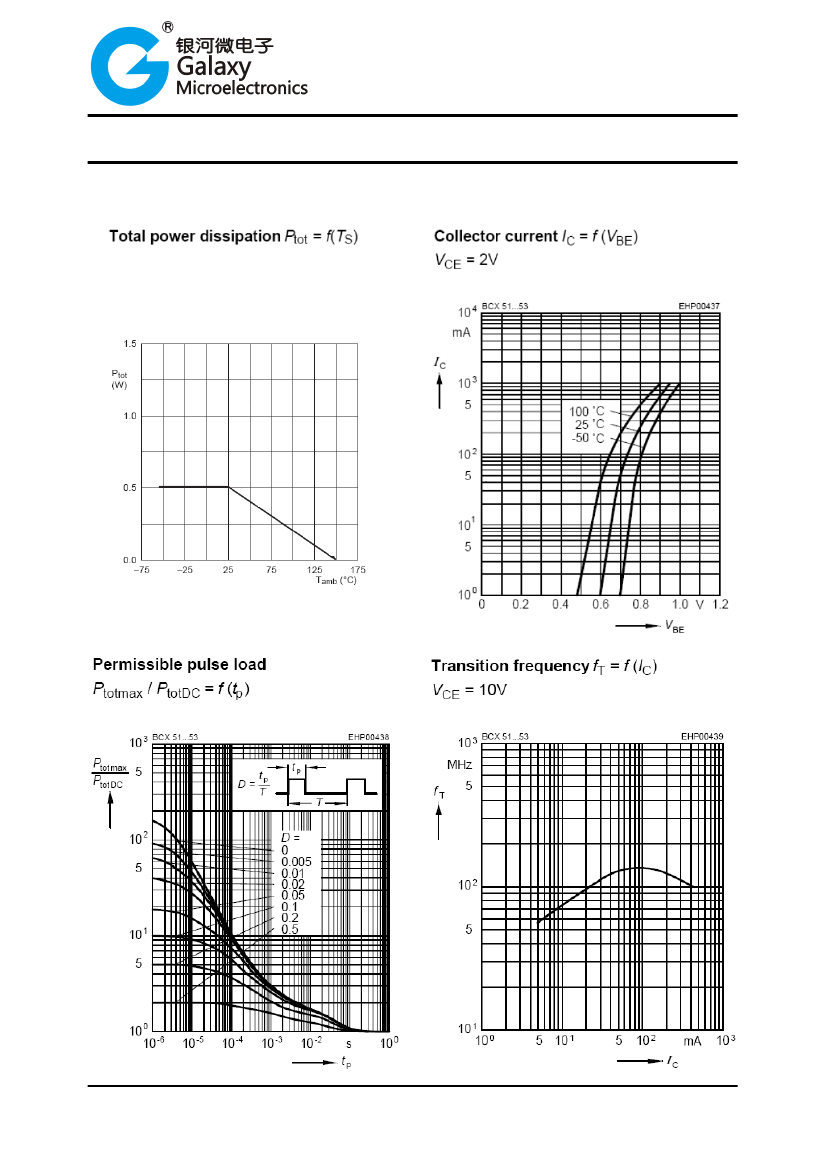

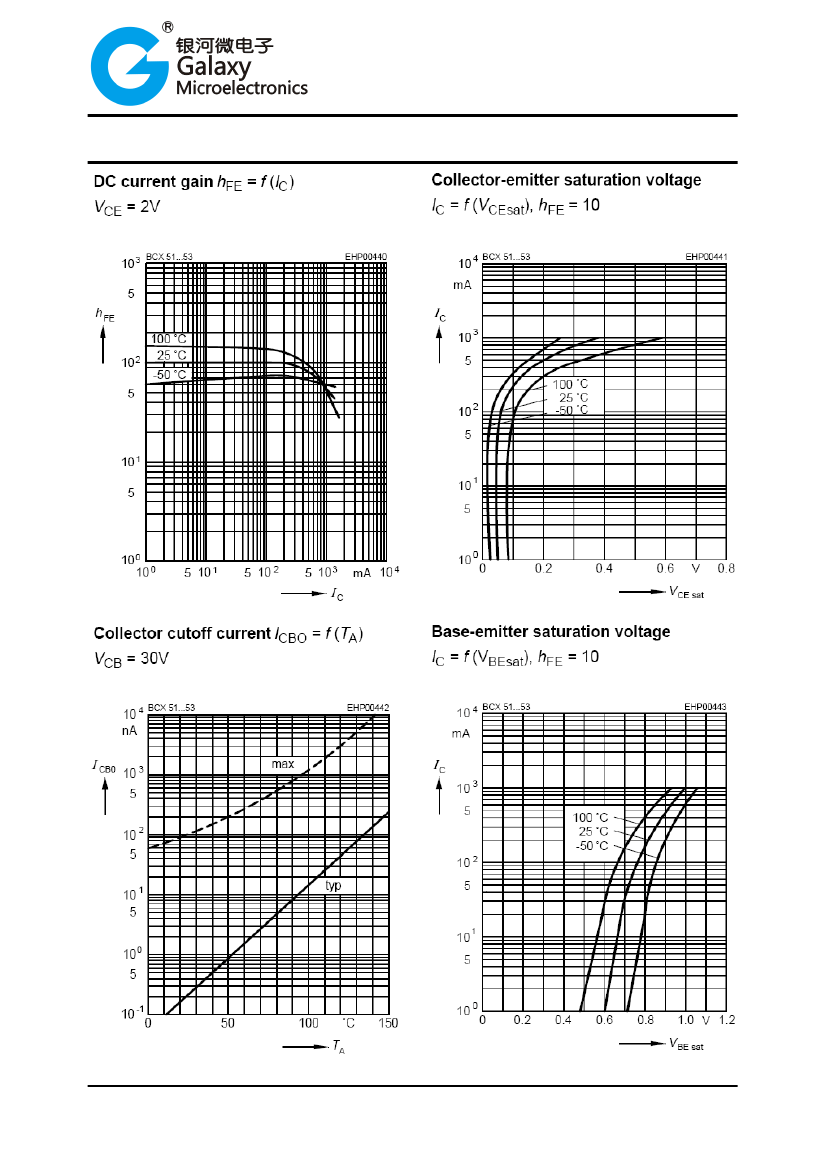

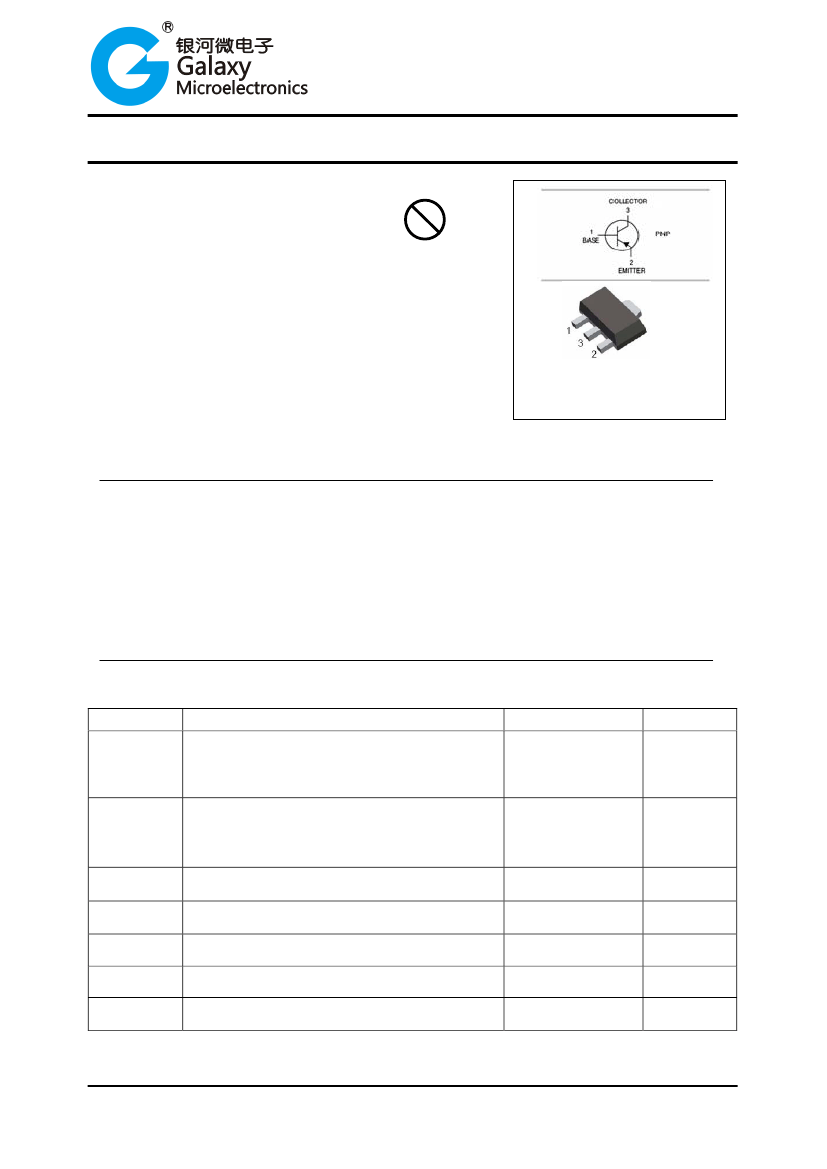

Production specification

PNP Medium power transistors

FEATURES



For AF driver and output stages.

High collector current.

Low collector-emitter saturation voltage.

Complementary types: BCX54/BCX55/BCX56.

BCX51/BCX52/BCX53

Lead-free

APPLICATIONS



Medium power general purposes.

Driver stages of audio amplifiers.

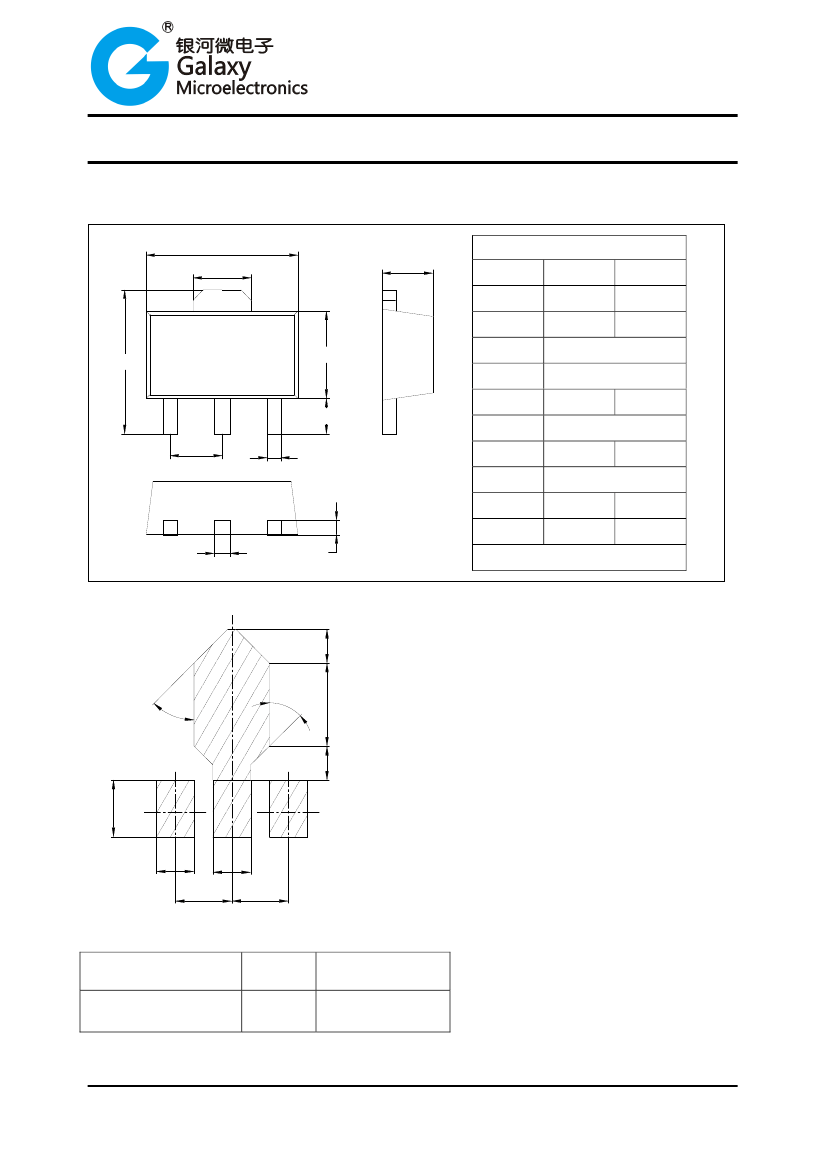

SOT-89

ORDERING INFORMATION

Type No.

BCX51

BCX51-10

BCX51-16

BCX52

BCX52-10

BCX52-16

BCX53

BCX53-10

BCX53-16

Marking

Package Code

SOT-89

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Symbol

CBO

Collector-Emitter Voltage

CEO

EBO

stg

Emitter-Base Voltage

Collector Current -Continuous

Collector Current -Peak

Total Device Dissipation

Junction and Storage Temperature

Parameter

Collector-Base Voltage

BCX51

BCX52

BCX53

BCX51

BCX52

BCX53

Value

-45

-60

-100

-45

-60

-80

-5

-1

-1.5

500

-65 to +150

Unit

℃

E020

Rev.A

www.gmesemi.com

BCX53-16 Related Products

	BCX53-16	BCX52-16	BCX51	BCX51-16	BCX51-10	BCX53	BCX53-10	BCX52-10	BCX52
Description	1000mA, 80V, PNP, Si, SMALL SIGNAL TRANSISTOR,	1000mA, 60V, PNP, Si, SMALL SIGNAL TRANSISTOR,	General Purpose PNP Bipolar Transistor; Polarity: PNP; V(BR)CEO Min (V): 45V; IC (A): 1A; HFE Min: 63; HFE Max: 250; VCE (V): 2V; IC (mA): 150mA; VCE(SAT) (V): 0.5V; IC (mA)1: 500mA; IB (mA): 50mA; FT Min (MHz): 50 MHz; PTM Max (W): 0.5W; Package: SOT-89; package_code: SOT-89; mfr_package_code: SOT-89	1000mA, 45V, PNP, Si, SMALL SIGNAL TRANSISTOR,	1000mA, 45V, PNP, Si, SMALL SIGNAL TRANSISTOR,	80V,1A,General Purpose PNP Bipolar Transistor, Diodes, PNP, 80V, 1A, 40, 250, 2V	80V,1A,General Purpose PNP Bipolar Transistor, Diodes, PNP, 80V, 1A, 63, 160, 2V	60V,1A,General Purpose PNP Bipolar Transistor, Diodes, PNP, 60V, 1A, 63, 160, 2V	60V,1A,General Purpose PNP Bipolar Transistor, Diodes, PNP, 60V, 1A, 40, 250, 2V
Maker	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics
package instruction	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum collector current (IC)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Collector-emitter maximum voltage	80 V	60 V	45 V	45 V	45 V	80 V	80 V	60 V	60 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	100	100	25	100	63	25	63	63	25
JESD-30 code	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3
Number of components	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	125 MHz	125 MHz	125 MHz	125 MHz	125 MHz	125 MHz	125 MHz	125 MHz	125 MHz
polarity	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP
V(BR)CEO (V) min.	80	60	45	45	45	80	80	60	60
IC (A)	1	1	1	1	1	1	1	1	1
hFE min	100	100	40	100	63	40	63	63	40
hFE max	250	250	250	250	160	250	160	160	250
Condition1_VCE (V)	2	2	2	2	2	2	2	2	2
Condition1_IC (mA)	150	150	150	150	150	150	150	150	150
VCE (sat) (V)	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5
Condition2_IC (mA)	500	500	500	500	500	500	500	500	500
Condition2_IB (mA)	50	50	50	50	50	50	50	50	50
fT (MHz) min.	125(typ)	125(typ)	125(typ)	125(typ)	125(typ)	125(typ)	125(typ)	125(typ)	125(typ)
PD (W) max.	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5
AEC Qualified	No	No	No	No	No	No	No	No	No
Maximum operating temperature	150	150	150	150	150	150	150	150	150
Minimum operating temperature	-65	-65	-65	-65	-65	-65	-65	-65	-65
MSL level	3	3	3	3	3	3	3	3	3
Is it lead-free?	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Comply with Reach	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
RoHS compliant	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Package Outlines	SOT-89	SOT-89	SOT-89	SOT-89	SOT-89	SOT-89	SOT-89	SOT-89	SOT-89
