PM-17AY-480

Description
Power/Signal Relay, 4PDT, Momentary, 14000mW (Coil), 20A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Panel Mount
CategoryMechanical and electronic products    relay
File Size99KB,1 Pages
ManufacturerStruthers-Dunn
Download Datasheet Parametric View All

PM-17AY-480 Overview

Power/Signal Relay, 4PDT, Momentary, 14000mW (Coil), 20A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Panel Mount

PM-17AY-480 Parametric

Parameter NameAttribute value
MakerStruthers-Dunn
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresQUICK CONNECT TERMINALS ALSO AVAILABLE
Coil current (AC) maximum value0.029 A
Coil power14000 mW
Maximum coil voltage (AC)480 V
Coil/Input Power TypeAC
Contact (AC) maximum rated R load35A@277VAC
Maximum contact current (AC)35 A
Maximum contact current (DC)20 A
Contact (DC) maximum rated R load20A@28VDC
Maximum contact voltage (AC)277 V
Maximum contact voltage (DC)28 V
Contact/Output Power TypeAC/DC
Electrical life100000 Cycle(s)
Manufacturer's serial numberPM
Installation featuresPANEL MOUNT
operating hours40 ms
Maximum operating temperature74 °C
Minimum operating temperature-34 °C
Relay actionMOMENTARY
Relay function4PDT
Relay typePOWER/SIGNAL RELAY
release time30 ms
surface mountNO
Termination typeSCREW
Struthers-Dunn
407 East Smith Street - Suite B
Timmonsville, SC 29161 US
Phone:
(843) 346-4427 •
Fax:
(843) 346-4465
E-Mail:
info@struthers-dunn.com •
Web site:www.struthers-dunn.com

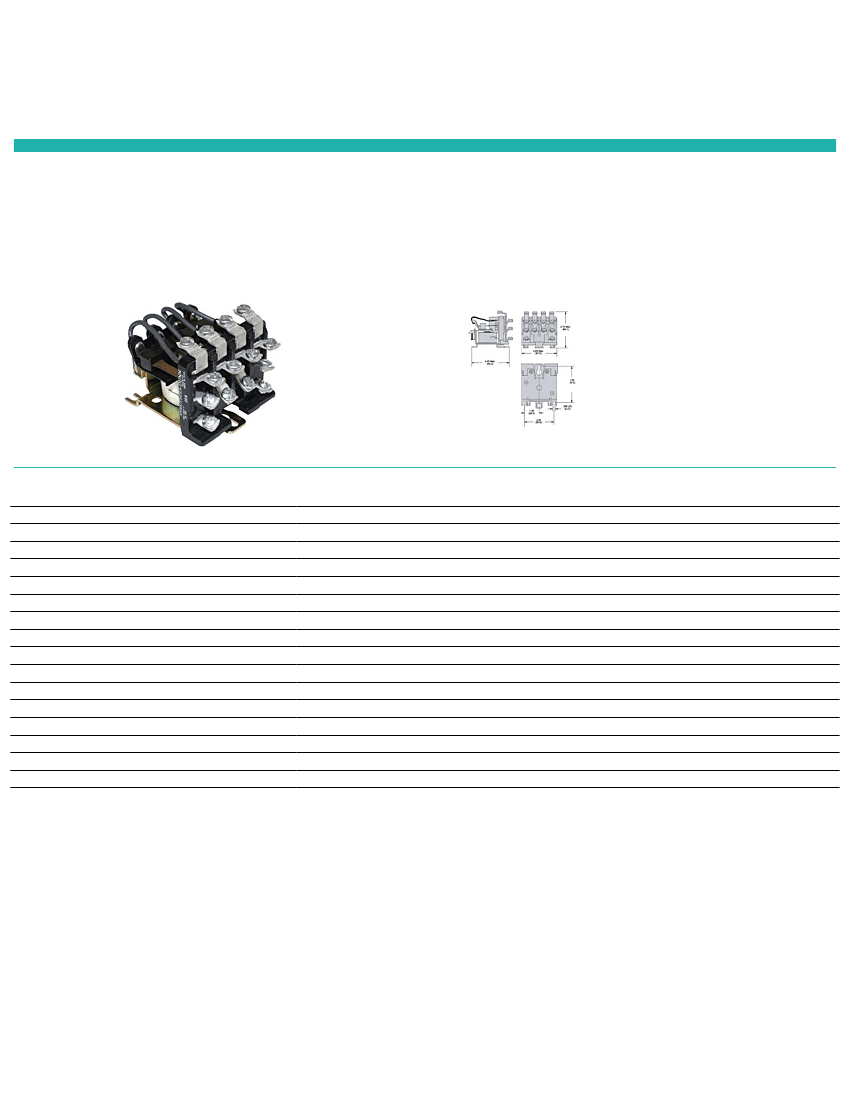

PM Series - Open Style Power Relays
The PM Series relays offer 4 double throw poles (4PDT) for up to 35 amp at 277 VAC or 20 amps at 28Vdc. Product also is capable of 10 amps tungsten switching.
Screw terminals (#M4) are standard but .250” quick connects are also available.
For Additional Configuration please contact the manufacturer.
Results 1 - 16 of 16
Item #
PM-17AY-12
PM-17AY-120
PM-17AY-208
PM-17AY-24
PM-17AY-240
PM-17AY-480
PM-17DY-110
PM-17DY-12
PM-17DY-125
PM-17DY-24
PM-17DY-38
PM-17DY-48
PM-17DY-6
PMT-17AY-120
PMT-17DY-24
PMT-17DY-48
Type
Screw Terminals (#M4 - 7.0 x 5mm)
Screw Terminals (#M4 - 7.0 x 5mm)
Screw Terminals (#M4 - 7.0 x 5mm)
Screw Terminals (#M4 - 7.0 x 5mm)
Screw Terminals (#M4 - 7.0 x 5mm)
Screw Terminals (#M4 - 7.0 x 5mm)
Screw Terminals (#M4 - 7.0 x 5mm)
Screw Terminals (#M4 - 7.0 x 5mm)
Screw Terminals (#M4 - 7.0 x 5mm)
Screw Terminals (#M4 - 7.0 x 5mm)
Screw Terminals (#M4 - 7.0 x 5mm)
Screw Terminals (#M4 - 7.0 x 5mm)
Screw Terminals (#M4 - 7.0 x 5mm)
250 Quick Connect Terminals
250 Quick Connect Terminals
250 Quick Connect Terminals
Coil Voltage
12 VAC
120 VAC
208 VAC
24 VAC
240 VAC
480 VAC
110 VDC
12 VDC
125 VDC
24 VDC
38 VDC
48 VDC
6 VDC
120 VAC
24 VDC
48 VDC
Results 1 - 16 of 16
5/28/2013 | Page 1 of 1
