1.0A Glass Passivated
Fast Recovery Rectifier
TF101G
–
TF107G
1.0A Fast Recovery Rectifier
Features
•
•
•
•
•
Low forward voltage drop
High current capability
High reliability
High surge current capability
High temperature soldering guaranteed 250°C/10 seconds
/.0375" (9.5mm) lead length, 5lbs (2.3kg) tension
•
RoHS Compliance
DO-41
Mechanical Data
Case:
Epoxy:
Terminals:
Polarity:
Weight:
DO-41, molded plastic
UL 94V-0 rate flame retardant
Axial leads, solderable per MIL-STD-202, Method 208 guaranteed
Color band denotes cathode end
0.34 gram
Maximum Ratings and Electrical Characteristics
(T
A
=25ºC unless noted otherwise)
Symbol
Description
Maximum Repetitive
Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking
Voltage
Maximum Average
Forward Rectified
Current
Peak Forward Surge
Current
TF
101G
50
35
50
TF
102G
100
70
100
TF
103G
200
140
200
TF
104G
400
280
400
1.0
TF
105G
600
420
600
TF
106G
800
560
800
TF
107G
1000
700
1000
Unit
V
V
V
A
Conditions
V
RRM
V
RMS
V
DC
I
AV
Ta=55 ˚C
8.3ms single half
sine-wave
superimposed on
rated load (JEDEC
Method)
I
FSM
50
A
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel:
Fax:
(800)-TAITRON (800)-824-8766
(800)-TAITFAX (800)-824-8329
(661)-257-6060
(661)-257-6415
Rev. A/DX 2007-06-04
Page 1 of 4
1.0A Glass Passivated Fast Recovery Rectifier
TF101G
–
TF107G
Symbol
Description
Maximum
Instantaneous
Forward Voltage
Maximum DC
Reverse Current at
Rated DC Blocking
Voltage
Typical Reverse
Recovery Time
Typical Junction
Capacitance
Operating
Temperature range
Storage Temperature
Range
150
15
-55 to +150
°C
-55 to +150
TF
101G
TF
102G
TF
103G
TF
104G
1.3
5.0
µA
100
250
500
nS
pf
T
A
=100° C
I
F
=0.5A, I
R
=1A,
Irr=0.25A
V
R
=4V, f=1MHz
TF
105G
TF
106G
TF
107G
Unit
V
Conditions
I
F
=1.0 A
T
A
=25° C
V
F
I
R
T
rr
C
J
T
J
T
STG
Typical Characteristics Curves

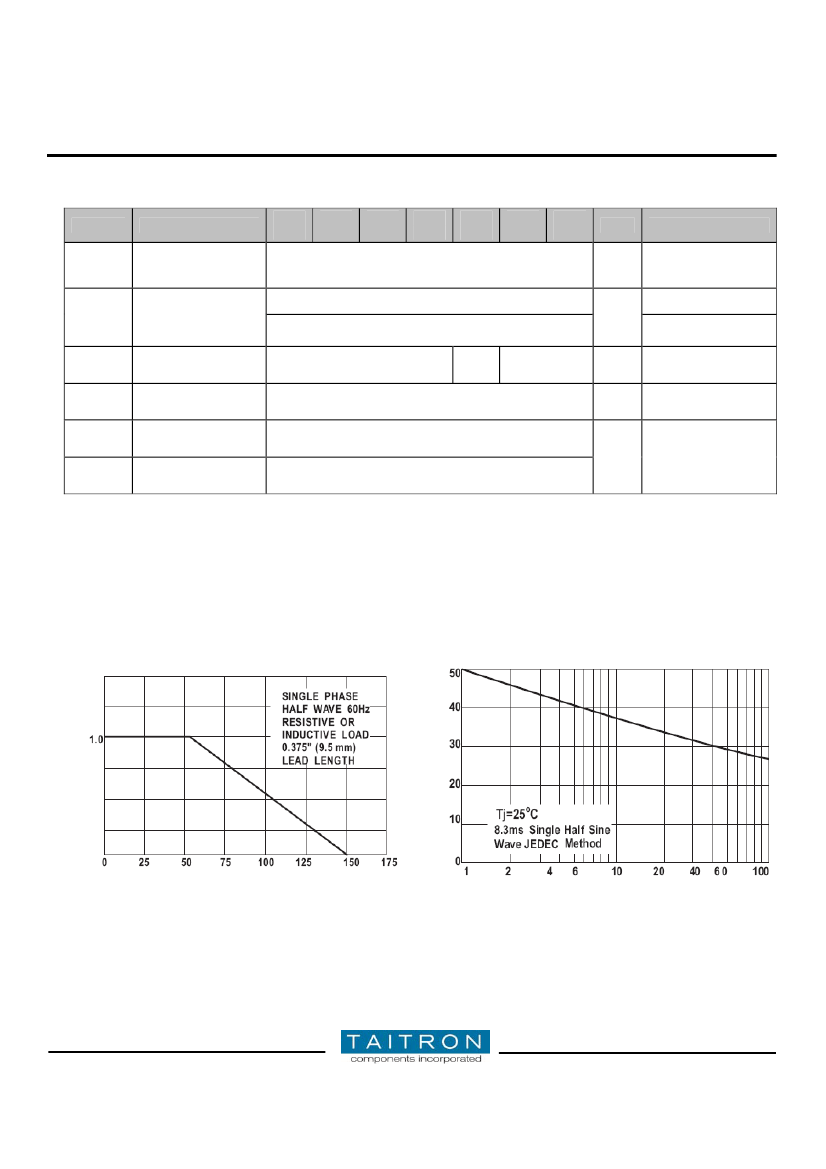

Fig.1-Max. Forward Current Derating Curve
Fig.2-Max. Non-Repetitive Forward Surge Current
Peak Forward Surge Current (A)
Average Forward Rectified Current
(A)
Ambient Temperature T
a
(°C)
Number of Cycles at 60Hz
Rev. A/DX 2007-06-04
www.taitroncomponents.com
Page 2 of 4
1.0A Glass Passivated Fast Recovery Rectifier
TF101G
–
TF107G

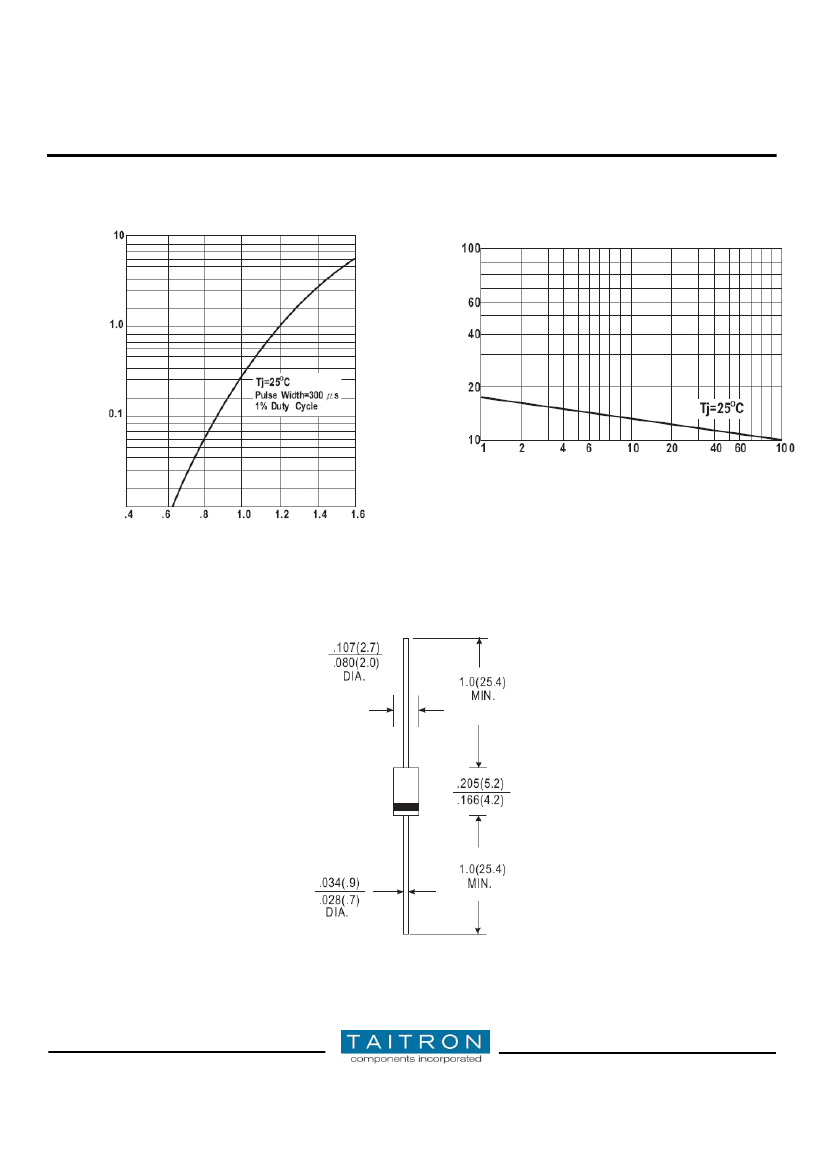

Fig.3- Typical Forward Characteristics
Fig.4- Typical Junction Capacitance
Junction
Capacitance
(
pF)
Instantaneous Forward Current
(A)
Reverse Voltage (V)
Forward Voltage (V)
Dimensions in inches (mm)
DO-41
Rev. A/DX 2007-06-04
www.taitroncomponents.com
Page 3 of 4
1.0A Glass Passivated Fast Recovery Rectifier
TF101G
–
TF107G
