Ultra-Fast Switching
High efficiency Glass Passivated Rectifier
Features:
•
•
•
•
•
•
Fred chip construction
Soft recovery characteristics
Low forward voltage drop
Low reverse leakage current
High surge current capability
Plastic material has UL flammability classification 94V-0
Mechanical Data:
Case
Lead
Polarity
Weight
Mounting Position
Reverse Voltage
Forward Current
: ITO-220AB, molded plastic
: Pure tin plated, lead solderable per MIL-STD-750, method 2026
: As marking
: 1.9 grams (approx)
: Any
: 200 to 600 Volts
: 16 Amperes
Maximum Ratings and Electrical Characteristics:
Rating at 25°C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristics
Max. Recurrent Peak Reverse Voltage
Max. RMS Voltage
Max. DC Blocking Voltage
Max. Average Forward Rectified Current
Peak Forward Surge Current
8.3ms Single Half Sine-Wave
Super Imposed on Rated Load (JEDEC Method)
Max. Forward Voltage at 8A per leg
Max. DC Reverse Current at
Rated DC Blocking Voltage at
Typical Thermal Resistance
Maximum Reverse Recovery Time
(I
f
= 0.5A, I
r
= 1.0A, I
rr
= 0.25A)
Operating Temperature Range
Storage Temperature Range
T
j
= 25°C
T
j
= 125°C
Symbol
V
rrm
V
rms
V
dc
I
F(AV)
I
fsm
V
f
I
r
R
θJC
T
rr
T
j
T
sTg
3
35
-55 to +150
0.95
10
250
2
50
MURF1620CT
200
140
200
16
150
1.5
A
V
μA
°C/W
Ns
°C
MURF1660CT
600
420
600
V
Unit
Notes:
1. Mounted on 14mm × 14mm pad areas,1oz.FR4 P.C.B.
2. Free air, mounted on recommended copper pad area.
3. Pulse test:300μs pulse width,1% duty cycle
4. Pulse test:Pulse width
%40ms
5. The typical data above is for reference only
www.element14.com
www.farnell.com
www.newark.com
Page <1>
02/11/16
V1.0

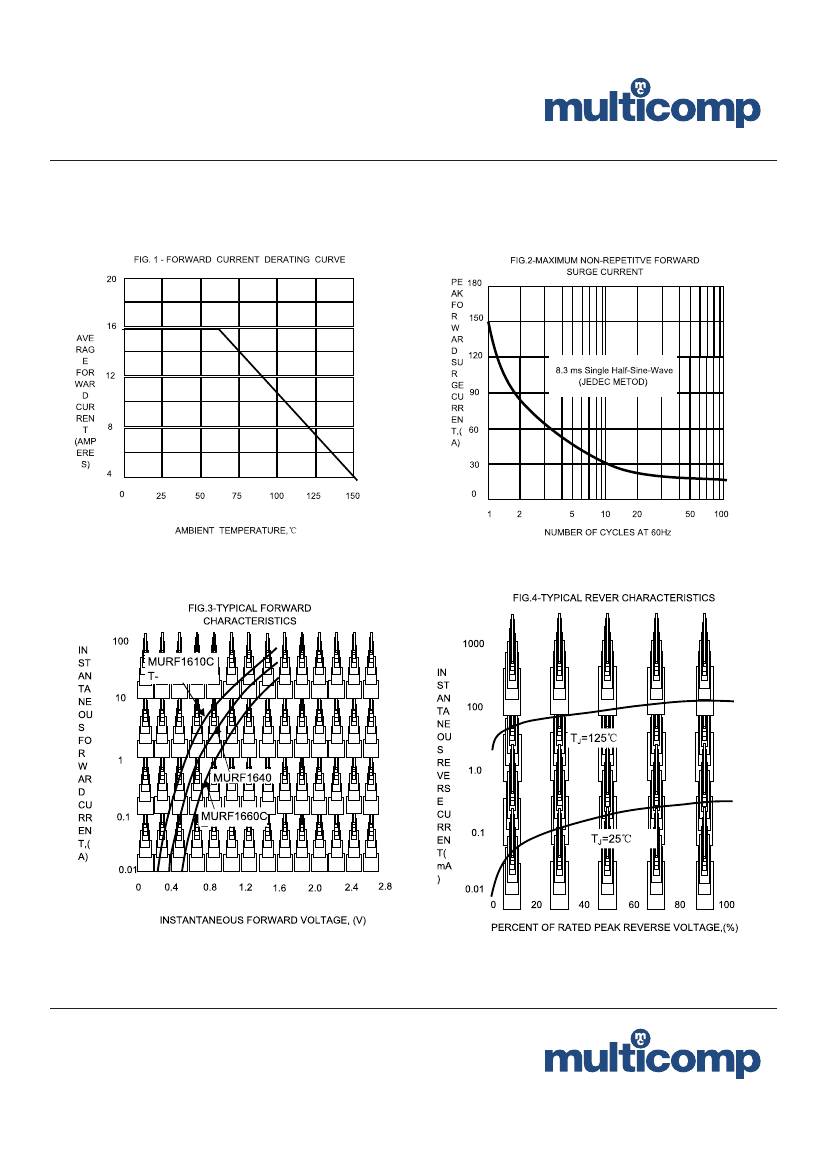

Ultra-Fast Switching
High efficiency Glass Passivated Rectifier

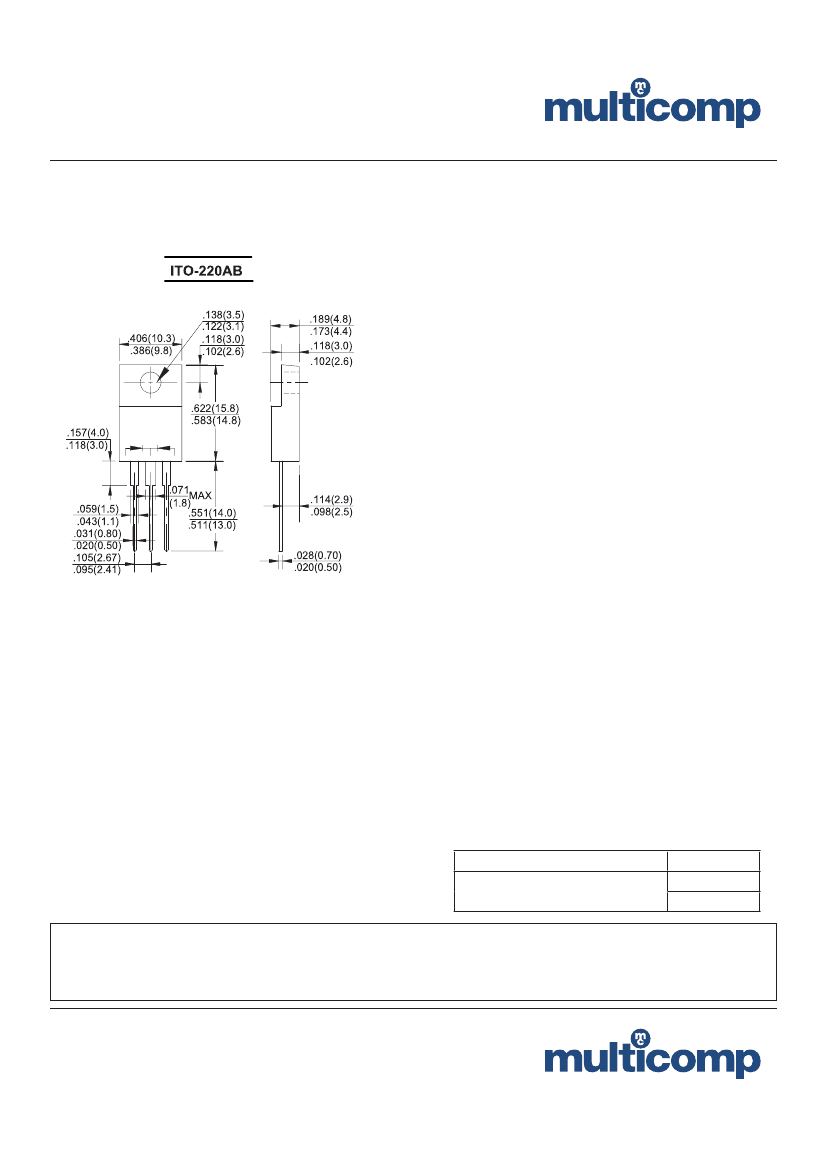

Dimensions:
Dimensions : Inches (Millimetres)
Part Number Table
Description
Part Number
Ultra-Fast Switching, High Efficiency MURF1620CT
Glass Passivated Rectifiers
MURF1660CT
Important Notice :
This data sheet and its contents (the “Information”) belong to the members of the Premier Farnell group of companies (the “Group”) or are licensed to it. No licence is granted
for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change
without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any
error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any
assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the
Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence.
Multicomp is the registered trademark of the Group. © Premier Farnell plc 2012.
www.element14.com
www.farnell.com
www.newark.com
Page <3>
02/11/16
V1.0
