ERZV14D331CS Overview

Varistor, 270V, 115J, Through Hole Mount, RADIAL LEADED

ERZV14D331CS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	15 weeks
Circuit maximum DC voltage	270 V
Circuit RMS maximum voltage	210 V
Maximum energy absorption capacity	115 J
JESD-609 code	e3
Manufacturer's serial number	14
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	DISK PACKAGE
Rated power dissipation(P)	0.6 W
Resistor type	VARISTOR
surface mount	NO
Terminal surface	Tin (Sn)
Terminal location	RADIAL
Terminal shape	WIRE

Preview

Download Datasheet

View All

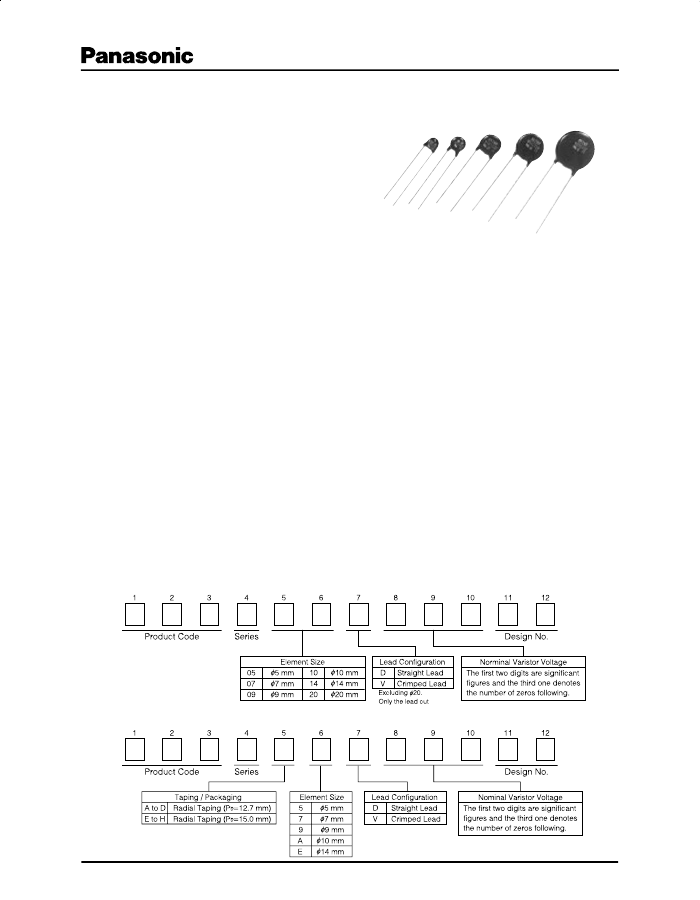

ÒZNR

ÓTransient/Surge

Absorbers (Type D)

ÒZNR

Ó Transient/Surge Absorbers

Series:

Type:

ÒZNR

Ó Transient/Surge Absorber, Series V, Type D is

released through our continued research in ceramic

material composition of ZnO varistor and manufacturing

process, featuring large surge current handling

capability and energy handling capability for absorbing

transient overvoltage in compact size.

Improved Surge Current Handling Capability

(@ 8/20 µs, 2 times) by 1.5 to 3.0 times over the

previous ZNR

Series

Very large Energy Handling Capability

and absorp-

tion of transient

overvoltages in compact sizes

Wide

voltage range

All standard products which

are

shown below have

received UL, CSA and VDE standards

Varistor voltage 82-150V

: UL

Varistor voltage 200V over : UL, CSA

(cf. Application Notes for UL/CSA recognized parts

on page 38 to 39)

]

Please contact us about VDE certification

Features

Recommended Applications

Transistor, diode, IC, thyristor or triac semiconductor

protection

Surge protection in consumer electronics

Surge protection in communication, measuring or

controller electronics

Surge protection in electronic home appliances,

gas or petroleum appliances

Relay or electromagnetic valve surge absorption

Precautions for Handling

Related Standards

UL1414, UL1449

CSA C22.2 No.1 Class 2222 01

ÒType Designation(UL) Ó,ÒPart Number(CSA)Ó

Are not registered by product Part No..

(Refer to page 38, for the details)

]

Please contact us about VDE certification

Explanation of Part Numbers (Bulk)

∗

Explanation of Part Numbers (Taping)
