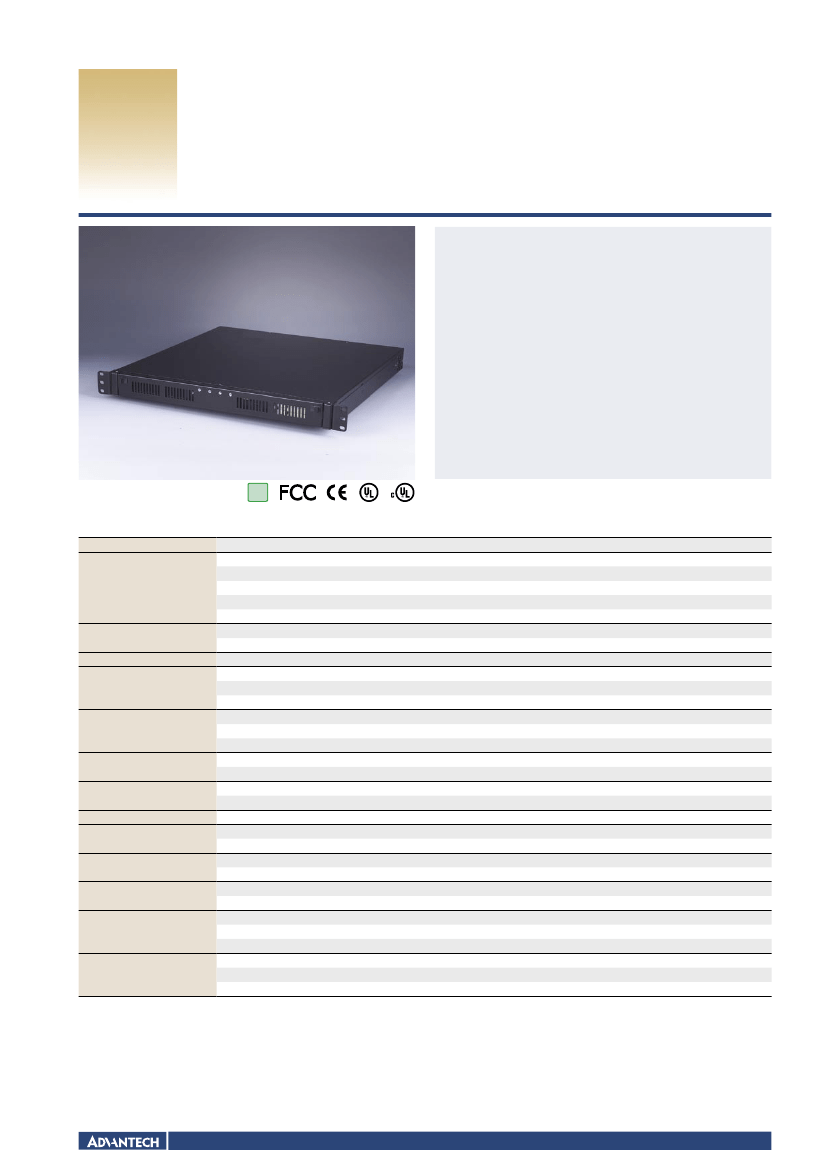

SYS-1U1000-3A01
Features
Flexibility
- Supports one full-length PCI card
Ultra Dense 1U
Rackmount System
with Low Power
Pentium
®
M Engine
High performance empowered by Intel
®
Pentium
®
M Processor
- Pentium M delivers outstanding mobile performance and low power
- Passive heatsink to enhance system reliability
- Optional CD-RW, DVD, CD, and floppy drives
Density-optimized solutions
- Ideal building block for business expansion
- Efficient cooling design delivers exceptional ventilation for compact 1U
system
RoHS
COMPLIANT
2002/95/EC
Specifications
Form Factor
Chipset
CPU*
Front Side Bus
L2 Cache
Memory*
Controller
VRAM
PCI
Optical Drive*
Floppy Disk
HDD*
Slim CD ROM Bay
3.5" (front-accessible)
3.5" (internal)
Interface
Controller
Front I/O Ports
Rear I/O Ports
Output
Interval
Power Output Wattage
Type
Chassis Fan
Air Filter
Temperature
Humidity
Color
Dimensions (W x H x D)
Weight
1U Rackmount
Intel 855GME + 6300ESB
Supports Intel Pentium M processor up to 1.8 GHz
400 MHz
1 MB/2 MB
Supports up to 2 GB DDR 400 ECC/non-ECC SDRAM (single channel)
Intel 855GME integrated
Dynamically shared system memory up to 64 MB
1
x
32-bit (via riser card)
Supports slim CD-ROM/slim DVD-ROM/slim CD-RW
Supports 3.5" 1.44 MB FDD
Supports IDE/SATA HDD
1
1
1
10/100/1000Base-T Gigabit Ethernet
Intel 82541GI
2
x
USB, 1
x
PS/2, 1
x
COM
2
x
USB, 1
x
PS/2, 1
x
COM, 1
x
VGA, 1
x
Parallel, 1
x
RJ-45, Mic-In, Line-Out
Microsoft
®
Windows
®
XP/2000/2003
System reset
Programmable 1 ~ 255 sec
200 W
Single ATX power supply
4
Yes
Operating
Non-Operating
0 ~ 40° C (32 ~ 104° F)
-20 ~ 60° C (-4 ~ 140° F)
10 ~ 85% @ 40° C non-condensing
10 ~ 95% @ 40° C non-condensing
Black
482 x 44 x 450 mm (19" x 1.7" x 17.7")
10 kg (22 lb)
Computing System
Graphics
Expansion Slot
Storage
Drive Bay
Ethernet
I/O Port
Operating System*
Watchdog Timer
Power Supply
Cooling
Environment
Physical Characteristics
* Configurations are variable upon regions. Please contact Advantech sales for more details.
All product specifications are subject to change without notice
Last updated : 1-Mar-2007
SYS-1U1000-3A01

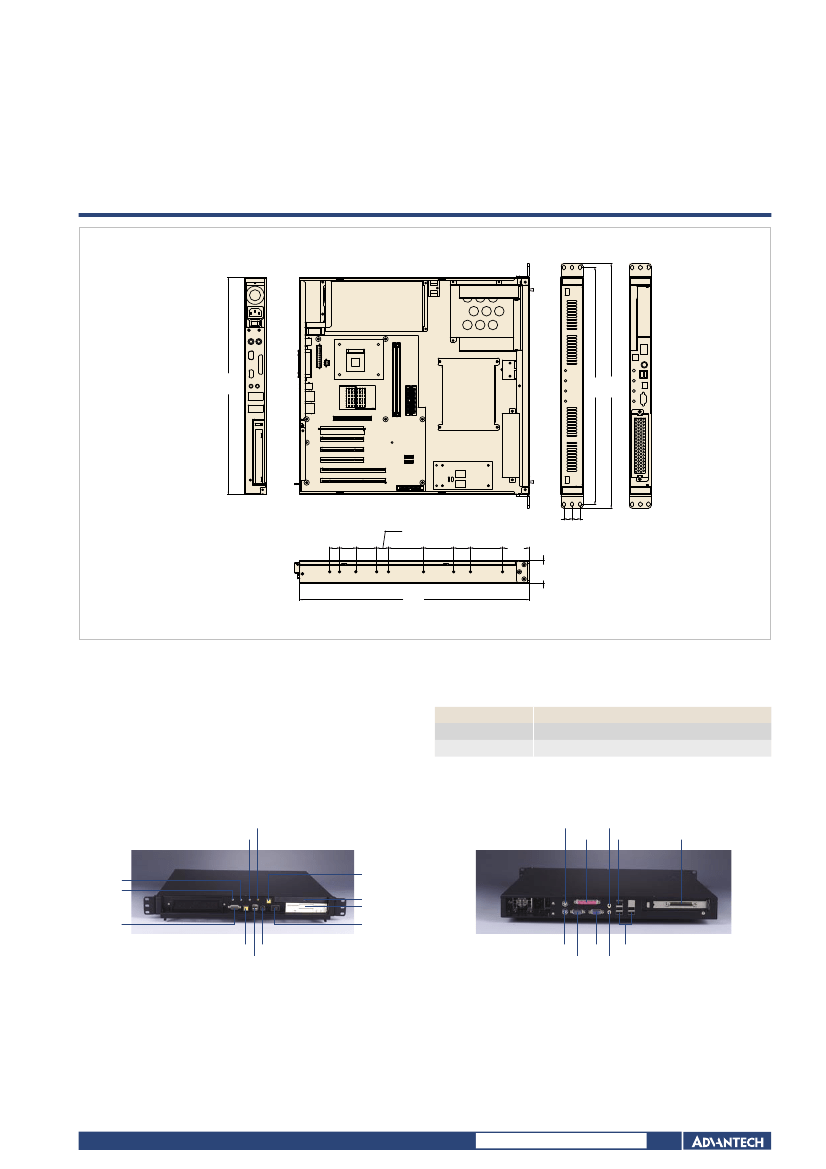

Dimensions
426
[16.77]
19.3
[0.76]
32 40.8
[1.26] [1.61]
23.2
[0.91]
68.9
[2.71]
15.88
[0.63]
59.1
33
[2.33] [1.3]
63
[2.48]
52
[2.05]
44
[1.73]
15.88
[0.63]
450
[17.72]
465.15
[18.31]
479.9
[18.89]
Unit: mm (inch)
Ordering Information
Please visit Advantech CTOS portal for order entry.
http://www.advantech.com/ctos
System Content
Item
Chassis
Motherboard
Part Number
ACP-1000MB-20ZE
AIMB-750VG-00A1E
Front View
HDD LED
Temp LED
System reset
switch
Slim CD-ROM
3.5" drive bay
Power switch
Rear View
PS/2 Mice Line-Out
Parallel LAN
PCI expansion slot
Fan LED
Power LED
9-pin COM port
Alarm reset switch PS/2 keyboard connector
USB
PS/2 KB VGA USB
COM Mic-In
