HM2P09PCF1G1E9: DescriptionBoard Connector, 77 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size125KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P09PCF1G1E9 Overview

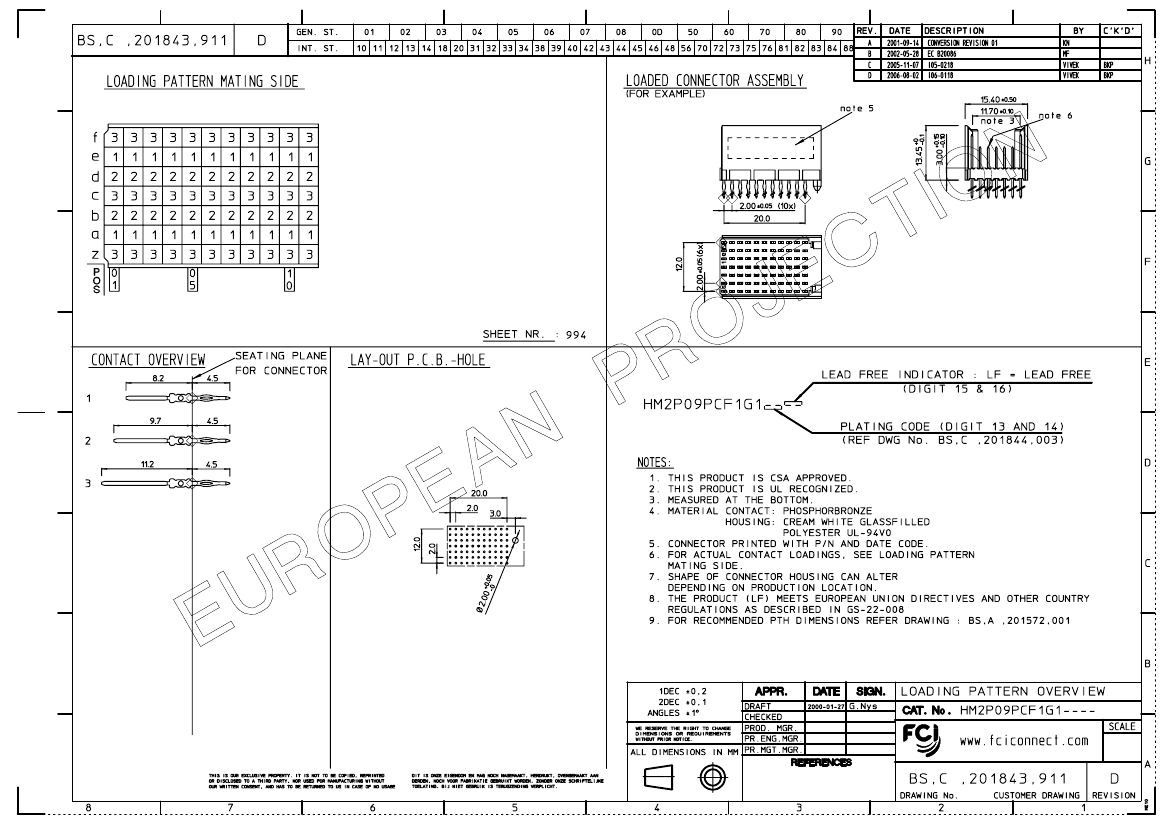

Board Connector, 77 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal

HM2P09PCF1G1E9 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	22 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD (39) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	77
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

PDM: Rev:D

STATUS:

Released

Printed: Dec 02, 2007

HM2P09PCF1G1E9 Related Products

	HM2P09PCF1G1E9	HM2P09PCF1G1N9	HM2P09PCF1G1E9LF	HM2P09PCF1G1N9LF	HM2P09PCF1G1Z1LF	HM2P09PCF1G1Z1
Description	Board Connector, 77 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	CONN HEADER 55POS TYPE C VERT	Board Connector, 77 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 77 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 77 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 77 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant	compliant
Other features	22 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	22 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	22 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	22 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	22 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	22 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	7	7	7	7	7	7
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	77	77	77	77	77	77
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Contact completed and terminated	GOLD (39) OVER NICKEL	GOLD (31) OVER NICKEL	GOLD (39) OVER NICKEL	-	GOLD (16) OVER NICKEL	GOLD (16) OVER NICKEL
JESD-609 code	e4	e4	e4	-	e4	e4
Manufacturer's serial number	HM2	HM2	HM2	-	HM2	HM2
