Z84C30AC6

Description
Z80 CTC CMOS VERSION
CategoryThe embedded processor and controller    Microcontrollers and processors
File Size814KB,14 Pages
ManufacturerSTMicroelectronics
Websitehttp://www.st.com/
Download Datasheet Parametric View All

Z84C30AC6 Overview

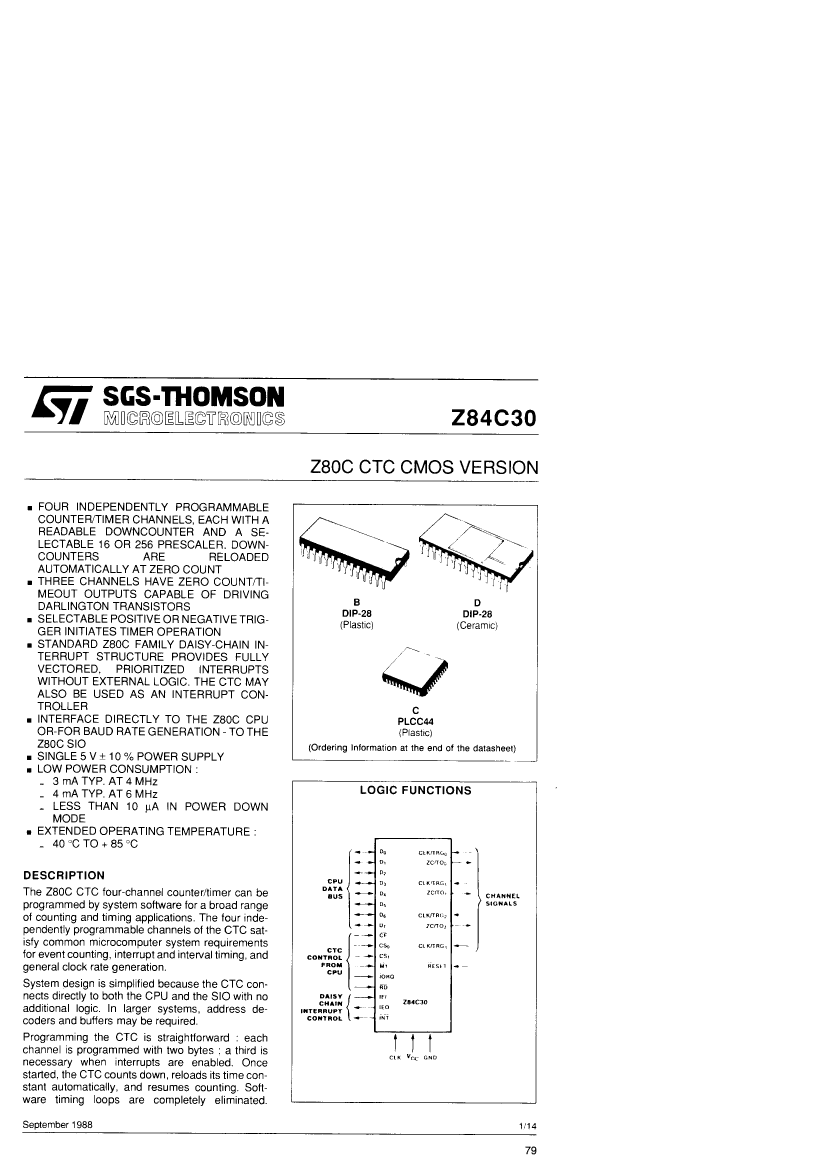

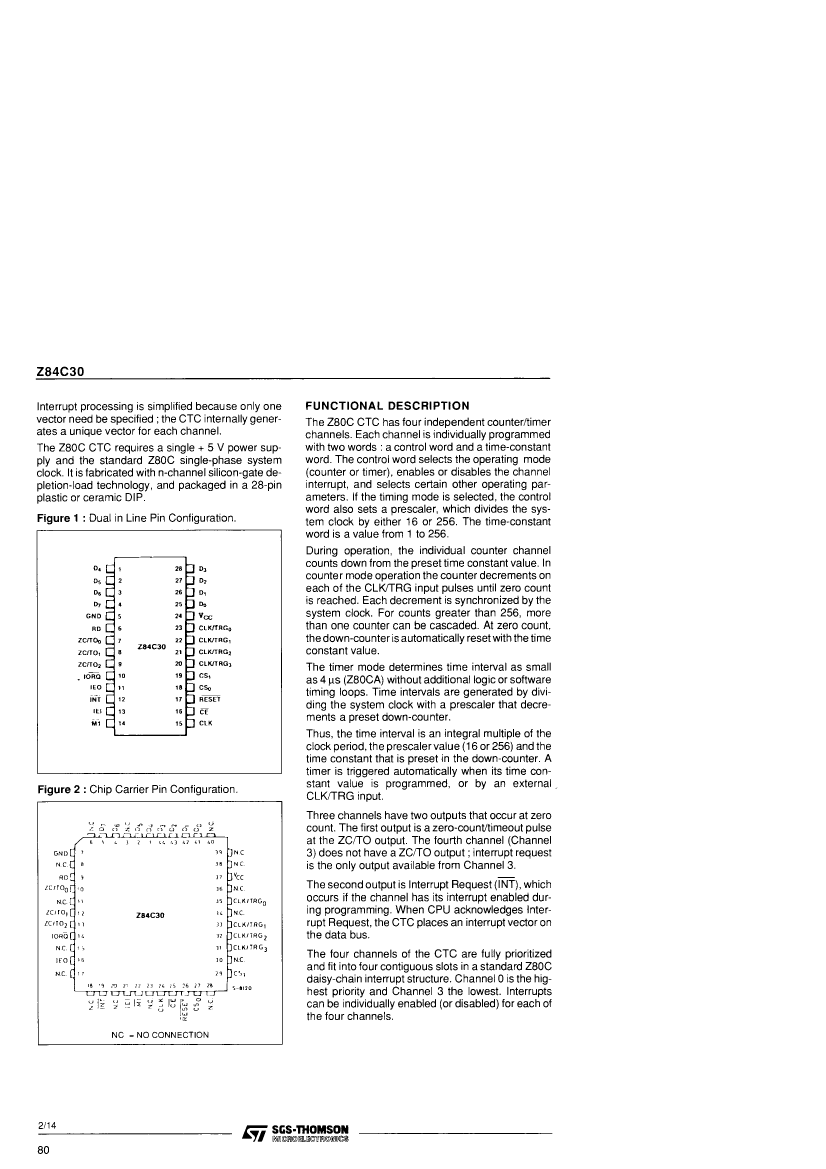

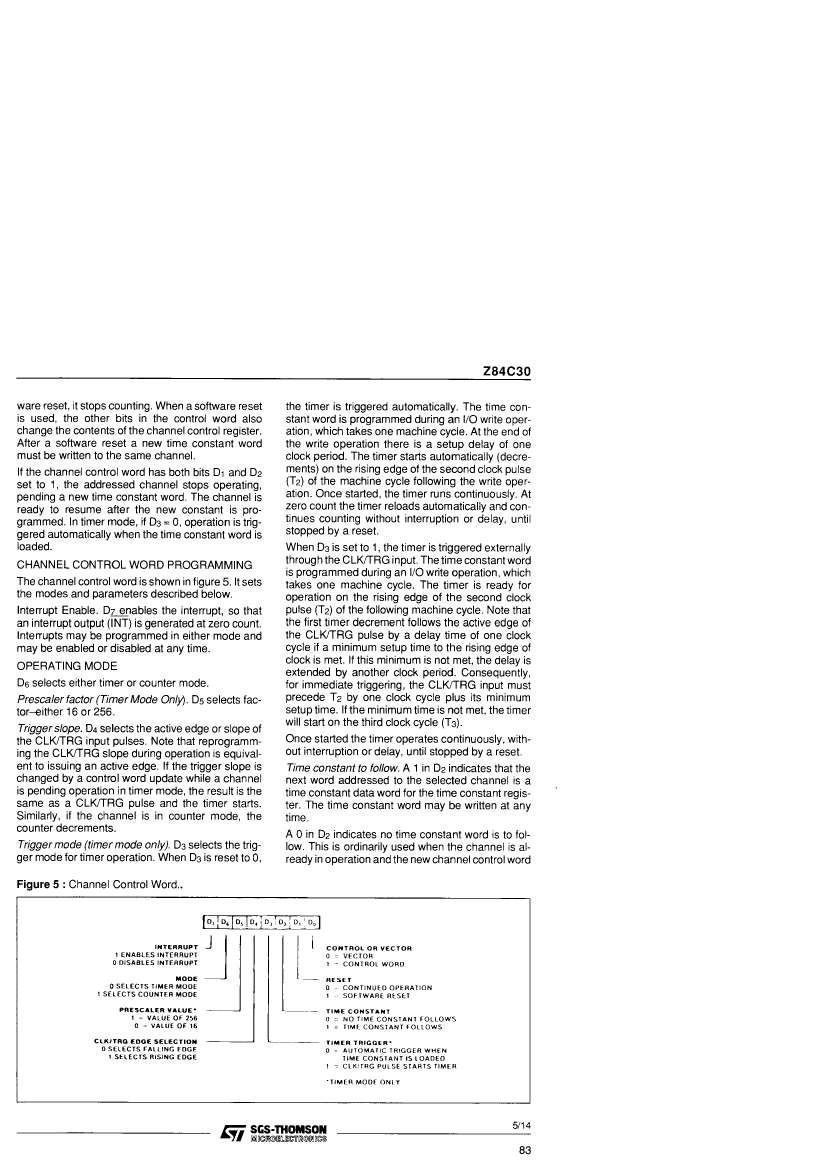

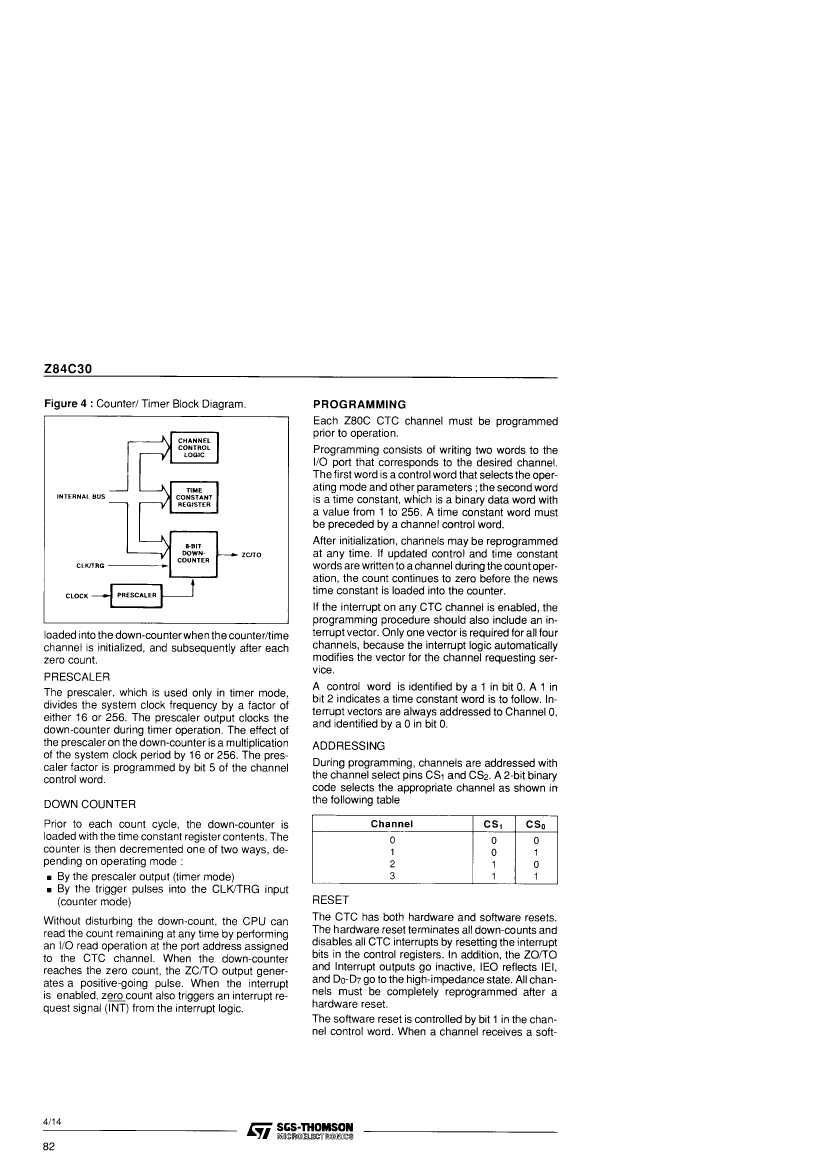

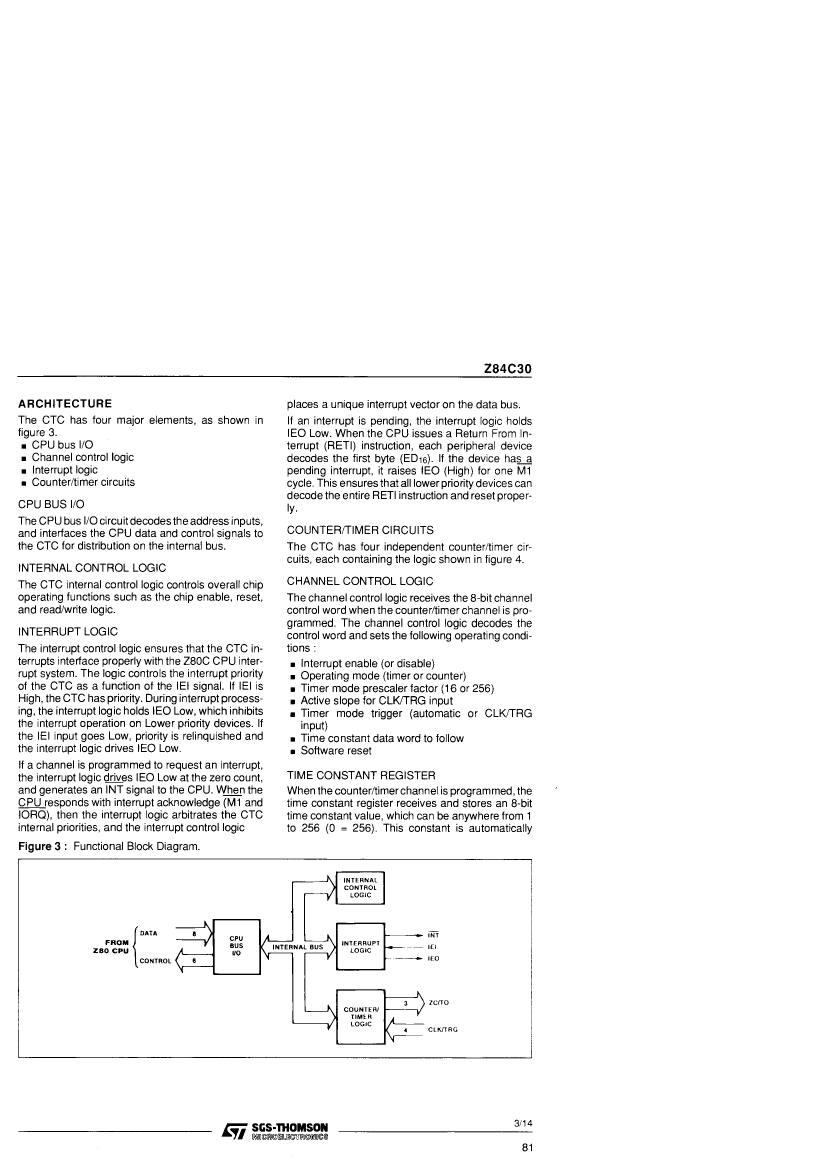

Z80 CTC CMOS VERSION

Z84C30AC6 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerSTMicroelectronics
Parts packaging codeLCC
package instructionPLASTIC, LCC-44
Contacts44
Reach Compliance Code_compli
ECCN codeEAR99
Other featuresDAISY CHAIN INTERRUPT STRUCTURE; PRESCALED /16, /256 TIMER I/P\'S
Bus compatibilityZ80C
maximum clock frequency4 MHz
External data bus width8
Information access methodsPARALLEL, DIRECT ADDRESS
JESD-30 codeS-PQCC-J44
JESD-609 codee0
length16.5862 mm
Number of digits8
Number of terminals44
Number of timers4
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeQCCJ
Package shapeSQUARE
Package formCHIP CARRIER
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum seat height4.57 mm
Maximum slew rate5 mA
Maximum supply voltage5.5 V
Minimum supply voltage4.5 V
Nominal supply voltage5 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formJ BEND
Terminal pitch1.27 mm
Terminal locationQUAD
Maximum time at peak reflow temperatureNOT SPECIFIED
width16.5862 mm
uPs/uCs/peripheral integrated circuit typeTIMER, PROGRAMMABLE
