82_MMCX-S50-0-2/111_KL

Description
RF MMCX Connector, Female, Board Mount, Surface Mount Terminal, Jack, ROHS COMPLIANT
CategoryThe connector    The connector
File Size49KB,1 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric View All

82_MMCX-S50-0-2/111_KL Overview

RF MMCX Connector, Female, Board Mount, Surface Mount Terminal, Jack, ROHS COMPLIANT

82_MMCX-S50-0-2/111_KL Parametric

Parameter NameAttribute value
MakerHUBER+SUHNER
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF MMCX CONNECTOR
Contact to complete cooperationGOLD (51) OVER NICKEL (51)
Contact completed and terminatedGOLD (51) OVER NICKEL (51)
Contact point genderFEMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial numberMMCX
Installation methodRIGHT ANGLE
Installation typeBOARD
Maximum operating frequency6 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeSURFACE MOUNT
HUBER+SUHNER
®
DATA SHEET

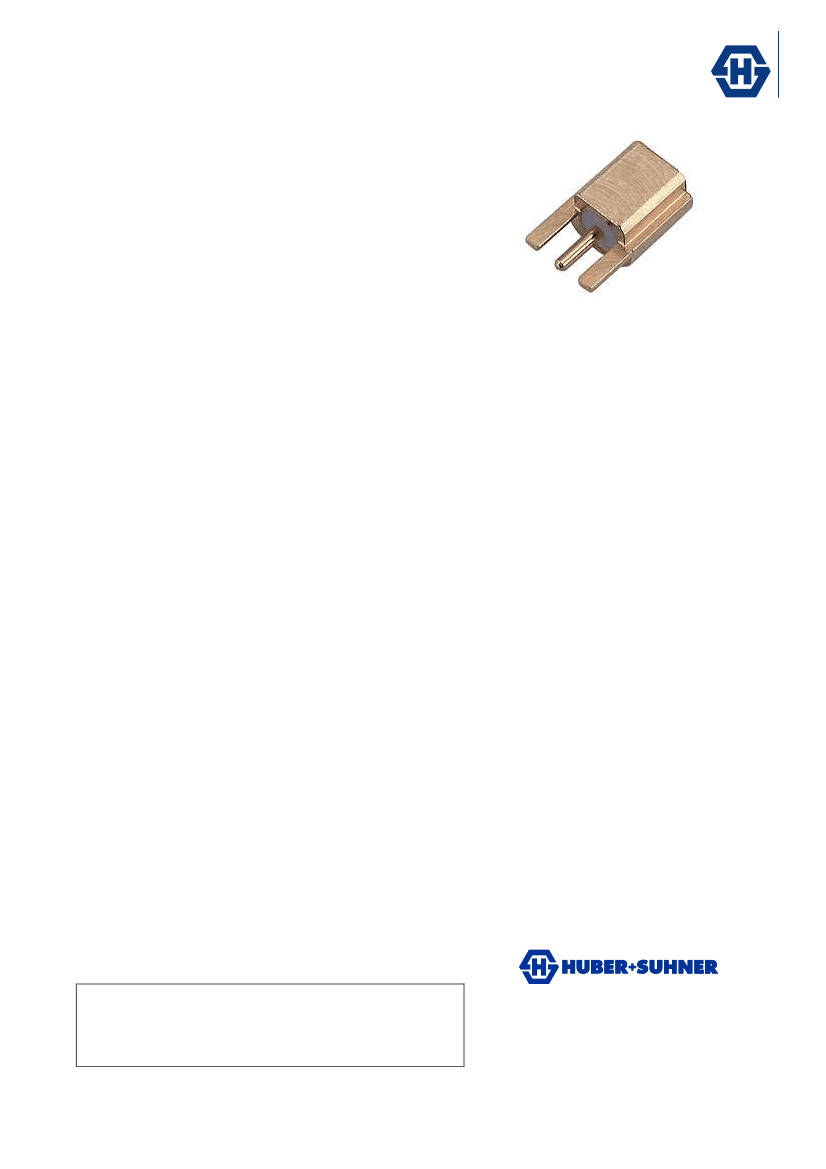

Coaxial PCB Connector: 82_MMCX-S50-0-2/111_K
Description
Rev.: E
Straight PCB jack
Interface Standards
SUHNER-MMCX
Technical Data
Electrical Data
Impedance
Interface frequency max.
50
6 GHz
edge mount
0.0007 kg
-55 °C to 155 °C
compliant
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
DOU-00013081
DCA-00013083
82_MMCX-S50-0-2/111_KL
82_MMCX-S50-0-2/111_KH
82_MMCX-S50-0-2/111_KG
82_MMCX-S50-0-2/111_KE
Surface Plating
Hard Au min. 1.3 m over Ni min. 1.3 m
Gold Plating (Nickel underplated)
Pure Au min. 1.3 m over Ni min. 1.3 m
Mechanical Data
Board mounting type
Weight
Environmental Data
Operating Temperature
2002/95/EC (RoHS)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material Data
Related Documents
Outline drawing
Catalogue drawing
Ordering Information
Tape and Reel package
Bulk 100 pcs package
Tape and Reel package
Single package
HUBER+SUHNER is certified according to ISO 9001 and ISO 14001
WAIVER!
It is exclusively in written agreements that we provide our customers with warrants and
representations as to the technical contained specifications and/or the fitness for any particular
purpose. The facts and figures herein are carefully compiled to the best of our knowledge, but they are
intended for general informational purposes only.
HUBER+SUHNER AG
RF Technology
9100 Herisau, Switzerland
Phone +41 (0)71 353 41 11
Fax
+41 (0)71 353 45 90
www.hubersuhner.com
Uncontrolled Copy
Page 1/1
HUBER+SUHNER – Excellence in Connectivity Solutions
Document: DOC-0000193323 J
Issued: 10.09.09
