DAC71-CCD-V datasheet, PDF - EEWORLD Datasheet

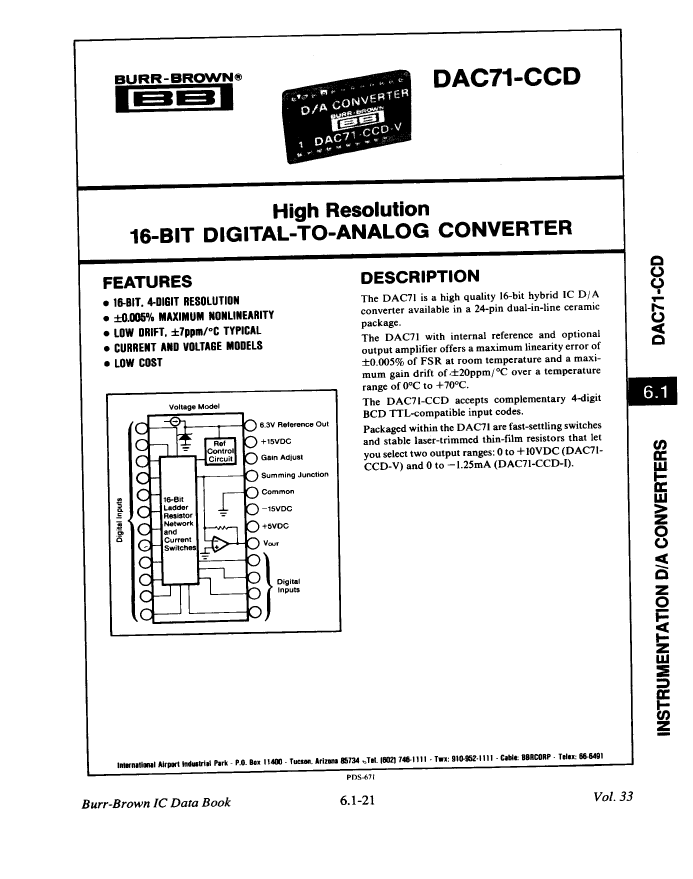

DAC71-CCD-V: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, 5us Settling Time, CDIP24,; CategoryAnalog mixed-signal IC converter; File Size271KB，6 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

DAC71-CCD-V Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, 5us Settling Time, CDIP24,

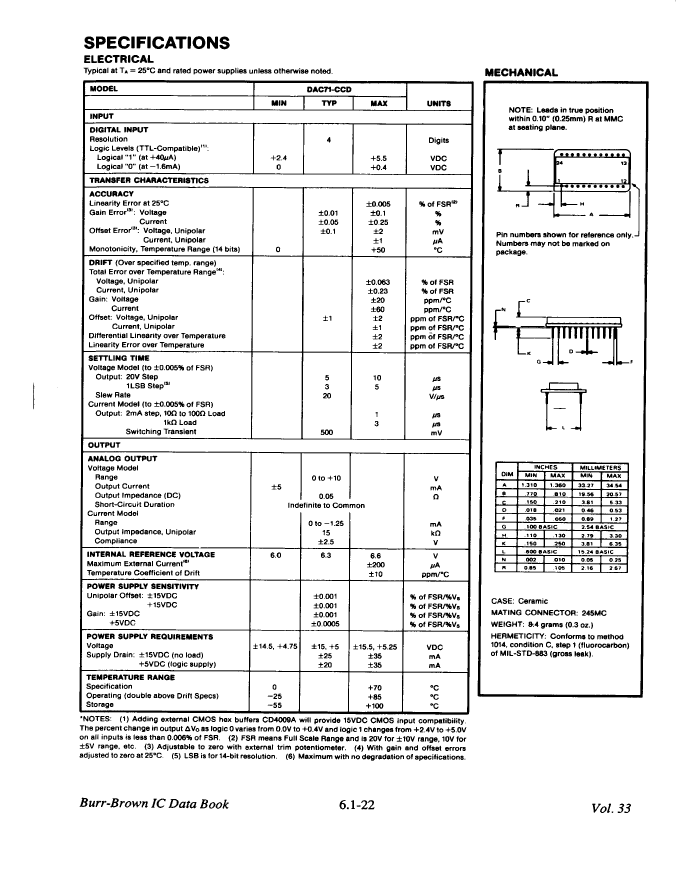

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
package instruction	DIP, DIP24,.6
Reach Compliance Code	unknown
Maximum analog output voltage	10 V
Minimum analog output voltage
Converter type	D/A CONVERTER

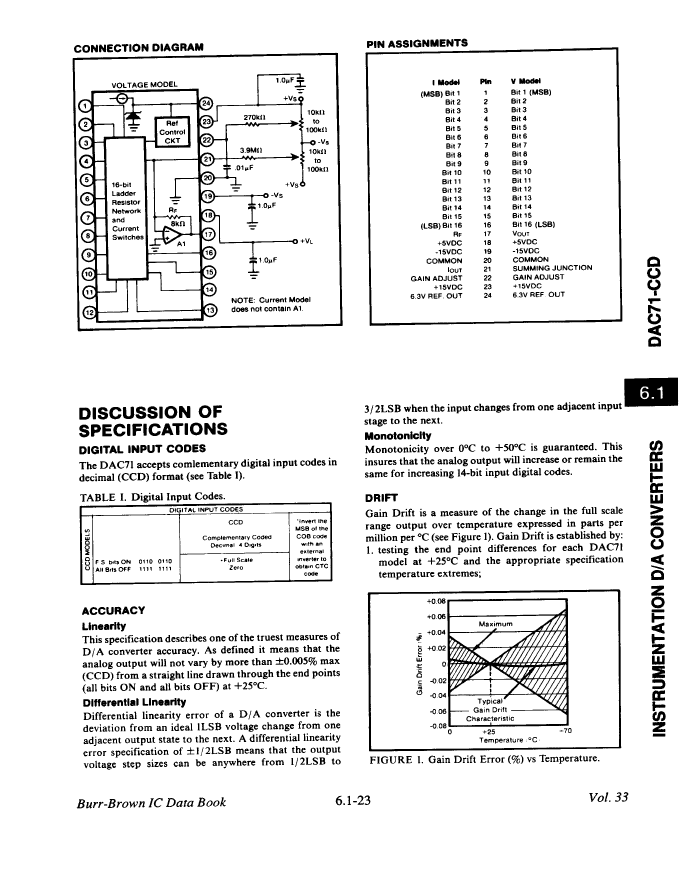

Enter bit code	COMPLEMENTARY BINARY CODED DECIMAL
Input format	PARALLEL, WORD
JESD-30 code	R-CDIP-T24
JESD-609 code	e0
Maximum linear error (EL)	0.005%
Nominal negative supply voltage	-15 V
Number of digits	16
Number of functions	1
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5,+-15 V
Certification status	Not Qualified

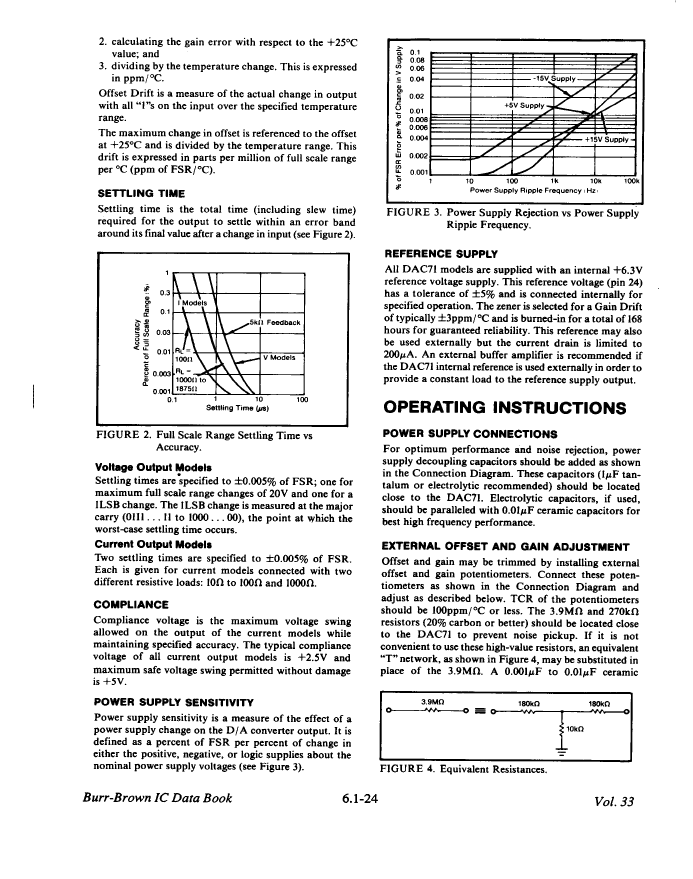

Maximum stabilization time	10 µs
Nominal settling time (tstl)	5 µs
Maximum slew rate	35 mA
Nominal supply voltage	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

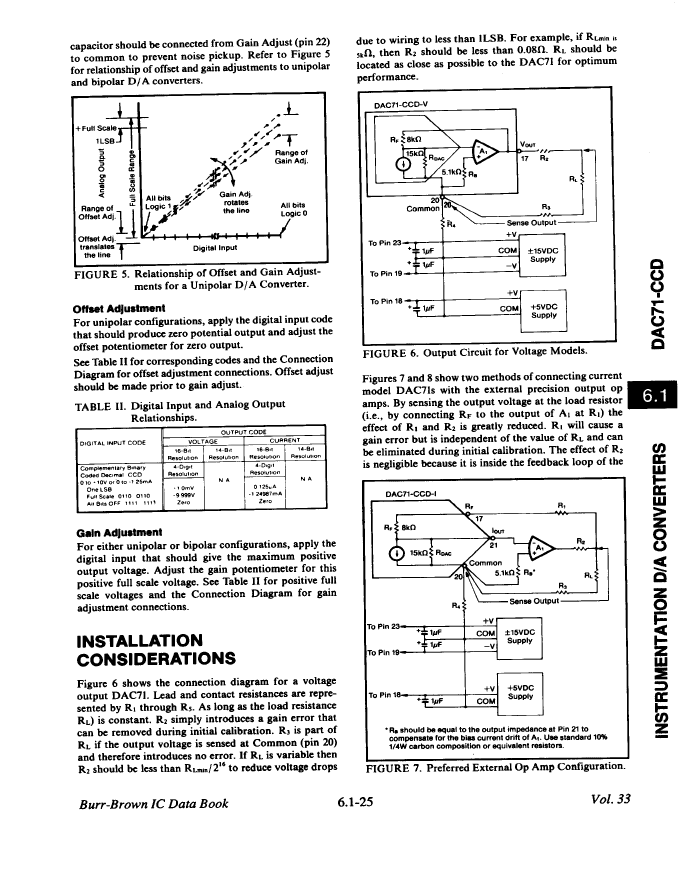

This Material Copyrighted By Its Respective Manufacturer

	DAC71-CCD-V	DAC71-CCD-I
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, 5us Settling Time, CDIP24,	D/A Converter, 1 Func, Parallel, Word Input Loading, 3us Settling Time, CDIP24,
Is it Rohs certified?	incompatible	incompatible
Maker	Burr-Brown	Burr-Brown
package instruction	DIP, DIP24,.6	DIP, DIP24,.6
Reach Compliance Code	unknown	unknown
Converter type	D/A CONVERTER	D/A CONVERTER
Enter bit code	COMPLEMENTARY BINARY CODED DECIMAL	COMPLEMENTARY BINARY CODED DECIMAL
Input format	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-CDIP-T24	R-CDIP-T24
JESD-609 code	e0	e0
Maximum linear error (EL)	0.005%	0.005%
Nominal negative supply voltage	-15 V	-15 V
Number of digits	16	16
Number of functions	1	1
Number of terminals	24	24
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	5,+-15 V	5,+-15 V
Certification status	Not Qualified	Not Qualified
Maximum stabilization time	10 µs	3 µs
Nominal settling time (tstl)	5 µs	3 µs
Maximum slew rate	35 mA	35 mA
Nominal supply voltage	15 V	15 V
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Temperature level	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
