LTC1292CIJ8 datasheet, PDF - EEWORLD Datasheet

LTC1292CIJ8: DescriptionIC 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, CDIP8, CERDIP-8, Analog to Digital Converter; CategoryAnalog mixed-signal IC converter; File Size890KB，19 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

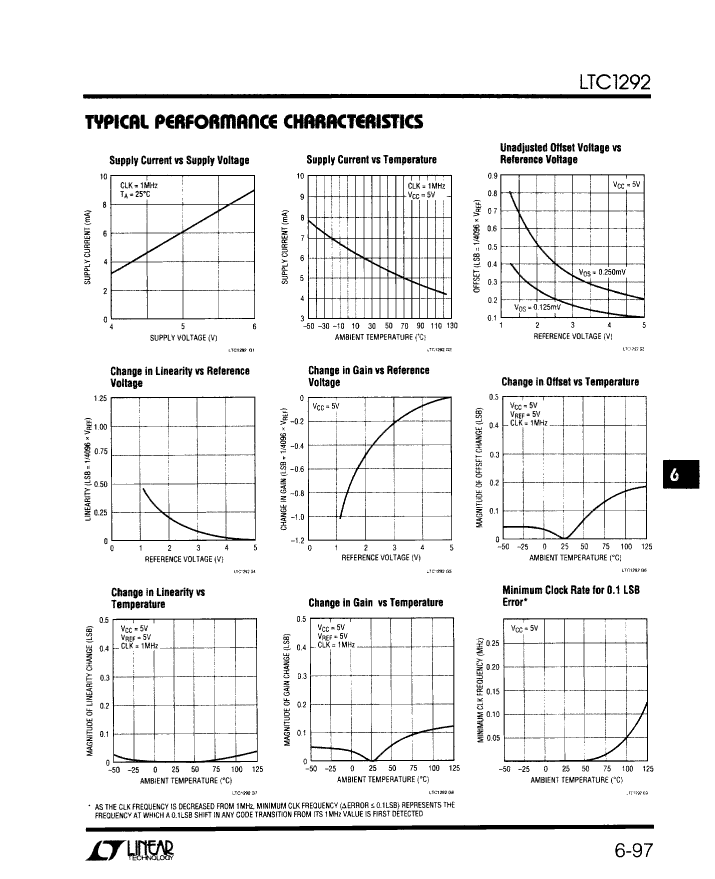

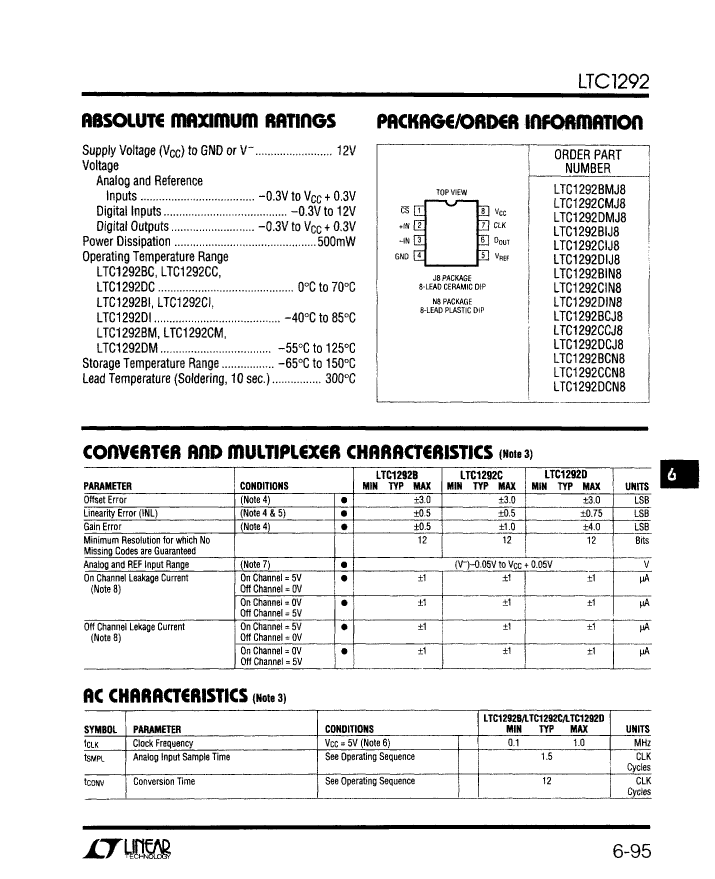

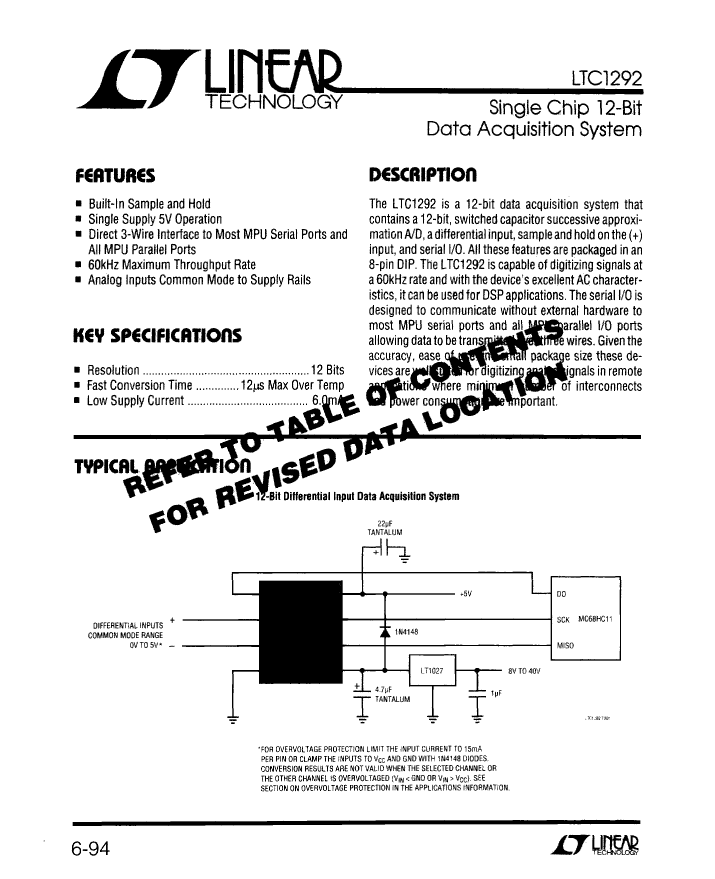

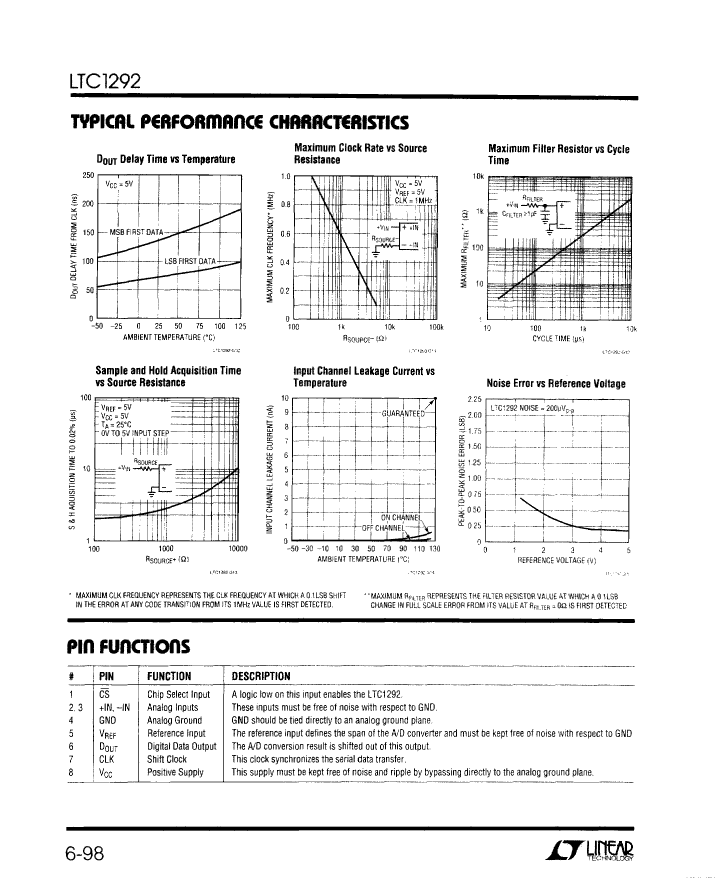

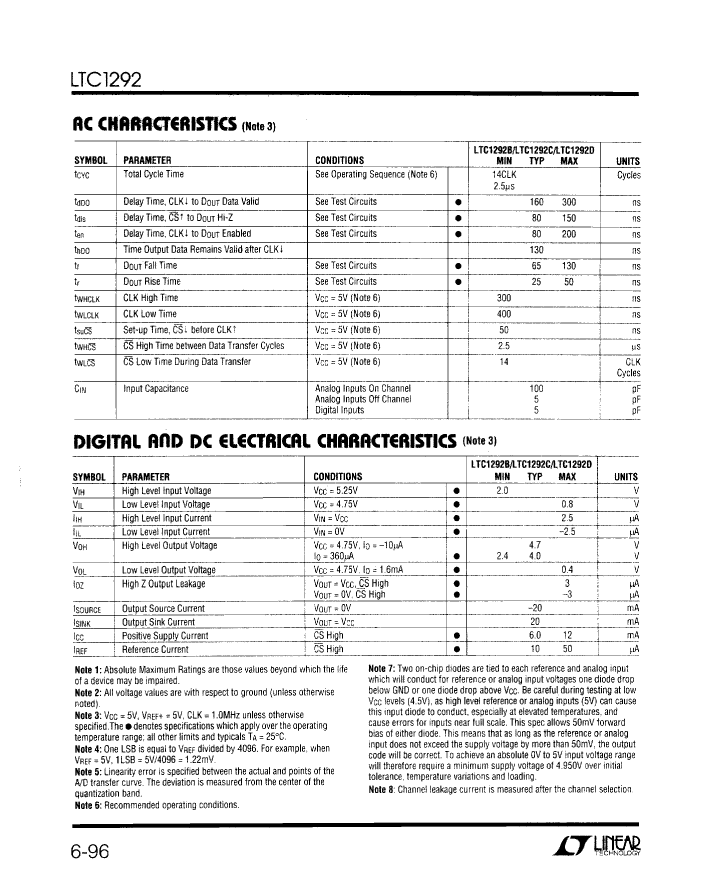

LTC1292CIJ8 Overview

IC 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, CDIP8, CERDIP-8, Analog to Digital Converter

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum analog input voltage	12.3 V
Minimum analog input voltage	-0.3 V
Maximum conversion time	12 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-GDIP-T8
JESD-609 code	e0
Maximum linear error (EL)	0.012%
Number of digits	12
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output bit code	OFFSET BINARY
Output format	SERIAL
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Sampling rate	0.06 MHz
Sample and hold/Track and hold	SAMPLE
Maximum seat height	5.08 mm
Maximum slew rate	12 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

	LTC1292CIJ8	LTC1292BIJ8	5.0SMDJ18	LTC1292CMJ8/883B	LTC1292DIJ8	5.0SMDJ220A
Description	IC 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, CDIP8, CERDIP-8, Analog to Digital Converter	IC 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, CDIP8, CERDIP-8, Analog to Digital Converter	SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR DIODES	IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, CDIP8, CERDIP-8, Analog to Digital Converter	IC 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, CDIP8, CERDIP-8, Analog to Digital Converter	Transient Voltage Suppressor Diodes
Is it Rohs certified?	incompatible	incompatible	-	incompatible	incompatible	-
Maker	Linear ( ADI )	Linear ( ADI )	-	Linear ( ADI )	Linear ( ADI )	-
Parts packaging code	DIP	DIP	-	DIP	DIP	-
package instruction	DIP, DIP8,.3	DIP, DIP8,.3	-	CERDIP-8	DIP, DIP8,.3	-
Contacts	8	8	-	8	8	-
Reach Compliance Code	compliant	compliant	-	compliant	compliant	-
ECCN code	EAR99	EAR99	-	EAR99	EAR99	-
