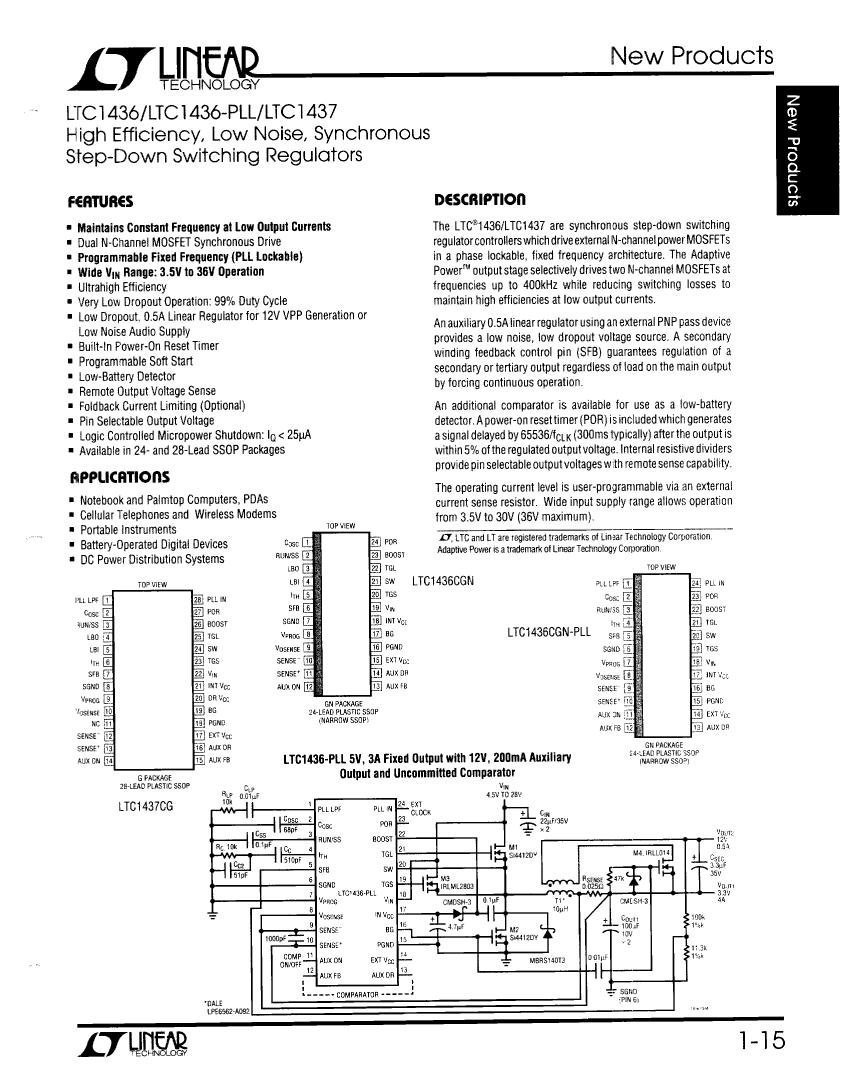

LTC1436CGN#TR: DescriptionIC 2 A SWITCHING CONTROLLER, 400 kHz SWITCHING FREQ-MAX, PDSO24, 0.150 INCH, PLASTIC, SSOP-24, Switching Regulator or Controller; CategoryPower/power management The power supply circuit; File Size77KB，1 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LTC1436CGN#TR Overview

IC 2 A SWITCHING CONTROLLER, 400 kHz SWITCHING FREQ-MAX, PDSO24, 0.150 INCH, PLASTIC, SSOP-24, Switching Regulator or Controller

LTC1436CGN#TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	SSOP
package instruction	0.150 INCH, PLASTIC, SSOP-24
Contacts	24
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	30 V
Minimum input voltage	3.5 V
Nominal input voltage	15 V
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
length	8.65 mm
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output current	2 A
Nominal output voltage	1.19 V
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	1.75 mm
surface mount	YES
Switch configuration	PUSH-PULL
Maximum switching frequency	400 kHz
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
width	3.9116 mm
