LTC1436IGN-PLL#PBF datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> LTC1436IGN-PLL#PBF

LTC1436IGN-PLL#PBF: DescriptionIC,SMPS CONTROLLER,CURRENT-MODE,CMOS,SSOP,24PIN,PLASTIC; CategoryPower/power management The power supply circuit; File Size2MB，28 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

LTC1436IGN-PLL#PBF Overview

IC,SMPS CONTROLLER,CURRENT-MODE,CMOS,SSOP,24PIN,PLASTIC

LTC1436IGN-PLL#PBF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Linear ( ADI )
package instruction	SSOP, SSOP24,.24
Reach Compliance Code	compliant
Other features	5 VOLT OUTPUT ALSO AVAILABLE
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	30 V
Minimum input voltage	3.5 V
Nominal input voltage	15 V
JESD-30 code	R-PDSO-G24
JESD-609 code	e3
length	8.649 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	3.38 V
Minimum output voltage	3.22 V
Nominal output voltage	3.3 V
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP24,.24
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	1.75 mm
surface mount	YES
Switch configuration	BOOST
Maximum switching frequency	400 kHz
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	3.899 mm

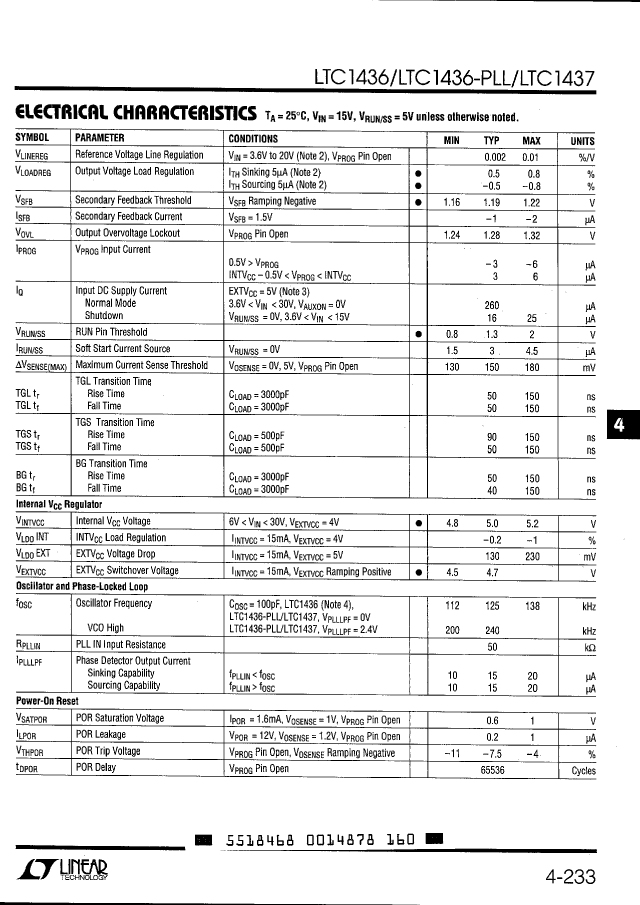

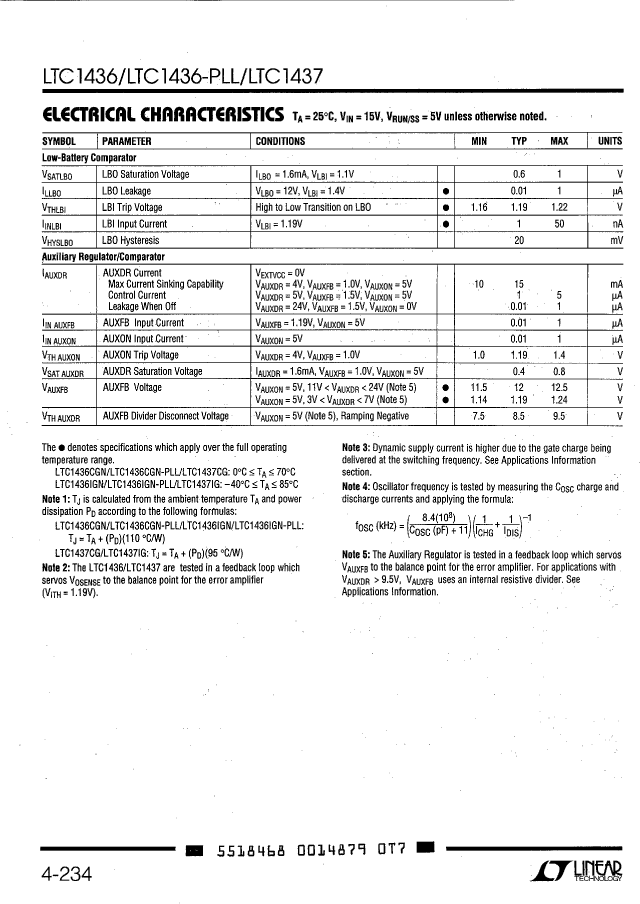

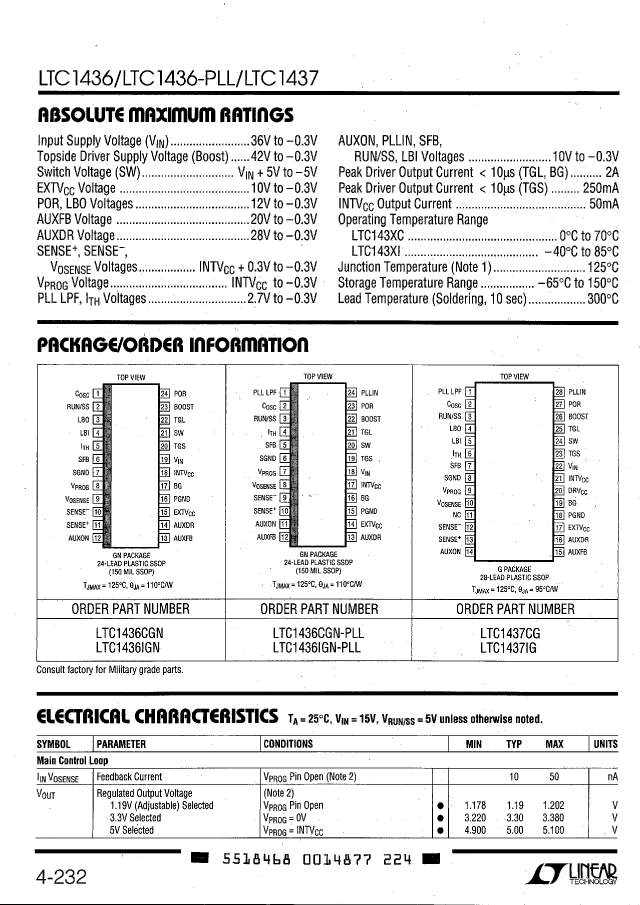

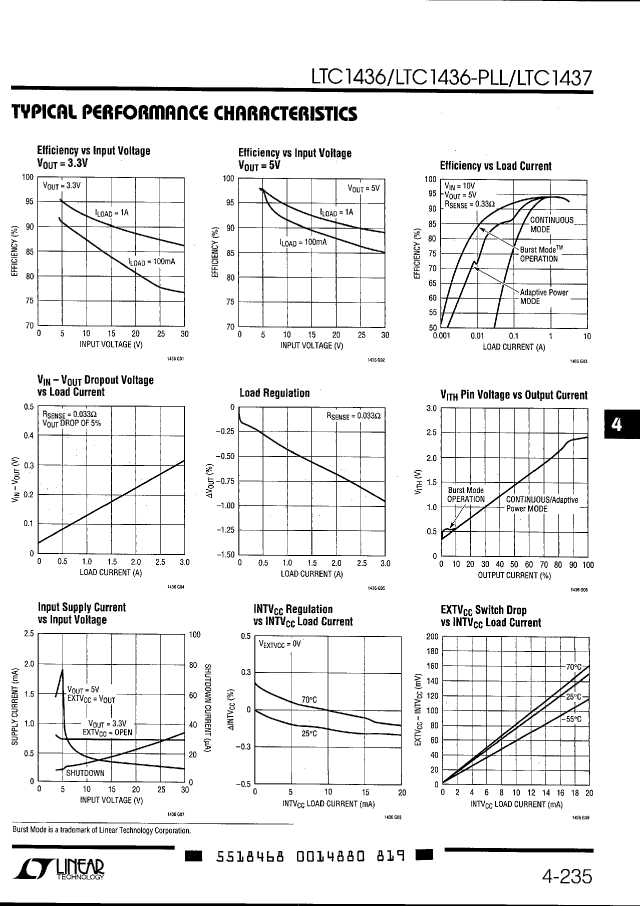

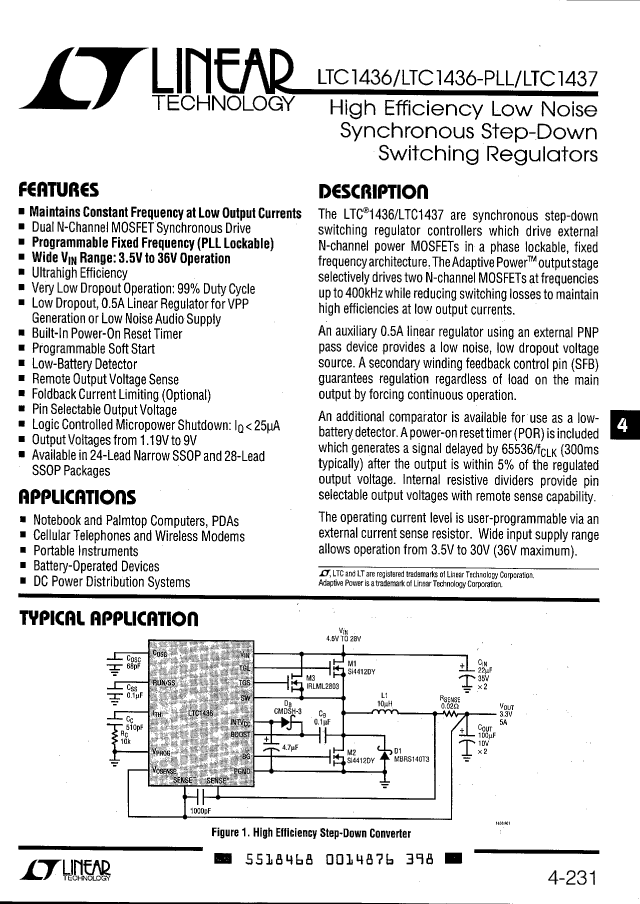

Preview

Download Datasheet

View All

LTC1436IGN-PLL#PBF Related Products

	LTC1436IGN-PLL#PBF	LTC1436CGN-PLL#PBF
Description	IC,SMPS CONTROLLER,CURRENT-MODE,CMOS,SSOP,24PIN,PLASTIC	IC,SMPS CONTROLLER,CURRENT-MODE,CMOS,SSOP,24PIN,PLASTIC
Is it Rohs certified?	conform to	conform to
Maker	Linear ( ADI )	Linear ( ADI )
package instruction	SSOP, SSOP24,.24	SSOP, SSOP24,.24
Reach Compliance Code	compliant	compliant
Other features	5 VOLT OUTPUT ALSO AVAILABLE	5 VOLT OUTPUT ALSO AVAILABLE
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR	SWITCHING REGULATOR
control mode	CURRENT-MODE	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	30 V	30 V
Minimum input voltage	3.5 V	3.5 V
Nominal input voltage	15 V	15 V
JESD-30 code	R-PDSO-G24	R-PDSO-G24
JESD-609 code	e3	e3
length	8.649 mm	8.649 mm
Humidity sensitivity level	1	1
Number of functions	1	1
Number of terminals	24	24
Maximum operating temperature	85 °C	70 °C
Maximum output voltage	3.38 V	3.38 V
Minimum output voltage	3.22 V	3.22 V
Nominal output voltage	3.3 V	3.3 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP
Encapsulate equivalent code	SSOP24,.24	SSOP24,.24
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm
surface mount	YES	YES
Switch configuration	BOOST	BOOST
Maximum switching frequency	400 kHz	400 kHz
technology	BICMOS	BICMOS
Temperature level	INDUSTRIAL	COMMERCIAL
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL
width	3.899 mm	3.899 mm
