NSE-5310ASST datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> NSE-5310ASST

NSE-5310ASST: DescriptionMiniature Position Encoder SOIC with Zero Reference and IC Output; CategoryAnalog mixed-signal IC The signal circuit; File Size1MB，21 Pages; ManufacturerAMS; Websitehttps://ams.com/zh; Environmental Compliance

Download Datasheet Parametric Compare View All

NSE-5310ASST Overview

Miniature Position Encoder SOIC with Zero Reference and IC Output

NSE-5310ASST Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AMS
package instruction	LSOP,
Reach Compliance Code	unknow
Other features	IT ALSO OPERATES WITH A VOLTAGE OF 4.5V TO 5.5V
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT
JESD-30 code	R-PDSO-G20
JESD-609 code	e3
length	4.3 mm
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Peak Reflow Temperature (Celsius)	260
Maximum seat height	1.25 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
Temperature level	AUTOMOTIVE
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	6.5 mm

Preview

Download Datasheet

View All

Data Sheet

NSE-5310

Miniature Position Encoder SOIC with Zero

Reference and I²C Output

1 General Description

The TRACKER NSE-5310 is an incremental position sensor with on-

chip encoding for direct digital output. A Hall element array on the

chip is used to derive the incremental position of an external

magnetic strip placed above the IC at a distance of 0.3 mm (typ).

This sensor array detects the ends of the magnetic strip to provide a

zero reference point.

The integration of Hall-effect position sensors, analog front end and

digital signal processing on a single IC chip provides an ingeniously

small position sensor, without the need for external pulse counters.

Direct digital output is accessible over the serial interface using I²C

protocol.

The TRACKER NSE-5310 provides absolute position information

over the length of a magnet pole pair (2 mm). A user can count pole

pairs and achieve absolute position information over the entire length

of the magnet (essentially unlimited).

With better than 0.5 micron resolution, the TRACKER is a robust,

cost-effective alternative to miniature optical encoders. It can be

used as a linear or off-axis rotary encoder.

2 Key Features

Direct digital output using I²C protocol

End-of-magnet detection for built-in zero reference

0.488

μm

resolution

< 2

μm

bi-directional repeatability

< ±10 µm absolute error

On-chip temperature sensor

Magnetic field strength monitor

Available in TSSOP or 3.9 mm x 2.5 mm die for chip-on-board

mounting

Custom packaging such as wafer-level chip scale packaging

can be provided. Minimum order quantities may apply.

RoHS compliant

3 Applications

The NSE-5310 is ideal for Micro-actuator and servo drive feedback,

Replacement for optical encoders, Optical and imaging systems,

Consumer electronics, Precision biomedical devices,

Instrumentation and automation, Automotive applications, and

Integrated closed-loop motion systems using New Scale’s

SQUIGGLE micro motor.

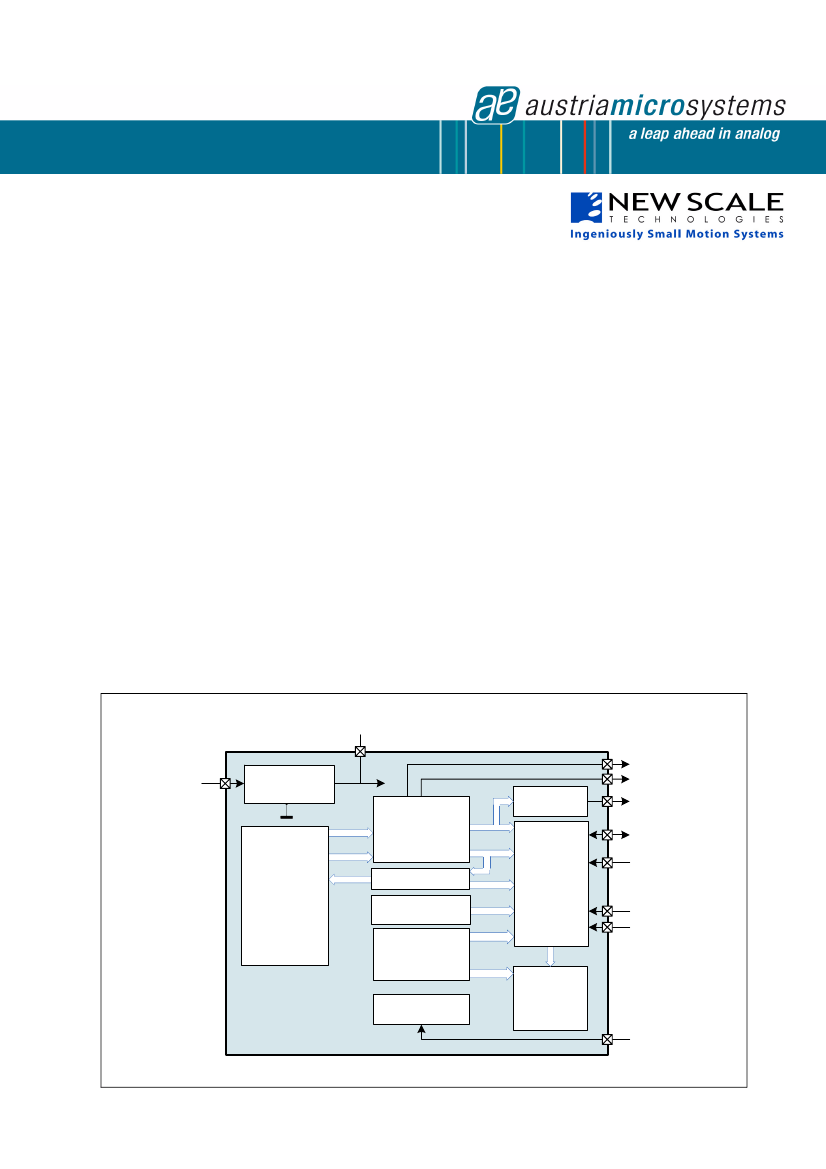

Figure 1. TRACKER NSE-5310 Block Diagram

VDD3V3

MagINCn

MagDECn

Pos

Mag

VDD5V

LDO 3.3V

Sin

Cos

PWM

Interface

PWM

SDA

DSP

Linear Hall

Array

Frontend

Amplifier

AGC

Temperature sensor

AGC

Absolute

Interface

SCL

CSn

OTP

NSE-5310

Programming

Parameters

Incremental

Interface

Prog

www.austriamicrosystems.com

Revision 1.0

1 - 21

NSE-5310ASST Related Products

	NSE-5310ASST	NSE-5310ASDF	NSE-5310	NSE-5310ASSU
Description	Miniature Position Encoder SOIC with Zero Reference and IC Output	Miniature Position Encoder SOIC with Zero Reference and IC Output	Miniature Position Encoder SOIC with Zero Reference and IC Output	Miniature Position Encoder SOIC with Zero Reference and IC Output
Is it Rohs certified?	conform to	conform to	-	conform to
Maker	AMS	AMS	-	AMS
package instruction	LSOP,	DIE,	-	LSOP,
Reach Compliance Code	unknow	unknow	-	unknow
Other features	IT ALSO OPERATES WITH A VOLTAGE OF 4.5V TO 5.5V	IT ALSO OPERATES WITH A VOLTAGE OF 4.5V TO 5.5V	-	IT ALSO OPERATES WITH A VOLTAGE OF 4.5V TO 5.5V
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT	ANALOG CIRCUIT	-	ANALOG CIRCUIT
JESD-30 code	R-PDSO-G20	R-XUUC-N17	-	R-PDSO-G20
JESD-609 code	e3	e3	-	e3
length	4.3 mm	3.98 mm	-	4.3 mm
Number of functions	1	1	-	1
Number of terminals	20	17	-	20
Maximum operating temperature	125 °C	125 °C	-	125 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C
Package body material	PLASTIC/EPOXY	UNSPECIFIED	-	PLASTIC/EPOXY
encapsulated code	LSOP	DIE	-	LSOP
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	UNCASED CHIP	-	SMALL OUTLINE, LOW PROFILE
Peak Reflow Temperature (Celsius)	260	260	-	260
Maximum supply voltage (Vsup)	3.6 V	3.6 V	-	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	-	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	-	3.3 V
surface mount	YES	YES	-	YES
Temperature level	AUTOMOTIVE	AUTOMOTIVE	-	AUTOMOTIVE
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	-	Matte Tin (Sn)
Terminal form	GULL WING	NO LEAD	-	GULL WING
Terminal location	DUAL	UPPER	-	DUAL
Maximum time at peak reflow temperature	40	40	-	40
width	6.5 mm	2.57 mm	-	6.5 mm
