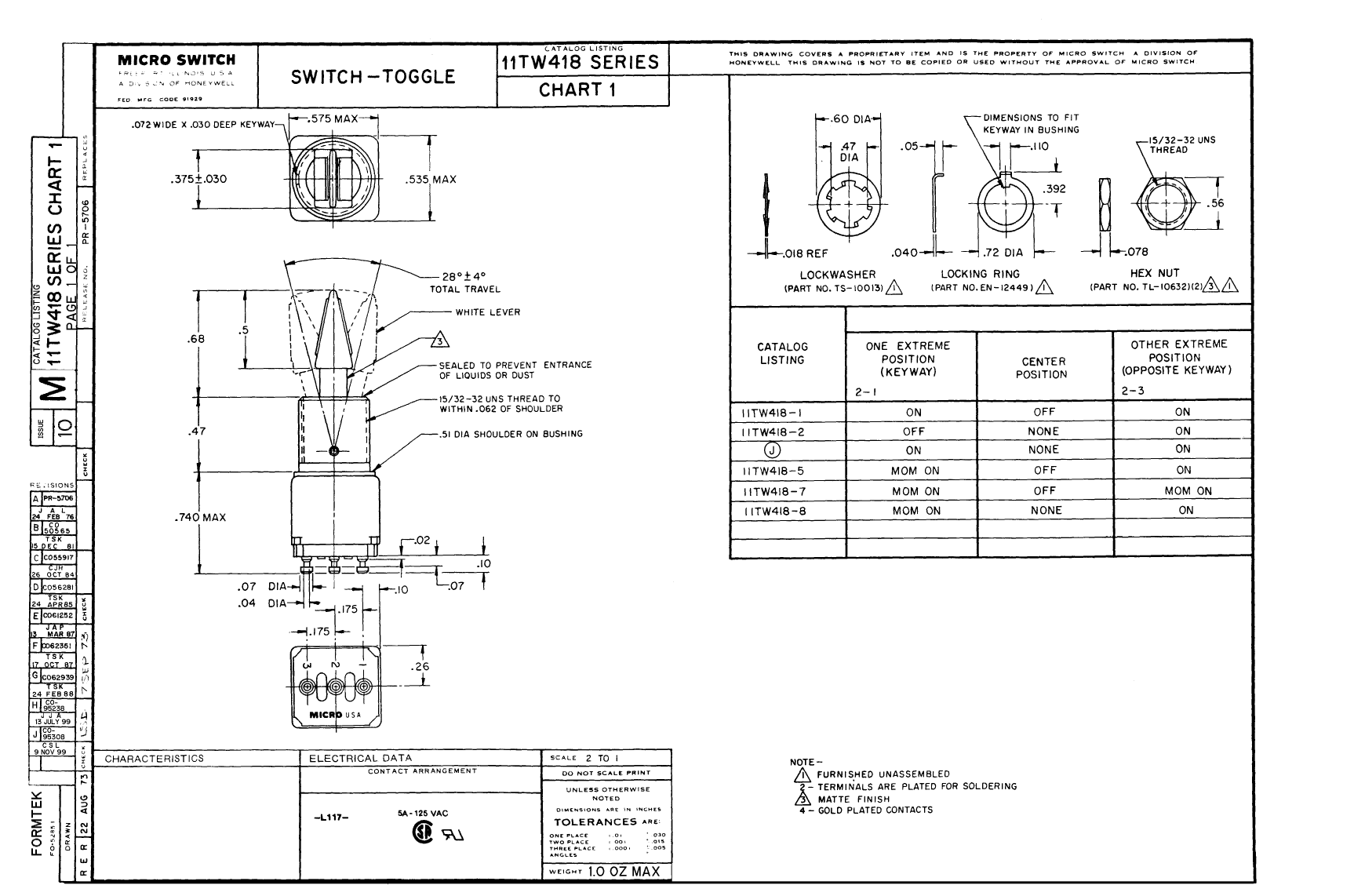

11TW418-5 datasheet, PDF - EEWORLD Datasheet

11TW418-5: DescriptionToggle Switch, SPDT, Latched And Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size65KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

11TW418-5 Overview

Toggle Switch, SPDT, Latched And Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator type	LEVER
body width	13.59 mm
body height	18.8 mm
Body length or diameter	14.61 mm
Contact (AC) maximum rated R load	5A@125VAC
Maximum contact current (AC)	5 A
Maximum contact voltage (AC)	125 V
Manufacturer's serial number	11TW418
Installation features	PANEL MOUNT-THREADED
seal	DUST PROOF; WATER PROOF
surface mount	NO
Switch action	LATCHED AND MOMENTARY
switch function	SPDT
Switch type	TOGGLE SWITCH
Termination type	WIRE
Base Number Matches	1

	11TW418-5	11TW418-1	11TW418-2	11TW418-8
Description	Toggle Switch, SPDT, Latched And Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, SPDT, Latched, Wire Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, SPST, Latched, Wire Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, SPDT, Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded
Reach Compliance Code	unknow	unknow	unknow	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Actuator type	LEVER	LEVER	LEVER	LEVER
body width	13.59 mm	13.59 mm	13.59 mm	13.59 mm
body height	18.8 mm	18.8 mm	18.8 mm	18.8 mm
Body length or diameter	14.61 mm	14.61 mm	14.61 mm	14.61 mm
Contact (AC) maximum rated R load	5A@125VAC	5A@125VAC	5A@125VAC	5A@125VAC
Maximum contact current (AC)	5 A	5 A	5 A	5 A
Maximum contact voltage (AC)	125 V	125 V	125 V	125 V
Manufacturer's serial number	11TW418	11TW418	11TW418	11TW418
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
seal	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF
surface mount	NO	NO	NO	NO
Switch action	LATCHED AND MOMENTARY	LATCHED	LATCHED	MOMENTARY
switch function	SPDT	SPDT	SPST	SPDT
Switch type	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH
Termination type	WIRE	WIRE	WIRE	WIRE
Base Number Matches	1	1	1	1
