G375A datasheet, PDF - EEWORLD Datasheet

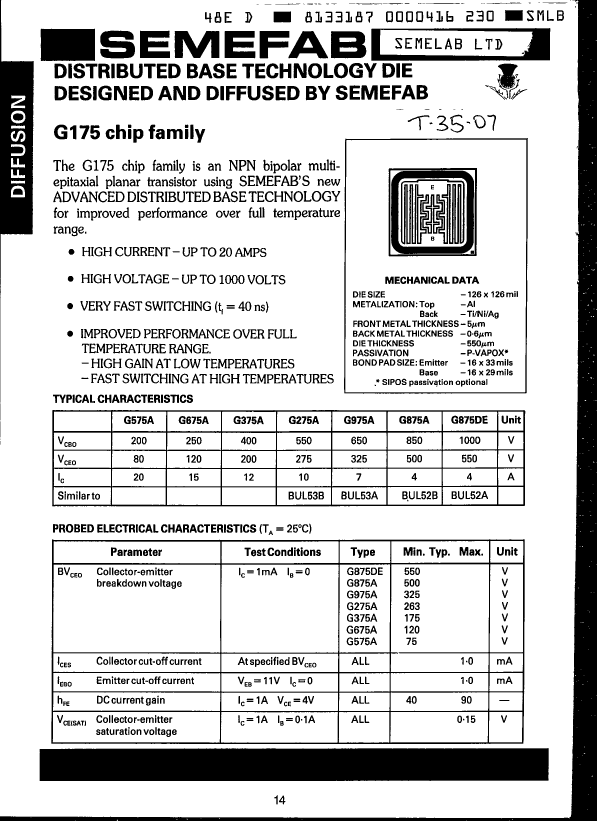

G375A: Description7A, 160V, NPN, Si, POWER TRANSISTOR, 0.126 X 0.126 INCH, DIE-2; CategoryDiscrete semiconductor The transistor; File Size34KB，1 Pages; ManufacturerSEMELAB

Download Datasheet Parametric Compare View All

G375A Overview

7A, 160V, NPN, Si, POWER TRANSISTOR, 0.126 X 0.126 INCH, DIE-2

Parameter Name	Attribute value
Maker	SEMELAB
Parts packaging code	DIE
package instruction	UNCASED CHIP, S-XUUC-N2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY
Maximum collector current (IC)	7 A
Collector-emitter maximum voltage	160 V
Minimum DC current gain (hFE)	20
JESD-30 code	S-XUUC-N2
Number of terminals	2
Package body material	UNSPECIFIED
Package shape	SQUARE
Package form	UNCASED CHIP
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal form	NO LEAD
Terminal location	UPPER
transistor applications	SWITCHING
Transistor component materials	SILICON

	G375A	G275A	G975A	G875A
Description	7A, 160V, NPN, Si, POWER TRANSISTOR, 0.126 X 0.126 INCH, DIE-2	5A, 250V, NPN, Si, POWER TRANSISTOR, 0.126 X 0.126 INCH, DIE-2	4A, 300V, NPN, Si, POWER TRANSISTOR, 0.126 X 0.126 INCH, DIE-2	TRANSISTOR,BJT,NPN,500V V(BR)CEO,4A I(C),CHIP / DIE
package instruction	UNCASED CHIP, S-XUUC-N2	UNCASED CHIP, S-XUUC-N2	UNCASED CHIP, S-XUUC-N2	,
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	7 A	5 A	4 A	4 A
Minimum DC current gain (hFE)	20	20	15	40
Polarity/channel type	NPN	NPN	NPN	NPN
surface mount	YES	YES	YES	YES
Parts packaging code	DIE	DIE	DIE	-
Contacts	2	2	2	-
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	-
Collector-emitter maximum voltage	160 V	250 V	300 V	-
JESD-30 code	S-XUUC-N2	S-XUUC-N2	S-XUUC-N2	-
Number of terminals	2	2	2	-
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-
Package shape	SQUARE	SQUARE	SQUARE	-
Package form	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	-
Certification status	Not Qualified	Not Qualified	Not Qualified	-
Terminal form	NO LEAD	NO LEAD	NO LEAD	-
Terminal location	UPPER	UPPER	UPPER	-
transistor applications	SWITCHING	SWITCHING	SWITCHING	-
Transistor component materials	SILICON	SILICON	SILICON	-
