SURFACE MOUNT LED LAMP
SUPER BRIGHT PLCC-2
QTLP670C-T
Red
QTLP670C-E
Orange
QTLP670C-AG
Yellow-Green
QTLP670C-IW
White
QTLP670C-S
Red
QTLP670C-O
Yellow-Orange
QTLP670C-IG
True Green
QTLP670C-R
Red
QTLP670C-Y
Yellow
QTLP670C-IB
Blue
PACKAGE DIMENSIONS
0.130 (3.3)
0.114 (2.9)
Ø0.094 [Ø2.4]
0.118 (3.0)
0.102 (2.6)
0.091 (2.3)
0.083 (2.1)
TOP
CATHODE
0.024 (0.6)
0.016 (0.4)
0.083 (2.1)
0.067 (1.7)
0.146 (3.7)
0.130 (3.3)
0.006 (0.15)
SIDE
0.032 (0.8)
CATHODE
BOTTOM
POLARITY
APPLICATIONS
NOTE:
Dimensions for all drawings are in inches (mm).
• Automotive interior lighting
• Status indication for consumer electronics and office
equipment
DESCRIPTION
These surface mount LEDs are designed with flat top and sides for the ease of pick-and-place by automatic placement equipment.
They are compatible with convective IR and vapor phase reflow soldering. The package size and configuration conform to EIA-535
BAAC standard specification for case size 3528 tantalum capacitor. These LEDs are ideal for backlighting and optical coupling into
light pipes.
FEATURES
• AllnGaP technology for -T, -S, -R, -E, -O, -Y and -AG
• InGaN/SiC technology for -IG, -IB and -IW
• Wide viewing angle of 120°
2001 Fairchild Semiconductor Corporation
DS300236
8/31/01
• Water clear optics
• Available in 0.315” (8mm) width tape on
7” (178mm) diameter reel; 2,000 units per reel
1 OF 8
www.fairchildsemi.com
SURFACE MOUNT LED LAMP
SUPER BRIGHT PLCC-2
QTLP670C-T
Red
QTLP670C-E
Orange
QTLP670C-AG
Yellow-Green
QTLP670C-IW
White
QTLP670C-S
Red
QTLP670C-O
Yellow-Orange
QTLP670C-IG
True Green
QTLP670C-R
Red
QTLP670C-Y
Yellow
QTLP670C-IB
Blue
ABSOLUTE MAXIMUM RATINGS
Parameter
Continuous Forward Current
Peak Forward Current
(f = 1.0 KHz, Duty Factor = 1/10)
Reverse Voltage (I
R
= 10 µA)
Power Dissipation
Junction Temperature
Thermal Resistance (Junction-Air)
Operating Temperature
Storage Temperature
Lead Soldering Time
(T
A
=25°C Unless otherwise specified)
QTLP670C
-E
30
160
Units
mA
mA
V
mW
°C
K/W
°C
°C
°C
Symbol
I
F
I
FM
V
R
P
D
T
J
R
th JA
T
OPR
T
STG
T
SOL
-T
30
160
5
72
100
500
-S
30
160
5
72
100
500
-R
30
160
5
72
100
500
-O
30
160
-Y
25
120
5
60
100
500
-AG
30
160
5
72
100
500
5
5
72
72
100
100
500
500
-40 to +95
-40 to +100
260 for 5 sec
ABSOLUTE MAXIMUM RATINGS
Parameter
Continuous Forward Current
Peak Forward Current
(f = 1.0 KHz, Duty Factor = 1/10)
Reverse Voltage (I
R
= 10 µA)
Power Dissipation
Junction Temperature
Thermal Resistance Junction-Air
Operating Temperature
Storage Temperature
Lead Soldering Time
(T
A
=25°C Unless otherwise specified)
QTLP670C
-IG
30
100
5
120
125
400
-40 to +95
-40 to +100
260 for 5 sec
Units
mA
mA
V
mW
°C
K/W
°C
°C
°C
Symbol
I
F
I
FM
V
R
P
D
T
J
R
th JA
T
OPR
T
STG
T
SOL
-IB
30
100
5
120
125
400
-IW
20
70
5
80
125
400
www.fairchildsemi.com
2 OF 8
8/31/01
DS300236
SURFACE MOUNT LED LAMP
SUPER BRIGHT PLCC-2
QTLP670C-T
Red
QTLP670C-E
Orange
QTLP670C-AG
Yellow-Green
QTLP670C-IW
White
QTLP670C-S
Red
QTLP670C-O
Yellow-Orange
QTLP670C-IG
True Green
QTLP670C-R
Red
QTLP670C-Y
Yellow
QTLP670C-IB
Blue
ELECTRICAL / OPTICAL CHARACTERISTICS
Part Number
Luminous Intensity (mcd)
Minimum
Typical
Forward Voltage (V)
Maximum
Typical
Wavelength (nm)
Peak
Dominant
Spectral Line Half Width (nm)
Viewing Angle (°)
Symbol
-T
20
45
2.4
2.0
650
640
20
120
(T
A
=25°C)
QTLP670C
-R
-E
25
65
2.4
2.0
630
624
20
120
25
65
2.4
2.0
620
615
18
120
Condition
-S
25
65
2.4
2.0
640
632
20
120
-O
25
65
2.4
2.0
610
605
18
120
-Y
25
65
2.4
2.0
590
589
15
120
-AG
15
30
2.4
2.0
575
573
20
120
I
V
I
F
= 20mA
V
F
I
F
= 20mA
P
D
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
2
1/2
ELECTRICAL / OPTICAL CHARACTERISTICS
Part Number
Luminous Intensity (mcd)
Minimum
Typical
Forward Voltage (V)
Maximum
Typical
Wavelength (nm)
Peak
Dominant
Chromaticity Coordinate
Spectral Line Half Width (nm)
Viewing Angle (°)
Symbol
-IB
30
60
4.0
3.5
465
470
—
25
120
(T
A
=25°C)
QTLP670C
-IG
75
115
4.0
3.5
520
525
—
35
120
Condition
-IW
100
250
4.0
3.5
—
—
x = 0.30, y = 0.31
—
120
I
V
I
F
= 20mA
V
F
I
F
= 20mA
P
D
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
x,y
2
1/2
DS300236
8/31/01
3 OF 8
www.fairchildsemi.com
SURFACE MOUNT LED LAMP
SUPER BRIGHT PLCC-2
QTLP670C-T
Red
QTLP670C-E
Orange
QTLP670C-AG
Yellow-Green
QTLP670C-IW
White
QTLP670C-S
Red
QTLP670C-O
Yellow-Orange
QTLP670C-IG
True Green
QTLP670C-R
Red
QTLP670C-Y
Yellow
QTLP670C-IB
Blue

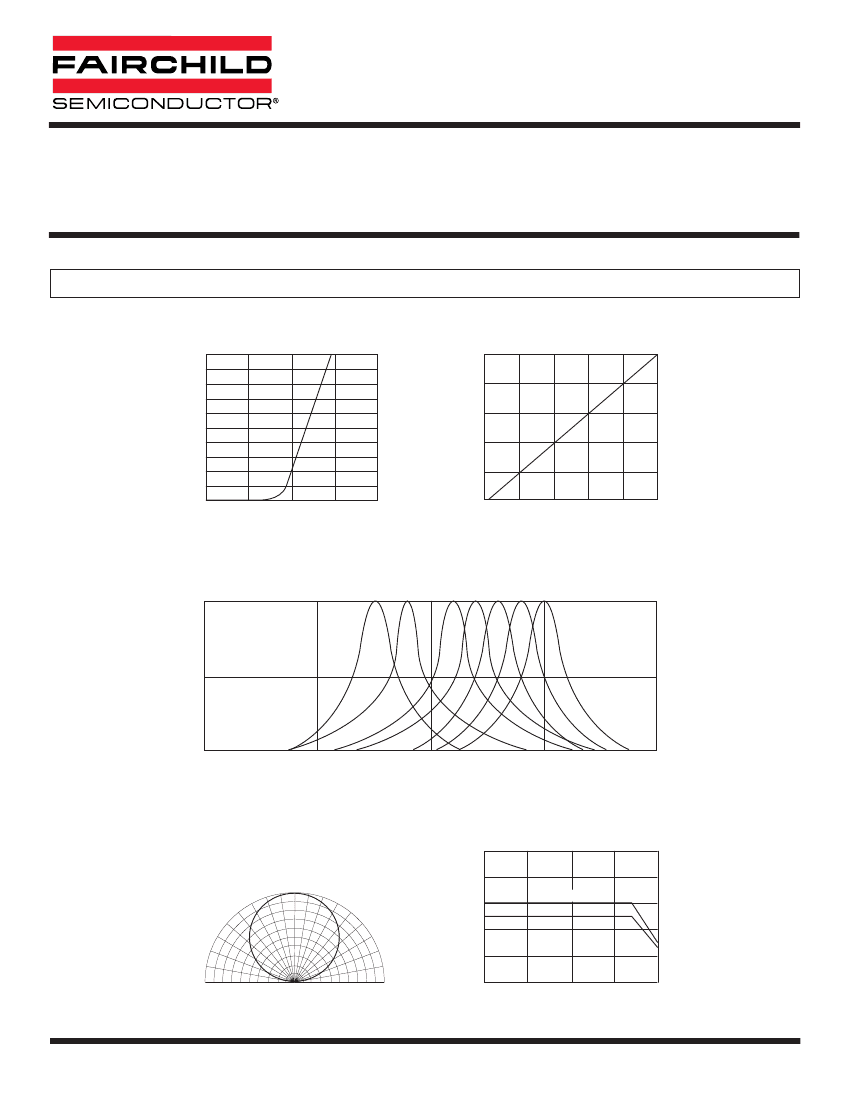

TYPICAL PERFORMANCE CURVES
(QTLP670C-T, -S, -R, -E, -O, -Y and -AG)
Fig. 1 Forward Current vs. Forward Voltage
100
90
80
70
60
50
40
30
20
10
0
1.0
1.5
2.0
2.5
3.0
2.5
Fig. 2 Relative Luminous Intensity
vs. DC Forward Current
RELATIVE LUMNOUS INTENSITY
(NORMALIZED AT 20 mA)
I
F
- FORWARD CURRENT (mA)
2.0
1.5
1.0
0.5
0.0
0
10
20
30
40
50
VF - FORWARD VOLTAGE (V)
I
F
- DC FORWARD CURRENT (mA)
Fig. 3 Relative Intensity vs. Peak Wavelength
1.0
AG
Y
O
E
R
S
T
RELATIVE INTENSITY
0.5
0
500
550
600
650
700
WAVELENGTH (nm)
Fig.4 Radiation Diagram
I
F
- FORWARD CURRENT (mA)
50
40
Fig.5 Maximum Forward Current
vs. Ambient Temperature
-30˚
-40˚
-50˚
-60˚
-70˚
-80˚
-20˚ -10˚
0˚ 10˚
20˚
30˚
40˚
50˚
60˚
70˚
80˚
T, S, R, E, O and AG
30
20
10
0
Y
-90˚
1.0 0.8 0.6 0.4
0.2 0
0.2
0.4 0.6 0.8 1.0
90˚
0
25
50
75
100
REL. LUMINOUS INTENSITY (%)
AMBIENT TEMPERATURE T
A
(˚C)
www.fairchildsemi.com
4 OF 8
8/31/01
DS300236
SURFACE MOUNT LED LAMP
SUPER BRIGHT PLCC-2
QTLP670C-T
Red
QTLP670C-E
Orange
QTLP670C-AG
Yellow-Green
QTLP670C-IW
White
QTLP670C-S
Red
QTLP670C-O
Yellow-Orange
QTLP670C-IG
True Green
QTLP670C-R
Red
QTLP670C-Y
Yellow
QTLP670C-IB
Blue

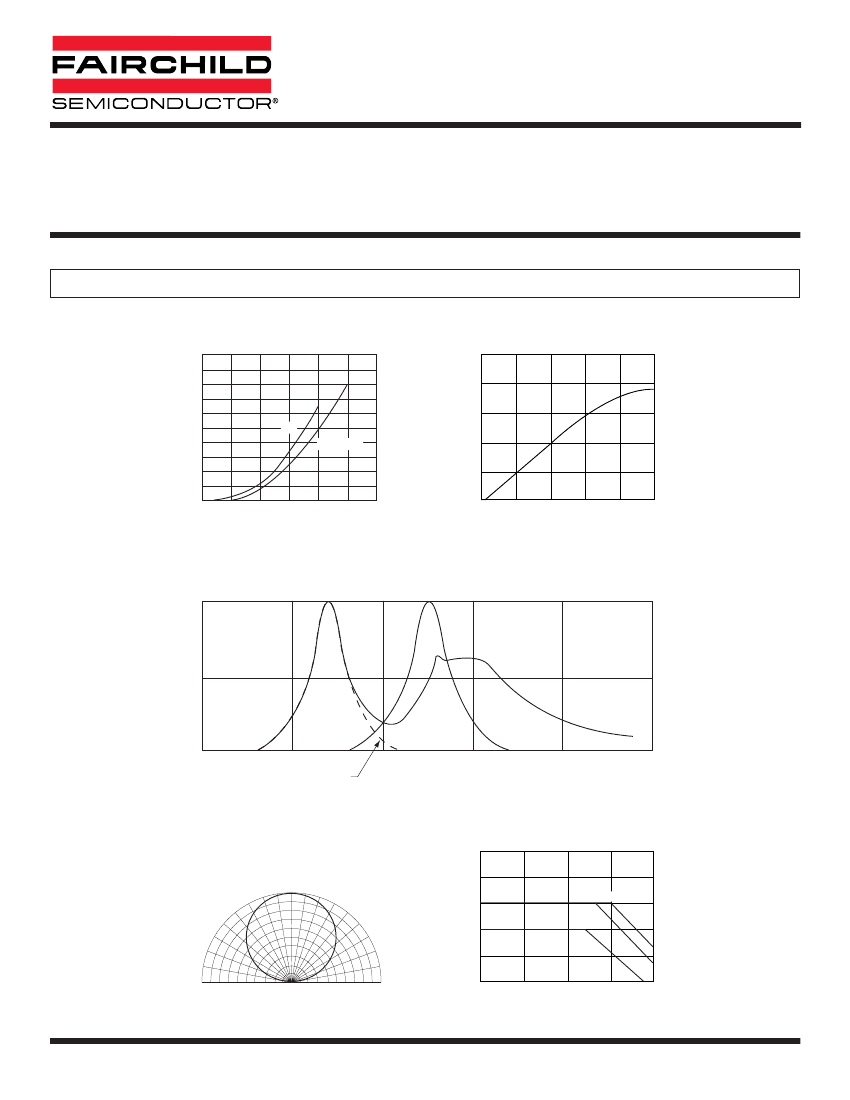

TYPICAL PERFORMANCE CURVES
(QTLP670C-IG, -IB and -IW)
Fig. 1 Forward Current vs. Forward Voltage
100
90
80
70
60
50
40
30
20
10
0
2.0
2.5
3.0
3.5
4.0
4.5
5.0
IG
IB and IW
2.5
Fig. 2 Relative Luminous Intensity
vs. DC Forward Current
RELATIVE LUMNOUS INTENSITY
(NORMALIZED AT 20 mA)
I
F
- FORWARD CURRENT (mA)
2.0
1.5
1.0
0.5
0.0
0
10
20
30
40
50
V
F
- FORWARD VOLTAGE (V)
I
F
- DC FORWARD CURRENT (mA)
Fig. 3 Relative Intensity vs. Peak Wavelength
IW
1.0
IG
RELATIVE INTENSITY
0.5
0
400
450
IB
500
550
600
650
WAVELENGTH (nm)
Fig.4 Radiation Diagram
I
F
- FORWARD CURRENT (mA)
50
40
30
20
10
0
Fig.5 Maximum Forward Current
vs. Ambient Temperature
-30˚
-40˚
-50˚
-60˚
-70˚
-80˚
-20˚ -10˚
0˚ 10˚
20˚
30˚
40˚
50˚
60˚
70˚
80˚
IB IG
IW
-90˚
1.0 0.8 0.6 0.4
0.2 0
0.2
0.4 0.6 0.8 1.0
90˚
0
25
50
75
100
REL. LUMINOUS INTENSITY (%)
AMBIENT TEMPERATURE T
A
(˚C)
DS300236
8/31/01
5 OF 8
www.fairchildsemi.com
