Advanced Datasheet
CMQ1432
Product Description
CMQ1432 is a QFN plastic packaged PHEMT power amplifier module. The PAM is self-
contained with 50 ohm input and output terminals. The CMQ1432 is unconditionally stable and
the internal matching allows for a reduction in external components making this product a simple
and low cost solution. RoHS compliance and on-chip ESD protection make it an ideal solution in
all manufacturing environments. The PAM is intended for use as the final RF amplifier in
extended Ku-Band satellite applications.
Features
•
•
•
•
•
•
•
•
•
32 dBm Saturated Power Output
Ultra compact Surface Mount QFN plastic package solution (4mm x 4mm x
1.4mm).
RoHS Compliant
ESD Protection to 800V on die
Enhanced Thermal design based on high efficiency operation and
comprehensive thermal analysis.
MTBF established for 10year lifetime.
High Efficiency peak power operation
Analog bias current adjustment facility for low power efficiency
enhancement.
Latest Etch-stop PHEMT Technology for superior product repeatability.
Order Information
Part number
CMQ1432
PB-CMQ1432
Description
CMQ1432 module in 4 x 4mm 24 pin package
CMQ1432 evaluation board
Revision 01
Page 1 of 8
Nov 2004
Advanced Datasheet
CMQ1432
Absolute Maximum Ratings
CMQ1432 Absolute Maximum Ratings
[1]
Symbol
Vd
Vg
Id
Pdiss
Pin max
Max Duty Cycle
Tjn
Tstg
Theta j-c
Notes:
1. Operation of this device above any one of these parameters may cause permanent damage
2. Assumes DC quiescent conditions. RF OFF.
Parameter
Drain Supply Voltage
[2]
Gate Supply Voltage
[2]
[2]
Absolute Max
10
-3
1
8
16
100
175
-65 to150
4.5
Units
V
V
A
W
dBm
%
0
0
0
Module Supply Current
RF Input Power
Maximum duty cycle
Total Power Dissipation
Junction Temperature
Storage Temperature
Thermal Resistance
C
C
C/W
450V ESD Sensitivity.
Caution when handling.
Moisture Sensitivity Level
Package Moisture, MSL grading is applicable due to the temperature increase of board
assembly for lead free re-flow processing. This package is considered non hermetic
which provides concern for possible moisture entering the package. As such, Celeritek QA will
regard this package as moisture sensitive level 3 and we will perform a 24 hour bake at 150 deg.
to drive out moisture, followed immediately by Tape and Reel processing and vacuum purge dry
bag seal within 24 hours hours of the bake process. Moisture sensitive level label, desiccant and
moisture indicator card will be used to alert floor life of 168 hours in a controlled environment
(30deg C and 60% Rh), will be applied. Storage life in sealed dry bag is assumed to be 12
months.
It is recommended that the board assembler apply JEDEC 030 to determine shelf life after a bag
is opened.
MSL Levels are provided below for reference.
LEVEL
MSL 1
MSL 2
MSL 3
MSL 4
MSL 5
DURATION OUT OF DRY PACK
No dry pack required
One year
168 hours
72 hours
24 hours
Revision 01
Page 2 of 8
Nov 2004
Advanced Datasheet
CMQ1432

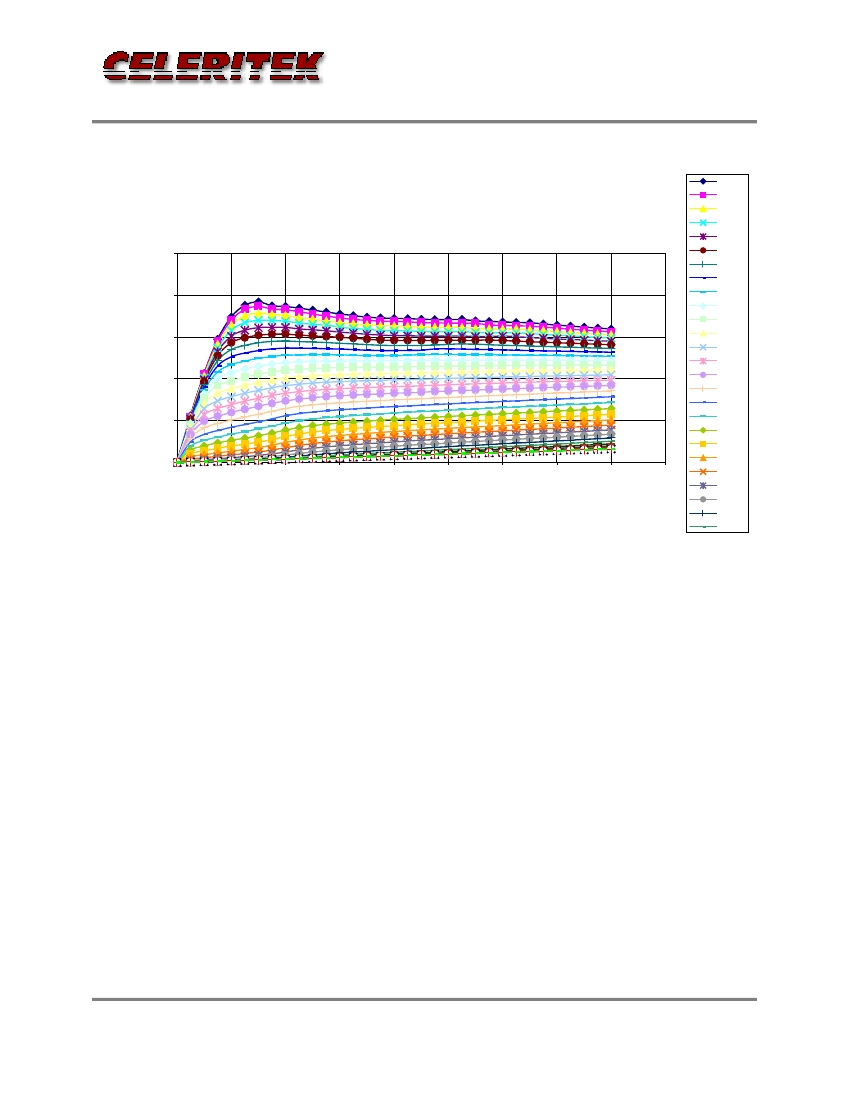

Typical IV Characteristics
I-V Curves
CMQ1432
-0.3 V
-0.35 V
-0.4 V
-0.45 V
-0.5 V
2500
-0.55 V
-0.6 V
-0.65 V
2000
-0.7 V
-0.75 V
-0.8 V
1500
Ids (mA)
-0.85 V
-0.9 V
-0.95 V
1000
-1.0 V
-1.05 V
-1.1 V
500
-1.15 V
-1.2 V
-1.25 V
0
0
1
2
3
4
Vds (Volts)
5
6
7
8
9
-1.3 V
-1.35 V
-1.4 V
-1.45 V
-1.5 V
-1.55 V
Revision 01
Page 3 of 8
Nov 2004
Advanced Datasheet
CMQ1432
Electrical Specifications
Parameter
Drain Current (DC bias under RF drive)
Drain Voltage
Gate Voltage (RF ON)
Operating Frequency
*
Gain (input drive level -15 dBm)
Gain + Noise Figure in RX band (10.7-
12.75GHz)
Input/Output VSWR (Pin = +12 dBm)
Noise Figure
Gain Variation over Operating Frequency
and Temperature
Output Power Variation over Operating
Temperature (Pin = +12 dBm)
Output Power Variation over Operating
Frequency (Pin = 12 dBm)
Output Power (Pin = +5 dBm)
Gate Current
Symbol
Id
Vd
Vg
Fop
S21
GNF
VSWR
NF
Delta S21
Delta Pout
Delta Pout
Pout
Igs
-
-
-
-
-
30.5
-
2.0:1
6
±2
1.0
0.5
31.5
0.5
Min.
600
5.9
-2.0
13.75
26
Typical
850
6
-
-
31
Max.
950
7
-0.2
14.50
36
38
3:1
8
±3
2.0
1.0
34
5
Units
mA
Volts
Volts
GHz
dB
dB
dB
dB
dB
dB
dBm
mA
Revision 01
Page 4 of 8
Nov 2004
