IL-WX-26SB-VF-BE datasheet, PDF

Datasheet> All Categories > The connector> The connector> IL-WX-26SB-VF-BE

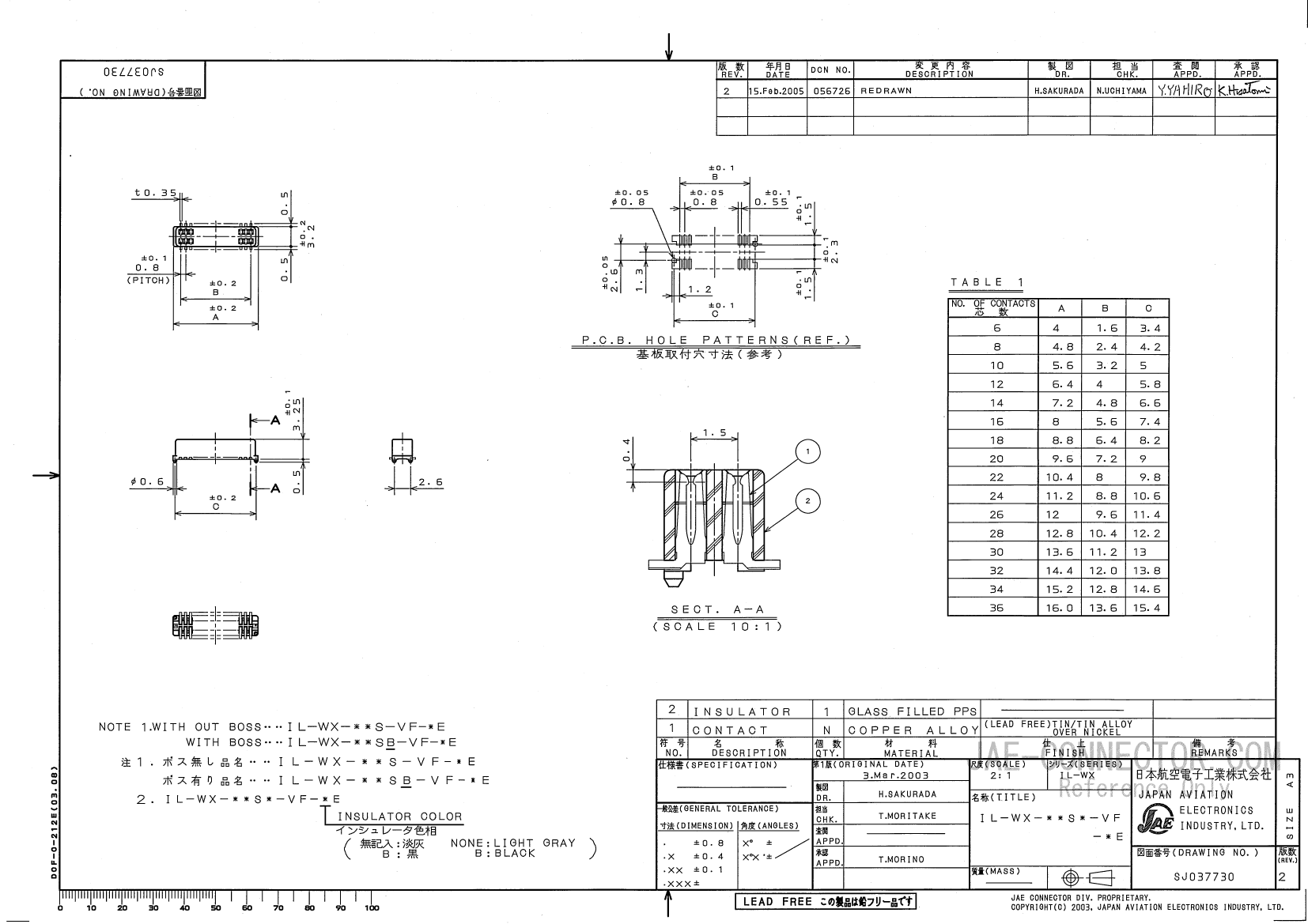

IL-WX-26SB-VF-BE: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size111KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited; Environmental Compliance

Download Datasheet Parametric Compare View All

IL-WX-26SB-VF-BE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IL-WX-26SB-VF-BE	-	-	View	Buy Now

IL-WX-26SB-VF-BE Overview

Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,

IL-WX-26SB-VF-BE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	PEG
body width	0.165 inch
subject depth	0.128 inch
body length	0.472 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	700VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	3.4194 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
MIL compliance	NO
Plug contact pitch	0.031 inch
Match contact row spacing	0.059 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.7846 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
reliability	COMMERCIAL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	26
Evacuation force-minimum value	.5004 N

Preview

Download Datasheet

View All

IL-WX-26SB-VF-BE Related Products

	IL-WX-26SB-VF-BE	IL-WX-14S-VF-BE	IL-WX-14SB-VF-BE	IL-WX-16S-VF-BE	IL-WX-24S-VF-BE	IL-WX-24SB-VF-BE	IL-WX-26S-VF-BE
Description	Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,	Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal,	Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,	Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal,	Board Connector, 24 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal,	Board Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,	Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	26	14	14	16	24	24	26
