BF858: DescriptionTRANSISTOR 0.1 A, 250 V, NPN, Si, POWER TRANSISTOR, TO-202, BIP General Purpose Power; CategoryDiscrete semiconductor The transistor; File Size54KB，2 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

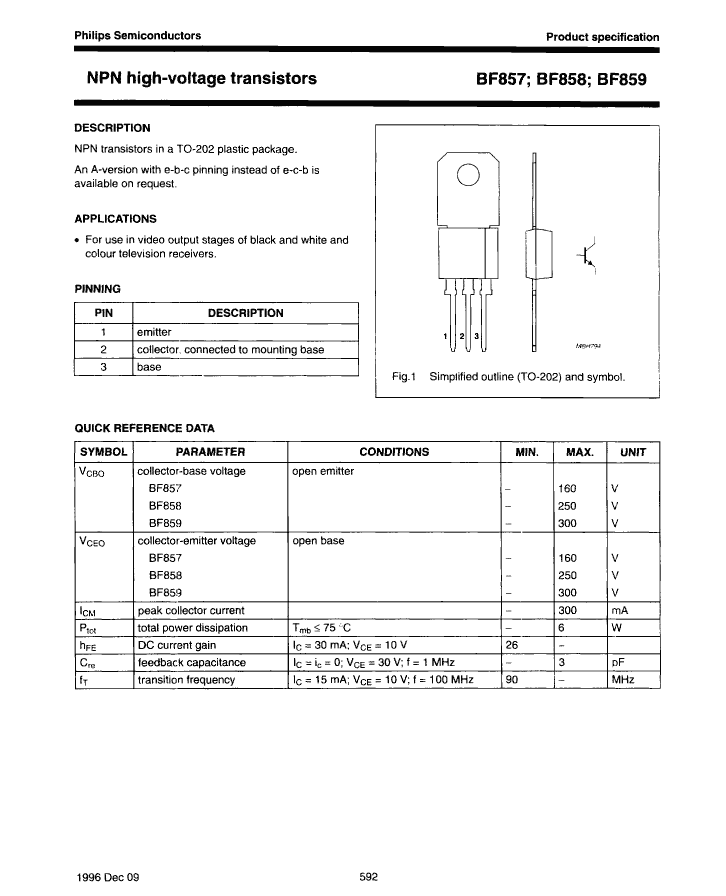

BF858 Overview

TRANSISTOR 0.1 A, 250 V, NPN, Si, POWER TRANSISTOR, TO-202, BIP General Purpose Power

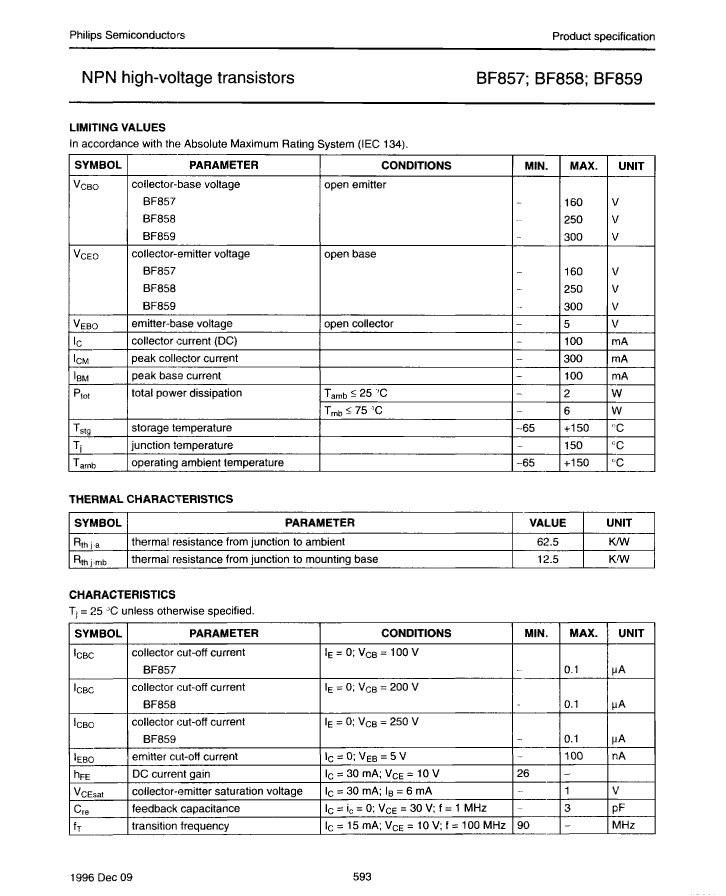

Parameter Name	Attribute value
Maker	NXP
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	0.1 A
Collector-based maximum capacity	3 pF
Collector-emitter maximum voltage	250 V
Configuration	SINGLE
Minimum DC current gain (hFE)	26
JEDEC-95 code	TO-202
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Maximum power consumption environment	6 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	90 MHz
VCEsat-Max	1 V

	BF858	BF857
Description	TRANSISTOR 0.1 A, 250 V, NPN, Si, POWER TRANSISTOR, TO-202, BIP General Purpose Power	TRANSISTOR 0.1 A, 160 V, NPN, Si, POWER TRANSISTOR, TO-202, BIP General Purpose Power
Maker	NXP	NXP
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR
Maximum collector current (IC)	0.1 A	0.1 A
Collector-based maximum capacity	3 pF	3 pF
Collector-emitter maximum voltage	250 V	160 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	26	26
JEDEC-95 code	TO-202	TO-202
JESD-30 code	R-PSFM-T3	R-PSFM-T3
Number of components	1	1
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	NPN	NPN
Maximum power consumption environment	6 W	6 W
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
transistor applications	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	90 MHz	90 MHz
VCEsat-Max	1 V	1 V
