DPS256S32AW-45C datasheet, PDF

Datasheet> All Categories > storage> storage> DPS256S32AW-45C

DPS256S32AW-45C: DescriptionSRAM Module, 256KX32, 45ns, CMOS; Categorystorage storage; File Size183KB，6 Pages; ManufacturerB&B Electronics Manufacturing Company

Download Datasheet Parametric Compare View All

DPS256S32AW-45C Overview

SRAM Module, 256KX32, 45ns, CMOS

DPS256S32AW-45C Parametric

Parameter Name	Attribute value
Maker	B&B Electronics Manufacturing Company
package instruction	SIMM, SSIM64
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A
Maximum access time	45 ns
Other features	USER CONFIGURABLE AS 1M X 8
Spare memory width	16
I/O type	COMMON
JESD-30 code	R-XSMA-N64
memory density	8388608 bit
Memory IC Type	SRAM MODULE
memory width	32
Number of functions	1
Number of ports	1
Number of terminals	64
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX32
Output characteristics	3-STATE
Exportable	YES
Package body material	UNSPECIFIED
encapsulated code	SIMM
Encapsulate equivalent code	SSIM64
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.08 A
Minimum standby current	4.5 V
Maximum slew rate	0.94 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	SINGLE

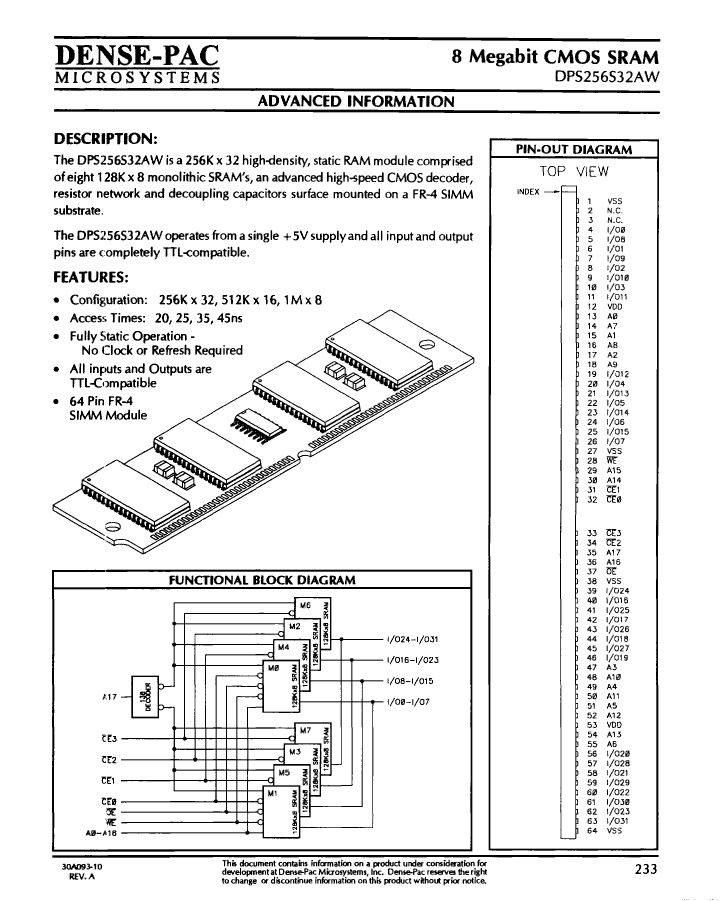

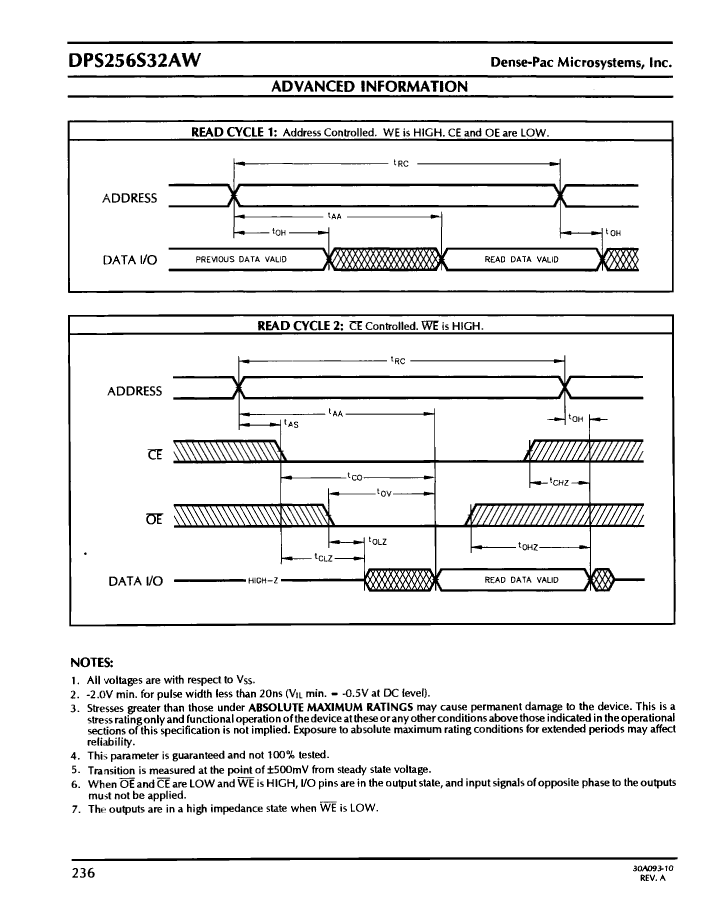

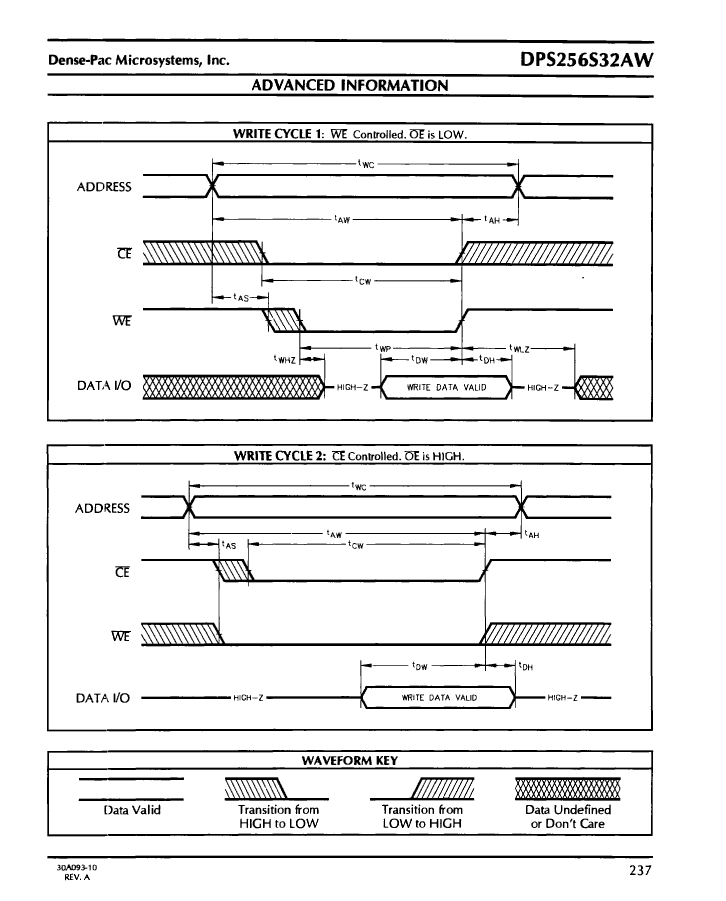

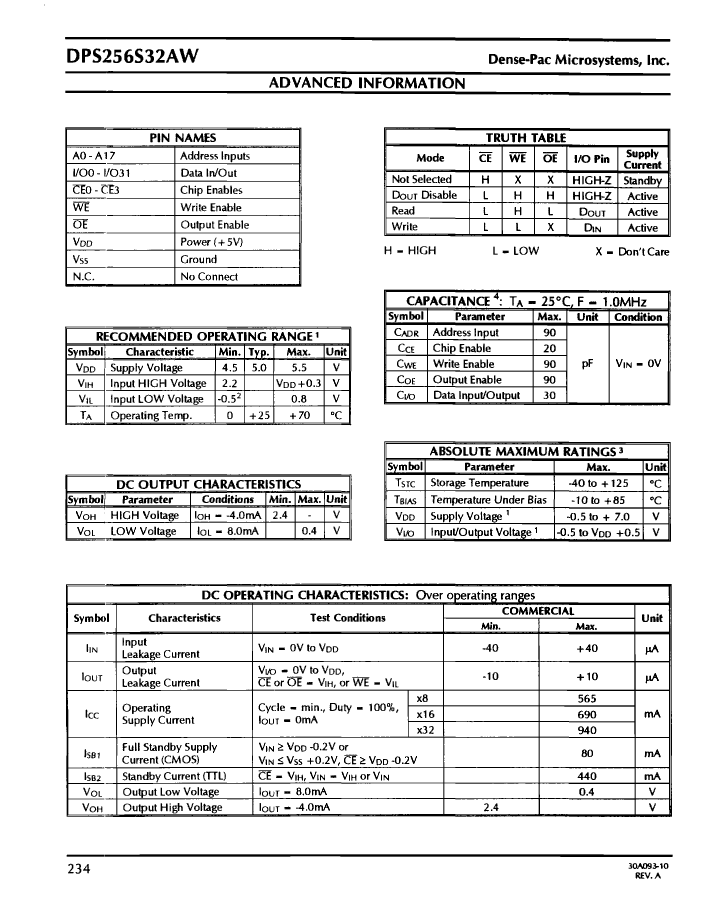

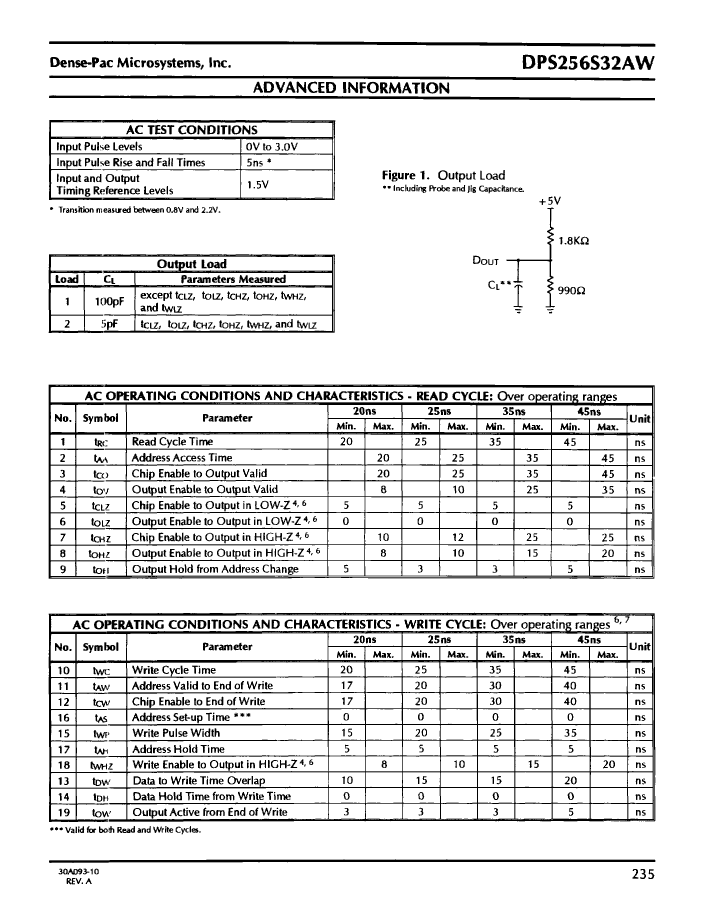

Preview

Download Datasheet

View All

DPS256S32AW-45C Related Products

	DPS256S32AW-45C	DPS256S32AW-20C	DPS256S32AW-25C	DPS256S32AW-35C
Description	SRAM Module, 256KX32, 45ns, CMOS	SRAM Module, 256KX32, 20ns, CMOS	SRAM Module, 256KX32, 25ns, CMOS	SRAM Module, 256KX32, 35ns, CMOS
Maker	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company
package instruction	SIMM, SSIM64	SIMM, SSIM64	SIMM, SSIM64	SIMM, SSIM64
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	45 ns	20 ns	25 ns	35 ns
Other features	USER CONFIGURABLE AS 1M X 8	USER CONFIGURABLE AS 1M X 8	USER CONFIGURABLE AS 1M X 8	USER CONFIGURABLE AS 1M X 8
Spare memory width	16	16	16	16
I/O type	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XSMA-N64	R-XSMA-N64	R-XSMA-N64	R-XSMA-N64
memory density	8388608 bit	8388608 bit	8388608 bit	8388608 bit
Memory IC Type	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE
memory width	32	32	32	32
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	64	64	64	64
word count	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	256KX32	256KX32	256KX32	256KX32
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	SIMM	SIMM	SIMM	SIMM
Encapsulate equivalent code	SSIM64	SSIM64	SSIM64	SSIM64
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.08 A	0.08 A	0.08 A	0.08 A
Minimum standby current	4.5 V	4.5 V	4.5 V	4.5 V
Maximum slew rate	0.94 mA	0.94 mA	0.94 mA	0.94 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
