Z4KE100 THRU Z4KE200A
GLASS PASSIVATED ZENER
Zener Voltage -
100 to 200 Volts
DO-204AL
Steady State Power -
1.5 Watts
FEATURES
♦
Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
♦
Low Zener impedance
♦
Low regulation factor
♦
Glass passivated junction
♦
High temperature soldering guaranteed:
260°C/10 seconds 0.375" (9.5mm) lead length,
5 lbs. (2.3kg) tension
1.0 (25.4)
MIN.
0.107 (2.7)
0.080 (2.0)
DIA.
0.205 (5.2)
0.160 (4.1)
MECHANICAL DATA
1.0 (25.4)
MIN.
0.034 (0.86)
0.028 (0.71)
DIA.
Dimensions in inches and (millimeters)
Case:
JEDEC DO-204AL molded plastic over passivated
junction
Terminals:
Plated axial leads, solderable per MIL-STD-750,
Method 2026
Polarity:
Color band denotes positive end (cathode)
Mounting Position:
Any
Weight:
0.012 ounce, 0.3 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
OPERATING JUNCTION AND STORAGE TEMPERATURE RANGE: T
J
, T
STG
: -55°C to +150°C
MAXIMUM
INSTANTANEOUS
FORWARD
VOLTAGE
at 0.50A
V
FM
(Volts)
MAXIMUM
CONTINUOUS
REGULATOR
CURRENT
(1)
I
ZM
(µA)
TYPE
ZENER
VOLTAGE
at 5.0mA
V
Z
(Volts)
MIN
MAX
I
ZT
(mA)
MAXIMUM ZENER
DYNAMIC
IMPEDANCE
Z
ZT
(Ohms)
I
ZK
(mA)
Z
ZK
(Ohms)
MAXIMUM DC REVERSE
LEAKAGE CURRENT AT
V
R
V
R
(Volts)
I
R
@ 25°C
(µA)
I
R
100°C
(µA)
Z4KE100
Z4KE100A
Z4KE110
Z4KE110A
Z4KE120
Z4KE120A
Z4KE130
Z4KE130A
Z4KE140
Z4KE140A
Z4KE150
Z4KE150A
Z4KE160
Z4KE160A
Z4KE170
Z4KE170A
Z4KE180
Z4KE180A
Z4KE190
Z4KE190A
Z4KE200
Z4KE200A
90
95
99
104
108
114
117
124
126
133
135
142
144
152
153
162
162
171
171
180
180
190
110
105
121
116
132
126
143
137
154
147
165
158
176
168
187
179
198
189
209
200
220
210
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
500
500
600
600
700
700
800
800
900
900
1000
1000
1100
1100
1200
1200
1300
1300
1400
1400
1500
1500
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
5000
5000
5000
5000
5000
5000
5000
5000
5000
5500
6000
6000
6500
6500
7000
7000
7000
7000
7500
7500
8000
8000
72.0
76.0
79.2
83.2
86.4
91.2
93.6
99.2
100
106.4
108.0
113.6
115.2
121.6
122.4
129.6
129.6
136.8
136.8
144.0
144.0
152.0
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
15.0
15.0
13.0
13.0
12.0
12.0
11.0
11.0
10.7
10.7
10.0
10.0
9.0
9.0
8.8
8.0
8.0
8.0
7.9
7.9
7.0
7.0
NOTES:
(1) Standard voltage tolerance is ±10%, suffix "A" is ± 5%
(2) Temperature rating at specified regulator current is T
L
=30°C
(3) Maximum steady state power dissipation is 1.5 watts at T
L
=75°C
with lead length 0.375" (9.5mm)
1/20/99

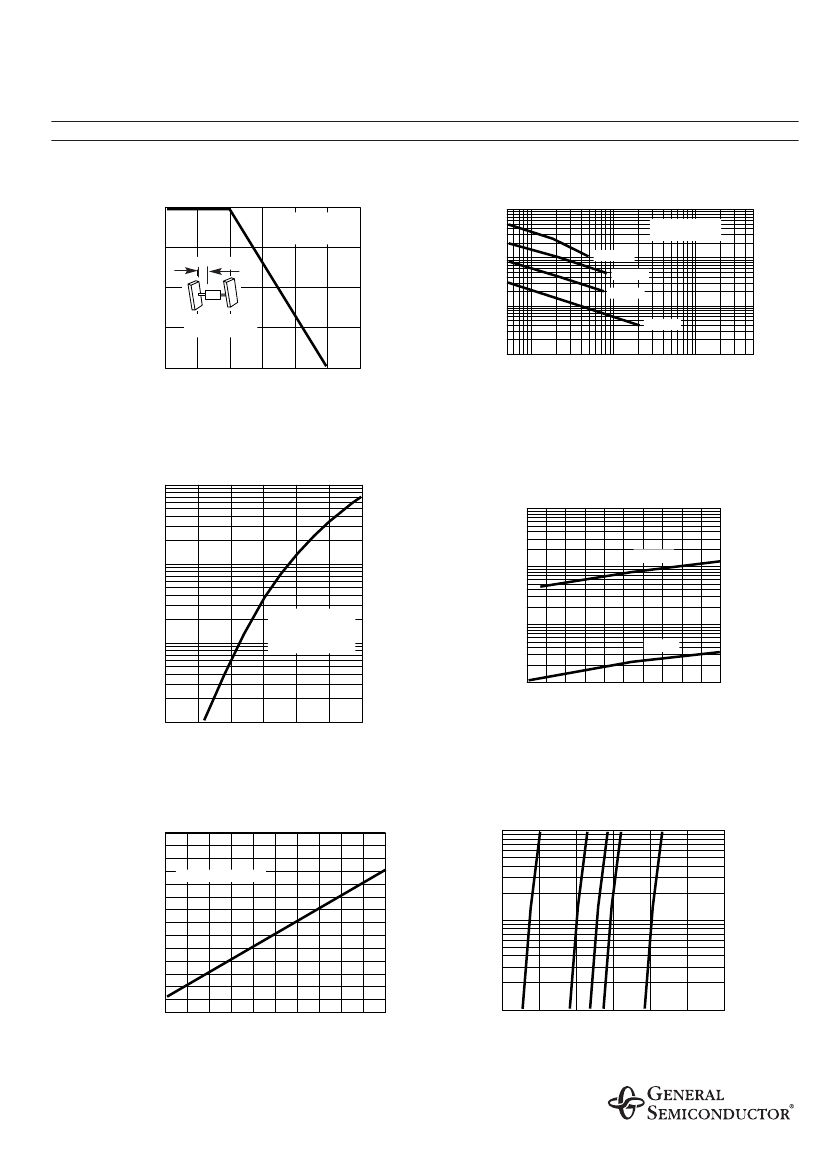

RATINGS AND CHARACTERISTICS CURVES Z4KE100 THRU Z4KE200A
FIG.1 - MAXIMUM CONTINUOUS POWER
DISSIPATION
P
M(AV)
, AVERAGE POWER DISSIPATION,
WATTS
FIG. 2 - TYPICAL ZENER IMPEDANCE
1.5
Z
Z
, DYNAMIC IMPEDANCE, O
HMS
60 H
Z
RESISTIVE OR
INDUCTIVE LOAD
10,000
T
J
=25°C
I
Z
(ma ± 0.1 I
Z
(dc)
1.125
L=0.375” (9.5mm)
1,000
V
Z
=200V
V
Z
=180V
V
Z
=150V
0.75
0.8 x 0.8 x 0.04”
(20 x 20 x 7mm)
100
V
Z
=100V
0.375
0
25
10
0.5
1
10
100
500
50
75
100
125
150
175
I
ZT
, ZENER TEST CURRENT, mA
T
L,
LEAD TEMPERATURE, °C
FIG. 3 - TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
10
FIG. 4 - TYPICAL REVERSE CHARACTERISTICS
10
INSTANTANEOUS FORWARD CURRENT,
AMPS
INSTANTANEOUS REVERSE CUR-
RENT, MICROAMPERES
1
T
J
=100°C
1
0.1
T
J
=25°C
PULSE
WIDTH=300µs
1% DUTY CYCLE
0.1
T
J
=25°C
140
0.01
0
20
40
60
80
100
120
PERCENT OF RATED ZENER VOLTAGE, %
0.01
0.4
0.6
0.8
1.0
1.2
1.4
1.6
INSTANTANEOUS FORWARD VOLTAGE,
VOLTS
FIG. 5 - TYPICAL TEMPERATURE COEFFICIENTS
ΘV
Z
TEMPERATURE COEFFICIENT,
mV/°C
FIG. 6 - TYPICAL ZENER VOLTAGE
220
200
TESTED at RATED I
ZT
10
I
ZT
, TEST ZENER CURRENT, mA
180
160
140
120
100
80
100 110 120 130 140 150 160 170 180 190 200
V
Z
, ZENER VOLTAGE, VOLTS
1
0.1
100
150
200
250
V
Z
, ZENER VOLTAGE, VOLTS
