R65NC22P1 datasheet, PDF - EEWORLD Datasheet

R65NC22P1: DescriptionParallel I/O Port, 16 I/O, CMOS, PDIP40, PLASTIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，23 Pages; ManufacturerCONEXANT; Websitehttp://www.conexant.com/

Download Datasheet Parametric View All

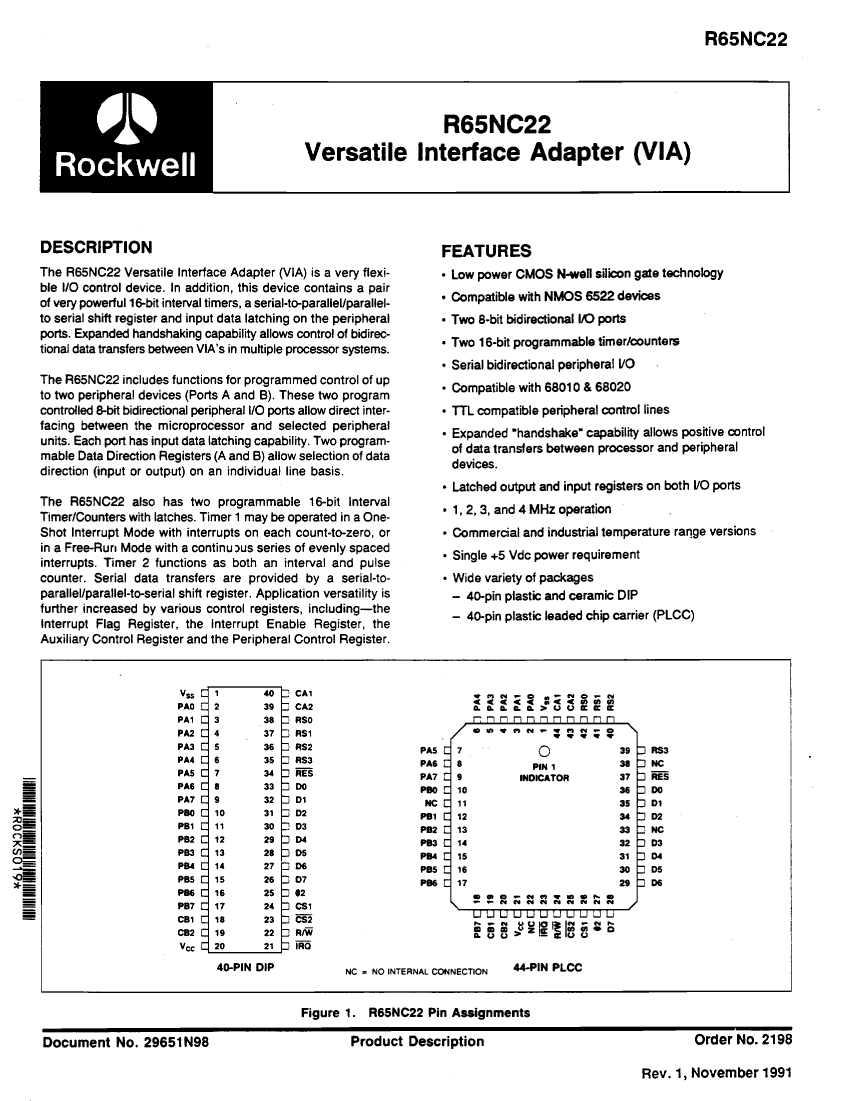

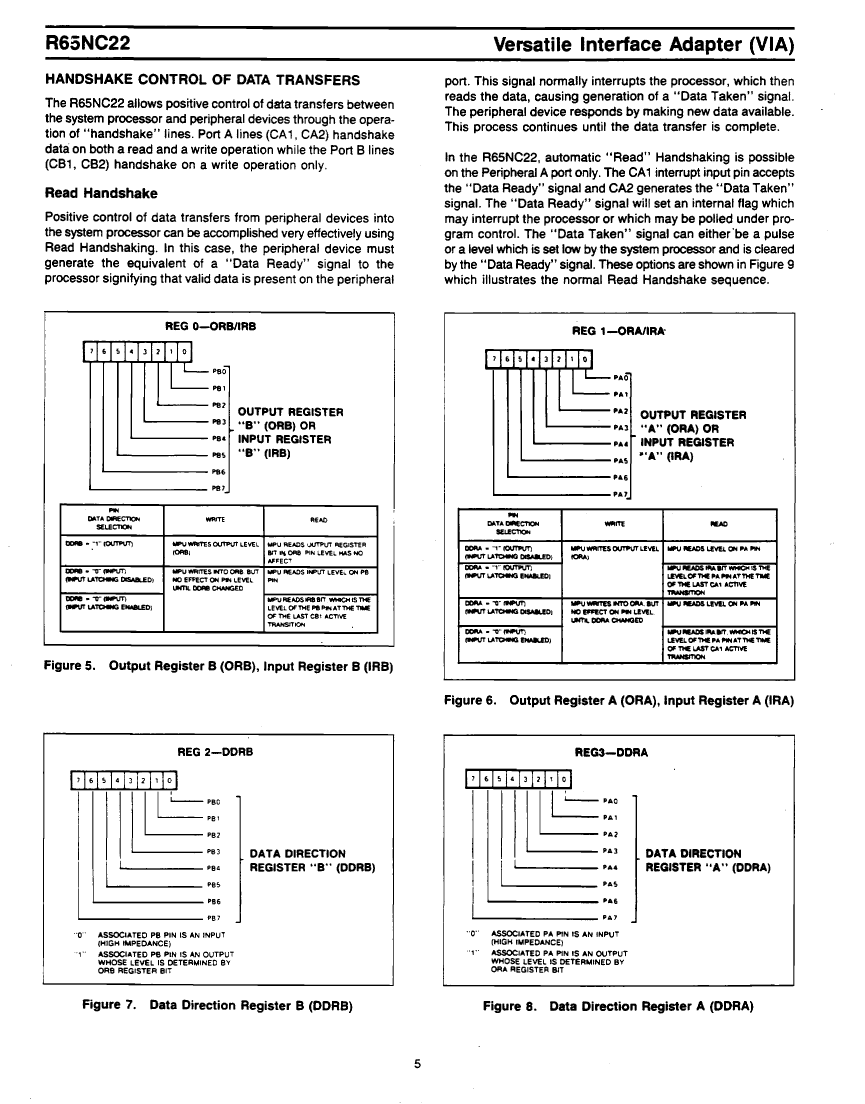

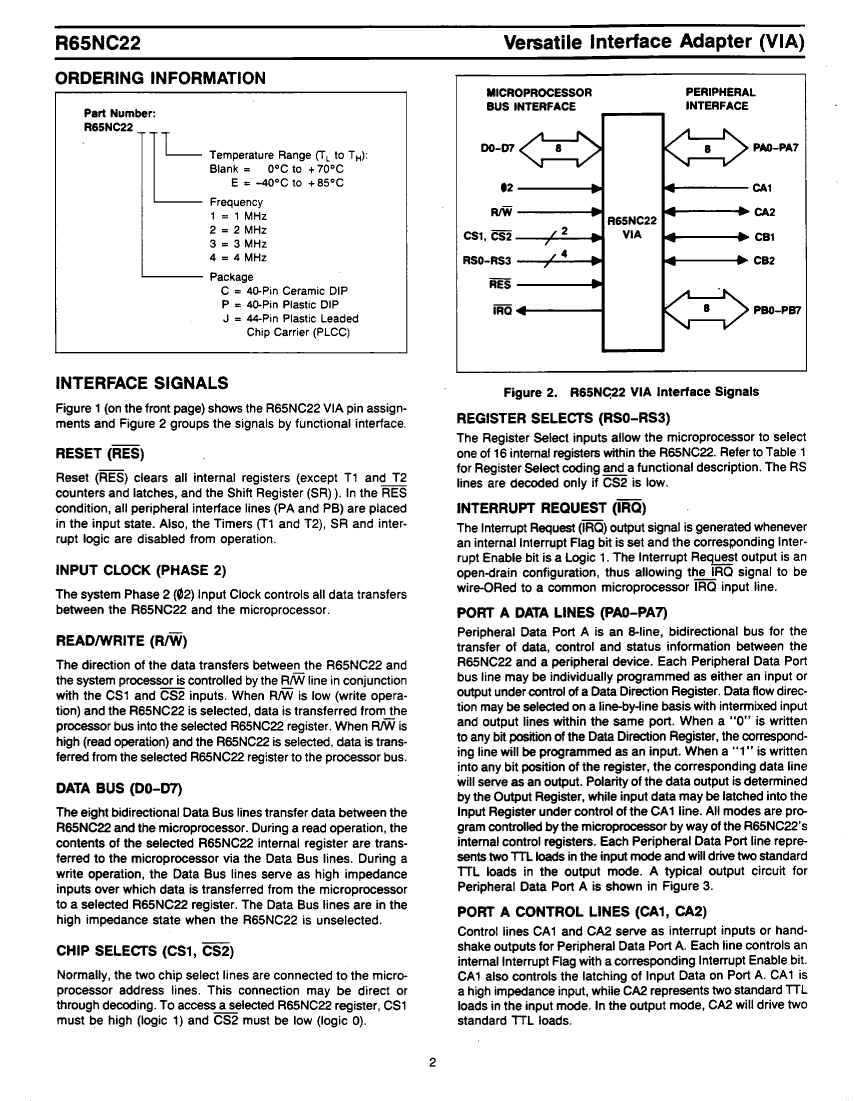

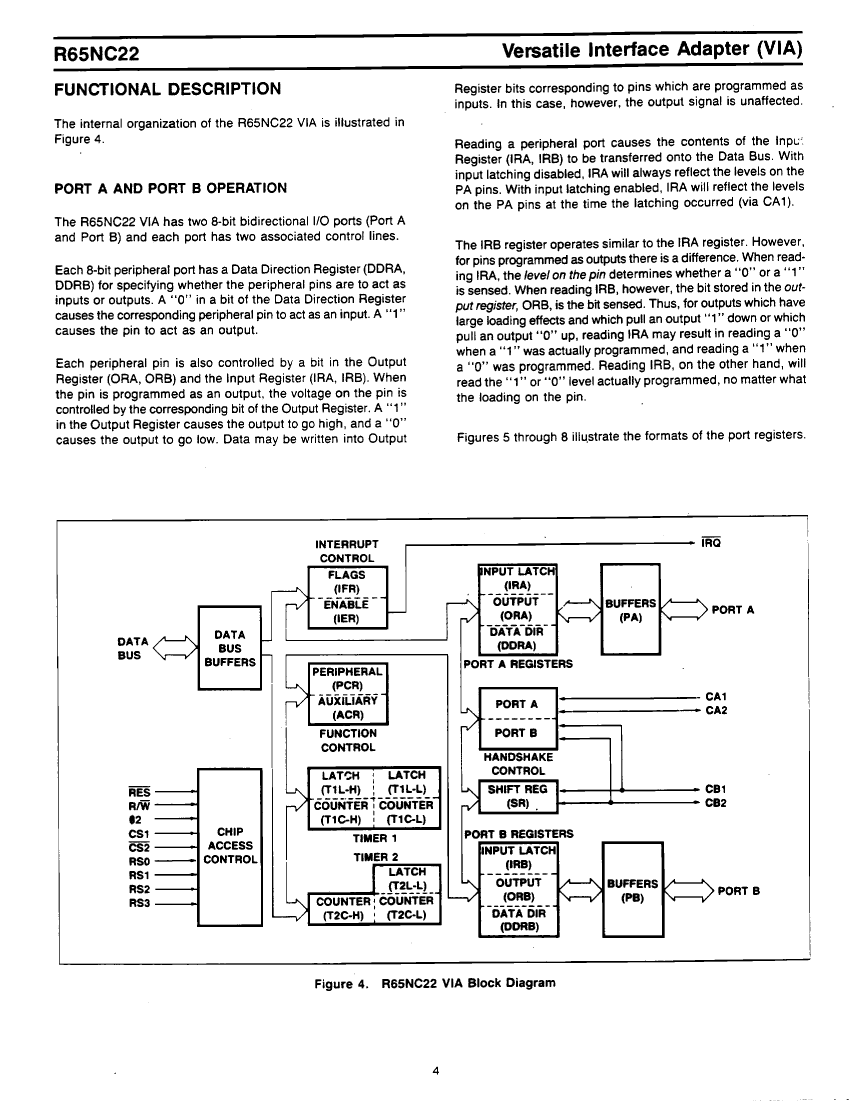

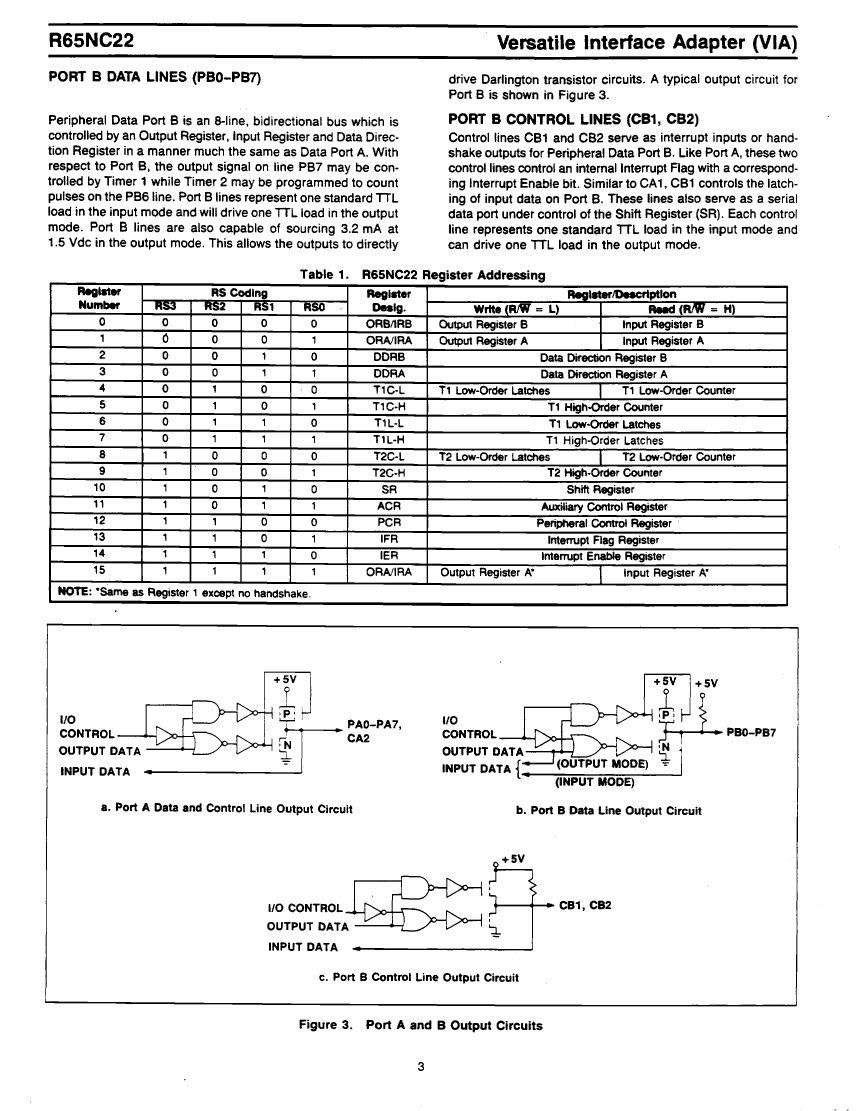

R65NC22P1 Overview

Parallel I/O Port, 16 I/O, CMOS, PDIP40, PLASTIC, DIP-40

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	CONEXANT
Parts packaging code	DIP
package instruction	PLASTIC, DIP-40
Contacts	40
Reach Compliance Code	compliant
ECCN code	EAR99
maximum clock frequency	1 MHz
External data bus width	8
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
length	52.07 mm
Number of I/O lines	16
Number of ports	2
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE
