NJU7015V datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> NJU7015V

Preview

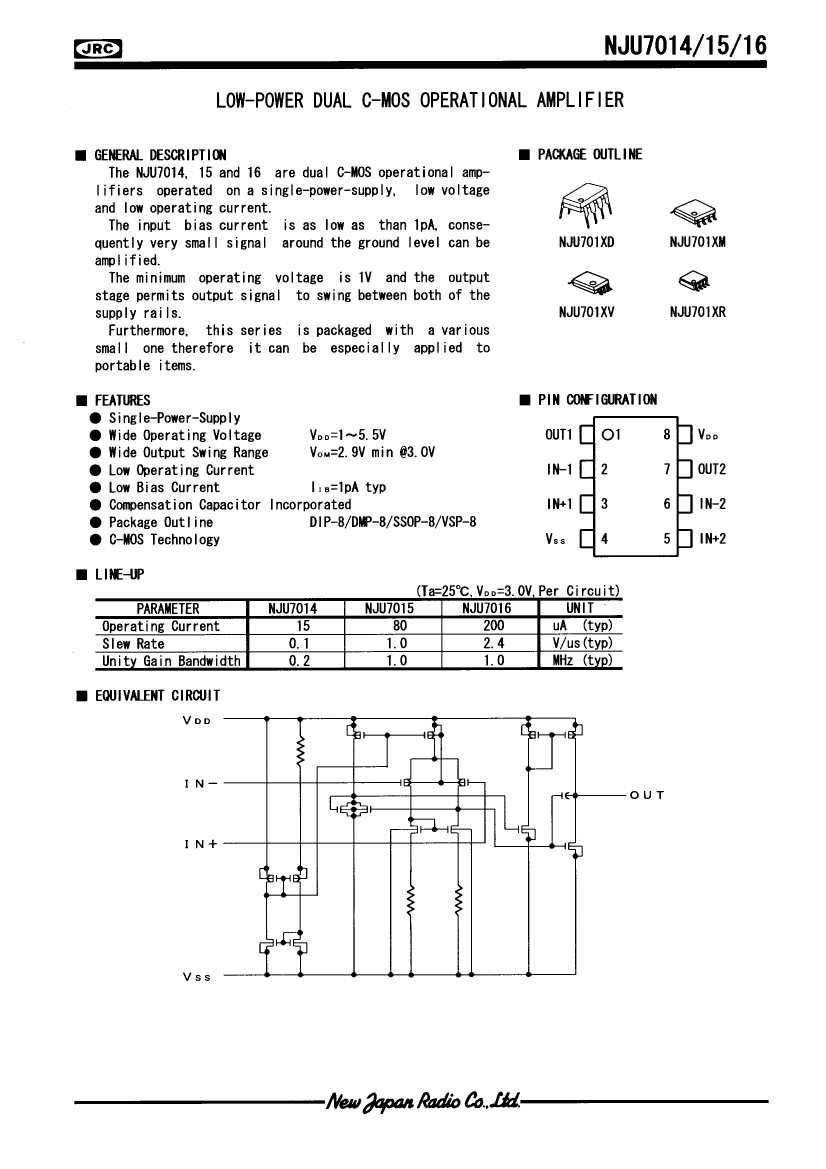

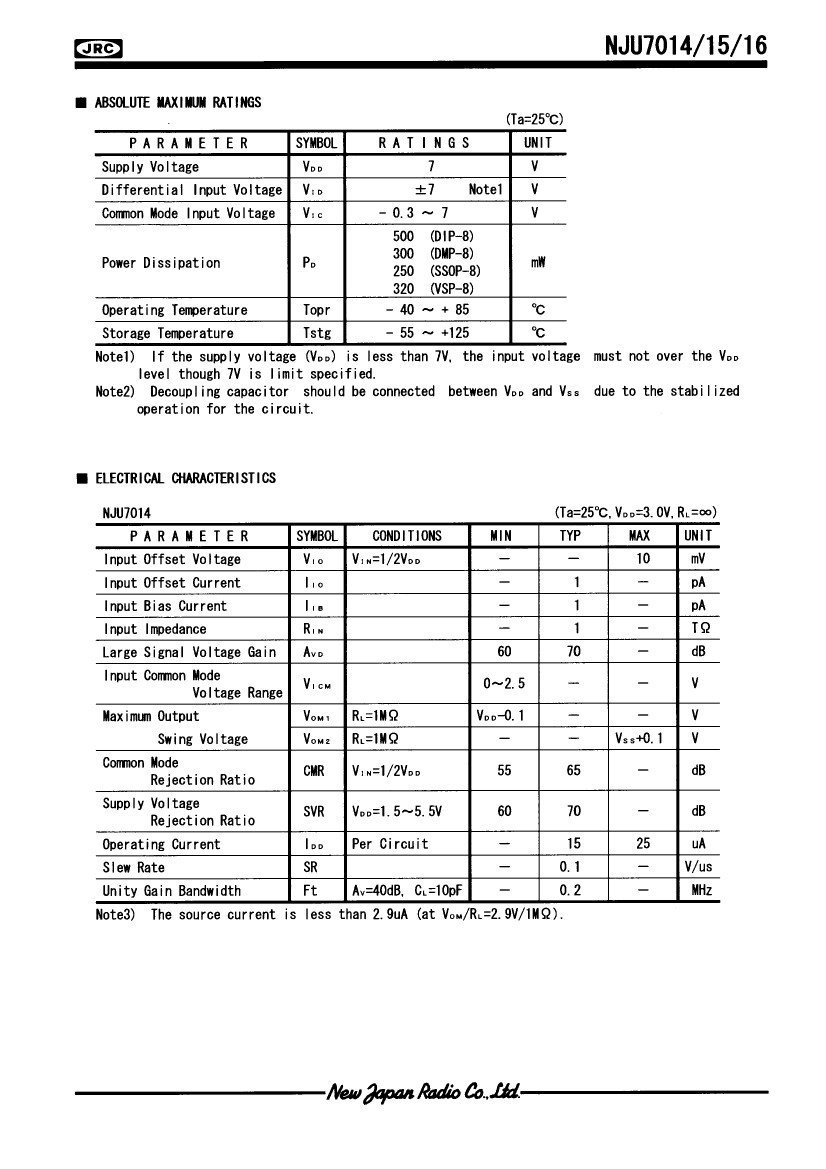

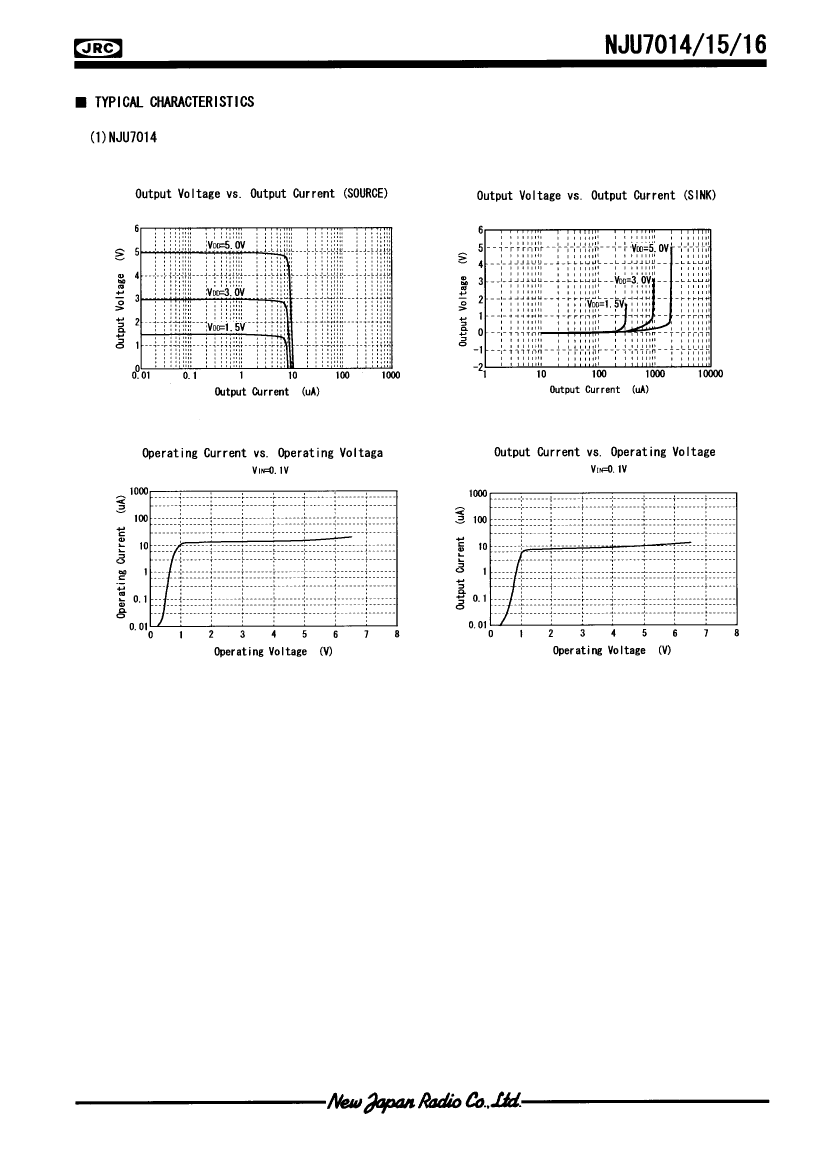

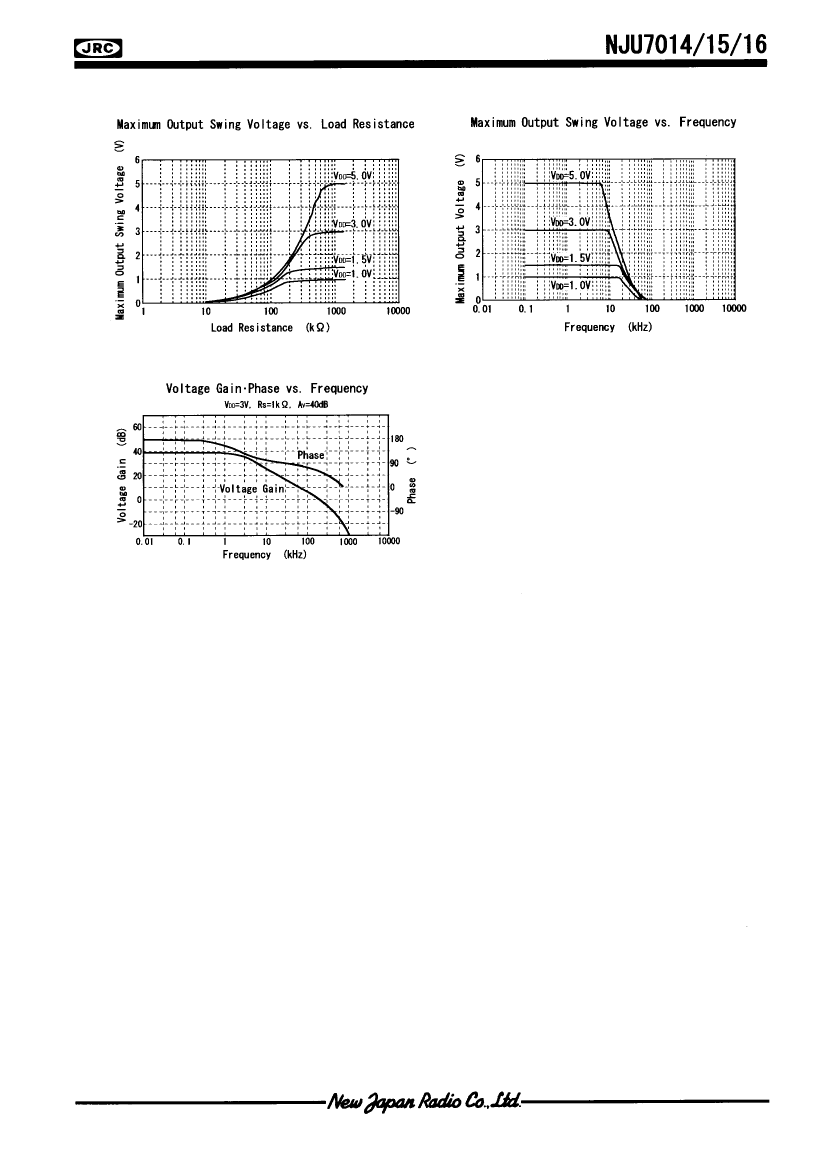

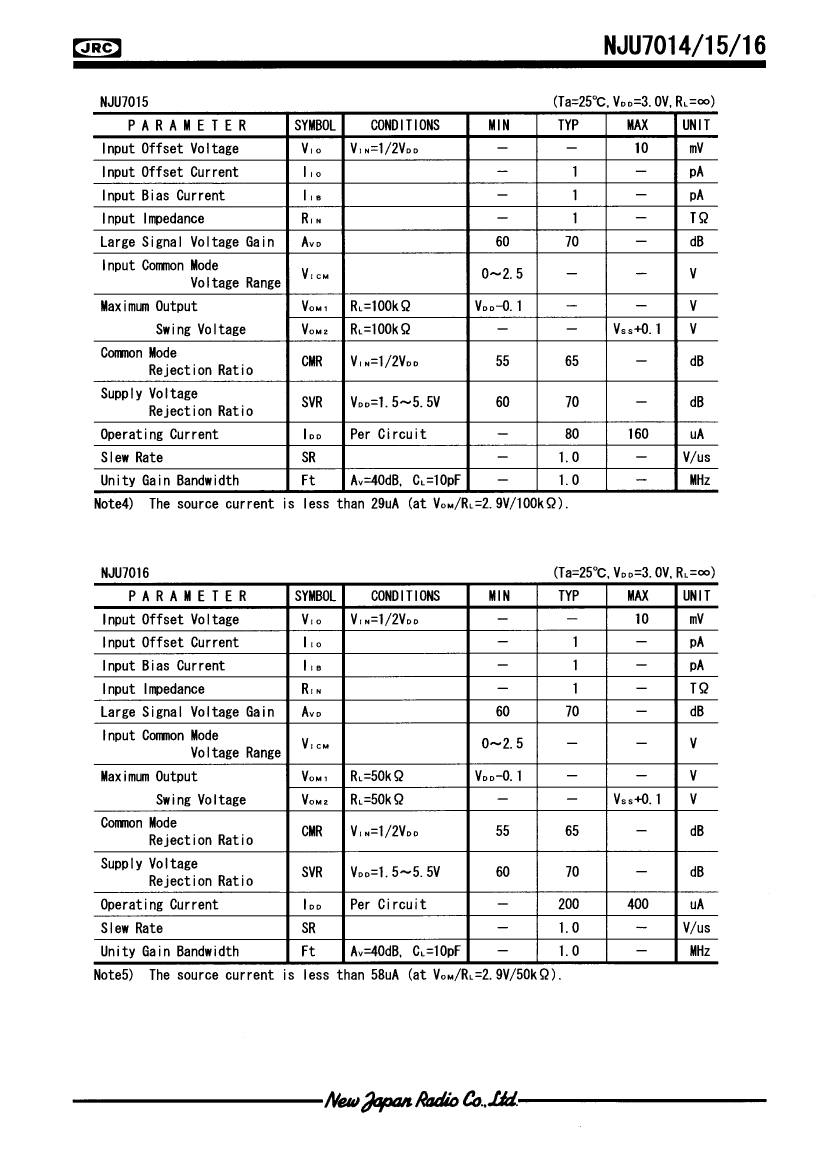

NJU7015V: DescriptionOperational Amplifier, 2 Func, 10000uV Offset-Max, CMOS, PDSO8, SSOP-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size264KB，9 Pages; ManufacturerNew Japan Radio Co., Ltd..; Environmental Compliance

Download Datasheet Parametric Compare View All

NJU7015V Overview

Operational Amplifier, 2 Func, 10000uV Offset-Max, CMOS, PDSO8, SSOP-8

NJU7015V Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	New Japan Radio Co., Ltd..
Parts packaging code	SOIC
package instruction	LSSOP, TSSOP8,.25
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Nominal Common Mode Rejection Ratio	65 dB
frequency compensation	YES
Maximum input offset voltage	10000 µV
JESD-30 code	R-PDSO-G8
JESD-609 code	e6
length	4.4 mm
low-bias	YES
low-dissonance	NO
micropower	YES
Number of functions	2
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Encapsulate equivalent code	TSSOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	1/5.5 V
Certification status	Not Qualified
Maximum seat height	1.45 mm
Nominal slew rate	1 V/us
Maximum slew rate	0.32 mA
Supply voltage upper limit	7 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN BISMUTH
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	1000 kHz
Minimum voltage gain	1000
width	3.5 mm

Preview

Download Datasheet

View All

NJU7015V Related Products

	NJU7015V	NJU7014R	NJU7015R	NJU7015M
Description	Operational Amplifier, 2 Func, 10000uV Offset-Max, CMOS, PDSO8, SSOP-8	Operational Amplifier, 2 Func, 10000uV Offset-Max, CMOS, PDSO8, VSP-8	Operational Amplifier, 2 Func, 10000uV Offset-Max, CMOS, PDSO8, VSP-8	Operational Amplifier, 2 Func, 10000uV Offset-Max, CMOS, PDSO8, DMP-8
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..
Parts packaging code	SOIC	SOIC	SOIC	SOIC
package instruction	LSSOP, TSSOP8,.25	LSSOP, TSSOP8,.16	LSSOP, TSSOP8,.16	SOP, SOP8,.25
Contacts	8	8	8	8
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Nominal Common Mode Rejection Ratio	65 dB	65 dB	65 dB	65 dB
frequency compensation	YES	YES	YES	YES
Maximum input offset voltage	10000 µV	10000 µV	10000 µV	10000 µV
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	S-PDSO-G8
JESD-609 code	e6	e6	e6	e6
length	4.4 mm	2.9 mm	2.9 mm	5 mm
low-bias	YES	YES	YES	YES
low-dissonance	NO	NO	NO	NO
micropower	YES	YES	YES	YES
Number of functions	2	2	2	2
Number of terminals	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	LSSOP	LSSOP	SOP
Encapsulate equivalent code	TSSOP8,.25	TSSOP8,.16	TSSOP8,.16	SOP8,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260
power supply	1/5.5 V	1/5.5 V	1/5.5 V	1/5.5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.45 mm	1.4 mm	1.4 mm	2 mm
Nominal slew rate	1 V/us	0.1 V/us	1 V/us	1 V/us
Maximum slew rate	0.32 mA	0.05 mA	0.32 mA	0.32 mA
Supply voltage upper limit	7 V	7 V	7 V	7 V
Nominal supply voltage (Vsup)	3 V	3 V	3 V	3 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	1000 kHz	200 kHz	1000 kHz	1000 kHz
Minimum voltage gain	1000	1000	1000	1000
width	3.5 mm	2.8 mm	2.8 mm	5 mm
