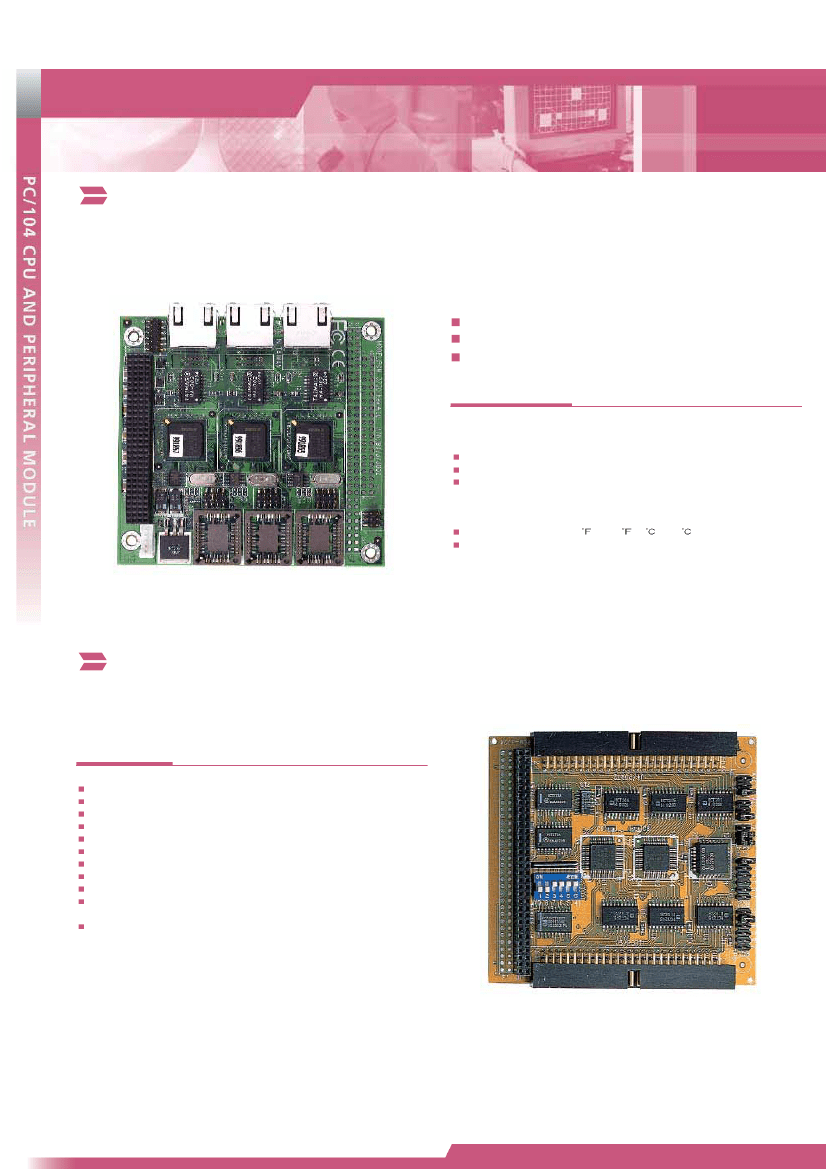

PCM-3730
PCI-104 Triple Ethernet Module
F
eatures
Supports 3 ports 10/100Base-T Fast Ethernet
PCI-104 expansion connector
WakeonLAN function supported
S
pecifications
General Functions
Chipset
Intel
®
GD 82559
Number
Three
Onboard remote boot ROM function supported (optional)
Mechanical and environment
Operating temperature
Board Size
32
to 140
(0
to 60
)
90mm (L) x 96mm (W)
PCM-3724
48-channel DIO Module
I
ntroduction
48 digital I/O lines
Channels simulate 8255 PPI mode 0
Buffered circuits for higher driving capacity than the 8255
Bit 0 of port C can generate an interrupt to IRQ 2 to 7
Interrupt triggering rising/falling edge
Output status readback
Pin-compatible with Opto-22 I/O module racks
Transfer rate: 300 Kb/sec typical, 400 Kb/sec. Maximum
Digital output: Logic level 0: 0.5V max@ 24 mA sink
Digital input: Logic level 0 : 0.8V max
Logic level 1 : 2.0V min
Power requirement: 90mA@5V (±5%)
8-7
All specifications are subject to change without notification.
