NJU7018V(TE1) datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> NJU7018V(TE1)

NJU7018V(TE1): DescriptionOperational Amplifier, 2 Func, 10000uV Offset-Max, CMOS, PDSO8, SSOP-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size94KB，4 Pages; ManufacturerNew Japan Radio Co., Ltd..; Environmental Compliance

Download Datasheet Parametric Compare View All

NJU7018V(TE1) Overview

Operational Amplifier, 2 Func, 10000uV Offset-Max, CMOS, PDSO8, SSOP-8

NJU7018V(TE1) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	New Japan Radio Co., Ltd..
Parts packaging code	SOIC
package instruction	LSSOP,
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Nominal Common Mode Rejection Ratio	65 dB
Maximum input offset voltage	10000 µV
JESD-30 code	R-PDSO-G8
JESD-609 code	e6
length	4.4 mm
Number of functions	2
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.45 mm
Nominal slew rate	3.7 V/us
Supply voltage upper limit	7 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN BISMUTH
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	1000 kHz
width	3.5 mm

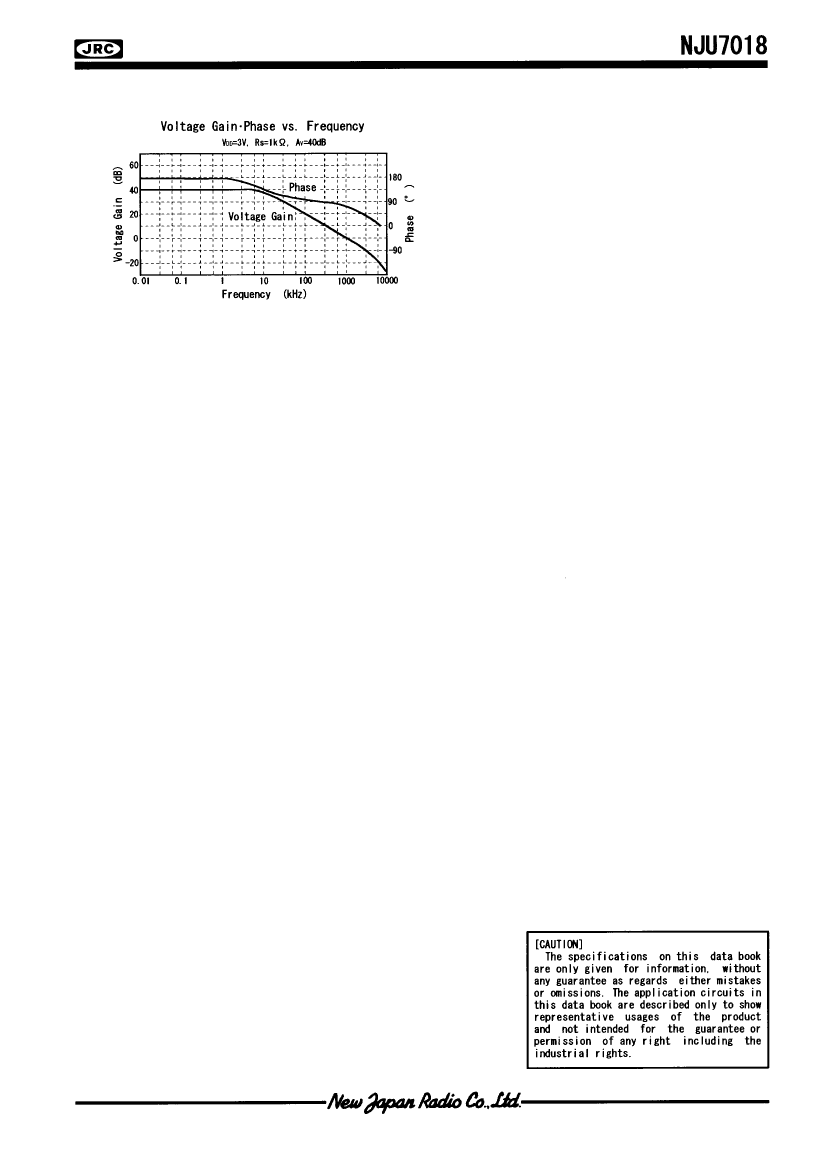

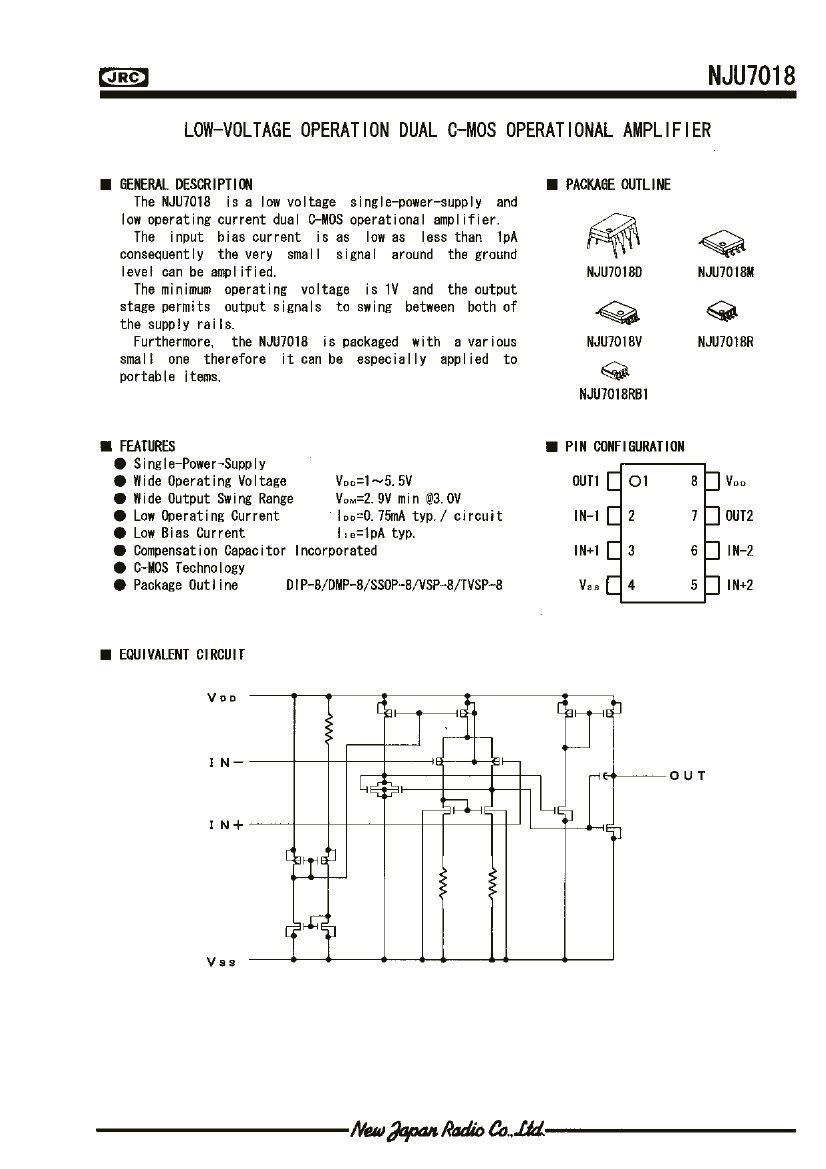

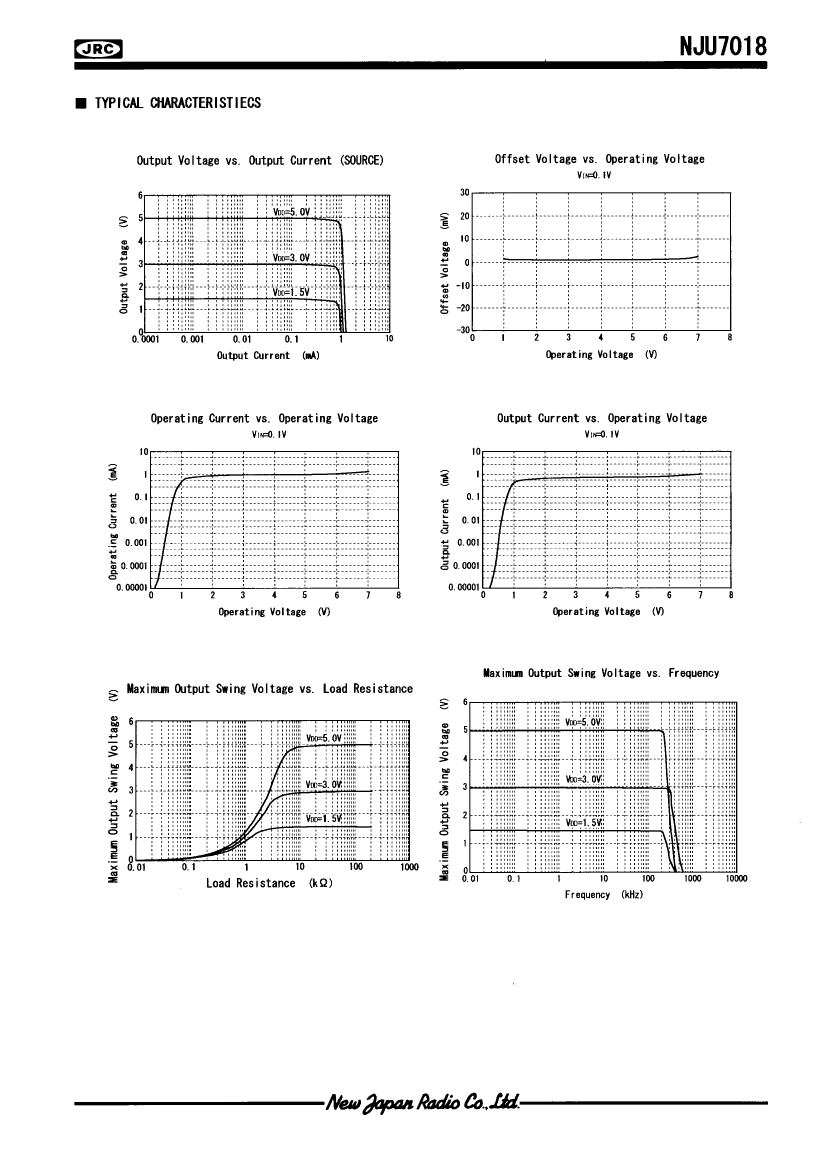

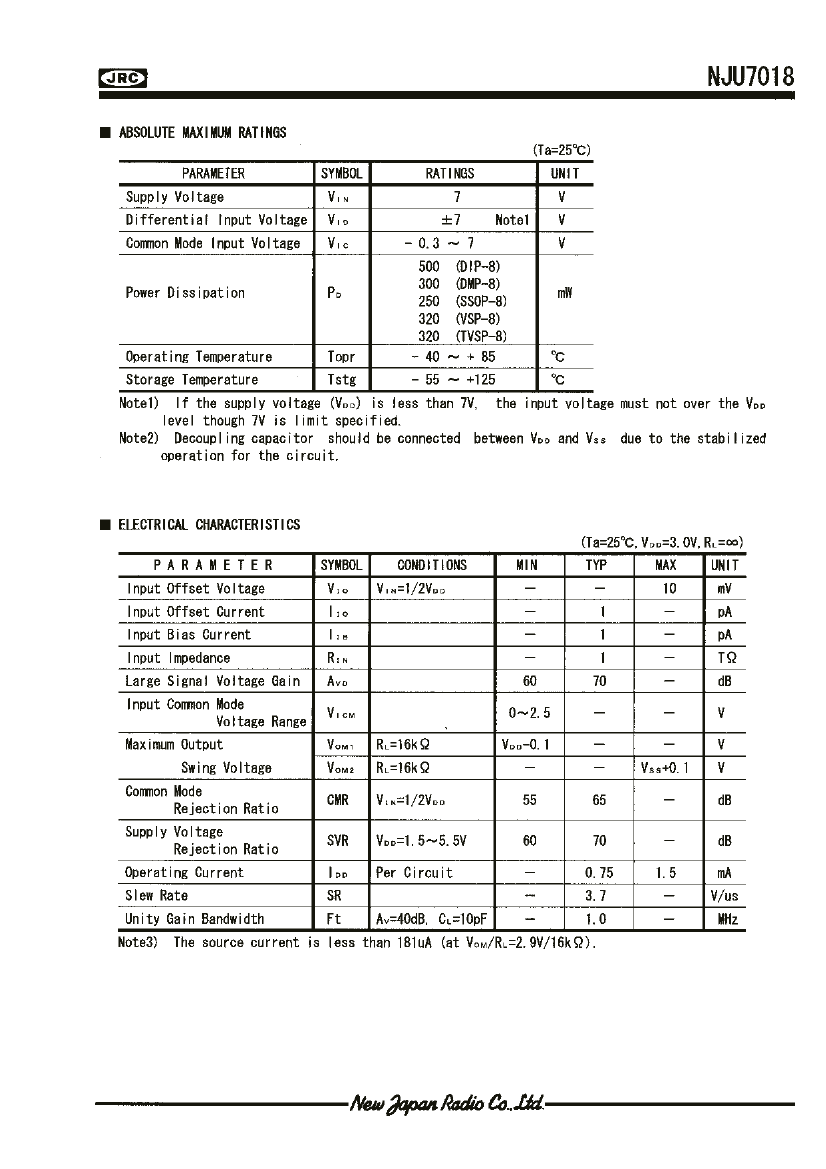

Preview

Download Datasheet

View All

NJU7018V(TE1) Related Products

	NJU7018V(TE1)	580	NJU7018M(TE1)	58113-3	NJU7018M(TE3)	NJU7018R(TE2)	NJU7018M(T1)	NJU7018M(TE4)	NJU7018M(T2)	NJU7018M(TE2)
Description	Operational Amplifier, 2 Func, 10000uV Offset-Max, CMOS, PDSO8, SSOP-8	High reliability	Operational Amplifier, 2 Func, 10000uV Offset-Max, CMOS, PDSO8, DMP-8	Extraction Tool	Operational Amplifier, 2 Func, 10000uV Offset-Max, CMOS, PDSO8, DMP-8	Operational Amplifier, 2 Func, 10000uV Offset-Max, CMOS, PDSO8, VSP-8	Operational Amplifier, 2 Func, 10000uV Offset-Max, CMOS, PDSO8, DMP-8	Operational Amplifier, 2 Func, 10000uV Offset-Max, CMOS, PDSO8, DMP-8	Operational Amplifier, 2 Func, 10000uV Offset-Max, CMOS, PDSO8, DMP-8	Operational Amplifier, 2 Func, 10000uV Offset-Max, CMOS, PDSO8, DMP-8
Is it lead-free?	Lead free	-	Lead free	-	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	-	conform to	-	conform to	conform to	conform to	conform to	conform to	conform to
Maker	New Japan Radio Co., Ltd..	-	New Japan Radio Co., Ltd..	-	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..
Parts packaging code	SOIC	-	SOIC	-	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	LSSOP,	-	SOP,	-	SOP,	LSSOP,	SOP,	SOP,	SOP,	SOP,
Contacts	8	-	8	-	8	8	8	8	8	8
Reach Compliance Code	compliant	-	compliant	-	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	-	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	-	OPERATIONAL AMPLIFIER	-	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Nominal Common Mode Rejection Ratio	65 dB	-	65 dB	-	65 dB	65 dB	65 dB	65 dB	65 dB	65 dB
Maximum input offset voltage	10000 µV	-	10000 µV	-	10000 µV	10000 µV	10000 µV	10000 µV	10000 µV	10000 µV
JESD-30 code	R-PDSO-G8	-	S-PDSO-G8	-	S-PDSO-G8	R-PDSO-G8	S-PDSO-G8	S-PDSO-G8	S-PDSO-G8	S-PDSO-G8
JESD-609 code	e6	-	e6	-	e6	e6	e6	e6	e6	e6
length	4.4 mm	-	5 mm	-	5 mm	2.9 mm	5 mm	5 mm	5 mm	5 mm
Number of functions	2	-	2	-	2	2	2	2	2	2
Number of terminals	8	-	8	-	8	8	8	8	8	8
Maximum operating temperature	85 °C	-	85 °C	-	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	-	SOP	-	SOP	LSSOP	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	-	SQUARE	-	SQUARE	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	-	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	-	260	-	260	260	260	260	260	260
Certification status	Not Qualified	-	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.45 mm	-	2 mm	-	2 mm	1.4 mm	2 mm	2 mm	2 mm	2 mm
Nominal slew rate	3.7 V/us	-	3.7 V/us	-	3.7 V/us	3.7 V/us	3.7 V/us	3.7 V/us	3.7 V/us	3.7 V/us
Supply voltage upper limit	7 V	-	7 V	-	7 V	7 V	7 V	7 V	7 V	7 V
Nominal supply voltage (Vsup)	3 V	-	3 V	-	3 V	3 V	3 V	3 V	3 V	3 V
surface mount	YES	-	YES	-	YES	YES	YES	YES	YES	YES
technology	CMOS	-	CMOS	-	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	-	INDUSTRIAL	-	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN BISMUTH	-	TIN BISMUTH	-	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH
Terminal form	GULL WING	-	GULL WING	-	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	-	1.27 mm	-	1.27 mm	0.65 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	-	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	1000 kHz	-	1000 kHz	-	1000 kHz	1000 kHz	1000 kHz	1000 kHz	1000 kHz	1000 kHz
width	3.5 mm	-	5 mm	-	5 mm	2.8 mm	5 mm	5 mm	5 mm	5 mm
