H-25871 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> H-25871

H-25871: DescriptionPOWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.221A (COIL), 26.5VDC (COIL), 5856.5mW (COIL), 10A (CONTACT), 50000VDC (CONTACT), PANEL MOUNT-THREADED; CategoryMechanical and electronic products relay; File Size359KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

H-25871 Overview

POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.221A (COIL), 26.5VDC (COIL), 5856.5mW (COIL), 10A (CONTACT), 50000VDC (CONTACT), PANEL MOUNT-THREADED

H-25871 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum coil current (DC)	0.221 A
Coil operating voltage (DC)	16 V
Coil power	5856.5 mW
Coil release voltage (DC)	10 V
Coil resistance	120 Ω
Maximum coil voltage (DC)	26.5 V
Coil/Input Power Type	DC
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@50000VDC
Maximum contact voltage (DC)	50000 V
Contact/Output Power Type	DC
Manufacturer's serial number	H-25
Installation features	PANEL MOUNT-THREADED
operating hours	60 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Relay action	MOMENTARY
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
release time	60 ms
surface mount	NO
Termination type	WIRE

Preview

Download Datasheet

View All

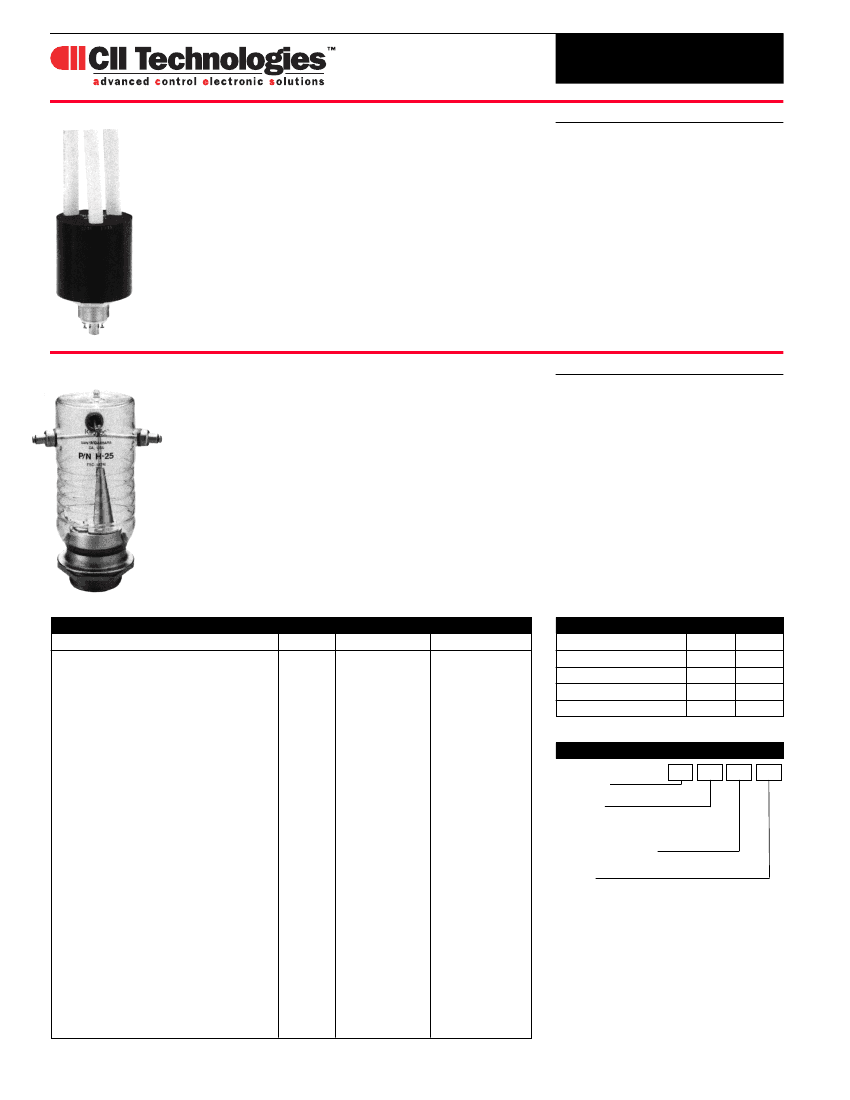

50 kV

Kilovac K64C

Make Only

Features:

SF-6 gas-filled relay ideal for high voltage

isolation or "make only" power switching

50 kV rating in compact package

High voltage leads and encapsulation allow

full operation in air

Kilovac H-25

Make & Break Load Switching

Features:

Vacuum relay provides low contact resistance

Vacuum dielectric for power switching low

current loads

Part Number

PRODUCT SPECIFICATIONS

K64C

Units

SPDT

H-25

SPDT

500

0.015

55-500

-55 to +85

0.5

COIL DATA

K64C

Nominal, Volts dc

Pickup, Volts dc, Maximum

Drop-Out, Volts dc

Coil Resistance (Ohms ±10%)

26.5

1 - 10

H-25

26.5

1 - 10

120

Contact Arrangement ..........................................................

Contact Form ........................................................................

Test Voltage (dc or 60Hz) ...................................................

Rated Operating Voltage .....................................................

dc or 60 Hz .....................................................................

2.5 MHz ...........................................................................

16 MHz ............................................................................

32 MHz ............................................................................

Continuous Carry Current , Maximum ...............................

dc or 60 Hz .....................................................................

2.5 MHz ...........................................................................

16 MHz ............................................................................

32 MHz ............................................................................

Coil Hi-Pot (V RMS, 60 Hz) ...........................................

Contact Capacitance ............................................................

Between Open Contacts .................................................

Open Contacts to Ground ..............................................

Contact Resistance, Maximum ...........................................

Operate Time, Maximum .....................................................

Release Time, Maximum .....................................................

Shock, 11 ms 1/2 Sine ........................................................

Vibration, 10 Gs Peak .........................................................

Operating Ambient Temperature Range ............................

Mechanical Life (Operations x 10 ) ....................................

kV Peak

Ratings listed are for 25°C, sea level conditions

PART NUMBER SELECTION

Sample Part Number

K64

Contact Form

C = SPDT

Coil Voltage

8 = 26.5 Vdc, Turret Terminal

High Voltage Connections

4 = Flying Leads, 12"

7 = Flying Leads, 72"

8 = Flying Leads, 36"

Mounting

1 = Threaded

Amps

500

ohms

Peak G's

1.0*

55-500

-55 to +85

Cycles

oz.

Weight, Nominal ..................................................................

* Contact resistance for gas-filled relays measured at 28 Vdc, 1 Amp.

CII Technologies

/ P.O. Box 4422 / Santa Barbara, CA 93140 /

805.684.4560 /

fax

805.684.9679

e-mail

info@kilovac.com /

website

www.ciitech.com
