NJM4151M-(TE4) datasheet, PDF - EEWORLD Datasheet

NJM4151M-(TE4): DescriptionVoltage to Frequency Converter, 1 Func, 0.01MHz, PDSO8, DMP-8; CategoryAnalog mixed-signal IC converter; File Size431KB，10 Pages; ManufacturerNew Japan Radio Co., Ltd..; Environmental Compliance

Download Datasheet Parametric Compare View All

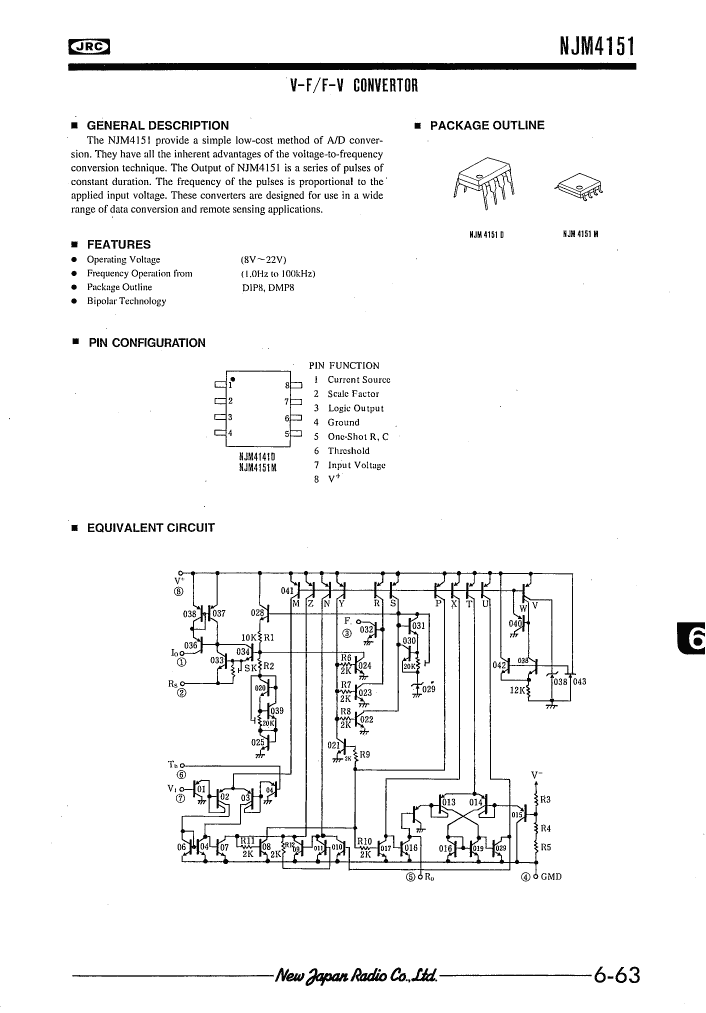

NJM4151M-(TE4) Overview

Voltage to Frequency Converter, 1 Func, 0.01MHz, PDSO8, DMP-8

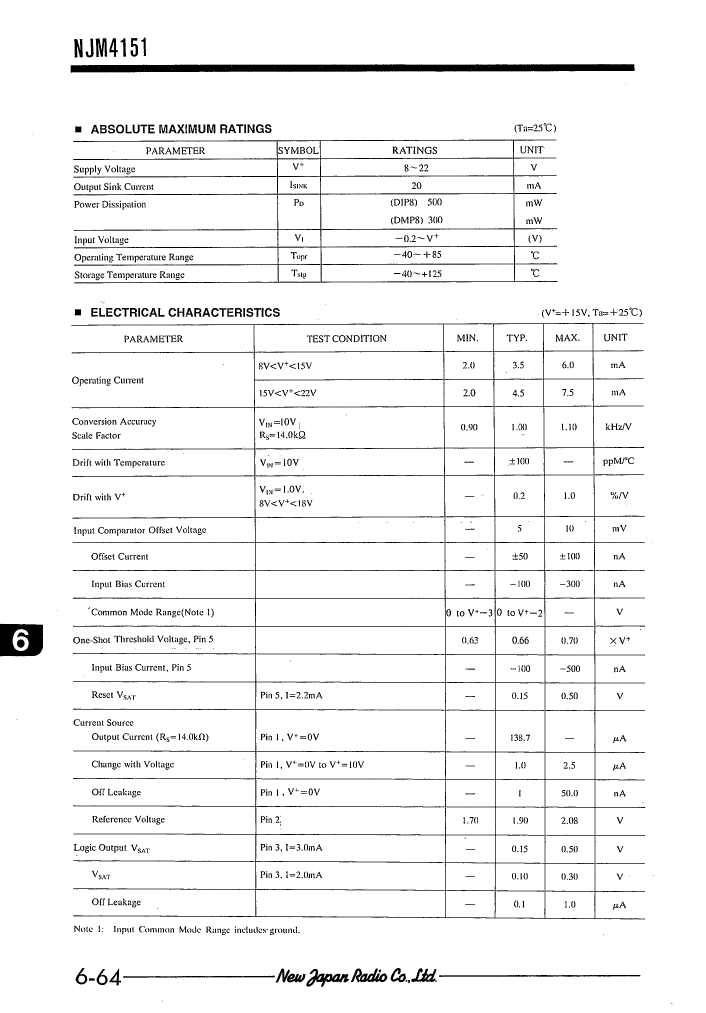

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	New Japan Radio Co., Ltd..
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Converter type	VOLTAGE TO FREQUENCY CONVERTER
JESD-30 code	S-PDSO-G8
JESD-609 code	e6
length	5 mm
Number of functions	1
Number of terminals	8
Maximum operating frequency	0.01 MHz
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	SQUARE
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Maximum positive input voltage	10 V
Certification status	Not Qualified
Maximum seat height	2 mm
Nominal supply voltage	15 V
surface mount	YES
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Bismuth (Sn/Bi)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5 mm

	NJM4151M-(TE4)	NJM4151M-(T1)	NJM4151M-(T2)	NJM4151M-(TE2)	NJM4151M-(TE1)	NJM4151M-(TE3)
Description	Voltage to Frequency Converter, 1 Func, 0.01MHz, PDSO8, DMP-8	Voltage to Frequency Converter, 1 Func, 0.01MHz, PDSO8, DMP-8	Voltage to Frequency Converter, 1 Func, 0.01MHz, PDSO8, DMP-8	Voltage to Frequency Converter, 1 Func, 0.01MHz, PDSO8, DMP-8	Voltage to Frequency Converter, 1 Func, 0.01MHz, PDSO8, DMP-8	Voltage to Frequency Converter, 1 Func, 0.01MHz, PDSO8, DMP-8
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	incompatible	incompatible
Maker	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	SOP,	SOP,	SOP,	SOP,	SOP,	SOP,
Contacts	8	8	8	8	8	8
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
