Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> NJM2059M-(TE1)

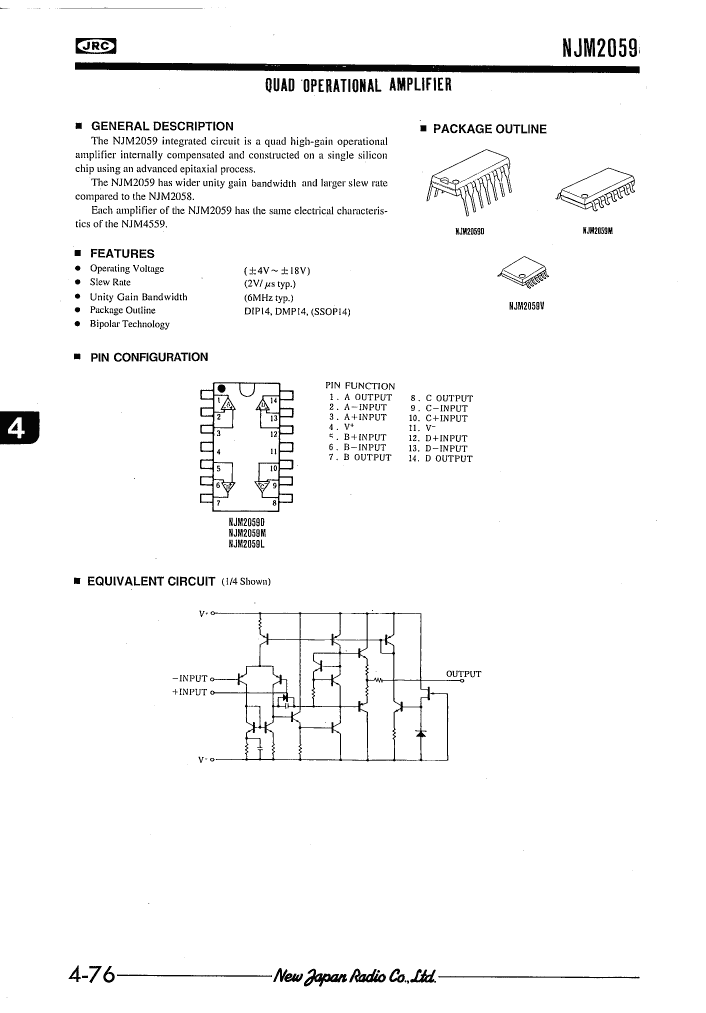

Preview

NJM2059M-(TE1): DescriptionOperational Amplifier, 4 Func, 6000uV Offset-Max, BIPolar, PDSO14, DMP-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size242KB，6 Pages; ManufacturerNew Japan Radio Co., Ltd..; Environmental Compliance

Download Datasheet Parametric Compare View All

NJM2059M-(TE1) Overview

Operational Amplifier, 4 Func, 6000uV Offset-Max, BIPolar, PDSO14, DMP-14

NJM2059M-(TE1) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	New Japan Radio Co., Ltd..
Parts packaging code	SOIC
package instruction	SOP,
Contacts	14
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.5 µA
Minimum Common Mode Rejection Ratio	70 dB
Nominal Common Mode Rejection Ratio	90 dB
Maximum input offset voltage	6000 µV
JESD-30 code	R-PDSO-G14
JESD-609 code	e6
length	10 mm
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	4
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	2 mm
Nominal slew rate	2 V/us
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	TIN BISMUTH
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	6000 kHz
Minimum voltage gain	19952.6
width	5 mm

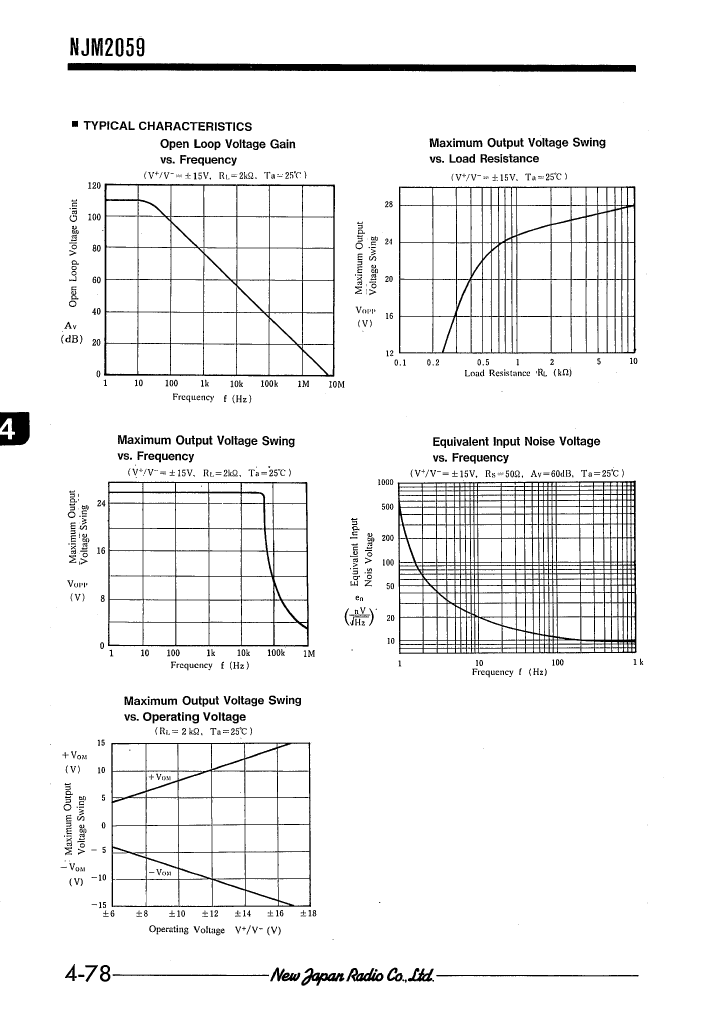

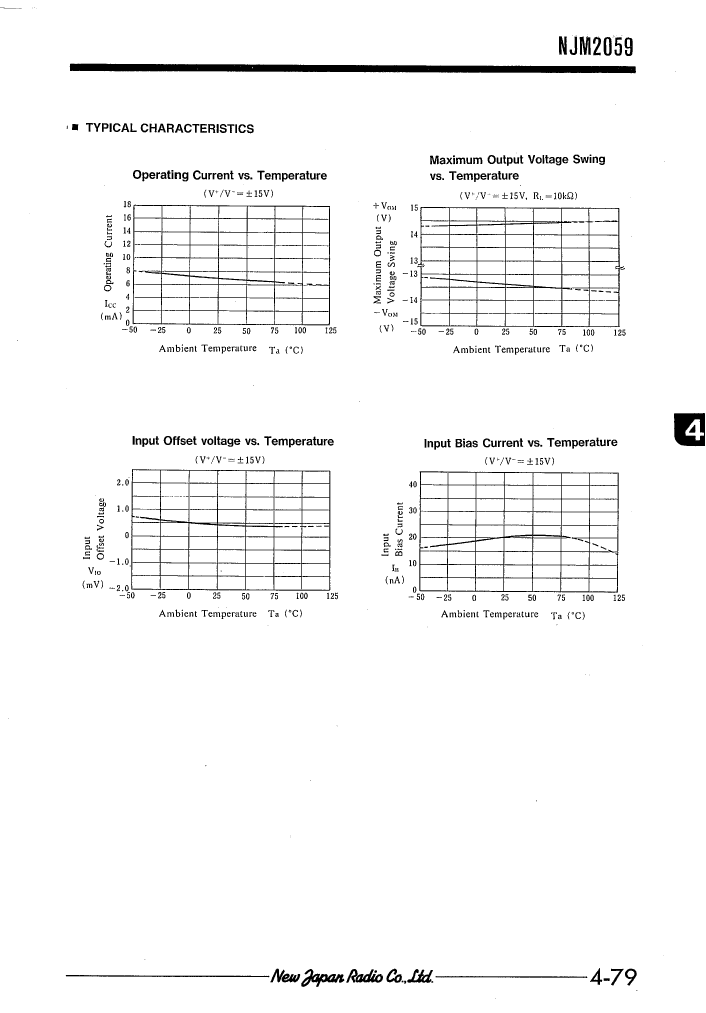

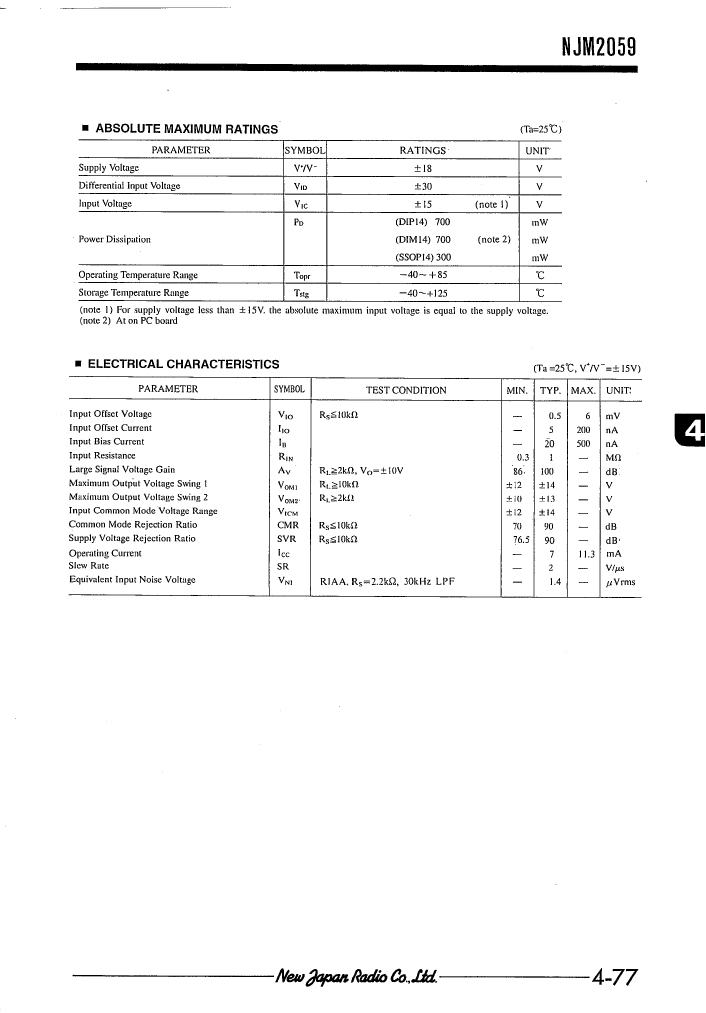

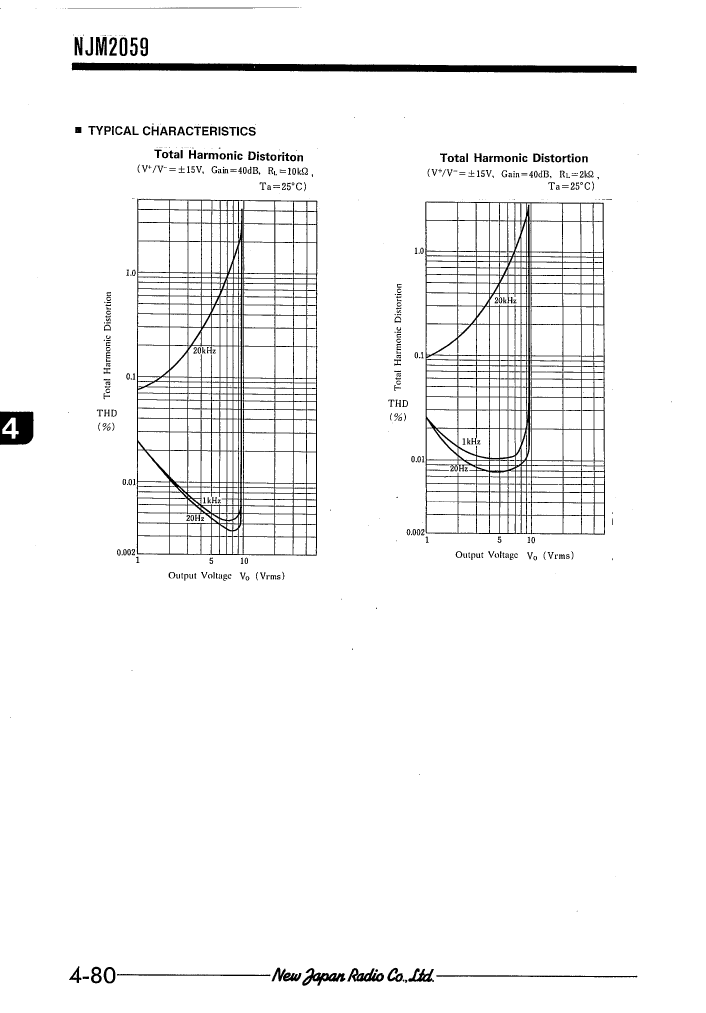

Preview

Download Datasheet

View All

NJM2059M-(TE1) Related Products

	NJM2059M-(TE1)	NJM2059V-(TE2)	NJM2059V-(TE1)	NJM2059M-(TE2)	NJM2059M-(T1)	NJM2059M-(T2)
Description	Operational Amplifier, 4 Func, 6000uV Offset-Max, BIPolar, PDSO14, DMP-14	Operational Amplifier, 4 Func, 6000uV Offset-Max, BIPolar, PDSO14, SSOP-14	Operational Amplifier, 4 Func, 6000uV Offset-Max, BIPolar, PDSO14, SSOP-14	Operational Amplifier, 4 Func, 6000uV Offset-Max, BIPolar, PDSO14, DMP-14	Operational Amplifier, 4 Func, 6000uV Offset-Max, BIPolar, PDSO14, DMP-14	Operational Amplifier, 4 Func, 6000uV Offset-Max, BIPolar, PDSO14, DMP-14
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..
Parts packaging code	SOIC	SSOP	SSOP	SOIC	SOIC	SOIC
package instruction	SOP,	LSSOP,	LSSOP,	SOP,	SOP,	SOP,
Contacts	14	14	14	14	14	14
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.5 µA	0.5 µA	0.5 µA	0.5 µA	0.5 µA	0.5 µA
Minimum Common Mode Rejection Ratio	70 dB	70 dB	70 dB	70 dB	70 dB	70 dB
Nominal Common Mode Rejection Ratio	90 dB	90 dB	90 dB	90 dB	90 dB	90 dB
Maximum input offset voltage	6000 µV	6000 µV	6000 µV	6000 µV	6000 µV	6000 µV
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
JESD-609 code	e6	e6	e6	e6	e6	e6
length	10 mm	5 mm	5 mm	10 mm	10 mm	10 mm
Negative supply voltage upper limit	-18 V	-18 V	-18 V	-18 V	-18 V	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	4	4	4	4	4	4
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	LSSOP	LSSOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2 mm	1.45 mm	1.45 mm	2 mm	2 mm	2 mm
Nominal slew rate	2 V/us	2 V/us	2 V/us	2 V/us	2 V/us	2 V/us
Supply voltage upper limit	18 V	18 V	18 V	18 V	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	YES	YES	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.65 mm	0.65 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	6000 kHz	6000 kHz	6000 kHz	6000 kHz	6000 kHz	6000 kHz
Minimum voltage gain	19952.6	19952.6	19952.6	19952.6	19952.6	19952.6
width	5 mm	4.4 mm	4.4 mm	5 mm	5 mm	5 mm
