Part Number

Search

51939-098

Description
Board Connector, 36 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size200KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

51939-098 Overview

Board Connector, 36 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

51939-098 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresTERMINAL PITCH FOR POWER CONTACTS: 5.08 MM
body width0.574 inch
subject depth0.93 inch
body length3.7 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact arrangementS24P12
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
Contact resistance20 mΩ
Contact styleHYBRID
DIN complianceNO
Dielectric withstand voltage2500VDC V
Durability200 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.973 N
Insulation resistance500000000 Ω
insulator materialGLASS FILLED THERMOPLASTIC
MIL complianceNO
Manufacturer's serial number51939
Mixed contactsYES
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
Number of rows loaded4
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.135 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts36
UL Flammability Code94V-0
Evacuation force-minimum value.1668 N

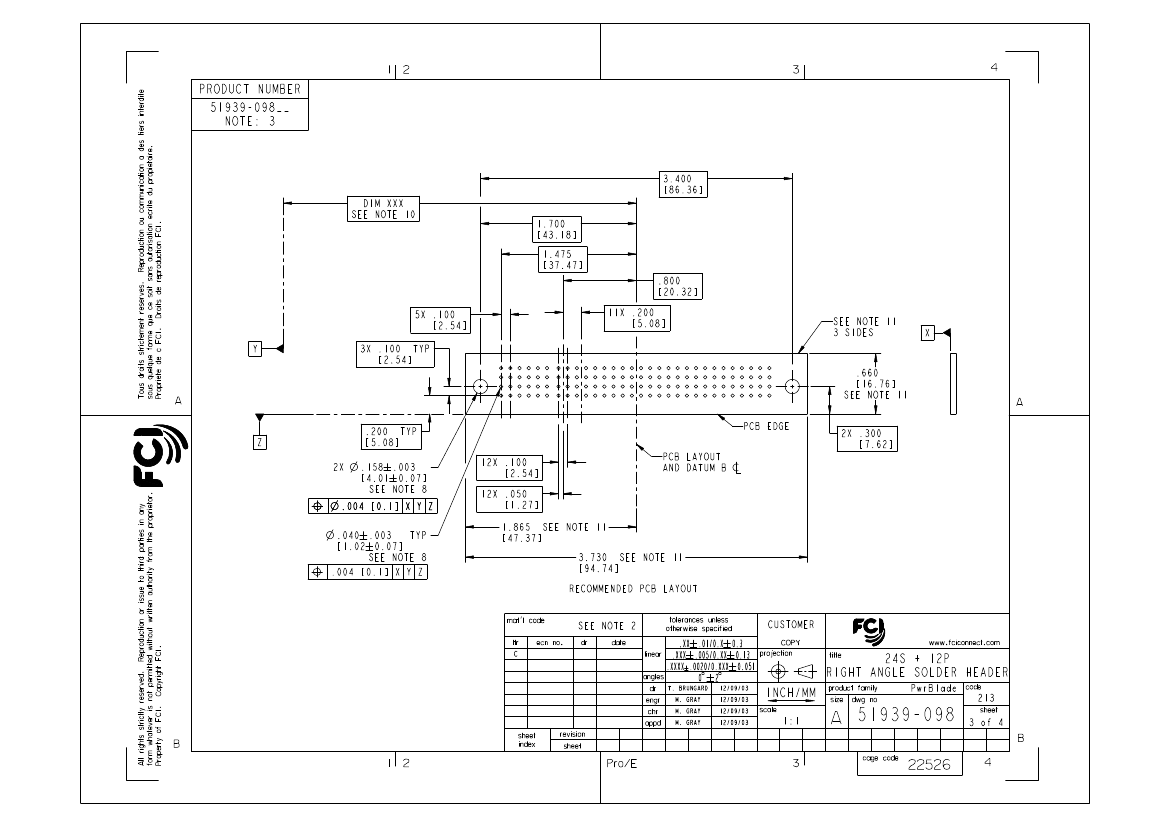

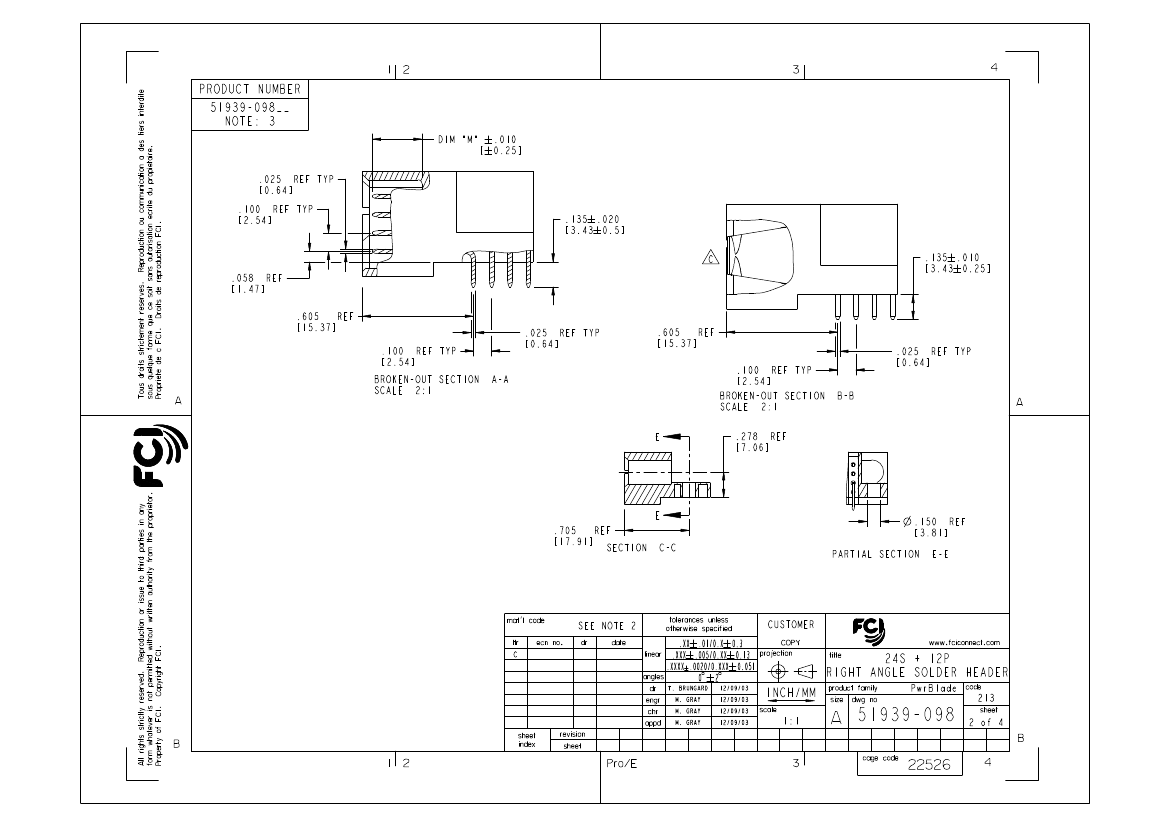

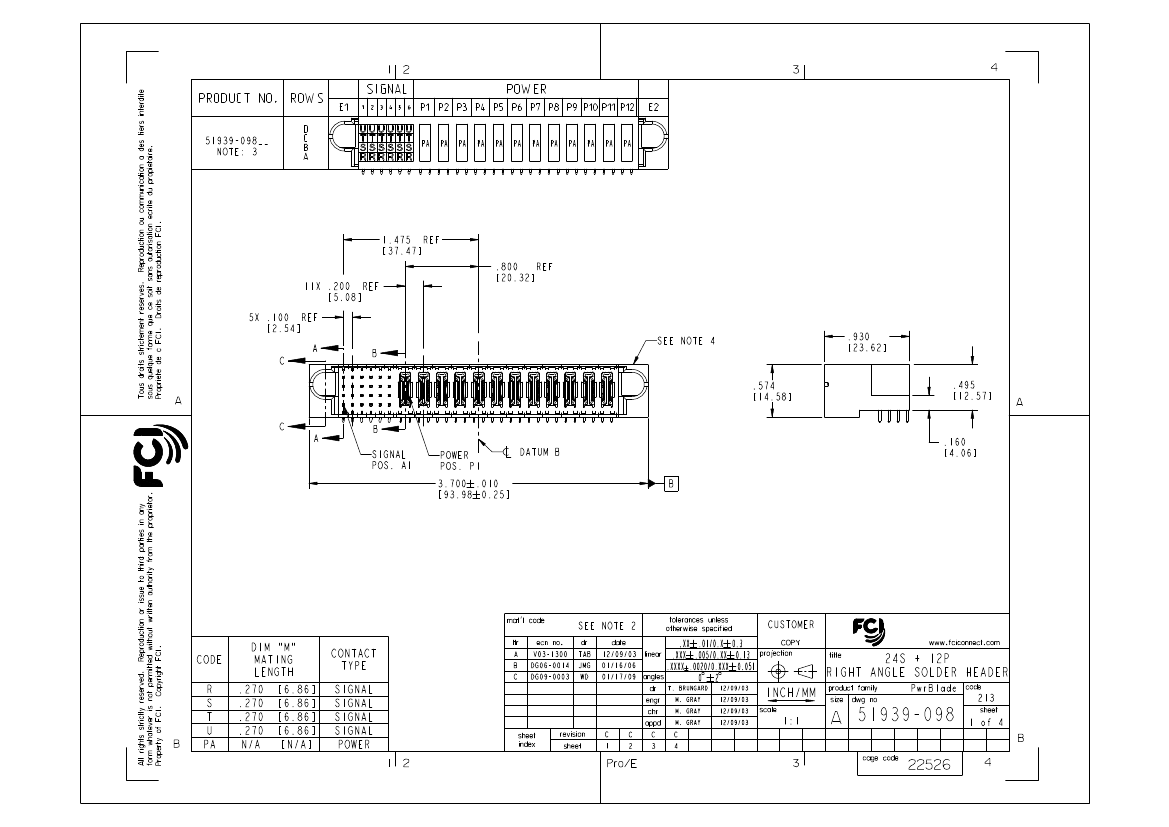

PDM: Rev:C
STATUS:
Released
Printed: Dec 20, 2010
.

51939-098 Related Products

51939-098 51939-098LF
Description Board Connector, 36 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle PwrBlade®, Power Connectors, 24S 12P Right Angle Header, Solder To Board
Is it Rohs certified? incompatible conform to
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Other features TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM
body width 0.574 inch 0.574 inch
subject depth 0.93 inch 0.93 inch
body length 3.7 inch 3.7 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact arrangement S24P12 S24P12
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED
Contact point gender MALE MALE
Contact material NOT SPECIFIED COPPER ALLOY
Contact resistance 20 mΩ 20 mΩ
Contact style HYBRID HYBRID
DIN compliance NO NO
Dielectric withstand voltage 2500VDC V 2500VDC V
Durability 200 Cycles 200 Cycles
Filter function NO NO
IEC compliance NO NO
maximum insertion force .973 N .973 N
Insulation resistance 500000000 Ω 500000000 Ω
insulator material GLASS FILLED THERMOPLASTIC GLASS FILLED POLYETHYLENE
MIL compliance NO NO
Mixed contacts YES YES
Installation option 1 LOCKING LOCKING
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
Number of connectors ONE ONE
Number of rows loaded 4 4
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE
Guideline UL UL
Terminal length 0.135 inch 0.135 inch
Terminal pitch 2.54 mm 2.54 mm
Termination type SOLDER SOLDER
Total number of contacts 36 36
UL Flammability Code 94V-0 94V-0
Evacuation force-minimum value .1668 N .1668 N
